2013 JEEP GRAND CHEROKEE traction control

The “ESC Activation/Malfunction Indicator Light” (lo-
cated in the instrument cluster) starts to flash as soon as
the tires lose traction and the ESC system becomes active.
The “ESC Activation/Malfunction Indicator Light” also
flashes when TCS is active. If the “ESC Activation/
Malfunction Indicator Light” begins to flash during ac-
celeration, ease up on the accelerator and apply as little
throttle as possible. Be sure to adapt your speed and
driving to the prevailing road conditions.
NOTE:
•The “ESC Activation/Malfunction Indicator Light”
and the “ESC OFF Indicator Light” come on momen-
tarily each time the ignition switch is turned ON. •
Each time the ignition is turned ON, the ESC system
will be ON even if it was turned off previously.
• The ESC system will make buzzing or clicking sounds
when it is active. This is normal; the sounds will stop
when ESC becomes inactive following the maneuver
that caused the ESC activation.
The “ESC OFF Indicator Light” indicates the
Electronic Stability Control (ESC) is off.
482 STARTING AND OPERATING

WARNING!(Continued)
•Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size
may result in false speedometer and odometer read-
ings.
TIRE ROTATION RECOMMENDATIONS
The tires on the front and rear of your vehicle operate at
different loads and perform different steering, handling,
and braking functions. For these reasons, they wear at
unequal rates. These effects can be reduced by timely rotation of tires.
The benefits of rotation are especially worthwhile with
aggressive tread designs such as those on On/Off-Road
type tires. Rotation will increase tread life, help to main-
tain mud, snow, and wet traction levels, and contribute to
a smooth, quiet ride.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals. More frequent rotation is permis-
sible if desired. The reasons for any rapid or unusual
wear should be corrected prior to rotation being per-
formed.
NOTE:
The premium Tire Pressure Monitor System will
automatically locate the pressure values displayed in the
correct vehicle position following a tire rotation.
504 STARTING AND OPERATING

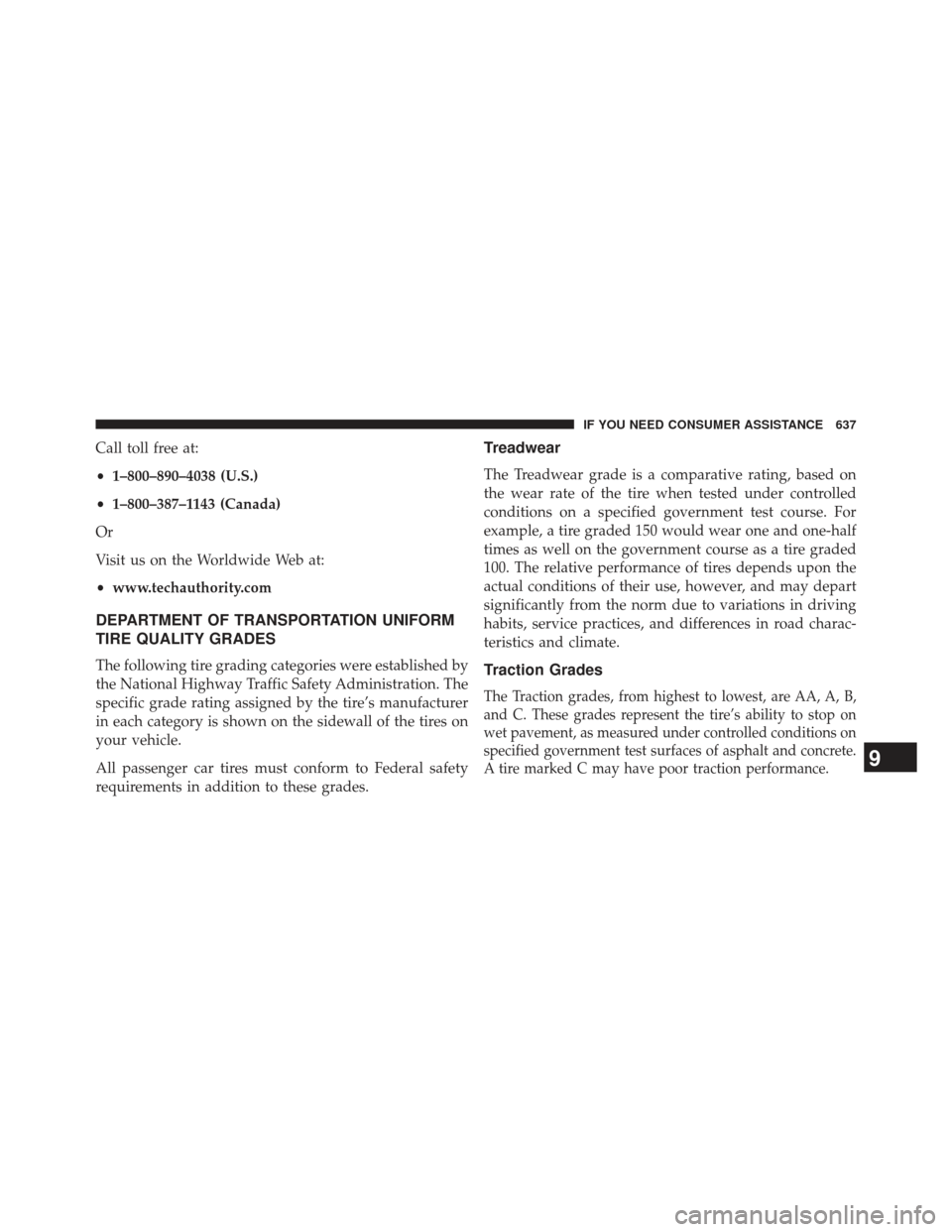

Call toll free at:
•1–800–890–4038 (U.S.)
• 1–800–387–1143 (Canada)
Or
Visit us on the Worldwide Web at:
• www.techauthority.com
DEPARTMENT OF TRANSPORTATION UNIFORM
TIRE QUALITY GRADES
The following tire grading categories were established by
the National Highway Traffic Safety Administration. The
specific grade rating assigned by the tire’s manufacturer
in each category is shown on the sidewall of the tires on
your vehicle.
All passenger car tires must conform to Federal safety
requirements in addition to these grades.
Treadwear
The Treadwear grade is a comparative rating, based on
the wear rate of the tire when tested under controlled
conditions on a specified government test course. For
example, a tire graded 150 would wear one and one-half
times as well on the government course as a tire graded
100. The relative performance of tires depends upon the
actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving
habits, service practices, and differences in road charac-
teristics and climate.
Traction Grades
The Traction grades, from highest to lowest, are AA, A, B,
and C. These grades represent the tire’s ability to stop on
wet pavement, as measured under controlled conditions on
specified government test surfaces of asphalt and concrete.
A tire marked C may have poor traction performance.
9
IF YOU NEED CONSUMER ASSISTANCE 637

WARNING!
The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not
include acceleration, cornering, hydroplaning, or
peak traction characteristics.
Temperature Grades
The temperature grades are A (the highest), B, and C,
representing the tire’s resistance to the generation of heat
and its ability to dissipate heat, when tested under
controlled conditions on a specified indoor laboratory
test wheel. Sustained high temperature can cause the
material of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire failure. The
grade C corresponds to a level of performance, which all
passenger car tires must meet under the Federal MotorVehicle Safety Standard No. 109. Grades B and A repre-
sent higher levels of performance on the laboratory test
wheel, than the minimum required by law.
WARNING!
The temperature grade for this tire is established for
a tire that is properly inflated and not overloaded.
Excessive speed, under-inflation, or excessive load-
ing, either separately or in combination, can cause
heat buildup and possible tire failure.
638 IF YOU NEED CONSUMER ASSISTANCE

Side Marker......................... .605
SmartBeams ......................... .203
Tire Pressure Monitoring (TPMS) ............318
Tow/Haul Indicator .....................317
Traction Control ....................... .481
Turn Signal ...........................116
Vanity Mirror ........................ .128
Loading Vehicle ......................... .521
Tires ............................... .489
Locks ..................................32
Automatic Door ........................34
Child Protection ........................34
Door ................................32
Power Door ...........................33
Lubrication, Body ........................ .572
Maintenance Free Battery ....................568
Maintenance Procedures ....................563
Maintenance Schedule ..................... .612Malfunction Indicator Light (Check Engine)
.......315
Manual, Service ......................... .636
Memory Feature (Memory Seat) ...............193
Memory Seat ........................... .193
Memory Seats and Radio ....................193
Methanol .............................. .514
Mini-Trip Computer ...................... .344
Mirrors ............................... .124
Automatic Dimming ....................125
Electric Powered ...................... .127
Electric Remote ....................... .127
Exterior Folding ....................... .126
Heated ............................. .128
Outside ............................. .126
Rearview ........................... .124
Vanity .............................. .128
Mode Fuel Saver ........................... .342
Modifications/Alterations, Vehicle ...............8
10
INDEX 649

Inflation Pressures..................... .495
Life of Tires .......................... .502
Load Capacity ........................ .489
Pressure Monitor System (TPMS) ...........505
Pressure Warning Light ..................318
Quality Grading ...................... .637
Radial .............................. .497
Replacement ......................... .502
Rotation ............................ .504
Safety .............................. .483
Sizes ............................... .485
Spare Tire ........................... .539
Spinning ............................ .500
Tread Wear Indicators ...................501
Tire Safety Information .....................483
Tongue Weight/Trailer Weight ................528
Tow/Haul Indicator Light ...................317
Tow Hooks, Emergency .....................553
Towing ............................... .52324-Hour Towing Assistance
................152
Behind a Motorhome ....................534
Disabled Vehicle ...................... .555
Guide .............................. .527
Recreational ......................... .534
Weight ............................. .527
Towing Assistance ........................ .152
Towing Vehicle Behind a Motorhome ...........534
Traction Control ......................... .474
Trailer Sway Control (TSC) ..................480
Trailer Towing .......................... .523
Cooling System Tips ....................534
Hitches ............................. .526
Minimum Requirements ..................529
Trailer and Tongue Weight ................528
T

railer Towing Guide ...................... .527
Trailer Weight ........................... .527
Transfer Case ........................... .586
Maintenance ......................... .586
10
INDEX 655
