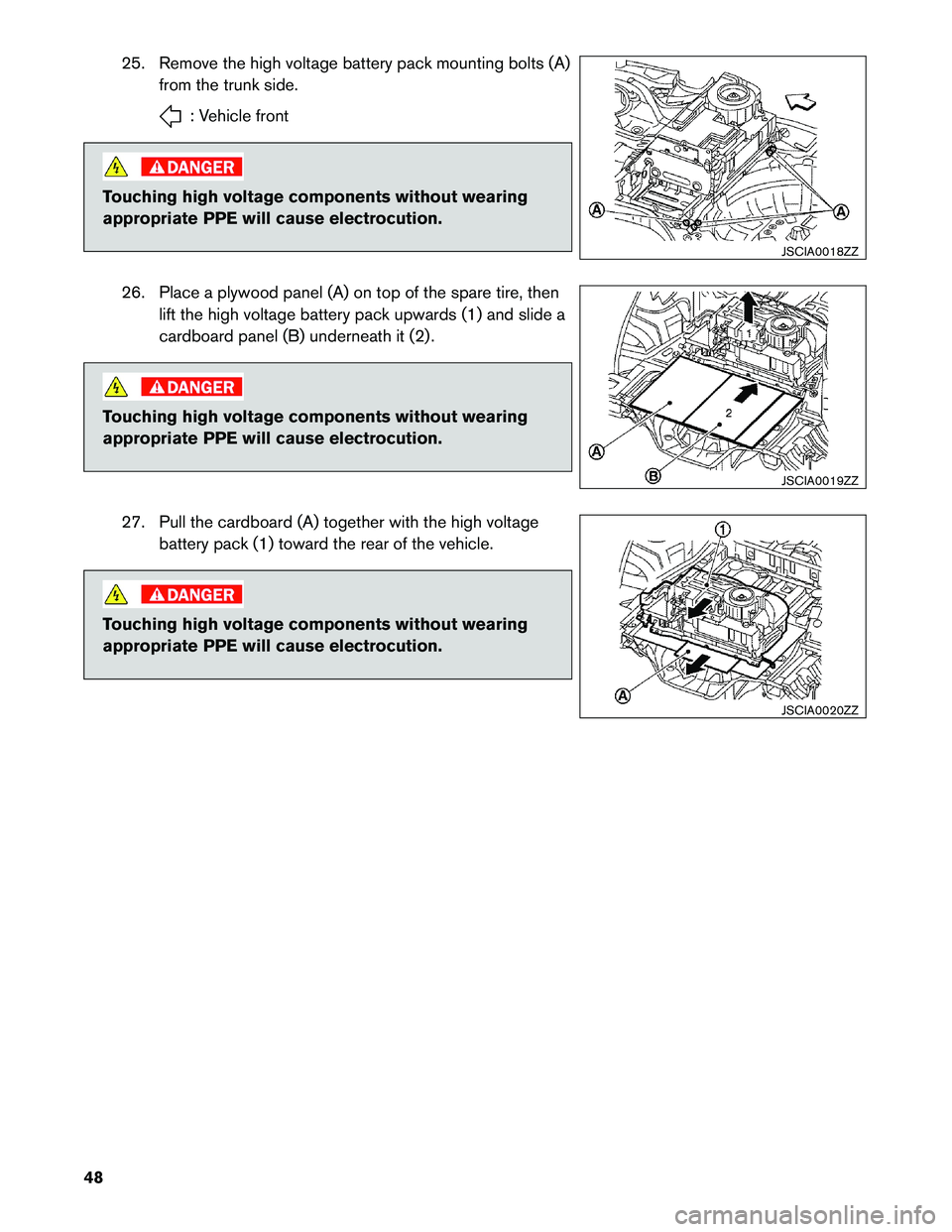

25. Remove the high voltage battery pack mounting bolts (A)
from the trunk side. : Vehicle front
Touching high voltage components without wearing
appropriate
PPE will cause electrocution.
26. Place a plywood panel (A) on top of the spare tire, then lift the high voltage battery pack upwards (1) and slide a
cardboard panel (B) underneath it (2) . Touching high voltage components without wearing
appropriate
PPE will cause electrocution.
27. Pull the cardboard (A) together with the high voltage battery pack (1) toward the rear of the vehicle. Touching high voltage components without wearing
appropriate
PPE will cause electrocution. JSCIA0018ZZ
JSCIA0019ZZ
JSCIA0020ZZ
48
