2013 INFINITI M-HEV bluetooth

SAA2575
PAIRING PROCEDURE
Up to 5 cellular phones can be registered.
1. Push the
button on the steering
wheel. The system announces the
available commands.
2. Speak: “Connect Phone”. The system
acknowledges the command and an-
nounces the next set of available
commands.
SAA2576
3. Speak: “Add Phone”. The system ac-
knowledges the command and asks
you to initiate connecting from the
phone handset.
INFO:
The Add Phone command is not avail-
able when the vehicle is moving.
SAA2577
4. When asked to enter a PIN code to connect a Bluetooth®cellular phone,
enter the code “1234”.
The code is always “1234”regardless
of the number of phones paired.
The connecting procedure of a cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for more information.
Monitor, climate, audio, phone and voice recognition systems4-105

4-108Monitor, climate, audio, phone and voice recognition systems
call.
. “Mute on/off”— Use the Mute com-
mand to mute the user’s voice so the
other party cannot hear it.
Use the mute command again to
unmute the user’s voice.
. “Transfer Handset”— Use the Transfer
Handset command to transfer the call
from the Bluetooth
®Hands-Free Phone
System to a cellular phone when
privacy is desired. The system an-
nounces, “Transfer Handset. The call
is transferred to the handset only.” The
system then ends the VR session.
The Transfer Call command can also be
issued again to return to a hands-free
call through the vehicle.
. “Help”— The system announces the
available commands.
NOTE:
If the other party ends the call or the
cellular phone network connection is lost
while the Mute feature is on, the Mute
feature may need to be reset to “off.”
SAA2582
PHONE SETTINGS
Call
.(a name)
If there are entries stored in the Phone
Book, a number associated with a
name and location can be dialed. See
“Phone book registration” in this sec-
tion to learn how to store entries. When
prompted by the system, say the name
of the phone book entry to call.
The system acknowledges the name. If
there are multiple locations associated
with the name, the system asks the
user to choose the location. Once the name and location are con-
firmed, the system begins the call.
. Number
When prompted by the system, speak
the number to call.
. Redial
Use the Redial command to call the last
number of outgoing calls. The system
acknowledges the command, repeats
the number and begins dialing. If a
redial number does not exist, the
system announces, “There is no num-
ber to redial” and ends the VR session.
. Callback
Use the Callback command to call the
last number in incoming calls. The
system acknowledges the command,
repeats the number and begins dialing.
If an incoming call number does not
exist, the system announces, “There is
no number to call back” and ends the
VR session.
. Help
The system announces the available
commands.

SAA2583
Phonebook
.(a name)
Use the name command to seek the
name and locations registered in the
phonebook in alphabetical order. When
the system acknowledges the alphabet
the user spoke, the system announces
all registered names and locations
beginning with that alphabet.
Playback of the list can be stopped at
any time by pressing a button on the
steering wheel. The system ends the VR
session. .
List Names
Use the List Names command to hear
the names and locations registered in
the phonebook. When the system
acknowledges the command, the sys-
tem announces all voicetags registered
in the system.
Playback of the list can be stopped at
any time by pressing a button on the
steering wheel. The system ends the VR
session.
. Transfer Entry
Use the Transfer Entry command to
transfer the phonebook data stored in a
cellular phone to the system.
The system acknowledges the com-
mand and asks the user to initiate a
transfer from the phone handset. The
new contact phone number will be
transferred from the cellular phone via
a Bluetooth
®communication link.
The transfer procedure varies according
to each cellular phone. See the cellular
phone Owner’s Manual for more infor-
mation. The system repeats the number
and prompts the user for the next
command. After entering numbers,
choose “Store.”
The system confirms the name, location and number. The system then asks if
the user would like to store another
location for the same name. If the user
does not wish to store another location,
the system ends the VR session.
. Delete Entry
Use the Delete Entry command to
delete a specific number or all numbers
in the phonebook. The system an-
nounces the names of the phone
numbers already stored in the system.
The system then gives the option to
delete a specific number or all num-
bers. Once the user chooses to delete a
number or all numbers, the system
asks the user to confirm.
. Help
The system announces the available
commands.
Monitor, climate, audio, phone and voice recognition systems4-109

4-110Monitor, climate, audio, phone and voice recognition systems

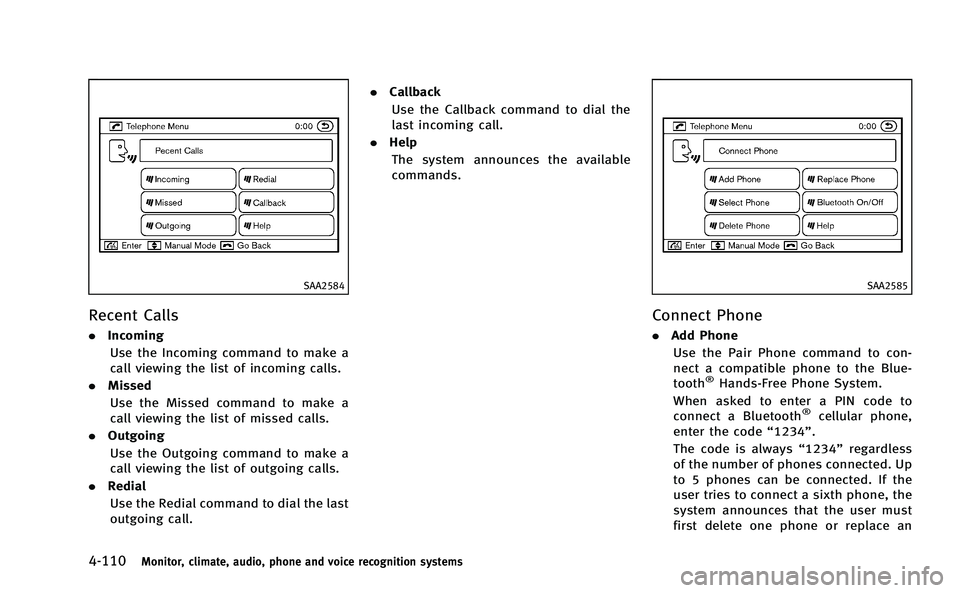

SAA2584
Recent Calls
.Incoming
Use the Incoming command to make a
call viewing the list of incoming calls.
. Missed
Use the Missed command to make a
call viewing the list of missed calls.
. Outgoing
Use the Outgoing command to make a
call viewing the list of outgoing calls.
. Redial
Use the Redial command to dial the last
outgoing call. .
Callback
Use the Callback command to dial the
last incoming call.
. Help
The system announces the available
commands.
SAA2585
Connect Phone
. Add Phone
Use the Pair Phone command to con-
nect a compatible phone to the Blue-
tooth
®Hands-Free Phone System.
When asked to enter a PIN code to
connect a Bluetooth
®cellular phone,
enter the code “1234”.
The code is always “1234”regardless
of the number of phones connected. Up
to 5 phones can be connected. If the
user tries to connect a sixth phone, the
system announces that the user must
first delete one phone or replace an

existing phone. If the user tries to
connect a phone that has already been
connected to the vehicle system, the
system announces the name that the
phone is already using. The connecting
procedure will then be cancelled.
The Add Phone command is not avail-
able when the vehicle is moving.
. Select Phone
Use the Select Phone command to
select a phone of lesser priority when
two or more phones connected with
Bluetooth
®Hands-Free Phone System
are in the vehicle at the same time.
The system asks the user to name the
phone and confirm the selection.
Once the selection is confirmed, the
selected phone remains active until the
ignition switch is turned OFF or a new
phone is selected.
. Delete Phone
Use the Delete Phone command to
delete a specific phone or all phones
from Bluetooth
®Hands-Free Phone
System. The system announces the
names of the phones already paired
with the system and their priority level.
The system then gives the option to
delete a specific phone, all phones or listen to the list again. Once the user
chooses to delete a phone or all
phones, the system asks the user to
confirm.
NOTE:
When the user deletes a phone, the
associated phone book for that phone will
also be deleted.
. Replace Phone
Use the Replace Phone command to
change the priority level of the active
phone.
The priority level determines which
phone is active when more than one
paired Bluetooth
®phone is in the
vehicle.
The system states the priority level of
the active phone and asks for a new
priority level (1, 2, 3, 4, 5).
If the new priority level is already being
used for another phone, the two
phones will swap priority levels.
For example, if the current priority
levels are:
Priority Level 1 = Phone A
Priority Level 2 = Phone B
Priority Level 3 = Phone C and you change the priority level of
Phone C to Level 1, then:
Priority Level 1 = Phone C
Priority Level 2 = Phone B
Priority Level 3 = Phone A
. Bluetooth
®On/Off
Use the Bluetooth®On/Off command
to turn on/off Bluetooth®Hands-Free
Phone System.
. Help
The system announces the available
commands.
VOICE ADAPTATION MODE
The Voice Adaptation mode allows up to
two users with different dialects to train
the system to improve recognition accu-
racy. By repeating a number of commands,
the users can create a voice model of their
own voice that is stored in the system. The
system is capable of storing a different
voice adaptation model for each connected
phone.
Training procedure
1. Position the vehicle in a reasonably quiet outdoor location.
2. Sit in the driver’s seat with the hybrid system running, the parking brake on,
Monitor, climate, audio, phone and voice recognition systems4-111

Audio Commands:
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth
®audio player.
Monitor, climate, audio, phone and voice recognition systems4-131

4-140Monitor, climate, audio, phone and voice recognition systems
TROUBLESHOOTING GUIDE
The system should respond correctly to all voice commands without difficulty. If problems are encountered, follow the solutions given in
this guide for the appropriate error.
Where the solutions are listed by number, try each solution in turn, starting with number one, until the problem is resolved.
Symptom/error messageSolution
The system fails to interpret the command correctly. 1. Ensure that the command format is valid, see“Command List”earlier in this section.
2. Speak clearly without pausing between words and at a level appropriate to the ambient noise level.
3. Ensure that the ambient noise level is not excessive, for example, windows open or defrost on.
NOTE:
If it is too noisy to use the phone, it is likely that voice commands will not be recognized.
4. If optional words of the command have been omitted, then the command should be tried with these in place.
The system consistently selects the wrong voicetag in
the phonebook. 1. Ensure that the voicetag requested matches what was originally stored. (See
“Bluetooth
®Hands-Free Phone
System (models with navigation system)” earlier in this section; page 4-88.)
2. Replace one of the voicetags being confused with a different voicetag.

10 Index
Number
12-volt battery charge warning light ................. 2-11
A
ABS (Anti-lock Braking System) ......................... 5-97
Accelerator downshift - In D (Drive) position - ... 5-16
Active noise control ........................................ 5-103
Active trace control ........................................... 5-99
Adaptive front lighting system (AFS) .................. 2-42
Adjustable headrests .......................................... 1-8
Advanced air bag system .................................. 1-43
Aiming control, Adaptive front lighting
system (AFS) ..................................................... 2-42
Air bag system
Advanced air bag system ............................. 1-43
Front passenger air bag and status light ...... 1-45
Front-seat mounted side-impact
supplemental air bag system ....................... 1-48
Roof-mounted curtain side-impact
supplemental air bag system ....................... 1-48
Air bag warning labels ...................................... 1-51
Air bag warning light ............................... 1-51, 2-17
Air cleaner housing filter ................................... 8-20
Air conditioner Air conditioner service ................................. 4-48
Air conditioner specification label ................ 9-11
Air conditioning system refrigerant and
lubricant recommendations .................. 4-48, 9-7
Automatic climate control ............................ 4-34 In-cabin microfilter ....................................... 4-48
Operation (See automatic climate control) .... 4-34
Air filter In-cabin microfilter ....................................... 4-48
Air vent ............................................................... 7-5
Alarm How to stop alarm (see vehicle
security system) ........................................... 2-35
Alcohol, drugs and driving .................................. 5-8
Antenna ............................................................ 4-87
Anti-lock Braking System (ABS) ......................... 5-97
Anti-lock braking system (ABS) warning light .... 2-11
Appearance care Exterior appearance care ................................ 7-2
Interior appearance care ................................ 7-4
Approaching Vehicle Sound for Pedestrians
(VSP) system .................................. Hybrid System-9
Armrest ............................................................. 1-10
Ashtrays (See cigarette lighter and ashtrays) .... 2-52
Assist charge gauge ................. Hybrid System-5, 2-8
Audible reminders ............................................ 2-20
Audio operation precautions ............................. 4-49
Audio system .................................................... 4-49
Steering wheel audio controls ...................... 4-85
Auto closure ..................................................... 3-20
Autolight system ............................................... 2-40
Automatic Automatic climate control .................. 4-37, 4-41
Automatic transmission fluid (ATF) ............... 8-15
Climate control ............................................ 4-34 Door locks ..................................................... 3-6
Drive positioner ........................................... 3-28
Driving with automatic transmission ............ 5-13
Seat positioner ............................................ 3-28
Automatic moonroof.......................................... 2-60
Average fuel consumption and speed ................ 2-31
Avoiding collision and rollover ............................ 5-7
B
Battery .............................................................. 8-18
Battery replacement, Intelligent Key ............... 3-2
Battery saver system ................................... 2-41
Intelligent Key .............................................. 8-26
Before starting the INFINITI Direct Response
Hybrid
TMSystem ............................................... 5-12
Blind Spot Intervention (BSI) ON
indicator light ................................................... 2-18
Blind Spot Warning (BSW) system/Blind Spot
Intervention
TM(BSI) system ............................... 5-31
Blind Spot Warning (BSW)/Blind Spot
Intervention (BSI) system warning light ............. 2-11
Bluetooth
®hands-free phone system
(models with navigation system) ....................... 4-88
Bluetooth
®hands-free phone system
(models without navigation system) .................. 4-98
Booster seats .................................................... 1-35
Brake Anti-lock Braking System (ABS) .................... 5-97
Brake fluid ................................................... 8-16
