2013 INFINITI G SEDAN service indicator

Black plate (446,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8-42Maintenance and do-it-yourself
Safety Information”(Canada) in
the Warranty Information Booklet.
SDI1663
1.Wear indicator
2.Wear indicator location mark
Tire wear and damageGUID-973CEC61-209F-4E9E-A422-6F36DFD5AF83
WARNING
. Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced. .
The original tires have built-in
tread wear indicators. When wear
indicators are visible, the tire(s)
should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare tire
may result in serious personal
injury. If it is necessary to repair
the spare tire, contact an INFINITI
retailer.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in
the Warranty Information Booklet.
Condition:

Black plate (448,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

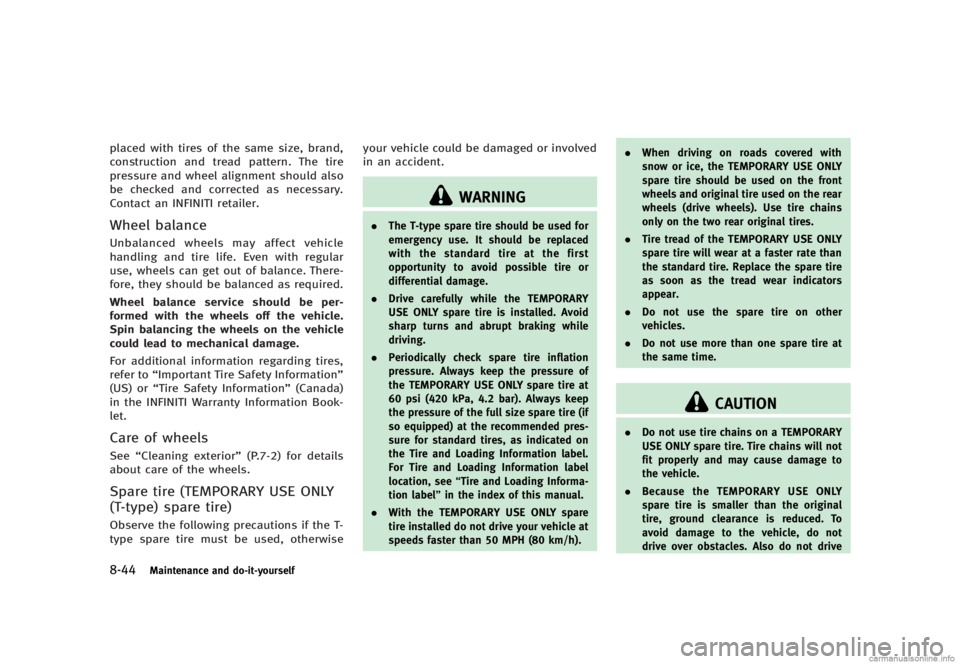

8-44Maintenance and do-it-yourself
placed with tires of the same size, brand,
construction and tread pattern. The tire
pressure and wheel alignment should also
be checked and corrected as necessary.
Contact an INFINITI retailer.
Wheel balanceGUID-E8819382-6D86-409C-A6FD-5113A53508ABUnbalanced wheels may affect vehicle
handling and tire life. Even with regular
use, wheels can get out of balance. There-
fore, they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires,
refer to“Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the INFINITI Warranty Information Book-
let.
Care of wheelsGUID-C1AC6B0A-3969-4BA4-85FF-DEEAE1EBA8ABSee “Cleaning exterior” (P.7-2) for details
about care of the wheels.
Spare tire (TEMPORARY USE ONLY
(T-type) spare tire)
GUID-3D33E4D2-DC59-460C-941C-8160D646B5B6Observe the following precautions if the T-
type spare tire must be used, otherwise your vehicle could be damaged or involved
in an accident.
WARNING
.
The T-type spare tire should be used for
emergency use. It should be replaced
with the standard tire at the first
opportunity to avoid possible tire or
differential damage.
. Drive carefully while the TEMPORARY
USE ONLY spare tire is installed. Avoid
sharp turns and abrupt braking while
driving.
. Periodically check spare tire inflation
pressure. Always keep the pressure of
the TEMPORARY USE ONLY spare tire at
60 psi (420 kPa, 4.2 bar). Always keep
the pressure of the full size spare tire (if
so equipped) at the recommended pres-
sure for standard tires, as indicated on
the Tire and Loading Information label.
For Tire and Loading Information label
location, see “Tire and Loading Informa-
tion label” in the index of this manual.
. With the TEMPORARY USE ONLY spare
tire installed do not drive your vehicle at
speeds faster than 50 MPH (80 km/h). .
When driving on roads covered with
snow or ice, the TEMPORARY USE ONLY
spare tire should be used on the front
wheels and original tire used on the rear
wheels (drive wheels). Use tire chains
only on the two rear original tires.
. Tire tread of the TEMPORARY USE ONLY
spare tire will wear at a faster rate than
the standard tire. Replace the spare tire
as soon as the tread wear indicators
appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire at
the same time.
CAUTION
.Do not use tire chains on a TEMPORARY
USE ONLY spare tire. Tire chains will not
fit properly and may cause damage to
the vehicle.
. Because the TEMPORARY USE ONLY
spare tire is smaller than the original
tire, ground clearance is reduced. To
avoid damage to the vehicle, do not
drive over obstacles. Also do not drive
Condition:

Black plate (483,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Seat belt maintenance...
................................. 1-21
Malfunction indicator light (MIL) ...
....................... 2-18
Map lights ...
........................................................ 2-56
Master warning light ...
......................................... 2-16
Mechanical key (Intelligent Key system) ...
.............. 3-3
Memory storage, Automatic drive positioner ...
..... 3-32
Meter, Trip computer ...
......................................... 2-26
Meters and gauges ...
............................................. 2-6
Instrument brightness control ...
...................... 2-38
Mirror
Inside mirror ...
................................................ 3-27
Outside mirrors ...
............................................ 3-29
Vanity mirror ...
................................................ 3-30
Monitor, Rearview monitor ...
................................ 4-23
Moonroof ...
.......................................................... 2-54
N
New vehicle break-in ...
......................................... 5-46
No key warning ...
................................................. 2-22
O
Odometer ...
............................................................ 2-7
Off-road recovery ...
................................................ 5-7
Oil Capacities and
recommended fuel/lubricants ...
........................ 9-2
Changing engine oil and filter ...
...................... 8-11
Checking engine oil level ...
............................. 8-11
Engine oil ...
.................................................... 8-11
Engine oil viscosity ...
........................................ 9-7 Oil filter replacement indicator
...
..................... 2-24
Operation, Indicators for operation ...
................... 2-22
Outside air temperature ...
.................................... 2-27
Outside mirrors ...
................................................. 3-29
Overheat, If your vehicle overheats ...
................... 6-11
Owner’s Manual/Service Manual
order information ...
.............................................. 9-27
P
Panic alarm ...
...................................................... 3-15
Parking Brake break-in ...
............................................. 5-54
Parking brake operation ...
............................... 5-21
Parking brake release warning ...
..................... 2-23
Parking on hills ...
........................................... 5-49
Personal lights ...
.................................................. 2-56
Phone Bluetooth
®hands-free phone system
(models with navigation system) ...
.................. 4-85
Bluetooth
®hands-free phone system
(models without navigation system) ...
............. 4-96
Car phone or CB radio ...
................................. 4-84
Power Front seat adjustment ...
.................................... 1-3
Power door lock ...
............................................. 3-4
Power outlet ...
................................................ 2-42
Power steering fluid ...
..................................... 8-14
Power steering system ...
................................. 5-53
Power windows ...
............................................ 2-51
Precautions
Audio operation ...
........................................... 4-41 Braking precautions
...
..................................... 5-53
Child restraints ...
............................................ 1-24
Cruise control ...
.............................................. 5-22
Maintenance ...
.................................................. 8-6
Seat belt usage ... ........................................... 1-14
Supplemental restraint system ...
..................... 1-41
When starting and driving ...
.............................. 5-3
Pre-crash seat belts ...
.......................................... 1-17
Predictive course line settings ...
.......................... 4-29
Preview function ...
............................................... 5-54
Preview function (for Intelligent cruise
control system) ...
................................................. 5-45
Preview Function warning light ...
.......................... 2-16
Push starting ...
.................................................... 6-11
Push warning (Automatic
Transmission models) ...
....................................... 2-22
Push-button ignition switch ...
....................... 5-9, 5-10
R
Radio ...
................................................................ 4-41
Car phone or CB radio ...
................................. 4-84
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................... 4-60
Rain-sensing auto wiper system ...
........................ 2-33
Rapid air pressure loss ...
....................................... 5-7
Readiness for inspection/maintenance (I/M)
test (US only) ...
.................................................... 9-26
Rear door lock, Child safety rear door lock ... ......... 3-6
Rear seats ...
.......................................................... 1-7
Rear window and outside mirror
defroster switch ...
................................................ 2-34
10-5
