2013 INFINITI G SEDAN headlight bulb

Black plate (9,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-8717B1C7-6F7F-40EB-8277-9FF3CC88B2F6
SSI0643
SEDANGUID-79DD3727-9840-4EBC-90BA-C1063732CCE61. Hood (P.3-17)
2. Headlight and turn signal—Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer —
Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-54)
5. Power windows (P.2-51)
6. Recovery hook (P.6-15)
7. Fog light (P.2-39) 8. Tires
—Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-3)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
Illustrated table of contents0-3
EXTERIOR FRONT
Condition:

Black plate (10,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
0-4Illustrated table of contents
SSI0806
COUPEGUID-AC0B3EEA-9252-4992-8E97-317D9777AC161. Hood (P.3-17)
2. Headlight and turn signal—Operation (P.2-34)
— Bulb replacement (P.8-28)
3. Windshield wiper and washer —
Operation (P.2-31)
— Maintenance (P.8-22)
4. Moonroof (if so equipped) (P.2-54)
5. Power windows (P.2-51)
6. Recovery hook (P.6-15)
7. Fog light (P.2-39) 8. Tires
—Wheel and tires (P.8-33, P.9-9)
— Flat tire (P.6-3)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
9. Outside mirrors (P.3-29)
10. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-14)
Condition:

Black plate (79,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2 Instruments and controls
Cockpit...
................................................................ 2-3
Instrument panel ...
................................................. 2-4
Meters and gauges ...
.............................................. 2-6
Speedometer and odometer ...
............................ 2-7
Tachometer ...
...................................................... 2-8
Engine coolant temperature gauge ...
.................. 2-8
Fuel gauge ...
...................................................... 2-9
Compass (if so equipped) ...
.................................... 2-9
Zone variation change procedure ...
................... 2-11
Warning/indicator lights and
audible reminders ...
............................................. 2-12
Checking bulbs ...
.............................................. 2-12
Warning lights ...
............................................... 2-12
Indicator lights ...
.............................................. 2-18
Audible reminders ...
......................................... 2-19
Dot matrix liquid crystal display ...
........................ 2-20
Indicators for operation ...
................................. 2-22
Indicators for maintenance ...
............................ 2-24
Trip computer ...
................................................ 2-26
Security systems ...
............................................... 2-28
Vehicle Security System ...
................................ 2-28
INFINITI Vehicle Immobilizer System ...
.............. 2-30
Windshield wiper and washer switch ...
................. 2-31
Rain-sensing auto wiper system (if
so equipped) ...
................................................. 2-33 Rear window and outside mirror
defroster switch
...
................................................ 2-34
Headlight and turn signal switch ...
....................... 2-34
Xenon headlights ...
......................................... 2-34
Headlight switch ...
.......................................... 2-35
Turn signal switch ...
........................................ 2-39
Fog light switch ...
........................................... 2-39
Horn ...
................................................................. 2-39
Heated seats (if so equipped) ...
........................... 2-40
SNOW mode switch (if so equipped) ...
................. 2-41
Vehicle Dynamic Control (VDC) OFF switch ...
......... 2-41
Clock ...
................................................................. 2-42
Adjusting the time ...
....................................... 2-42
Power outlet ...
..................................................... 2-42
Cigarette lighter and ashtrays (if so equipped) ...
.... 2-43
Front ...
............................................................ 2-43
Rear ...
............................................................. 2-44
Storage ...
............................................................. 2-44
Cup holders ...
................................................. 2-44
Sunglasses holder ...
...................................... 2-46
Glove box ...
.................................................... 2-47
Console box ...
................................................. 2-48
Card holder (if so equipped) ...
........................ 2-49
Storage box (if so equipped) ...
........................ 2-49
Coat hooks ...
.................................................. 2-50
Condition:
>

Black plate (113,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
.The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon head-
lights is not reduced.
. If the xenon headlight bulb is close to
burning out, the brightness will dras-
tically decrease, the light will start
blinking, or the color of the light will
become reddish. If one or more of the
above signs appear, contact an INFINITI
retailer.
SIC3267
HEADLIGHT SWITCHGUID-33AE3B12-CA6A-4F4B-937B-B94D10FCE3CF
LightingGUID-7A3ED0E6-B819-4CBD-BBCC-8D6AAA3D091F*1Turn the switch to theposition:
The front parking, side marker, tail,
license plate and instrument lights
will come on.
*2Turn the switch to theposition:
Headlights will come on and all the
other lights remain on.
SIC3268
Autolight system (if so equipped)GUID-B0C5ED39-4191-407B-8F10-92C5231D8B53The autolight system allows the headlights
to be set so they turn on and off
automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
*1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically
turns the headlights on and off.
To turn the autolight system off, turn the
switch to the OFF,
orposition.
Instruments and controls2-35
Condition:

Black plate (434,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

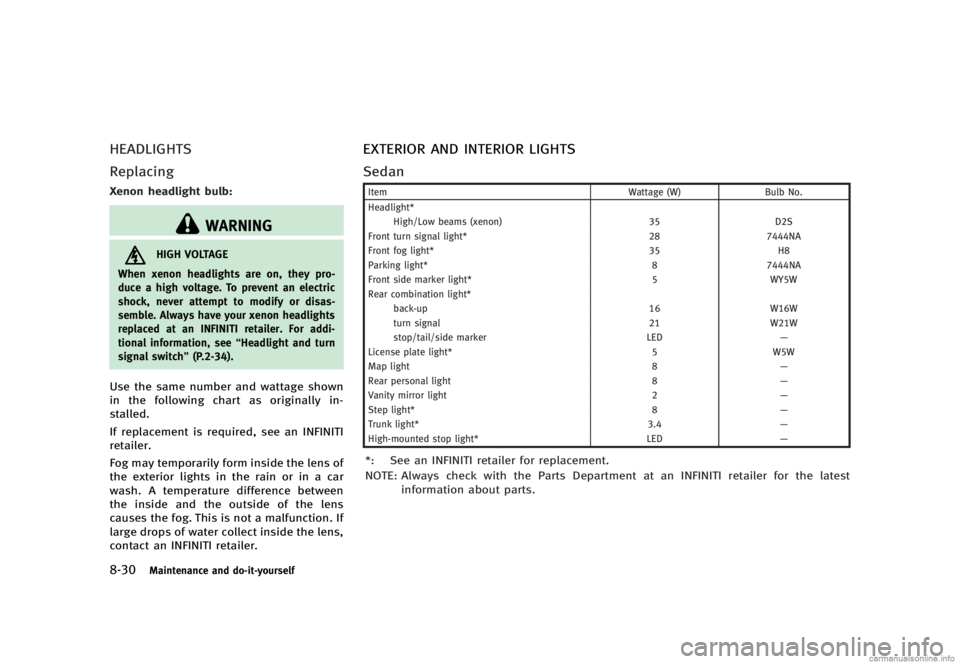

8-30Maintenance and do-it-yourself
HEADLIGHTSGUID-2C37EBF3-FE69-4D64-AE03-00ECA5091687
ReplacingGUID-782124E3-CA8B-42A2-90B0-1AC5B2F9C37A
Xenon headlight bulb:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407
WARNING
HIGH VOLTAGE
When xenon headlights are on, they pro-
duce a high voltage. To prevent an electric
shock, never attempt to modify or disas-
semble. Always have your xenon headlights
replaced at an INFINITI retailer. For addi-
tional information, see “Headlight and turn
signal switch” (P.2-34).
Use the same number and wattage shown
in the following chart as originally in-
stalled.
If replacement is required, see an INFINITI
retailer.
Fog may temporarily form inside the lens of
the exterior lights in the rain or in a car
wash. A temperature difference between
the inside and the outside of the lens
causes the fog. This is not a malfunction. If
large drops of water collect inside the lens,
contact an INFINITI retailer.
EXTERIOR AND INTERIOR LIGHTSGUID-BDE3C310-75C1-4F4D-9E48-5E09104465DA
SedanGUID-4998FE6F-5C4E-43C2-BA3C-10A3EF2B9ECB
Item Wattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 287444NA
Front fog light* 35 H8
Parking light* 8 7444NA
Front side marker light* 5 WY5W
Rear combination light* back-up 16 W16W
turn signal 21 W21W
stop/tail/side marker LED —
License plate light* 5 W5W
Map light 8 —
Rear personal light 8 —
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest
information about parts.
Condition:

Black plate (435,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
CoupeGUID-6BE0C122-8A5E-4B16-9AFC-881BF27CAAA6
ItemWattage (W)Bulb No.
Headlight* High/Low beams (xenon) 35D2S
Front turn signal light* 21WY21W
Front fog light* 55H11
Parking light* 5W5W
Front side marker light* 5W5W
Rear combination light*
back-up 16W16W
turn signal 21W21W
stop/tail/side marker LED—
License plate light* 5W5W
Map light 8—
Vanity mirror light 2 —
Step light* 8 —
Trunk light* 3.4 —
High-mounted stop light* LED —
*: See an INFINITI retailer for replacement.
NOTE: Always check with the Parts Department at an INFINITI retailer for the latest
information about parts.
Replacement proceduresGUID-D8D045ED-1B5F-4082-8769-1BABE97FBC3AAll other lights are either type A, B, C, D, E
or F. When replacing a bulb, first remove
the lens and/or cover.
Maintenance and do-it-yourself8-31
Condition:

Black plate (481,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Engine start operation indicator (Manual
Transmission models)...
.................................. 2-23
If your vehicle overheats ...
.............................. 6-11
Starting the engine ...
...................................... 5-13
Entry/exit function ...
............................................ 3-30
Event Data Recorders (EDR) ...
............................... 9-26
Exhaust gas (carbon monoxide) ...
.......................... 5-3
F
F.M.V.S.S./C.M.V.S.S. certification label ...
............. 9-13
Filter Air cleaner housing filter ...
.............................. 8-21
Changing engine oil and filter ...
...................... 8-11
Flashers (See hazard warning flasher switch) ...
...... 6-2
Flat tire ...
............................................................... 6-3
Flat towing ...
........................................................ 9-22
Floor mat cleaning ...
.............................................. 7-5
Fluid
Automatic transmission fluid (ATF) ...
............... 8-13
Brake and clutch fluid ...
.................................. 8-14
Brake fluid ...
................................................... 8-15
Capacities and
recommended fuel/lubricants ...
........................ 9-2
Engine coolant ...
............................................... 8-9
Engine oil ...
.................................................... 8-11
Power steering fluid ...
..................................... 8-14
Window washer fluid ...
................................... 8-15
FM-AM-SAT radio with Compact Disc
(CD) player ...
........................................................ 4-60
Fog light switch ...
................................................ 2-39
Front passenger air bag and status light ...
........... 1-49 Front power seat adjustment
...
............................... 1-3
Front seat, Front seat adjustment ...
........................ 1-3
Front-seat active head restraints ...
....................... 1-12
Fuel
Capacities and
recommended fuel/lubricants ...
........................ 9-2
Fuel economy ...
............................................... 5-47
Fuel economy information (display) ...
.............. 4-11
Fuel information ...
............................................. 9-4
Fuel octane rating ...
.......................................... 9-4
Fuel-filler cap ...
............................................... 3-22
Fuel-filler door ...
............................................. 3-22
Gauge ...
............................................................ 2-9
LOOSE FUEL CAP warning ...
............................. 3-24
Fuel Efficient Driving Tips ...
.................................. 5-46
Fuses ...
................................................................ 8-24
Fusible links ...
..................................................... 8-24
G
Garage door opener
HomeLink®Universal Transceiver ...
................. 2-59
Gas cap ...
............................................................ 3-22
Gauge ...
................................................................. 2-6
Engine coolant temperature gauge ...
................. 2-8
Fuel gauge ...
..................................................... 2-9
Odometer ...
....................................................... 2-7
Speedometer ...
................................................. 2-7
Tachometer ...
.................................................... 2-8
Trip computer ...
.............................................. 2-26
General maintenance ...
.......................................... 8-3
Glove box ...
......................................................... 2-47 Golf bag stowing
...
.............................................. 2-50
H
Hands-free phone system, Bluetooth®
(models with navigation system) ...
....................... 4-85
Hands-free phone system, Bluetooth®
(models without navigation system) ...
.................. 4-96
Hazard warning flasher switch ...
............................ 6-2
Head restraints (front seats) ...
............................... 1-9
Head restraints (rear seats) ...
............................... 1-13
Headlights Bulb replacement ...
......................................... 8-30
Headlight switch ...
.......................................... 2-35
Xenon headlights ...
......................................... 2-34
Heated seats ...
.................................................... 2-40
Heater, Automatic climate control ...
..................... 4-31
HomeLink
®Universal Transceiver ...
...................... 2-59
Hood release ...
.................................................... 3-17
Hook, Coat hooks ...
............................................. 2-50
Horn ...
................................................................. 2-39
I
Ignition switch
(Push-button) ...
................................................. 5-9
Manual transmission models ...
....................... 5-19
Immobilizer system ...
........................................... 2-30
In-cabin microfilter ...
............................................ 4-41
Indicator Dot matrix display ...
....................................... 2-20
Lights ...
.......................................................... 2-18
10-3
Condition:

Black plate (482,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
10-4
INFINITI Vehicle Immobilizer System...
.................. 2-30
INFINITI voice recognition system ...
.................... 4-110
INFO button ...
........................................................ 4-9
Inside mirror ...
..................................................... 3-27
Inspection/maintenance (I/M) test ...
.................... 9-26
Instrument brightness control ...
........................... 2-38
Instrument panel ...
................................................ 2-4
Intelligent cruise control (ICC) system ...
............... 5-24
Preview function ...
.......................................... 5-45
Intelligent Cruise Control (ICC) system
warning light ...
.................................................... 2-15
Intelligent Key ...
..................................................... 3-2
Intelligent Key battery discharge indicator ...
........ 2-22
Intelligent Key insertion indicator ...
...................... 2-22
Intelligent Key removal indicator ...
....................... 2-22
Intelligent Key system ...
......................................... 3-7
Battery replacement ...
..................................... 8-26
Key operating range ...
....................................... 3-8
Key operation ...
.............................................. 3-10
Warning light ...
............................................... 2-15
Warning signals ...
........................................... 3-12
Intelligent Key warning light ...
............................. 2-15
Interior light control switch ...
............................... 2-57
Interior light replacement ...
.................................. 8-30
Interior lights ...
.................................................... 2-56
Interior trunk lid release ...
................................... 3-20
iPod
®player operation ...
..................................... 4-79
ISOFIX child restraint ...
........................................ 1-26
J
Jump starting ...
...................................................... 6-9
K
Keyless entry (See remote keyless
entry system) ...
.................................................... 3-14
Keys ...
................................................................... 3-2
For Intelligent Key system ...
.............................. 3-7
L
Labels
Air bag warning labels ...
................................. 1-55
Air conditioner specification label ...
................ 9-14
Emission control information label ...
............... 9-13
Engine serial number ...
................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-13
Tire and Loading Information label ...
...... 8-35, 9-13
Vehicle identification number (VIN) ...
.............. 9-11
LATCH system ...
................................................... 1-26
License plate, Installing front license plate ...
....... 9-14
Light
Air bag warning light ...
................................... 1-55
Bulb replacement ...
......................................... 8-28
Fog light switch ...
........................................... 2-39
Headlight switch ...
.......................................... 2-35
Headlights bulb replacement ...
....................... 8-30
Indicator lights ...
............................................ 2-18
Interior light control switch ...
.......................... 2-57
Interior lights ...
............................................... 2-56 Map lights
...
................................................... 2-56
Replacement ...
................................................ 8-28
Trunk light ...
................................................... 2-58
Vanity mirror lights ...
...................................... 2-58
Warning/indicator lights and
audible reminders ...
........................................ 2-12
Xenon headlights ...
......................................... 2-34
Lights, Exterior and interior light replacement ...
... 8-30
Loading information (See vehicle
loading information) ...
......................................... 9-19
Lock Automatic door locks ...
..................................... 3-6
Door locks ...
..................................................... 3-4
Power door lock ...
............................................. 3-4
Trunk lid ...
...................................................... 3-18
Locking with mechanical key ...
............................... 3-4
Low fuel warning ...
.............................................. 2-23
Low tire pressure warning light ...
......................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
..... 5-4
Low washer fluid warning ...
................................. 2-23
M
Maintenance
Battery ...
......................................................... 8-16
General maintenance ...
..................................... 8-3
Indicators for maintenance ...
........................... 2-24
Inside the vehicle ...
.......................................... 8-4
Maintenance precautions ...
............................... 8-6
Maintenance requirements ...
............................. 8-3
Outside the vehicle ...
........................................ 8-3
Condition:
