2013 INFINITI G SEDAN check engine

Black plate (97,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
vehicle. Thelight should turn off
after a few driving trips. If the
light
does not turn off after a few driving
trips, have the vehicle inspected by an
INFINITI retailer. You do not need to
have your vehicle towed to the retailer.
. Malfunction indicator light blinking —
An engine misfire has been detected
which may damage the emission con-
trol system.
To reduce or avoid emission control
system damage:
1) Do not drive at speeds above 45 MPH (72 km/h).
2) Avoid hard acceleration or decelera- tion.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may
stop blinking and remain on.
Have the vehicle inspected by an
INFINITI retailer. You do not need to
have your vehicle towed to the retailer.CAUTION
Continued vehicle operation without having
the emission control system checked and
repaired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission control
system.
Security indicator lightGUID-99C24DC6-544D-45AC-90DB-96CA87927F70The light blinks when the ignition switch is
in the ACC, OFF or LOCK position. This
function indicates the security system
equipped on the vehicle is operational.
If the security system is malfunctioning,
this light will remain on while the ignition
switch is in the ON position. For additional
information, see “Security systems” (P.2-
28).
Turn signal/hazard indicator
lights
GUID-43A6DFE4-0C5C-4670-8FA3-F545A4863F5CThe light flashes when the turn signal
switch lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC)
off indicator light
GUID-A3E5746E-A6AD-4CFD-BF58-F2861559DFFCThe light comes on when the vehicle
dynamic control off switch is pushed to
OFF. This indicates that the vehicle dynamic
control system and traction control system
are not operating.
AUDIBLE REMINDERSGUID-41C4B23E-C45A-494B-A7CD-10E6C3CED223
Key reminder chimeGUID-CF2F9D77-25F2-40E6-8D1D-517CC8383919A chime will sound if the driver side door is
opened while the ignition switch is pushed
to the ACC position or pushed to the OFF or
LOCK position with the Intelligent Key left
in the Intelligent Key port. Make sure the
ignition switch is pushed to the OFF
position, and take the Intelligent Key with
you when leaving the vehicle.
Light reminder chimeGUID-EB436840-830A-402A-A3BA-8D5BCF0162C6A chime will sound when the driver side
door is opened with the light switch in the
orposition and the ignition switch
in the ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Instruments and controls2-19
Condition:

Black plate (101,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8. Engine start operation indicator
(Manual Transmission models)
GUID-6F348F29-B160-4632-B05C-A45F6D5E7AD7This indicator means that the engine will
start by pushing the ignition switch with
the clutch pedal depressed.
9. Parking brake release warningGUID-7289EFE7-F400-4C19-9597-F8AA159911CAThis warning appears when the vehicle
speed is above 4 MPH (7 km/h) and the
parking brake is applied.
10. Low fuel warningGUID-2FE47C40-46BC-4EC8-AC52-E90EBB5F8B0FThis warning appears when the fuel level in
the tank is getting low. Refuel as soon as it
is convenient, preferably before the fuel
gauge reaches the empty (E) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (E) position.
11. Low washer fluid warningGUID-54C94524-E0BC-4326-8A11-B2CD705757A6This warning appears when the washer
tank fluid is at a low level. Add washer fluid
as necessary. (See“Window washer fluid”
(P.8-15).)
12. Door/trunk open warning (igni-
tion switch is in the ON position)
GUID-50585695-BAF8-48B7-8A81-CEA312693DE1This warning appears if any of the doors and/or the trunk lid are open or not closed
securely. The vehicle icon indicates which
door or the trunk lid is open on the display.
13. Loose fuel cap warningGUID-479E9C15-B26C-477B-8AA7-ED29D6CD76EDThis warning appears when the fuel-filler
cap is not tightened correctly after the
vehicle has been refueled. (See
“Fuel-filler
door” (P.3-22).)
14. Check tire pressure warningGUID-174D3E5C-C80F-432A-944F-EE13C51D1486This warning appears when the low tire
pressure warning light in the meter illumi-
nates and low tire pressure detected. The
CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in
the ON position as long as the low tire
pressure warning light remains illumi-
nated. If this warning appears, stop the
vehicle and adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information label.
(See“Low tire pressure warning light” (P.2-
15) and “Tire Pressure Monitoring System
(TPMS)” (P.5-4).)
15.“Time to rest” indicatorGUID-9639DC97-247E-4499-BA1B-AFF133E94400This indicator appears when the set “time
to rest” indicator activates. You can set the
time for up to 6 hours. (See “Tripcomputer”
(P.2-26).)
16. Low outside temperature warn-
ing
GUID-E9986E7D-DDA6-4BCF-8D8E-D8F9C645C41BThis warning appears if the outside tem-
perature is below 378F (38C). The warning
can be set not to be displayed. (See “Trip
computer” (P.2-26).)
17. Cruise indicatorGUID-8437A118-88BE-4895-A266-56D415AE4EC7
Cruise main switch indicator:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The indicator is displayed when the cruise
control main switch is pushed. When the
main switch is pushed again, the indicator
disappears. When the cruise control main
switch indicator is displayed, the cruise
control system is operational.
Cruise set switch indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The indicator is displayed while the vehicle
speed is controlled by the cruise control
system. If the indicator blinks while the
engine is running, it may indicate that the
cruise control system is not functioning
properly. Have the system checked by an
INFINITI retailer.
See“Cruise control” (P.5-22) for details.
Instruments and controls2-23
Condition:

Black plate (102,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

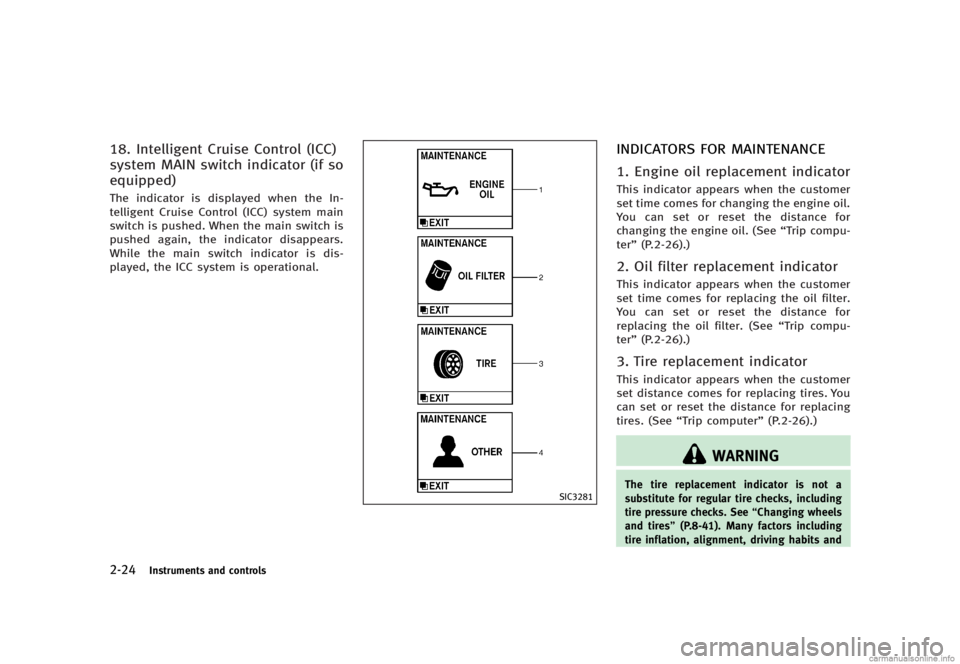

2-24Instruments and controls
18. Intelligent Cruise Control (ICC)
system MAIN switch indicator (if so
equipped)
GUID-D9CC1D2D-CB35-47C6-91AE-D047809EAD42The indicator is displayed when the In-
telligent Cruise Control (ICC) system main
switch is pushed. When the main switch is
pushed again, the indicator disappears.
While the main switch indicator is dis-
played, the ICC system is operational.
SIC3281
INDICATORS FOR MAINTENANCEGUID-5EA9FA72-B4A3-457B-B214-AB899857C8F6
1. Engine oil replacement indicatorGUID-9093AFD1-78A3-4D19-83A9-09CE6DADBB03This indicator appears when the customer
set time comes for changing the engine oil.
You can set or reset the distance for
changing the engine oil. (See“Trip compu-
ter” (P.2-26).)
2. Oil filter replacement indicatorGUID-F7238B25-6F5D-425C-B3DE-A16E7C387E58This indicator appears when the customer
set time comes for replacing the oil filter.
You can set or reset the distance for
replacing the oil filter. (See “Trip compu-
ter” (P.2-26).)
3. Tire replacement indicatorGUID-77B7A7D1-C9B1-4B0B-A034-325DDE961E03This indicator appears when the customer
set distance comes for replacing tires. You
can set or reset the distance for replacing
tires. (See “Trip computer” (P.2-26).)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, including
tire pressure checks. See “Changing wheels
and tires” (P.8-41). Many factors including
tire inflation, alignment, driving habits and
Condition:

Black plate (103,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
road conditions affect tire wear and when
tires should be replaced. Setting the tire
replacement indicator for a certain driving
distance does not mean your tires will last
that long. Use the tire replacement indicator
as a guide only and always perform regular
tire checks. Failure to perform regular tire
checks, including tire pressure checks could
result in tire failure. Serious vehicle damage
could occur and may lead to a collision,
which could result in serious personal injury
or death.
4.“OTHER” indicatorGUID-D62188FD-F0C6-498B-8B24-505D6E1D491DThis indicator appears when the customer
set time comes for replacing items other
than the engine oil, oil filter and tires. You
can set or reset the distance for replacing
the items. (See “Trip computer” (P.2-26).)
More maintenance reminders are also
available on the center display. (See
“How to use INFO button” (P.4-9).)
SIC3282
Instruments and controls2-25
Condition:

Black plate (105,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
can be driven before refueling. The dte is
constantly being calculated, based on the
amount of fuel in the fuel tank and the
actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning
is displayed on the screen.
When the fuel level drops even lower, the
dte display will change to“——”.
. If the amount of fuel added is small, the
display just before the ignition switch
is pushed to the OFF position may
continue to be displayed.
. When driving uphill or rounding curves,
the fuel in the tank shifts, which may
momentarily change the display.
5. Outside air temperature (ICY —8F
or 8C)
GUID-35621BA5-D61E-4ECD-9628-F300D193449AThe outside air temperature is displayed in
8F or 8C in the range of −22 to 1318F (−30
to 558C).
The outside air temperature mode includes
a low temperature warning feature. If the
outside air temperature is below 378F
(38C), the warning is displayed on the
screen. The outside temperature sensor is located
in front of the radiator. The sensor may be
affected by road or engine heat, wind
directions and other driving conditions.
The display may differ from the actual
outside temperature or the temperature
displayed on various signs or billboards.
6. SettingGUID-9F18B5C6-F437-4D24-B240-415AA28B0E09Setting cannot be made while driving. A
message
“Setting can only be operated
when stopped” is also displayed on the
dot matrix crystal display.
The
switch*Aandswitch*Bare
used in the setting mode to select and
decide a menu.
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato move to the
warning check mode.
Push the
switch*Bto select other
menus.
ALERT:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407There are 3 submenus under the alert
menu.
. BACK
Select this submenu to return to the top
page of the setting mode. .
TIME TO REST
Select this submenu to specify when
the “time to rest” indicator activates.
. ICY
Select this submenu to display the low
outside temperature warning.
MAINTENANCE:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407There are 5 submenus under the main-
tenance menu.
. BACK
Select this submenu to return to the top
page of the setting mode.
. ENGINE OIL
Select this submenu to set or reset the
distance for changing the engine oil.
. OIL FILTER
Select this submenu to set or reset the
distance for replacing the oil filter.
. TIRE
Select this submenu to set or reset the
distance for replacing tires.
. OTHER
Select this submenu and set or reset
the distance for replacing items other
than the engine oil, oil filter and tires.
Instruments and controls2-27
Condition:

Black plate (118,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
2-40Instruments and controls
GUID-DD74E04E-57D9-472E-AB2F-AEAAA9BBBD37
WARNING
Do not use or allow occupants to use the
seat heater if you or the occupants cannot
monitor elevated seat temperatures or have
an inability to feel pain in body parts that
contact the seat. Use of the seat heater by
such people could result in serious injury.
CAUTION
.The battery could run down if the seat
heater is operated while the engine is
not running.
. Do not use the seat heater for extended
periods or when no one is using the
seat.
. Do not put anything on the seat which
insulates heat, such as a blanket,
cushion, seat cover, etc. Otherwise, the
seat may become overheated.
. Do not place anything hard or heavy on
the seat or pierce it with a pin or similar
object. This may result in damage to the
heater. .
Any liquid spilled on the heated seat
should be removed immediately with a
dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar materi-
als.
. If any malfunctions are found or the
heated seat does not operate, turn the
switch off and have the system checked
by an INFINITI retailer.SSS0911
The front seats are warmed by built-in
heaters. The switches located on the center
console can be operated independently of
each other.
1. Start the engine.
2. Turn the control knob
*Ato the right*1
and select the desired heat range..For high heat, turn the knob to the
right
*1..For low heat, turn the knob to the left
*2..The indicator light*Bwill illuminate
when the heater is on.
3. To turn off the heater, return the knob
HEATED SEATS (if so equipped)
Condition:

Black plate (149,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-E775A3D7-CE8E-4FE0-9FB8-238232937EE5
WARNING
.Radio waves could adversely affect
electric medical equipment. Those who
use a pacemaker should contact the
electric medical equipment manufacturer
for the possible influences before use.
. The Intelligent Key transmits radio
waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and com-
munication systems. Do not operate the
Intelligent Key while on an airplane.
Make sure the buttons are not operated
unintentionally when the unit is stored
during a flight.
The Intelligent Key system can operate all
the doors and the trunk lid using the
remote controller function or pushing the
request switch on the vehicle without
taking the key out from a pocket or purse.
The operating environment and/or condi-
tions may affect the Intelligent Key system
operation.
Be sure to read the following before using
the Intelligent Key system.
CAUTION
.Be sure to carry the Intelligent Key with
you when operating the vehicle.
. Never leave the Intelligent Key in the
vehicle when you leave the vehicle.
The Intelligent Key is always communicat-
ing with the vehicle as it receives radio
waves. The Intelligent Key system trans-
mits weak radio waves. Environmental
conditions may interfere with the operation
of the Intelligent Key system under the
following operating conditions.
.When operating near a location where
strong radio waves are transmitted,
such as a TV tower, power station and
broadcasting station.
. When in possession of wireless equip-
ment, such as a cellular telephone,
transceiver, and CB radio.
. When the Intelligent Key is in contact
with or covered by metallic materials.
. When any type of radio wave remote
control is used nearby.
. When the Intelligent Key is placed near
an electric appliance such as a perso- nal computer.
. When the vehicle is parked near a
parking meter.
In such cases, correct the operating condi-
tions before using the Intelligent Key
function or use the mechanical key.
Although the life of the battery varies
depending on the operating conditions,
the battery’s life is approximately 2 years.
If the battery is discharged, replace it with
a new one.
When the Intelligent Key battery is almost
discharged, insert the Intelligent Key into
the Intelligent Key port to start the engine.
Replace the discharged battery with a new
one as soon as possible. For more details,
see “Push-button ignition switch” (P.5-9).
Since the Intelligent Key is continuously
receiving radio waves, if the key is left near
equipment which transmits strong radio
waves, such as signals from a TV and
personal computer, the battery life may
become shorter.
For information regarding replacement of a
battery, see “Intelligent Key battery repla-
cement” (P.8-26).
As many as 4 Intelligent Keys can be
registered and used with one vehicle. For
Pre-driving checks and adjustments3-7
INTELLIGENT KEY SYSTEM
Condition:

Black plate (155,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
TROUBLESHOOTING GUIDEGUID-74EA3136-2453-48A5-9A65-B4F622B666A0
SymptomPossible causeAction to take
When pushing the ignition switch
to stop the engine The SHIFT P warning appears on the display
and the inside warning chime sounds con-
tinuously (Automatic Transmission models).
The selector lever is not in the P (Park)
position.
Shift the selector lever to the P (Park)
position.
When shifting the selector lever
to the P (Park) position. The inside warning chime sounds continu-
ously. The ignition switch is in the ACC or ON
position.
Push the ignition switch to the OFF position.
When opening the driver’s door to
get out of the vehicle The inside warning chime sounds continu-
ously. The ignition switch is in the ACC
position.
Push the ignition switch to the OFF position.
The Intelligent Key is in the Intelligent
Key port. Remove the Intelligent Key from the Intel-
ligent Key port.
When closing the door after get-
ting out of the vehicle The NO KEY warning appears on the display,
the outside chime sounds 3 times and the
inside warning chime sounds for a few
seconds.
The ignition switch is in the ACC or ON
position.
Push the ignition switch to the OFF position.
The SHIFT P warning appears on the display
and the outside chime sounds continuously
(Automatic Transmission models). The ignition switch is in the ACC or OFF
position and the selector lever is not in
the P (Park) position.Move the selector lever to the P (Park)
position and push the ignition switch to the
OFF position.
When closing the door with the
inside lock knob turned to LOCK The outside chime sounds for a few seconds
and all the doors unlock. The Intelligent Key is inside the vehicle
or trunk.
Carry the Intelligent Key with you.
When pushing the request switch
or LOCK button on the Intelligent
Key to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle
or trunk.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When closing the trunk lid The outside chime sounds for approximately
10 seconds and the trunk lid opens.
The Intelligent Key is inside the trunk.
Carry the Intelligent Key with you.
Pre-driving checks and adjustments3-13
Condition:
