2013 INFINITI G SEDAN TPMS

Black plate (320,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
5-6Starting and driving
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible. (See“Flat
tire” (P.6-3) for changing a flat tire.)
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
sensors.
CAUTION
.The TPMS may not function properly
when the wheels are equipped with tire
chains or the wheels are buried in snow. .
Do not place metalized film or any metal
parts (antenna, etc.) on the windows.
This may cause poor reception of the
signals from the tire pressure sensors,
and the TPMS will not function properly.
Some devices and transmitters may tem-
porarily interfere with the operation of the
TPMS and cause the low tire pressure
warning light to illuminate. Some exam-
ples are:
.Facilities or electric devices using simi-
lar radio frequencies are near the
vehicle.
. If a transmitter set to similar frequen-
cies is being used in or near the
vehicle.
. If a computer (or similar equipment) or
a DC/AC converter is being used in or
near the vehicle.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
AVOIDING COLLISION AND ROLL-
OVER
GUID-EE5BC752-B37C-479E-857D-032EF1A955FA
WARNING
Failure to operate this vehicle in a safe and
prudent manner may result in loss of control
or an accident.
Be alert and drive defensively at all times.
Obey all traffic regulations. Avoid exces-
sive speed, high speed cornering, or
sudden steering maneuvers, because
these driving practices could cause you to
Condition:

Black plate (377,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
6 In case of emergency
Hazard warning flasher switch...
............................. 6-2
Roadside assistance program ...
.............................. 6-2
Emergency engine shut off ...
.................................. 6-3
Flat tire ...
................................................................ 6-3
Tire Pressure Monitoring System (TPMS) ...
.......... 6-3
Changing a flat tire ...
......................................... 6-4 Jump starting
...
...................................................... 6-9
Push starting ...
.................................................... 6-11
If your vehicle overheats ...
................................... 6-11
Towing your vehicle ...
.......................................... 6-12
Towing recommended by INFINITI ...
................. 6-13
Vehicle recovery (Freeing a stuck vehicle) ...
.... 6-15
Condition:

Black plate (379,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-FB799410-A0CC-4EDA-A522-6DA1F88B3F1ETo shut off the engine in an emergency
situation while driving, perform the follow-
ing procedure:
.Rapidly push the push-button ignition
switch 3 consecutive times in less than
1.5 seconds, or
. Push and hold the push-button ignition
switch for more than 2 seconds.GUID-17D7421B-973E-4FF8-B56B-831261C859DB
TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-EFDE8E6D-AFA0-4243-A90D-0D01CCEE6814This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
If the vehicle is being driven with low tire
pressure, the TPMS will activate and warn
you of it by the low tire pressure warning
light. This system will activate only when
the vehicle is driven at speeds above 16
MPH (25 km/h). For more details, see
“Warning/indicator lights and audible re-
minders” (P.2-12) and “Tire Pressure Mon-
itoring System (TPMS)” (P.5-4).
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sudden
steering maneuvers or abrupt braking,
reduce vehicle speed, pull off the road to
a safe location and stop the vehicle as
soon as possible. Driving with under-
inflated tires may permanently damage the tires and increase the likelihood of
tire failure. Serious vehicle damage
could occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to the
recommended COLD tire pressure shown
on the Tire and Loading Information
label to turn the low tire pressure
warning light OFF. If the light still
illuminates while driving after adjusting
the tire pressure, a tire may be flat. If
you have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pressure
In case of emergency6-3
EMERGENCY ENGINE SHUT OFF FLAT TIRE
Condition:

Black plate (408,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
8-4Maintenance and do-it-yourself
is released.
When driving in areas using road salt or
other corrosive materials, check lubrication
frequently.
Lights*:Clean the headlights on a regular
basis. Make sure that the headlights, stop
lights, tail lights, turn signal lights, and
other lights are all operating properly and
installed securely. Also check headlight
aim.
Road wheel nuts (lug nuts)*: When check-
ing the tires, make sure no wheel nuts are
missing, and check for any loose wheel
nuts. Tighten if necessary.
Tire rotation*: Tires should be rotated
every 7,500 miles (12,000 km). If your
vehicle is equipped with different sized
tires in the front and rear, tires cannot be
rotated.
Tires*: Check the pressure with a gauge
often and always prior to long distance
trips. If necessary, adjust the pressure in
all tires, including the spare, to the
pressure specified. Check carefully for
damage, cuts or excessive wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap when the tires are replaced due to
wear or age.
Tire, wheel alignment and balance:
If the
vehicle should pull to either side while
driving on a straight and level road, or if
you detect uneven or abnormal tire wear,
there may be a need for wheel alignment.
If the steering wheel or seat vibrates at
normal highway speeds, wheel balancing
may be needed.
For additional information regarding tires,
refer to “Important Tire Safety Information”
(US) or “Tire Safety Information” (Canada)
in the INFINITI Warranty Information Book-
let.
Windshield: Clean the windshield on a
regular basis. Check the windshield at
least every six months for cracks or other
damage. Have a damaged windshield
repaired by a qualified repair facility.
Windshield wiper blades*: Check for
cracks or wear if they do not wipe properly.
Inside the vehicleGUID-9BC72144-3F74-486E-818A-C3F8D037D67DThe maintenance items listed here should
be checked on a regular basis, such as
when performing periodic maintenance,
cleaning the vehicle, etc. Accelerator pedal:
Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort.
Keep the floor mat away from the pedal.
Automatic transmission P (Park) mechan-
ism: On a fairly steep hill, check that your
vehicle is held securely with the selector
lever in the P (Park) position without
applying any brakes.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly
goes down further than normal, the pedal
feels spongy or the vehicle seems to take
longer to stop, see an INFINITI retailer
immediately. Keep the floor mat away from
the pedal.
Brakes: Check that the brakes do not pull
the vehicle to one side when applied.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only
the parking brake applied. If the parking
brake needs adjusted, see an INFINITI
retailer.
Seat belts: Check that all parts of the seat
belt system (for example, buckles, an-
chors, adjuster and retractors) operate
properly and smoothly, and are installed
Condition:

Black plate (437,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
GUID-9503AF79-9CA5-400E-9F06-81B6757D713CIf you have a flat tire, see“Flat tire”(P.6-
3).
TIRE PRESSUREGUID-059CBC2D-BB1C-4DE2-B26E-A89198E003F1
Tire Pressure Monitoring System
(TPMS)
GUID-54149EBD-6C2B-4EEC-AE1A-FDADBBA021B3This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS). It
monitors tire pressure of all tires except
the spare. When the low tire pressure
warning light is lit and the CHECK TIRE
PRESSURE warning appears on the dot
matrix liquid crystal display, one or more
of your tires is significantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 MPH
(25 km/h). Also, this system may not
detect a sudden drop in tire pressure (for
example a flat tire while driving).
For more details, see “Low tire pressure
warning light” (P.2-15),“Tire Pressure
Monitoring System (TPMS)” (P.5-4) and
“Tire Pressure Monitoring System (TPMS)”
(P.6-3).
Tire inflation pressureGUID-FDC2587E-609D-4595-9387-574BE1BDEAC6
Check the pressure of the tires
(including the spare) often and al-
ways prior to long distance trips. The
recommended tire pressure specifi-
cations are shown on the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly whendriven over potholes or other
objects or if the vehicle strikes a
curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle
has been parked for 3 or more hours,
or driven less than 1 mile (1.6 km) at
moderate speeds. Incorrect tire pressure, including
under inflation, may adversely affect
tire life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. label. The vehicle
weight capacity is indicated on
the Tire and Loading Information
label. Do not load your vehicle
beyond this capacity. Overloading
your vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire failure,
or unfavorable handling character-
istics and could also lead to a
serious accident. Loading beyond
the specified capacity may also
result in failure of other vehicle
components.
Maintenance and do-it-yourself8-33
WHEELS AND TIRES
Condition:

Black plate (443,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]

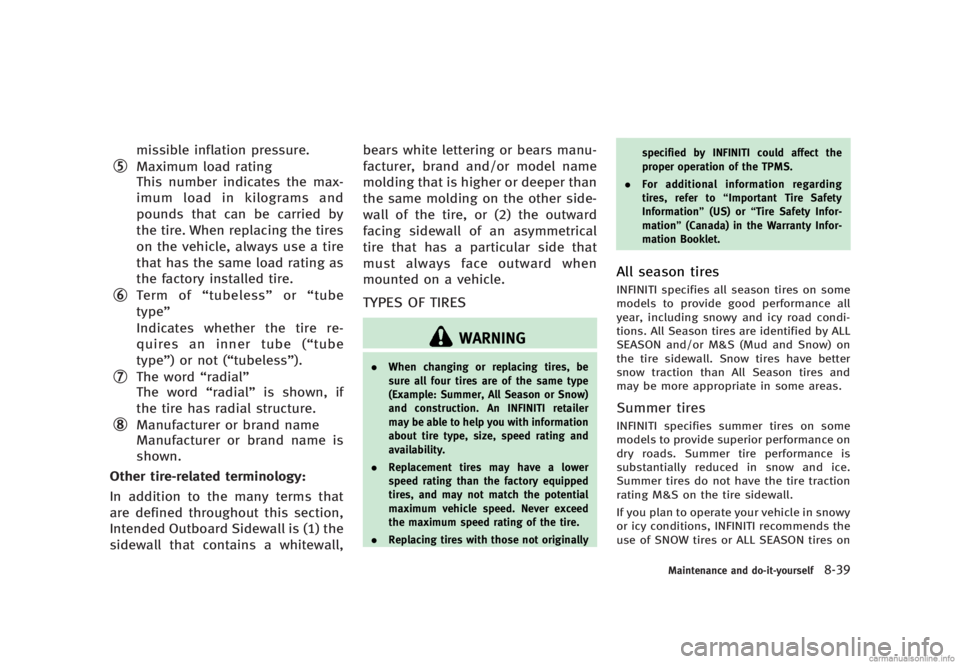

missible inflation pressure.
*5Maximum load rating
This number indicates the max-
imum load in kilograms and
pounds that can be carried by
the tire. When replacing the tires
on the vehicle, always use a tire
that has the same load rating as
the factory installed tire.
*6Term of“tubeless” or“tube
type”
Indicates whether the tire re-
quires an inner tube (“tube
type”) or not (“tubeless”).
*7The word “radial”
The word “radial”is shown, if
the tire has radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is
shown.
Other tire-related terminology:
In addition to the many terms that
are defined throughout this section,
Intended Outboard Sidewall is (1) the
sidewall that contains a whitewall, bears white lettering or bears manu-
facturer, brand and/or model name
molding that is higher or deeper than
the same molding on the other side-
wall of the tire, or (2) the outward
facing sidewall of an asymmetrical
tire that has a particular side that
must always face outward when
mounted on a vehicle.
TYPES OF TIRESGUID-42D58B1A-32E5-4966-9D89-2C4B16EEE249
WARNING
.
When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
. Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.
All season tiresGUID-87E8714D-2B3D-4DE3-B5B1-0FDB34C6A1BFINFINITI specifies all season tires on some
models to provide good performance all
year, including snowy and icy road condi-
tions. All Season tires are identified by ALL
SEASON and/or M&S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than All Season tires and
may be more appropriate in some areas.
Summer tiresGUID-560BBD79-0719-4B8B-AF1C-4D895DD18219INFINITI specifies summer tires on some
models to provide superior performance on
dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the tire traction
rating M&S on the tire sidewall.
If you plan to operate your vehicle in snowy
or icy conditions, INFINITI recommends the
use of SNOW tires or ALL SEASON tires on
Maintenance and do-it-yourself8-39
Condition:

Black plate (447,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
Replacing wheels and tiresGUID-4EF95767-87A1-46D1-823F-01023BAE60AAWhen replacing a tire, use the same size,
tread design, speed rating and load carry-
ing capacity as originally equipped. (See
“Specifications”(P.9-8) for recommended
types and sizes of tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of tires
of different brands, construction (bias,
bias-belted or radial), or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-tire
clearance, tire chain clearance, speed-
ometer calibration, headlight aim and
bumper height. Some of these effects
may lead to accidents and could result in
serious personal injury.
. For Two-Wheel Drive (2WD) models, if
your vehicle was originally equipped
with 4 tires that were the same size
and you are only replacing 2 of the 4
tires, install the new tires on the rear
axle. Placing new tires on the front axle
may cause loss of vehicle control in
some driving conditions and cause an accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimension.
Wheels of a different off-set could cause
premature tire wear, degrade vehicle
handling characteristics and/or interfer-
ence with the brake discs/drums. Such
interference can lead to decreased brak-
ing efficiency and/or early brake pad/
shoe wear. See “Wheels and tires” (P.9-
9) of this manual for wheel off-set
dimensions.
. When a spare tire is mounted or a wheel
is replaced, the TPMS will not function
and the low tire pressure warning light
will flash for approximately 1 minute.
The light will remain on after 1 minute.
Contact your INFINITI retailer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not originally
specified by INFINITI could affect the
proper operation of the TPMS.
. Do not install a damaged or deformed
wheel or tire even if it has been repaired.
Such wheels or tires could have struc-
tural damage and could fail without warning.
. The use of retread tire is not recom-
mended.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.All-Wheel Drive (AWD) modelsGUID-0EB56D0C-6EAC-46F4-9C56-5E4540701594
CAUTION
. Always use tires of the same type, size,
brand, construction (bias, bias-belted or
radial), and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears.
. ONLY use spare tires specified for the
AWD model.
If excessive tire wear is found, it is
recommended that all four tires be re-
Maintenance and do-it-yourself8-43
Condition:

Black plate (482,1)
[ Edit: 2012/ 7/ 6 Model: V36-D ]
10-4
INFINITI Vehicle Immobilizer System...
.................. 2-30
INFINITI voice recognition system ...
.................... 4-110
INFO button ...
........................................................ 4-9
Inside mirror ...
..................................................... 3-27
Inspection/maintenance (I/M) test ...
.................... 9-26
Instrument brightness control ...
........................... 2-38
Instrument panel ...
................................................ 2-4
Intelligent cruise control (ICC) system ...
............... 5-24
Preview function ...
.......................................... 5-45
Intelligent Cruise Control (ICC) system
warning light ...
.................................................... 2-15
Intelligent Key ...
..................................................... 3-2
Intelligent Key battery discharge indicator ...
........ 2-22
Intelligent Key insertion indicator ...
...................... 2-22
Intelligent Key removal indicator ...
....................... 2-22
Intelligent Key system ...
......................................... 3-7
Battery replacement ...
..................................... 8-26
Key operating range ...
....................................... 3-8
Key operation ...
.............................................. 3-10
Warning light ...
............................................... 2-15
Warning signals ...
........................................... 3-12
Intelligent Key warning light ...
............................. 2-15
Interior light control switch ...
............................... 2-57
Interior light replacement ...
.................................. 8-30
Interior lights ...
.................................................... 2-56
Interior trunk lid release ...
................................... 3-20
iPod
®player operation ...
..................................... 4-79
ISOFIX child restraint ...
........................................ 1-26
J
Jump starting ...
...................................................... 6-9
K
Keyless entry (See remote keyless
entry system) ...
.................................................... 3-14
Keys ...
................................................................... 3-2
For Intelligent Key system ...
.............................. 3-7
L
Labels
Air bag warning labels ...
................................. 1-55
Air conditioner specification label ...
................ 9-14
Emission control information label ...
............... 9-13
Engine serial number ...
................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ...
........ 9-13
Tire and Loading Information label ...
...... 8-35, 9-13
Vehicle identification number (VIN) ...
.............. 9-11
LATCH system ...
................................................... 1-26
License plate, Installing front license plate ...
....... 9-14
Light
Air bag warning light ...
................................... 1-55
Bulb replacement ...
......................................... 8-28
Fog light switch ...
........................................... 2-39
Headlight switch ...
.......................................... 2-35
Headlights bulb replacement ...
....................... 8-30
Indicator lights ...
............................................ 2-18
Interior light control switch ...
.......................... 2-57
Interior lights ...
............................................... 2-56 Map lights
...
................................................... 2-56
Replacement ...
................................................ 8-28
Trunk light ...
................................................... 2-58
Vanity mirror lights ...
...................................... 2-58
Warning/indicator lights and
audible reminders ...
........................................ 2-12
Xenon headlights ...
......................................... 2-34
Lights, Exterior and interior light replacement ...
... 8-30
Loading information (See vehicle
loading information) ...
......................................... 9-19
Lock Automatic door locks ...
..................................... 3-6
Door locks ...
..................................................... 3-4
Power door lock ...
............................................. 3-4
Trunk lid ...
...................................................... 3-18
Locking with mechanical key ...
............................... 3-4
Low fuel warning ...
.............................................. 2-23
Low tire pressure warning light ...
......................... 2-15
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
..... 5-4
Low washer fluid warning ...
................................. 2-23
M
Maintenance
Battery ...
......................................................... 8-16
General maintenance ...
..................................... 8-3
Indicators for maintenance ...
........................... 2-24
Inside the vehicle ...
.......................................... 8-4
Maintenance precautions ...
............................... 8-6
Maintenance requirements ...
............................. 8-3
Outside the vehicle ...
........................................ 8-3
Condition:
