0-8Illustrated table of contents
GUID-F2598EE2-4ED0-4897-999C-49B57146B65A
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-39)
5. Clock (P.2-42)6. Center multi-function control panel
—Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9) —
Bluetooth
®Hands-Free Phone Sys-
tem (models with navigation system)
(P.4-79)
— Audio system (P.4-39)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-38)
9. Front passenger supplemental air bag (P.1-35)
10. Fuse box cover (P.8-22)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-30)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or Storage box (if
so equipped) (P.2-48)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-39) or Climate controlled seat
switch (if so equipped) (P.2-40)
INSTRUMENT PANEL

2-4Instruments and controls
GUID-507DB2E5-3931-43B9-87C2-FB1ED4E7E3EE
SSI0671
1. Side ventilator (P.4-30)
2. Meters and gauges (P.2-6)
3. Center ventilator (P.4-30)
4. Audio system (P.4-39)
5. Clock (P.2-42)
6. Center multi-function control panel—
Navigation system* (if so
equipped)
— Vehicle information and setting
buttons (P.4-9)
— Bluetooth
®Hands-Free Phone Sys-
tem (models with navigation system) (P.4-79)
—
Audio system (P.4-39)
7. Center display (P.4-3)/Navigation sys- tem* (if so equipped)
8. Hazard warning flasher switch (P.2-38)
9. Front passenger supplemental air bag (P.1-35)
10. Fuse box cover (P.8-22)
11. Parking brake (for Automatic Trans- mission models)
—Parking (P.5-20)
12. Push-button ignition switch (P.5-9)
13. Automatic climate control system (P.4-30)
14. Cigarette lighter and ashtray (if so equipped) (P.2-44) or Storage box (if
so equipped) (P.2-48)
—Power outlet (if so equipped)
(P.2-43)
15. Parking brake (for Manual Transmis- sion models)
—Parking (P.5-20)
16. Heated seat switch (if so equipped) (P.2-39) or Climate controlled seat
switch (if so equipped) (P.2-40)
17. Retractable hard top operating switch (P.3-18)
INSTRUMENT PANEL

GUID-CFC63CE6-3D5A-4EEA-A57E-D000A5F2D43D
JVI0329X
Automatic transmission models
SIC4316
Automatic transmission models
SIC4684
Manual transmission models
The power outlet is located in the center
console box and storage box (if so
equipped).
CAUTION
. The outlet and plug may be hot during or
immediately after use.
. Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
. Use power outlet with the engine run-
ning to avoid discharging the vehicle battery.
. Avoid using power outlet when the air
conditioner, headlights or rear window
defroster is on.
. This power outlet is not designed for use
with a cigarette lighter unit.
. Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may blow.
. Before inserting or disconnecting a plug,
be sure the electrical accessory being
used is turned OFF.
. When not in use, be sure to close the
cap. Do not allow water or any liquid to
contact the outlet.
Instruments and controls2-43
POWER OUTLETS

8-22Maintenance and do-it-yourself
GUID-24B4803E-7C95-450E-8E5A-C987FD98C490If the brakes do not operate properly, have
the brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKESGUID-B60773EA-835E-45EF-8459-943C453A3E2FYour vehicle is equipped with self-adjust-
ing brakes.
The disc-type brakes self-adjust every time
the brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not
return to normal.
BRAKE PAD WEAR WARNINGGUID-3EBC0D64-F1B6-4853-8B16-7707AECD26FAThe disc brake pads have audible wear
warnings. When a brake pad requires
replacement, it will make a high pitched
scraping sound when the vehicle is in
motion. This scraping sound will first occur
only when the brake pedal is depressed.
After more wear of the brake pad, the
sound will always be heard even if the
brake pedal is not depressed. Have the
brakes checked as soon as possible if the
wear warning sound is heard.
Under some driving or climate conditions,occasional brake squeak, squeal or other
noise may be heard. Occasional brake
noise during light to moderate stops is
normal and does not affect the function or
performance of the brake system.
Proper brake inspection intervals should
be followed.
For additional information,
see the maintenance log section of your
“INFINITI Service and Maintenance Guide”.
GUID-E5DF23F8-C853-4A16-B731-875E7AB9DDC2
SDI1479A
ENGINE COMPARTMENTGUID-64171551-5633-47A8-B88A-55FE9630BBEA
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the
headlight switch is turned to OFF.
BRAKES FUSES

2. Open the engine hood and remove thecover on the battery and the fuse/
fusible link holder.
3. Remove the fuse/fusible link holder
cover.
4. Remove the fuse with the fuse puller located in the passenger compartment
fuse box.
SDI1754
5. If the fuse is open*A, replace it with a
new fuse
*B. Spare fuses are stored in
the passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer.
Fusible linksGUID-85CCA4A5-CFBD-4923-A9D8-AF759D45C85CIf any electrical equipment does not
operate and the fuses are in good condi-
tion, check the fusible links. If any of these
fusible links are melted, replace only with
genuine INFINITI parts.
Maintenance and do-it-yourself8-23

8-24Maintenance and do-it-yourself
SDI2034

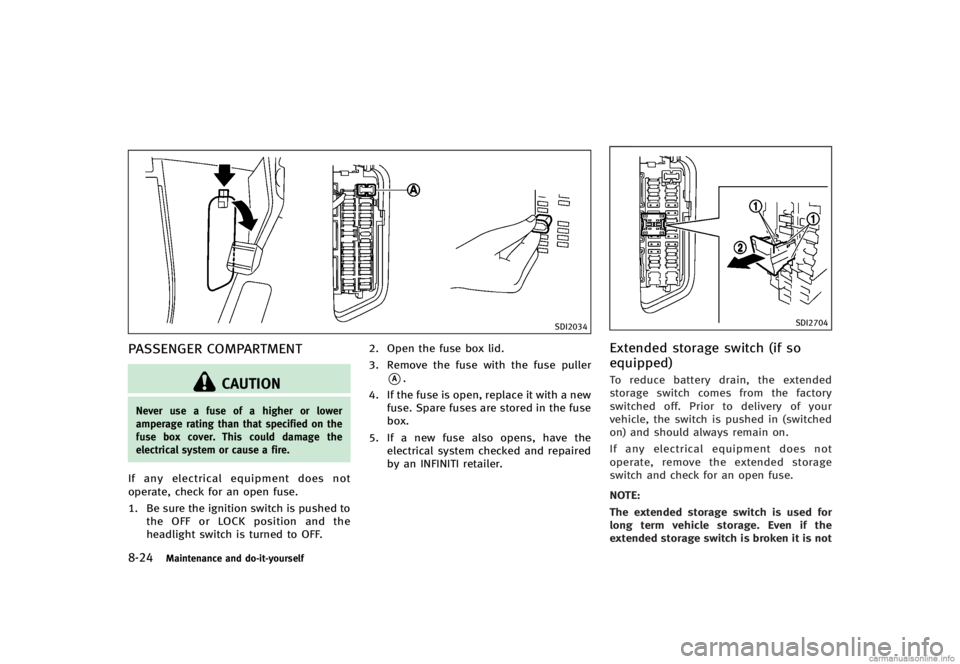

PASSENGER COMPARTMENTGUID-9D5688A6-7D00-46FA-BF55-FAC9DF823B75
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on the
fuse box cover. This could damage the
electrical system or cause a fire.
If any electrical equipment does not
operate, check for an open fuse.
1. Be sure the ignition switch is pushed tothe OFF or LOCK position and the
headlight switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse
box.
5. If a new fuse also opens, have the electrical system checked and repaired
by an INFINITI retailer.
SDI2704
Extended storage switch (if so
equipped)
GUID-1E0892FA-E301-4392-AAE1-8014810BCC3BTo reduce battery drain, the extended
storage switch comes from the factory
switched off. Prior to delivery of your
vehicle, the switch is pushed in (switched
on) and should always remain on.
If any electrical equipment does not
operate, remove the extended storage
switch and check for an open fuse.
NOTE:
The extended storage switch is used for
long term vehicle storage. Even if the
extended storage switch is broken it is not

necessary to replace it. Replace only the
open fuse in the switch with a new fuse.

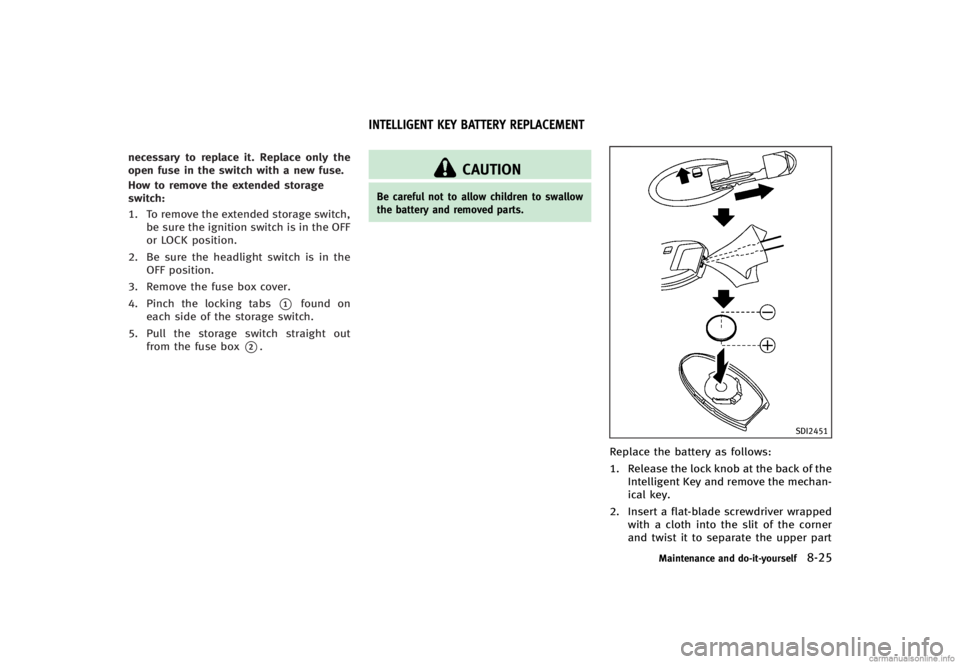

How to remove the extended storage
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage switch,be sure the ignition switch is in the OFF
or LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on
each side of the storage switch.
5. Pull the storage switch straight out from the fuse box
*2.
GUID-1F9B8636-7E6E-45E3-956E-110F7CC84D80
CAUTION
Be careful not to allow children to swallow
the battery and removed parts.
SDI2451
Replace the battery as follows:
1. Release the lock knob at the back of theIntelligent Key and remove the mechan-
ical key.
2. Insert a flat-blade screwdriver wrapped with a cloth into the slit of the corner
and twist it to separate the upper part
Maintenance and do-it-yourself8-25
INTELLIGENT KEY BATTERY REPLACEMENT
