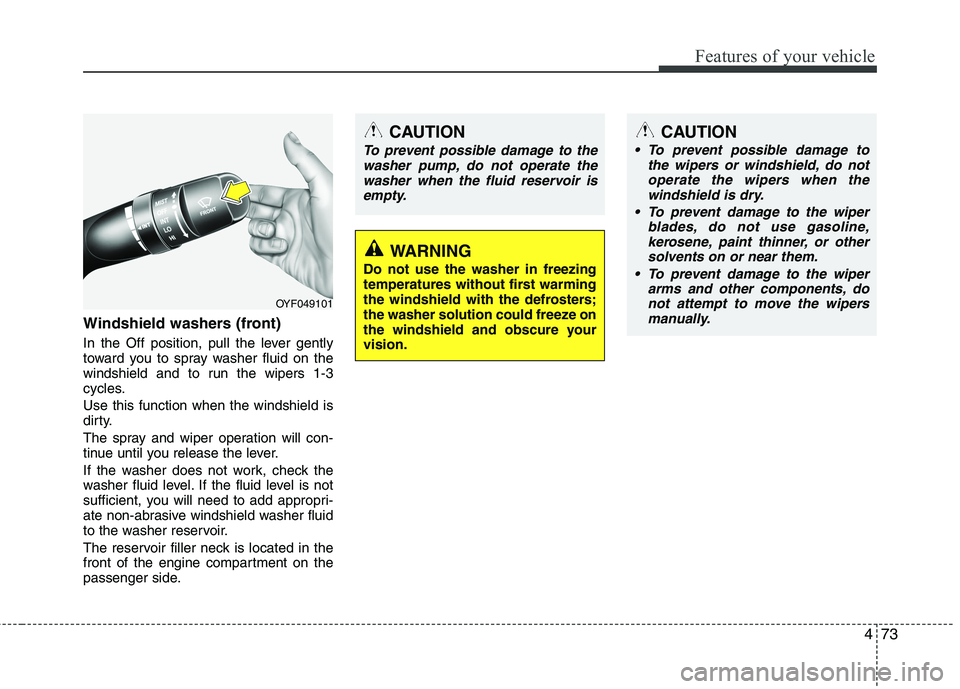

473
Features of your vehicle
Windshield washers (front)
In the Off position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles.
Use this function when the windshield is
dirty.
The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windshield washer fluid
to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
OYF049101
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze on
the windshield and obscure your
vision.
CAUTION
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
CAUTION
To prevent possible damage to
the wipers or windshield, do not
operate the wipers when the
windshield is dry.
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

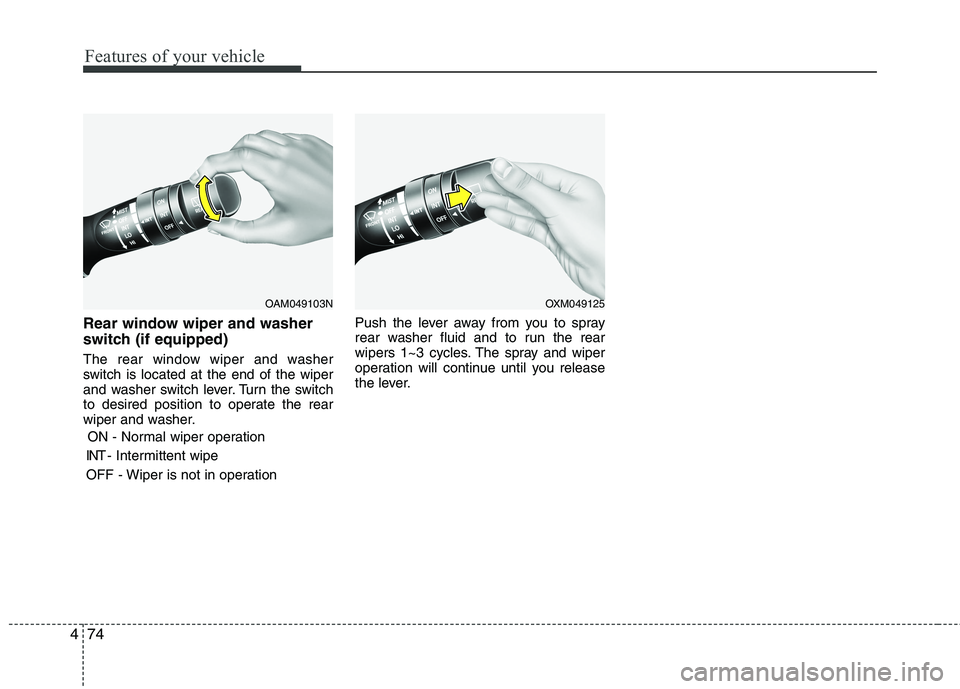

Features of your vehicle
74 4
Rear window wiper and washer
switch (if equipped)
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to desired position to operate the rear
wiper and washer.
ON - Normal wiper operation
INT - Intermittent wipe
OFF - Wiper is not in operationPush the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
OAM049103NOXM049125

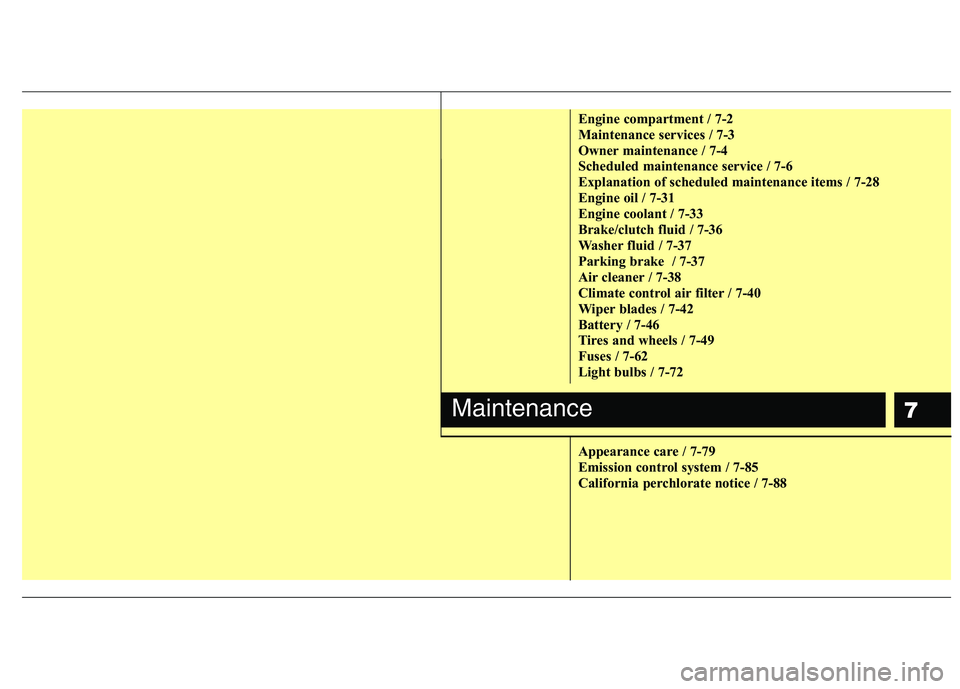

7
Engine compartment / 7-2
Maintenance services / 7-3
Owner maintenance / 7-4
Scheduled maintenance service / 7-6
Explanation of scheduled maintenance items / 7-28
Engine oil / 7-31
Engine coolant / 7-33
Brake/clutch fluid / 7-36
Washer fluid / 7-37
Parking brake / 7-37
Air cleaner / 7-38
Climate control air filter / 7-40
Wiper blades / 7-42
Battery / 7-46
Tires and wheels / 7-49
Fuses / 7-62
Light bulbs / 7-72
Appearance care / 7-79
Emission control system / 7-85
California perchlorate notice / 7-88
Maintenance

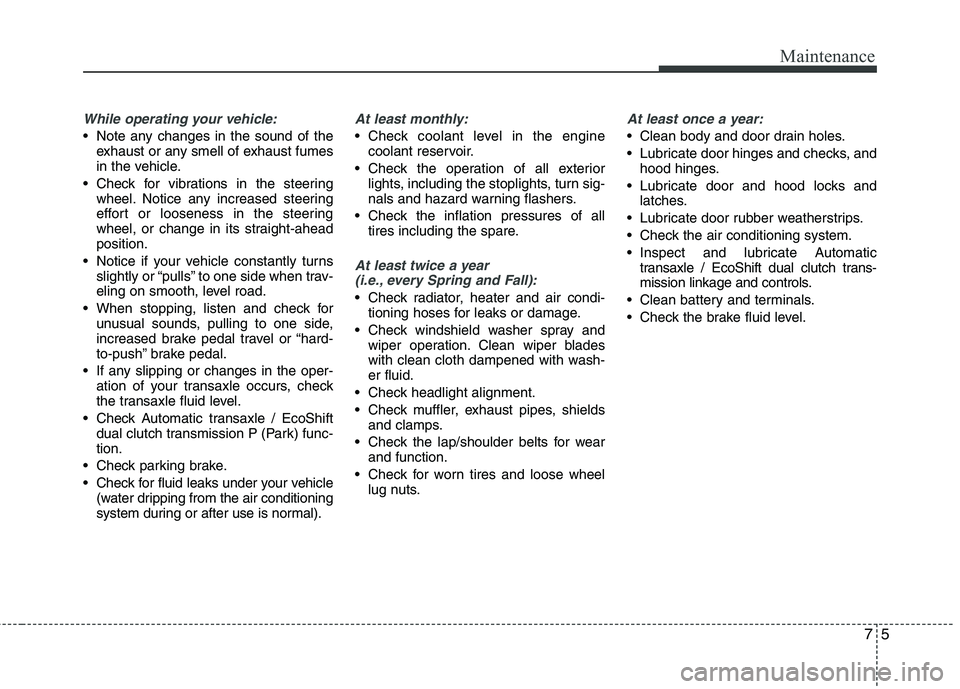

75
Maintenance
While operating your vehicle:
Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
Check for vibrations in the steering
wheel. Notice any increased steering
effort or looseness in the steering
wheel, or change in its straight-ahead
position.
Notice if your vehicle constantly turns
slightly or “pulls” to one side when trav-
eling on smooth, level road.
When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
If any slipping or changes in the oper-
ation of your transaxle occurs, check
the transaxle fluid level.
Check Automatic transaxle / EcoShift
dual clutch transmission P (Park) func-
tion.
Check parking brake.
Check for fluid leaks under your vehicle
(water dripping from the air conditioning
system during or after use is normal).
At least monthly:
Check coolant level in the engine
coolant reservoir.
Check the operation of all exterior
lights, including the stoplights, turn sig-
nals and hazard warning flashers.
Check the inflation pressures of all
tires including the spare.
At least twice a year
(i.e., every Spring and Fall):
Check radiator, heater and air condi-
tioning hoses for leaks or damage.
Check windshield washer spray and
wiper operation. Clean wiper blades
with clean cloth dampened with wash-
er fluid.
Check headlight alignment.
Check muffler, exhaust pipes, shields
and clamps.
Check the lap/shoulder belts for wear
and function.
Check for worn tires and loose wheel
lug nuts.
At least once a year:
Clean body and door drain holes.
Lubricate door hinges and checks, and
hood hinges.
Lubricate door and hood locks and
latches.
Lubricate door rubber weatherstrips.
Check the air conditioning system.
Inspect and lubricate Automatic
transaxle / EcoShift dual clutch trans-
mission linkage and controls.
Clean battery and terminals.
Check the brake fluid level.

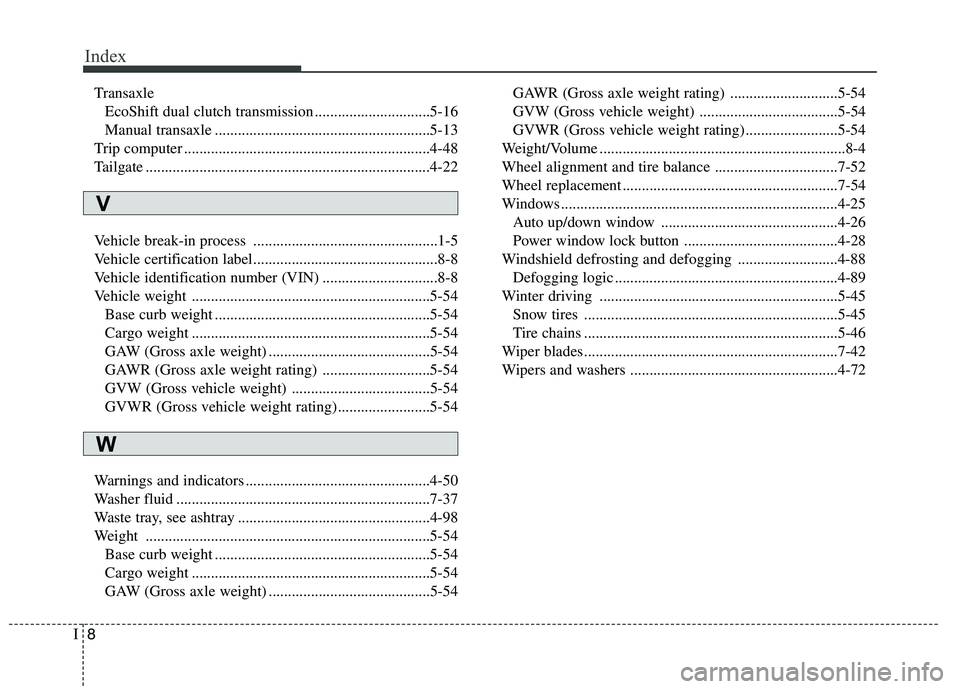

Index
8I
Transaxle
EcoShift dual clutch transmission ..............................5-16
Manual transaxle ........................................................5-13
Trip computer ................................................................4-48
Tailgate ..........................................................................4-22
Vehicle break-in process ................................................1-5
Vehicle certification label................................................8-8
Vehicle identification number (VIN) ..............................8-8
Vehicle weight ..............................................................5-54
Base curb weight ........................................................5-54
Cargo weight ..............................................................5-54
GAW (Gross axle weight) ..........................................5-54
GAWR (Gross axle weight rating) ............................5-54
GVW (Gross vehicle weight) ....................................5-54
GVWR (Gross vehicle weight rating)........................5-54
Warnings and indicators ................................................4-50
Washer fluid ..................................................................7-37
Waste tray, see ashtray ..................................................4-98
Weight ..........................................................................5-54
Base curb weight ........................................................5-54
Cargo weight ..............................................................5-54
GAW (Gross axle weight) ..........................................5-54GAWR (Gross axle weight rating) ............................5-54
GVW (Gross vehicle weight) ....................................5-54
GVWR (Gross vehicle weight rating)........................5-54
Weight/Volume ................................................................8-4
Wheel alignment and tire balance ................................7-52
Wheel replacement ........................................................7-54
Windows ........................................................................4-25
Auto up/down window ..............................................4-26
Power window lock button ........................................4-28
Windshield defrosting and defogging ..........................4-88
Defogging logic ..........................................................4-89
Winter driving ..............................................................5-45
Snow tires ..................................................................5-45
Tire chains ..................................................................5-46
Wiper blades..................................................................7-42
Wipers and washers ......................................................4-72
