477
Features of your vehicle

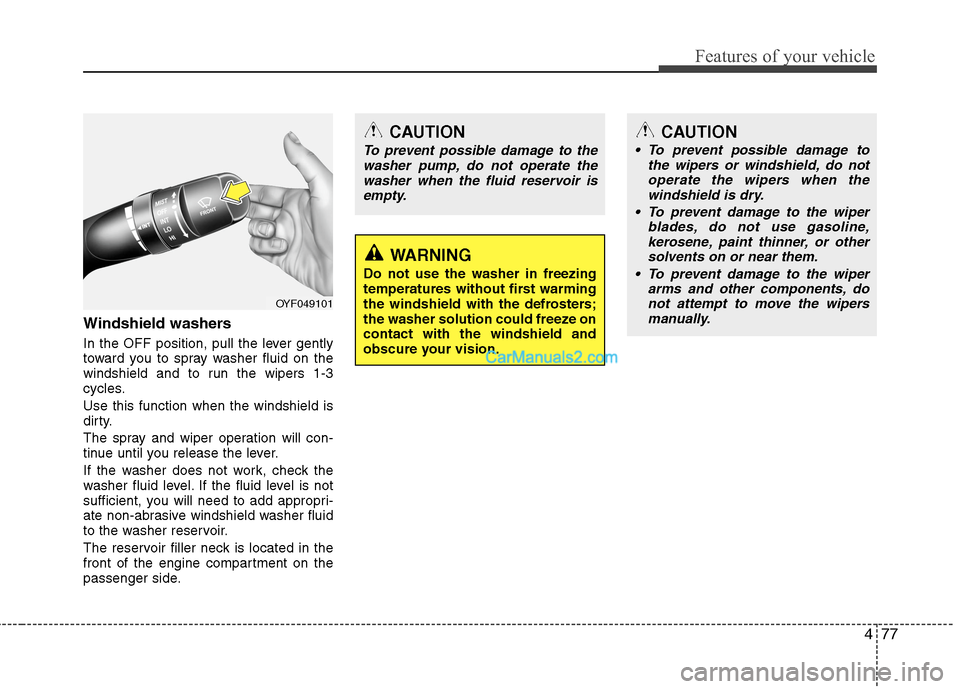

Windshield washers
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles.
Use this function when the windshield is
dirty.
The spray and wiper operation will con-
tinue until you release the lever.
If the washer does not work, check the
washer fluid level. If the fluid level is not
sufficient, you will need to add appropri-
ate non-abrasive windshield washer fluid
to the washer reservoir.
The reservoir filler neck is located in the
front of the engine compartment on the
passenger side.
CAUTION
To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze on
contact with the windshield and
obscure your vision.
CAUTION
To prevent possible damage to
the wipers or windshield, do not
operate the wipers when the
windshield is dry.
To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
OYF049101

7
Engine compartment / 7-2
Maintenance services / 7-3
Owner maintenance / 7-5
Scheduled maintenance service / 7-7
Explanation of scheduled maintenance items / 7-19
Engine oil / 7-22
Inverter coolant / 7-24
Engine coolant / 7-24
Brake fluid / 7-27
Washer fluid / 7-28
Parking brake / 7-28
Air cleaner / 7-29
Climate control air filter / 7-30
Wiper blades / 7-32
Battery (12V) / 7-34
Tires and wheels / 7-37
Fuses / 7-50
Light bulbs / 7-60
Appearance care / 7-69
Emission control system / 7-75
High voltage battery / 7-78
California perchlorate notice / 7-78
Maintenance

Maintenance
6 7

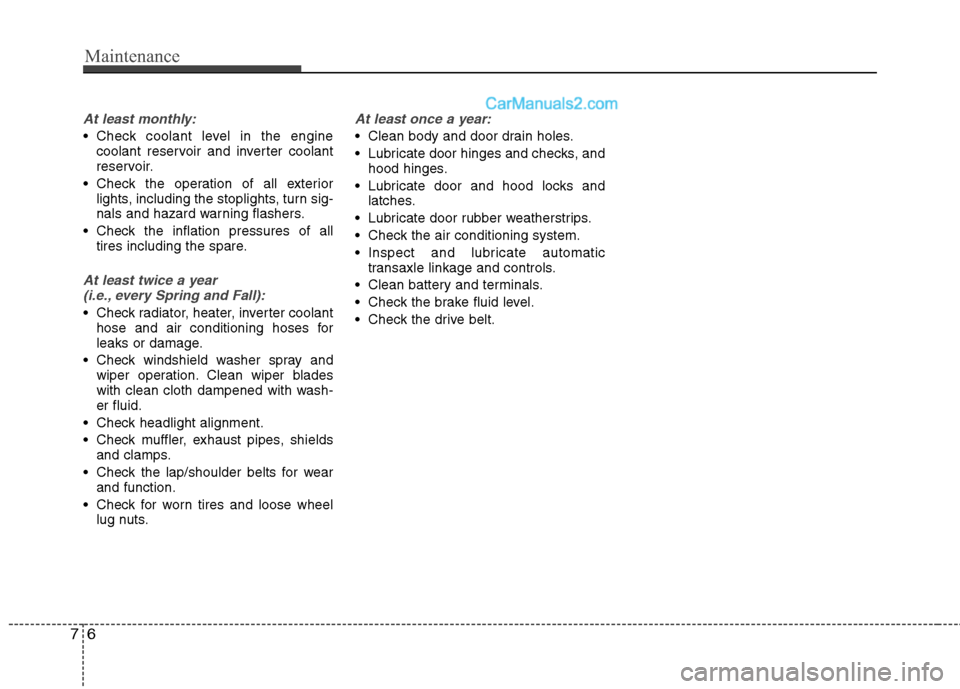

At least monthly:
Check coolant level in the engine
coolant reservoir and inverter coolant
reservoir.
Check the operation of all exterior
lights, including the stoplights, turn sig-
nals and hazard warning flashers.
Check the inflation pressures of all
tires including the spare.
At least twice a year
(i.e., every Spring and Fall):
Check radiator, heater, inverter coolant
hose and air conditioning hoses for
leaks or damage.
Check windshield washer spray and
wiper operation. Clean wiper blades
with clean cloth dampened with wash-
er fluid.
Check headlight alignment.
Check muffler, exhaust pipes, shields
and clamps.
Check the lap/shoulder belts for wear
and function.
Check for worn tires and loose wheel
lug nuts.
At least once a year:
Clean body and door drain holes.
Lubricate door hinges and checks, and
hood hinges.
Lubricate door and hood locks and
latches.
Lubricate door rubber weatherstrips.
Check the air conditioning system.
Inspect and lubricate automatic
transaxle linkage and controls.
Clean battery and terminals.
Check the brake fluid level.
Check the drive belt.

I9

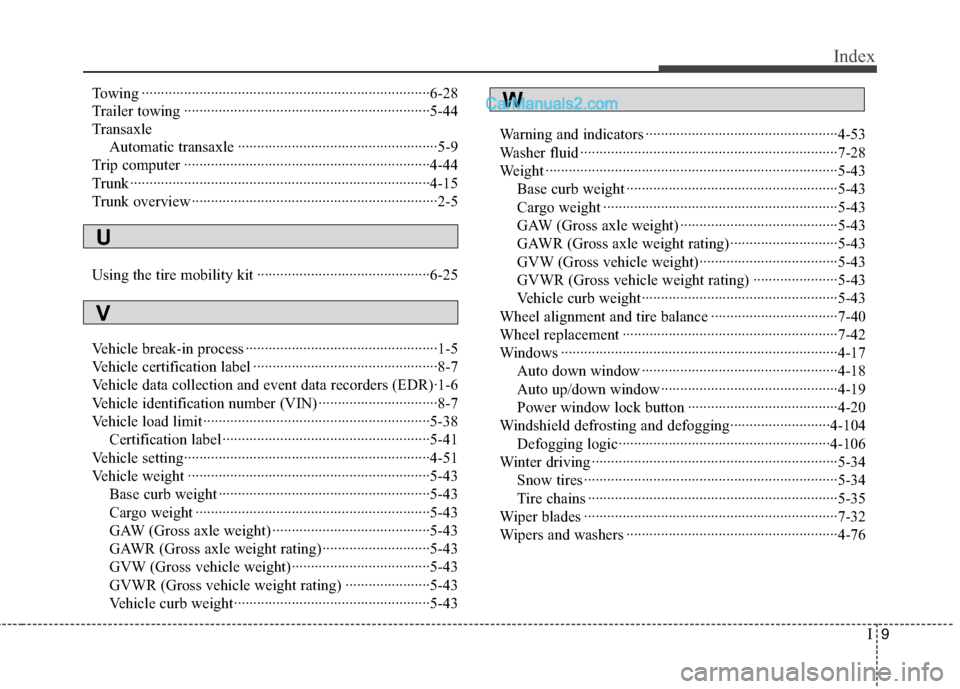

Index
Towing ···········································································6-28
Trailer towing ································································5-44
Transaxle
Automatic transaxle ····················································5-9
Trip computer ································································4-44
Trunk ··············································································4-15
Trunk overview ································································2-5
Using the tire mobility kit ·············································6-25
Vehicle break-in process ··················································1-5
Vehicle certification label ················································8-7
Vehicle data collection and event data recorders (EDR)·1-6
Vehicle identification number (VIN) ·······························8-7
Vehicle load limit ···························································5-38
Certification label ······················································5-41
Vehicle setting································································4-51
Vehicle weight ·······························································5-43
Base curb weight ·······················································5-43
Cargo weight ·····························································5-43
GAW (Gross axle weight) ·········································5-43
GAWR (Gross axle weight rating)····························5-43
GVW (Gross vehicle weight)····································5-43
GVWR (Gross vehicle weight rating) ······················5-43
Vehicle curb weight···················································5-43Warning and indicators ··················································4-53
Washer fluid ···································································7-28
Weight ············································································5-43
Base curb weight ·······················································5-43
Cargo weight ·····························································5-43
GAW (Gross axle weight) ·········································5-43
GAWR (Gross axle weight rating)····························5-43
GVW (Gross vehicle weight)····································5-43
GVWR (Gross vehicle weight rating) ······················5-43
Vehicle curb weight···················································5-43
Wheel alignment and tire balance ·································7-40
Wheel replacement ························································7-42
Windows ········································································4-17
Auto down window ···················································4-18
Auto up/down window ··············································4-19
Power window lock button ·······································4-20
Windshield defrosting and defogging··························4-104
Defogging logic·······················································4-106
Winter driving ································································5-34
Snow tires ··································································5-34
Tire chains ·································································5-35
Wiper blades ··································································7-32
Wipers and washers ·······················································4-76
