2013 Hyundai Sonata Hybrid wheel

83
Specifications, Consumer information, Reporting safety defects

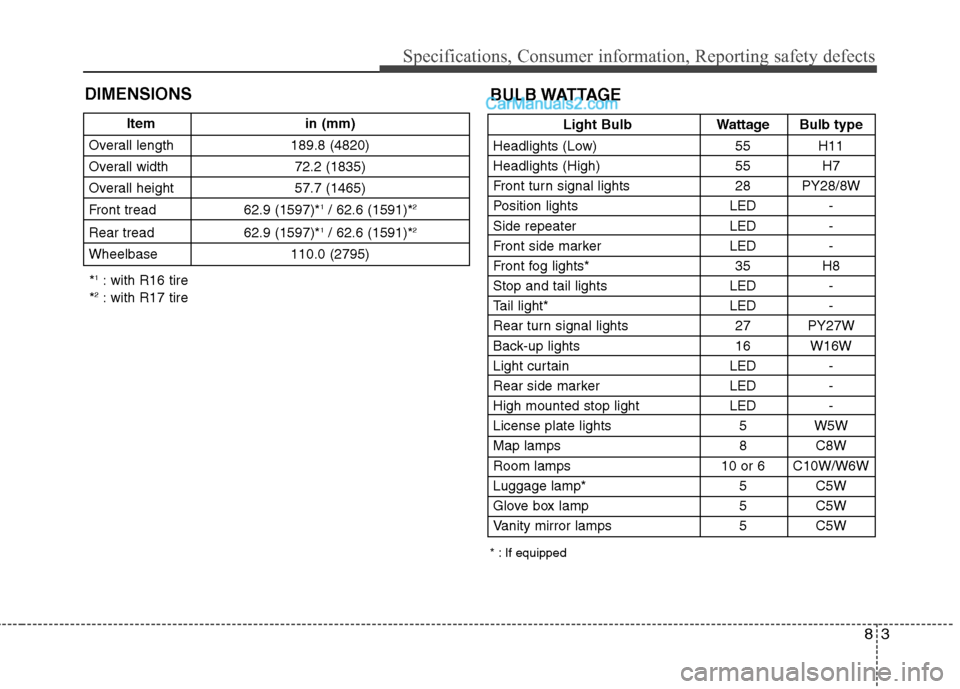

DIMENSIONS
Light Bulb Wattage Bulb type
Headlights (Low) 55 H11
Headlights (High) 55 H7
Front turn signal lights 28 PY28/8W
Position lights LED -
Side repeater LED -
Front side marker LED -
Front fog lights* 35 H8
Stop and tail lights LED -
Tail light* LED -
Rear turn signal lights 27 PY27W
Back-up lights 16 W16W
Light curtain LED -
Rear side marker LED -
High mounted stop light LED -
License plate lights 5 W5W
Map lamps 8 C8W
Room lamps 10 or 6 C10W/W6W
Luggage lamp* 5 C5W
Glove box lamp 5 C5W
Vanity mirror lamps 5 C5W
BULB WATTAGE
* : If equipped
Item in (mm)
Overall length 189.8 (4820)
Overall width 72.2 (1835)
Overall height 57.7 (1465)
Front tread 62.9 (1597)*
1/ 62.6 (1591)*2
Rear tread 62.9 (1597)*1/ 62.6 (1591)*2
Wheelbase 110.0 (2795)
*1: with R16 tire
*2: with R17 tire

Specifications, Consumer information, Reporting safety defects
4 8

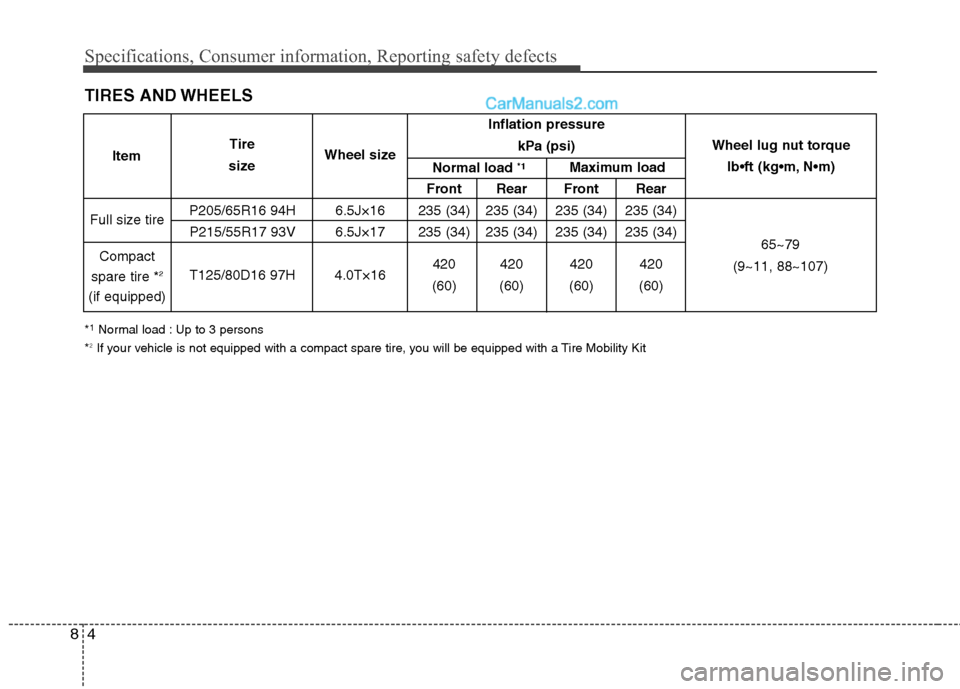

TIRES AND WHEELS
*1Normal load : Up to 3 persons
*2If your vehicle is not equipped with a compact spare tire, you will be equipped with a Tire Mobility Kit
Inflation pressure
kPa (psi)
Front Rear Front Rear
P205/65R16 94H 6.5J×16 235 (34) 235 (34) 235 (34) 235 (34)
P215/55R17 93V 6.5J×17 235 (34) 235 (34) 235 (34) 235 (34)
420 420 420 420
T125/80D16 97H 4.0T×16
(60) (60) (60) (60)
Full size tire
Compact
spare tire *
2
(if equipped)Wheel lug nut torque
lb•ft (kg N
65~79
(9~11, 88~107) ItemTire
sizeWheel size
Normal load
*1Maximum load

H4

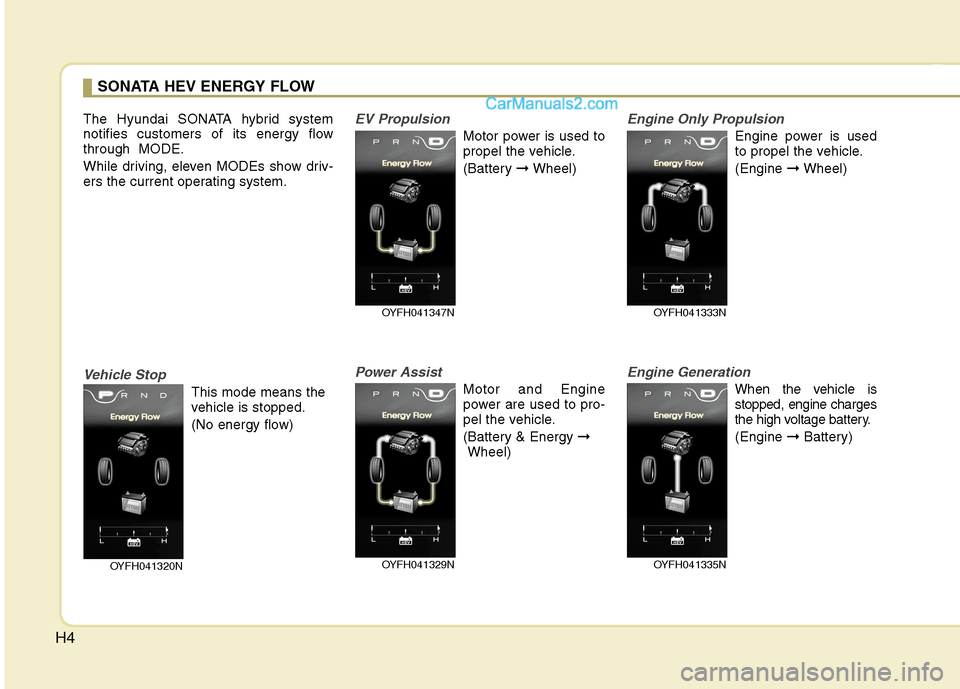

The Hyundai SONATA hybrid system
notifies customers of its energy flow
through MODE.
While driving, eleven MODEs show driv-
ers the current operating system.
Vehicle Stop
This mode means the
vehicle is stopped.
(No energy flow)
EV Propulsion
Motor power is used to
propel the vehicle.
(Battery ➞Wheel)
Power Assist
Motor and Engine
power are used to pro-
pel the vehicle.
(Battery & Energy ➞
Wheel)
Engine Only Propulsion
Engine power is used
to propel the vehicle.
(Engine ➞Wheel)
Engine Generation
When the vehicle is
stopped, engine charges
the high voltage battery.
(Engine ➞Battery)
SONATA HEV ENERGY FLOW
OYFH041320N
OYFH041347N
OYFH041329N
OYFH041333N
OYFH041335N

H5

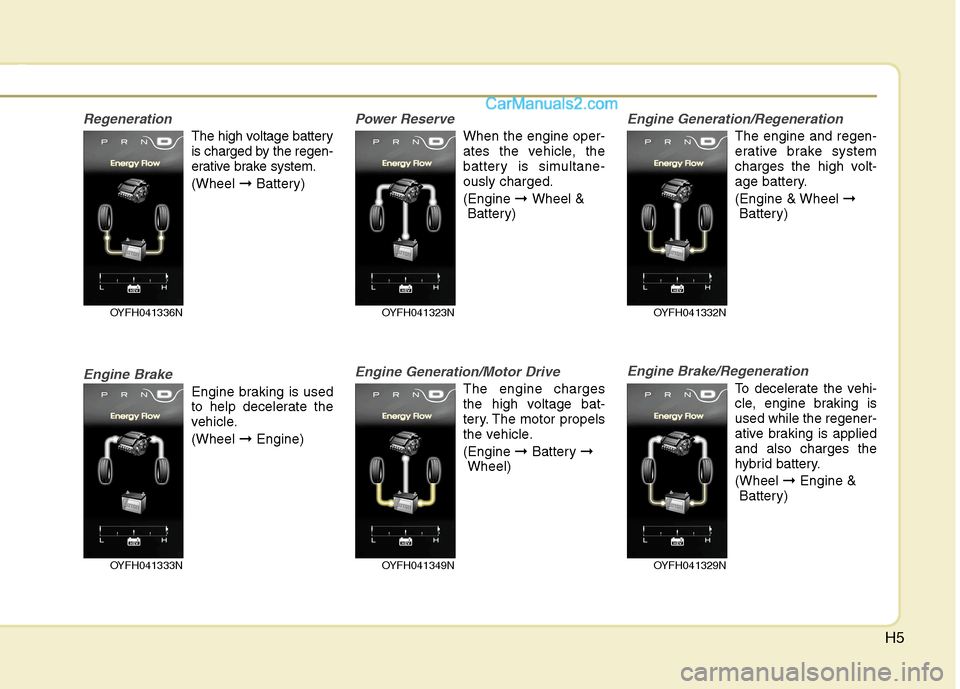

Regeneration
The high voltage battery
is charged by the regen-
erative brake system.
(Wheel ➞Battery)
Engine Brake
Engine braking is used
to help decelerate the
vehicle.
(Wheel ➞Engine)
Power Reserve
When the engine oper-
ates the vehicle, the
battery is simultane-
ously charged.
(Engine ➞ Wheel &
Battery)
Engine Generation/Motor Drive
The engine charges
the high voltage bat-
tery. The motor propels
the vehicle.
(Engine ➞Battery ➞
Wheel)
Engine Generation/Regeneration
The engine and regen-
erative brake system
charges the high volt-
age battery.
(Engine & Wheel ➞
Battery)
Engine Brake/Regeneration
To decelerate the vehi-
cle, engine braking is
used while the regener-
ative braking is applied
and also charges the
hybrid battery.
(Wheel ➞Engine &
Battery)
OYFH041336N
OYFH041333NOYFH041349N
OYFH041323N
OYFH041329N
OYFH041332N

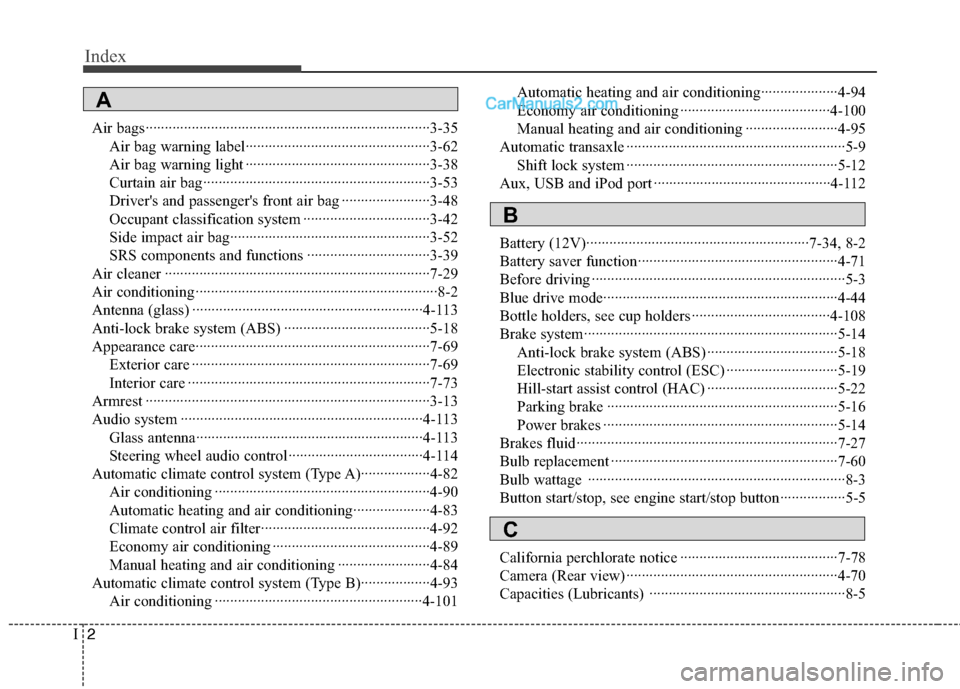

Index
2I
Air bags··········································································3-35
Air bag warning label················································3-62
Air bag warning light ················································3-38
Curtain air bag···························································3-53
Driver's and passenger's front air bag ·······················3-48
Occupant classification system ·································3-42
Side impact air bag····················································3-52
SRS components and functions ································3-39
Air cleaner ·····································································7-29
Air conditioning ·······························································8-2
Antenna (glass) ····························································4-113
Anti-lock brake system (ABS) ······································5-18
Appearance care·····························································7-69
Exterior care ······························································7-69
Interior care ·······························································7-73
Armrest ··········································································3-13
Audio system ·······························································4-113
Glass antenna···························································4-113
Steering wheel audio control···································4-114
Automatic climate control system (Type A)··················4-82
Air conditioning ························································4-90
Automatic heating and air conditioning····················4-83
Climate control air filter············································4-92
Economy air conditioning ·········································4-89
Manual heating and air conditioning ························4-84
Automatic climate control system (Type B)··················4-93
Air conditioning ······················································4-101Automatic heating and air conditioning····················4-94
Economy air conditioning ·······································4-100
Manual heating and air conditioning ························4-95
Automatic transaxle ·························································5-9
Shift lock system ·······················································5-12
Aux, USB and iPod port ··············································4-112
Battery (12V)··························································7-34, 8-2
Battery saver function····················································4-71
Before driving ··································································5-3
Blue drive mode·····························································4-44
Bottle holders, see cup holders ····································4-108
Brake system··································································5-14
Anti-lock brake system (ABS) ··································5-18
Electronic stability control (ESC) ·····························5-19
Hill-start assist control (HAC) ··································5-22
Parking brake ····························································5-16
Power brakes ·····························································5-14
Brakes fluid····································································7-27
Bulb replacement ···························································7-60
Bulb wattage ···································································8-3
Button start/stop, see engine start/stop button·················5-5
California perchlorate notice ·········································7-78
Camera (Rear view) ·······················································4-70
Capacities (Lubricants) ···················································8-5
A
B
C

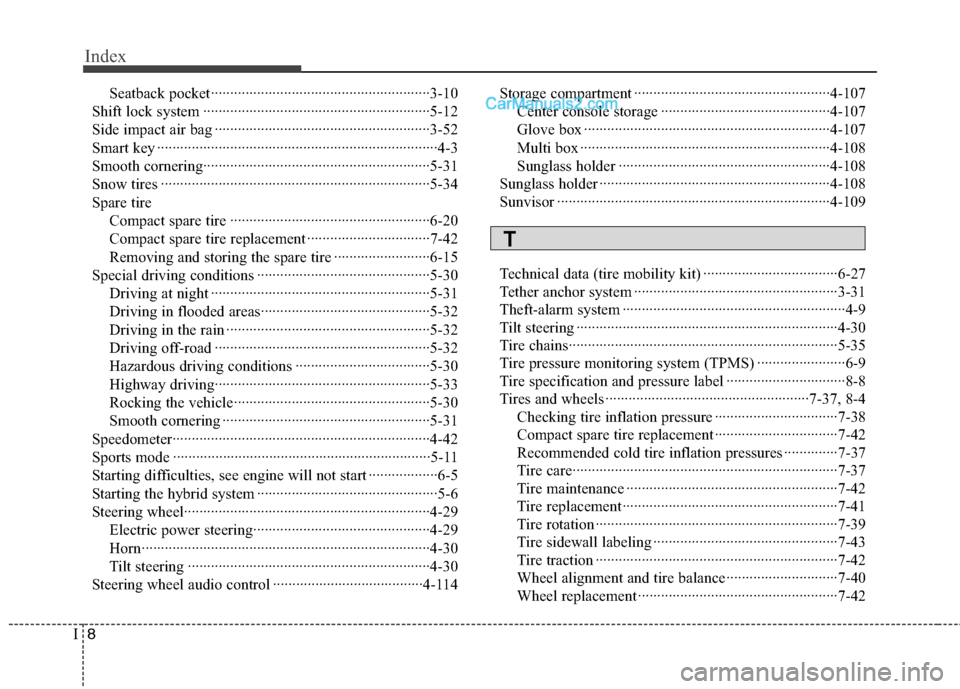

Index
8I
Seatback pocket·························································3-10
Shift lock system ···························································5-12
Side impact air bag ························································3-52
Smart key ·········································································4-3
Smooth cornering···························································5-31
Snow tires ······································································5-34
Spare tire
Compact spare tire ····················································6-20
Compact spare tire replacement ································7-42
Removing and storing the spare tire ·························6-15
Special driving conditions ·············································5-30
Driving at night ·························································5-31
Driving in flooded areas············································5-32
Driving in the rain ·····················································5-32
Driving off-road ························································5-32
Hazardous driving conditions ···································5-30
Highway driving························································5-33
Rocking the vehicle···················································5-30
Smooth cornering ······················································5-31
Speedometer···································································4-42
Sports mode ···································································5-11
Starting difficulties, see engine will not start ··················6-5
Starting the hybrid system ···············································5-6
Steering wheel································································4-29
Electric power steering··············································4-29
Horn···········································································4-30
Tilt steering ·······························································4-30
Steering wheel audio control ·······································4-114Storage compartment ···················································4-107
Center console storage ············································4-107
Glove box ································································4-107
Multi box ·································································4-108
Sunglass holder ·······················································4-108
Sunglass holder ····························································4-108
Sunvisor ·······································································4-109
Technical data (tire mobility kit) ···································6-27
Tether anchor system ·····················································3-31
Theft-alarm system ··························································4-9
Tilt steering ····································································4-30
Tire chains······································································5-35
Tire pressure monitoring system (TPMS) ·······················6-9
Tire specification and pressure label ·······························8-8
Tires and wheels ·····················································7-37, 8-4
Checking tire inflation pressure ································7-38
Compact spare tire replacement ································7-42
Recommended cold tire inflation pressures ··············7-37
Tire care·····································································7-37
Tire maintenance ·······················································7-42
Tire replacement ························································7-41
Tire rotation ·······························································7-39
Tire sidewall labeling ················································7-43
Tire traction ·······························································7-42
Wheel alignment and tire balance ·····························7-40
Wheel replacement ····················································7-42
T

I9
Index
Towing ···········································································6-28
Trailer towing ································································5-44
Transaxle
Automatic transaxle ····················································5-9
Trip computer ································································4-44
Trunk ··············································································4-15
Trunk overview ································································2-5
Using the tire mobility kit ·············································6-25
Vehicle break-in process ··················································1-5
Vehicle certification label ················································8-7
Vehicle data collection and event data recorders (EDR)·1-6
Vehicle identification number (VIN) ·······························8-7
Vehicle load limit ···························································5-38
Certification label ······················································5-41
Vehicle setting································································4-51
Vehicle weight ·······························································5-43
Base curb weight ·······················································5-43
Cargo weight ·····························································5-43
GAW (Gross axle weight) ·········································5-43
GAWR (Gross axle weight rating)····························5-43
GVW (Gross vehicle weight)····································5-43
GVWR (Gross vehicle weight rating) ······················5-43
Vehicle curb weight···················································5-43Warning and indicators ··················································4-53
Washer fluid ···································································7-28
Weight ············································································5-43
Base curb weight ·······················································5-43
Cargo weight ·····························································5-43
GAW (Gross axle weight) ·········································5-43
GAWR (Gross axle weight rating)····························5-43
GVW (Gross vehicle weight)····································5-43
GVWR (Gross vehicle weight rating) ······················5-43
Vehicle curb weight···················································5-43
Wheel alignment and tire balance ·································7-40
Wheel replacement ························································7-42
Windows ········································································4-17
Auto down window ···················································4-18
Auto up/down window ··············································4-19
Power window lock button ·······································4-20
Windshield defrosting and defogging··························4-104
Defogging logic·······················································4-106
Winter driving ································································5-34
Snow tires ··································································5-34
Tire chains ·································································5-35
Wiper blades ··································································7-32
Wipers and washers ·······················································4-76
U
V
W
