2013 Hyundai H-1 (Grand Starex) Owner's Manual

Consumer information
2 8
VEHICLE IDENTIFICATION NUMBER (VIN)
H010000BTQ
The vehicle identification number (VIN) is
the number used in registering your car
and in all legal matters pertaining to its
ownership, etc.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
H020000AUN
The vehicle certification label attachted
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
OTQ087001OEN086004N
VIN label (if equipped)Frame number
OTQ087002
VEHICLE CERTIFICATION
LABEL

83
Consumer information
H030000AUN
The tires supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tire label located on the driver's side
center pillar gives the tire pressures rec-
ommended for your car.
H04000AUN
The engine number is stamped on the
engine block as shown in the drawing.A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part num-
ber, production number, refrigerant (1)
and refrigerant oil (2).
OTQ087003
B060B01P
OTQ087004
B060D01P
4D56 Diesel engine
A2.5/A2 2.5 Diesel engine
Gasoline engine
TIRE SPECIFICATION AND
PRESSURE LABELENGINE NUMBER
OHC081001
AIR CONDITIONER
COMPRESSOR LABEL

Consumer information
4 8
The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.com
DECLARATION OF CONFORMITY
CE0678 ■Example

9
Dimensions / 9-2
Bulb wattage / 9-2
Tires and wheels / 9-3
Load and speed capacity of tires / 9-3
Recommended lubricants and capacities / 9-4
Specifications

Specifications

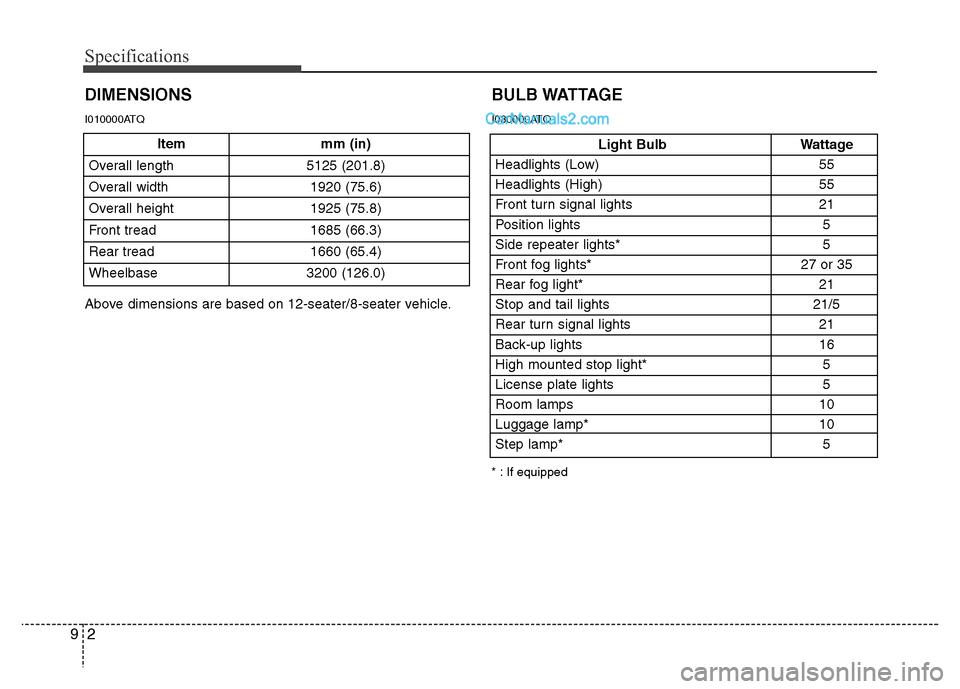

2 9
Item mm (in)
Overall length 5125 (201.8)
Overall width 1920 (75.6)
Overall height 1925 (75.8)
Front tread 1685 (66.3)
Rear tread 1660 (65.4)
Wheelbase 3200 (126.0)
DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 21
Position lights 5
Side repeater lights* 5
Front fog lights* 27 or 35
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* 5
License plate lights 5
Room lamps 10
Luggage lamp* 10
Step lamp* 5
BULB WATTAGE
* : If equipped
Above dimensions are based on 12-seater/8-seater vehicle.
I010000ATQI030000ATQ

93
Specifications
TIRES AND WHEELS
* Normal load : Up to 3 persons
I020000BTQ
Inflation pressure bar (psi, kPa)
Wagon
Front Rear Front Rear Front Rear
215/70R16C 6.5Jx162.9 3.25 2.9 3.5 2.9 3.5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Full size tireWheel lug nut torque
kg•m (lb•ft, N•m)
9~11
(65~79, 88~107) ItemTire
sizeWheel size
Normal load *Maximum loadVa n
Except China
LOAD AND SPEED CAPACITY OF TIRES
*1LI : LOAD INDEX
*2SS : SPEED SYMBOL
Item Tire size Wheel sizeLoad Capacity Speed Capacity
LI *1kg SS *2km/h
Full size tire 215/70R16C 6.5JX16 108 1000 T 190

Specifications
4 9
RECOMMENDED LUBRICANTS AND CAPACITIES
I040000HTQ
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1: Refer to the recommended SAE viscosity numbers on page 9-6.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel economy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3: VGT : Variable Geometry Turbocharger
*4: WGT : Waste Gate Turbocharger
*5: DPF : Diesel Particulate Filter
*6: If the API service SM engine oil is not available in your country, you are able to use API service SL.
LubricantVolume (l/ US qt.)
Classification
Engine oil *1*2
(drain and refill)
Recommends
DieselA2.5 /
A2 2.57.4 (7.82)VGT*3
- without DPF*5: API Service CH-4 or above, ACEA B4
- with DPF*5: ACEA C3
WGT*4
- without DPF*5: API Service CF-4 or above, ACEA B4
- with DPF*5: ACEA C3
4D56 5.4 (5.71) API Service CF-4 or above, ACEA B2 or B3
Gasoline 5.1 (5.39) API Service SM*
6, ILSAC GF-4 or above
Engine oil
consumptionNormal driving conditionMAX. 1 l/1500 km
-
Severe driving conditionMAX. 1 l/1000 km
-
Manual
transmission fluid A2.5 Diesel 3.0 (3.17)
API Service GL-4
SAE 75W/85
A2 2.5 Diesel2.2 (2.33)
4D56 Diesel / Gasoline 1.95 (2.06)

95
Specifications
LubricantVolume (l/ US qt.)
Classification
Automatic
transmission fluidA2.5 / A2 2.5 Diesel10.0 (10.60)APOLLOIL ATF RED-1
4D56 Diesel / Gasoline8.0 (8.45)CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I or
other brands approved by Hyundai Motor Co.
Power steering 0.9~1.0 (0.95~1.06) PSF-3
CoolantWagonDiesel 13 (13.74)
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminium radiator) Gasoline 10.2 (10.8)
Va nDiesel 10 (10.75)
Gasoline 7.1 (7.5)
Brake fluid 0.7~0.8 (0.7~0.8) FMVSS116 DOT-3 or DOT-4
Rear axle oil 2.1 (2.23)The temperate zone (-30°C~30°C) : API GL-4 (SAE 90)
The torrid zone (30°C~) : API GL-4 (SAE 140)
The frigid zone (~-30°C) : API GL-5 (SAE 80)
Fuel 75 (19.81 US gal.) -
Available Engine oil (For Europe A2 2.5 Diesel engine)
Supplier Product
Shell HELIX ULTRA AP 5W-30
SK ZIC LS 5W-30
Chevron KIXX D1 5W-30
Total QUARTZ INEO MC3 5W-30
