2013 Hyundai Equus tow

F5

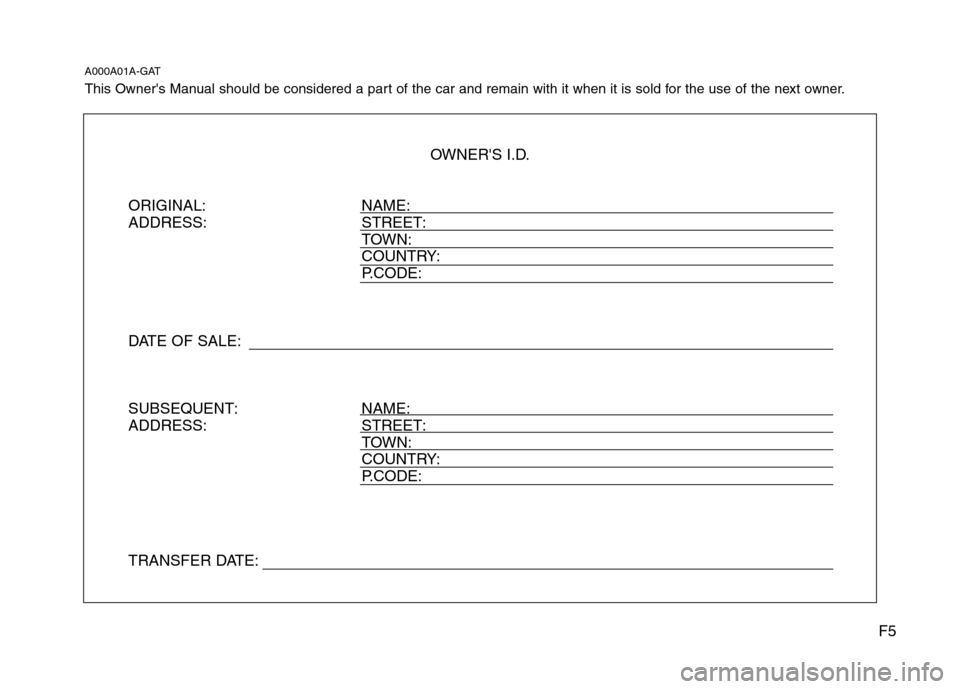

A000A01A-GAT
This Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.
OWNER'S I.D.
ORIGINAL: NAME:
ADDRESS: STREET:
TOWN:
COUNTRY:
P.CODE:
DATE OF SALE:
SUBSEQUENT: NAME:
ADDRESS: STREET:
TOWN:
COUNTRY:
P.CODE:
TRANSFER DATE:

15
Introduction
Do not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system,
engine control system and emission
control system.
Fuel Additives
HYUNDAI recommends that you use
unleaded gasoline which has an
octane rating of RON (Research
Octane Number) 95 / AKI (Anti Knock
Index) 91 or higher (for Europe) or
Octane Rating of RON (Research
Octane Number) 91 / AKI (Anti-Knock
Index) 87 or higher (except Europe).
For customers who do not use good
quality gasoline including fuel addi-
tives regularly, and have problems
starting or the engine does not run
smoothly, one bottle of additives
added to the fuel tank at every
15,000km (for Europe)/5,000km
(except Europe). Additives are avail-
able from your authorized HYUNDAI
dealer along with information on how
to use them.
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is
available.No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600 miles)
you may add to the performance,
economy and life of your vehicle.
• Do not race the engine.
• While driving, keep your engine
speed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for
long periods of time, either fast or
slow. Varying engine speed is
needed to properly break-in the
engine.
• Avoid hard stops, except in emer-
gencies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first
2,000 km (1,200 miles) of opera-
tion.
VEHICLE BREAK-IN
PROCESS

Your vehicle at a glance
2 2
EXTERIOR OVERVIEW
1. Towing hook ............................................6-26
2. Front view camera ................................4-116
3. Hood .......................................................4-33
4. Front windshield wiper blades .....4-124, 7-31
5. Sunroof ...................................................4-38
6. Outside rearview mirror ..........................4-51
7. Door locks...............................................4-16
8. Tires and wheels .............................7-39, 8-3
9. Headlamps ...........................................4-117
10. Front fog light ......................................4-122
OVI013001
■Front view
❈The actual shape may differ from the illustration.

23
Your vehicle at a glance
1. Glass antenna and Defroster ....4-166, 4-132
2. High mounted stop lamp ........................7-73
3. Rear combination lamp ..........................7-73
4. Rearview camera..................................4-112
5. Parking assist system ...........................4-107
6. Towing hook ............................................6-26
7. Fuel filler lid ............................................4-35
8. Door locks...............................................4-16
OVI013002L
■Rear view
❈The actual shape may differ from the illustration.

Safety features of your vehicle
8 3
Adjusting the headrest up and down
Push the control switch up to raise or
down to lower the headrest. Release
the switch once the headrest reach-
es the desired position.Removal
To remove the headrest:
1. Recline the seatback (2) with the
recliner control switch (1).
2. Raise it as far as it can go by
pulling the switch up (3) then pull
the headrest up (4).
OVI039010OVI033101N
WARNING
NEVER allow anyone to ride in a
seat with the headrest removed.
OYFH034205
CAUTION
If you recline the seatback
towards the front with the head-
rest and seat cushion raised,
the headrest may come in con-
tact with the sunvisor or other
parts of the vehicle.

Safety features of your vehicle
18 3
Rear relaxation seat system
Press the switch (3);
The front passenger seat and the
rear right side passenger seat will
move to its original position. After the
operation is completed, a beep will
sound.
Press the switch (4);
The front passenger seat will move
forward and the seatback will fold
automatically. Then the rear right
side passenger seat seatback will
lean towards the back of the vehicle.
After the operation is completed, a
beep will sound once.
VIP Convenience function
(2 seat configuration)
The rear seat passenger may use
the switches to control the rear right
seat or front passenger seat.Front passenger side walk-in seat
Press the switch (1);
The passenger seat will move for-
ward and the seatback will fold auto-
matically.
If you want to use as seat, press the
switch (3).
OVI033091
OVI033092
■Type A
■ Type B
OVI039062OVI033063N

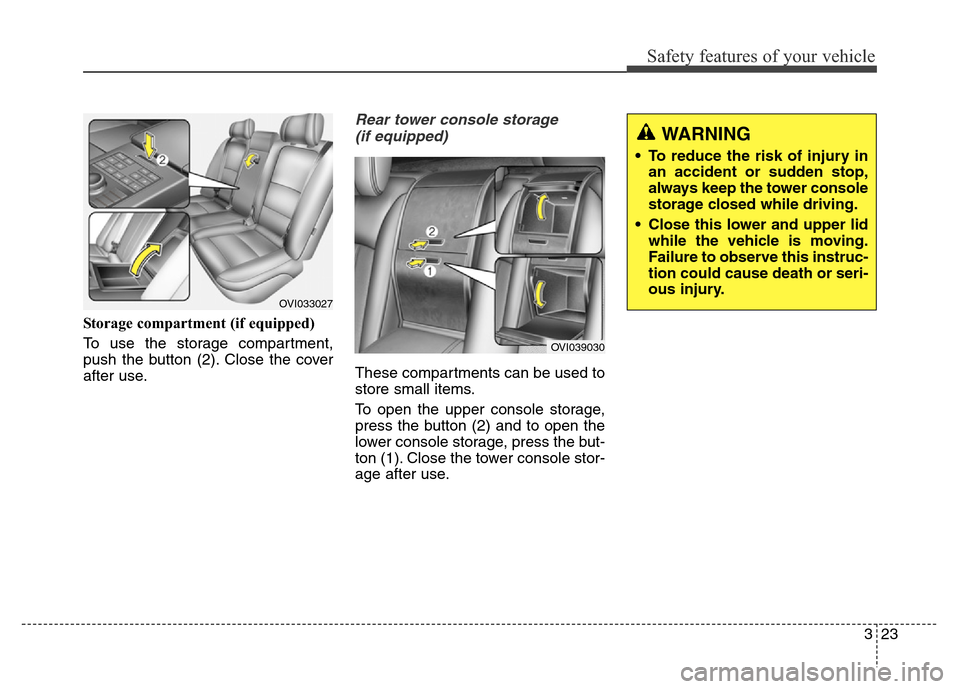

323
Safety features of your vehicle
WARNING
• To reduce the risk of injury in
an accident or sudden stop,
always keep the tower console
storage closed while driving.
• Close this lower and upper lid
while the vehicle is moving.
Failure to observe this instruc-
tion could cause death or seri-
ous injury.
Storage compartment (if equipped)
To use the storage compartment,
push the button (2). Close the cover
after use.
Rear tower console storage
(if equipped)
These compartments can be used to
store small items.
To open the upper console storage,
press the button (2) and to open the
lower console storage, press the but-
ton (1). Close the tower console stor-
age after use.
OVI033027
OVI039030

Safety features of your vehicle
44 3
Installing a child restraint system
by lap/shoulder belt
To install a child restraint system on
the outboard or center rear seats, do
the following:
1. Place the child restraint system in
the seat and route the lap/shoul-
der belt around or through the
restraint, following the restraint
manufacturer’s instructions. Be
sure the seat belt webbing is not
twisted.2. Fasten the lap/shoulder belt latch
into the buckle. Listen for the dis-
tinct “click” sound.Position the release button so that it
is easy to access in case of an emer-
gency.
3. Buckle the seat belt and allow the
seat belt to take up any slack. After
installation of the child restraint
system, try to move it in all direc-
tions to be sure the child restraint
system is securely installed.
If you need to tighten the belt, pull
more webbing toward the retractor.
When you unbuckle the seat belt and
allow it to retract, the retractor will
automatically revert back to its nor-
mal seated passenger emergency
locking usage condition.
OEN036101OEN036104
E2MS103005
