2013 HONDA INSIGHT Navigation Manual

32
XXPersonal InformationXAddress Book
HINFO button X Setup X Personal Information X Address Book
This section explains how to enter the name and address.
1.Select New Address .
2. Select an item.
The following item s are available:
• Edit Name : Edits the name of the entry.
• Edit Address : Edits the address of the entry.
• Edit Phone No. : Edits the phone number of the entry.
• Edit Category : Specifies the category of the entry.
• Delete : Deletes the entry.
■Adding an Address Book Entry1 Adding an Address Book Entry
If you do not give the address a name, one is
automatically assigned (e.g., ADDRESS 001). You
can re-enter, edit, or make changes to any entry.
“Address” is the only required field.
INSIGHT_KA-31TM8820.book 32 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
System S etup
TOC

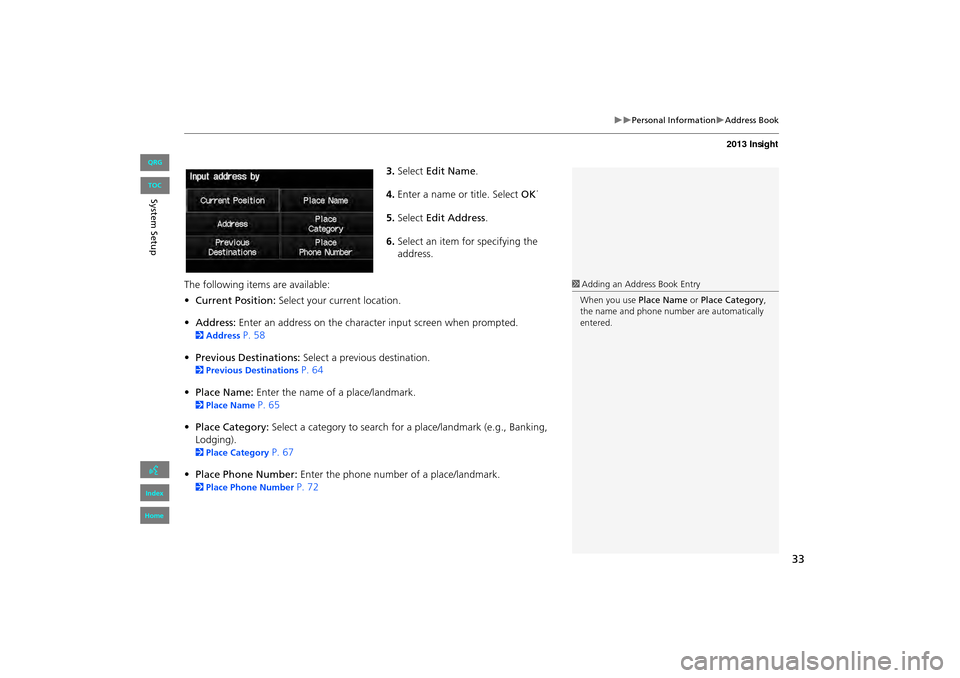

33
XXPersonal InformationXAddress Book
3.Select Edit Name .
4. Enter a name or title. Select OK.
5. Select Edit Address .
6. Select an item for specifying the
address.
The following items are available:
• Current Position: Select your current location.
• Address: Enter an address on the character input screen when prompted.
2Address P. 58
• Previous Destinations: Select a previous destination.
2Previous Destinations P. 64
• Place Name: Enter the name of a place/landmark.
2Place Name P. 65
• Place Category: Select a category to search for a place/landmark (e.g., Banking,
Lodging).
2 Place Category P. 67
• Place Phone Number: Enter the phone number of a place/landmark.
2Place Phone Number P. 72
1Adding an Address Book Entry
When you use Place Name or Place Category ,
the name and phone numb er are automatically
entered.
INSIGHT_KA-31TM8820.book 33 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Sy stem S etup
TOC

34
XXPersonal InformationXAddress Book
HINFO button X Setup X Personal Information X Address Book
1. Select the address to edit.
2. Enter the name, address, phone
number, and category fields.
2 Adding an Address Book Entry
P. 32
3. Select OK.
H INFO button
X Setup X Personal Information X Address Book
1. Select an address.
2. Select Edit Category .
3. Select BUSINESS, PERSONAL , or a
category you created.
■ Editing an Address Book Entry1 Editing an Address Book Entry
The entered contents are displayed on the Edit
address screen.
■ Selecting an Address Book Category1Selecting an Address Book Category
You can have up to 100 categories (including
“UNFILED”). These categories can be shared with
User 1 and User 2. For ex ample, if User 1 creates
some categories, User 2 can also use them.
If you delete a category that is used by other
addresses, the category type for those addresses
changes to “UNFILED.”
Category Icons
The following icons can be selected for a
category:
INSIGHT_KA-31TM8820.book 34 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Sy stem S etup
TOC

35
XXPersonal InformationXAddress Book
■Creating a New Category
1. Select New Category .
2. Enter a name and select an icon when prompted. Select OK.
XThe created category is displayed in the list of categories.
■ Deleting or Editing a Category
1. Select Edit Category .
2. Select Edit Category or Delete.
3. Delete an existing category, or change the name and icon.
H INFO button
X Setup X Personal Information X Address Book
1. Select the address to delete.
2. Select Delete .
3. Select Yes.
■Deleting an Address Book Entry1Deleting an Address Book Entry
When you transfer the vehi cle to a third party,
delete all address book entries.
INSIGHT_KA-31TM8820.book 35 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Sy stem S etup
TOC

36
XXPersonal InformationXHome Addresses
Home Addresses
HINFO button X Setup X Personal Information X Home Address 1 or Home
Address 2
Set two home addresses that you frequently use. 1.Edit the name, address, and phone
number the same way as an
address in the address book.
2 Adding an Address Book Entry
P. 32
2. Select OK.
1Home Addresses
If you have PIN-protecte d your home addresses,
enter your PIN when prompted. Select OK. PINs
are optional.
2 PIN Numbers P. 37
If your home street is not in the system database,
park on the nearest verified street to your home.
When entering the “Addr ess” field, select
Current Position to use your current location as
the home address.
You can delete a home address if necessary.
Select Delete . Select Yes .
When you transfer the vehicle to a third party,
delete all home addresses.
The home icon is shown on the map screen on 5
mile or less map scales.
INSIGHT_KA-31TM8820.book 36 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
Sy stem S etup
TOC

37
XXPersonal InformationXPIN Numbers
PIN Numbers
HINFO button X Setup X Personal Information X PIN Number
Set a 4-digit PIN for protecting personal addresses and your home addresses. Once
you set a PIN, you are prompted to enter it whenever you access a personal address
or a home address.
1.Select the PIN to create.
2. Select the user name (when
selecting Address Book PIN ).
3. Enter a 4-digit PIN.
4. Re-enter the new PIN when
prompted to confirm the number
you just entered.
XIf you do not enter the same
number both times, an
“INCORRECT PIN” message is
displayed. Enter your PIN again.
1PIN Numbers
PIN
Personal Identification Number (PIN) is a
password used to access some personal data.
PINs are optional. If you choose to use a PIN,
keep a note of the number in a secure location. If
you forget your PIN, your dealer will have to reset
the navigation system a nd all of your stored
information will be erased . The factory default is
no PIN.
Go Home PIN
Go Home PINs are shared with User 1 and User
2. If either User 1 or User 2 sets a Go Home PIN,
both of them need to enter the PIN when:
•selecting Go Home for a destination
•selecting Home Address for editing
If you want to stop using a PIN, select Do not
use PIN .
INSIGHT_KA-31TM8820.book 37 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
System S etup
TOC

38
XXPersonal InformationXUser Name
User Name
HINFO button X Setup X Personal Information X User Name
Change the user name (“User 1” or “User 2”) to your desired name. 1.Select the name to change.
2. Enter a name. Select OK.
INSIGHT_KA-31TM8820.book 38 ページ ２０１１年８月９日　火曜日　午後１時２６分
QRG
Index
Home
System S etup
TOC

39
XXPersonal InformationXPrevious Destinations
Previous Destinations
HINFO button X Setup X Personal Information X Previous Destinations
The navigation system maintains a list of your previously routed destinations as a
shortcut for entering the same destination in the future. You can delete some or all
of your previous destinations from the list.
1.Select the destination to delete.
XRepeat the procedure as
necessary.
XItems to be deleted are indicated
with a trash icon.
2. Select OK to delete the selected
destinations.
1 Previous Destinations
Up to 50 destinations can be stored.
The list of previous dest inations is shared with
User 1 and User 2. For example, if User 1 deletes
some previous destinations, they are deleted for
User 2 as well.
To cancel the selection of a previous destination,
select the destination again.
Selecting Delete All allows you to delete all
destinations.
Trash icon
