2013 HONDA CR-Z fuse box

Visual Index
4
Quick Reference Guide
❙Passenger's Front Airbag (P 42)❙Driver's Front Airbag (P 42)
❙Driver’s Door Lock Switch (P 102)
❙Door Mirror Controls (P 120)
❙Hood Release Handle (P 230)
❙Interior Fuse Box (P 298)
❙Shift Lever
Automatic Transmission (CVT)
(P 183)Manual Transmission (P 188)
❙Glove Box (P 127)
❙Parking Brake (P 208)
❙Accessory Power Socket
(P 129)
❙Center Pocket
❙USB Adapter Cable (P 129)
❙Auxiliary Input Jack (P 140)
❙Power Door Lock Master Switch (P 102)
❙Power Window Switches (P 108)
Main Menu

297
Continued
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working,
turn the ignition switch to LOCK
(0
and
check to see if any applicable fuse is blown. Located near the + terminal on the 12 volt
battery.
Fuse locations are shown on the fuse box
cover.
Locate the fuse in question by the fuse
number and box cover number.■Engine Compartment Fuse Box
Fuse Box 1.
Pull on the tab to release the front of the
cover.
2. Pull up the cover by pushing the two tabs as shown.
Replacement of engine compartment
fuses should be done by a dealer.
■ Circuit protec ted and fuse rating
Circuit ProtectedAmps
1Battery100 A
2EPS70 A
3Horn, Stop, Hazard20 A
Main MenuTable of Contents

298
uuFusesuFuse Locations
Handling the Unexpected
Located under the driver side dashboard.
Fuse locations are shown on the label on
the back side of the cover.
Locate the fuse in question by the fuse
number and label number.
■Interior Fuse Box
Fuse LabelCover
Fuse Box
■ Circuit protected and fuse rating
Circuit ProtectedAmps
1Back UP15 A
2TPMS *17.5 A
3Driver’s Power Window20 A
4−−
5Back-Up Light10 A
6SRS10 A
7Transmission SOL *210 A
8SRS7.5 A
9Fog Light*20 A
10 A/C 7.5 A
11ABS/VSA ®7.5 A
12 IMA 10 A
13Accessory Power Socket20 A
14 Radio 7.5 A
15Daytime Running Lights7.5 A
16 Rear Wiper 10 A
17Passenger’s Power Window20 A
18 − −
19−−
20 Fuel Pump 15 A
*1:U.S. models only
*2:Automatic transmission (CVT)
*3:Vehicle with halogen bulb low beam headlights
*4:Vehicle with discharge headlights
Circuit ProtectedAmps
21Washer15 A
22 Meter 7.5 A
23Hazard10 A
24 Stop/Horn 10 A
25Audio AMP *20 A
26 LAF 10 A
27Door Lock Main20 A
28 Headlight Main 20 A
29Small Light10 A
30 Main Fan Motor 30 A
31IGPS7.5 A
32 Right Headlight Low
*3
10 A
Right Headlight Low (HID) *4
15 A
33Ignition Coil15 A
34 Left Headlight Low
*3
10 A
Left Headlight High *4
10 A
35Door Lock7.5 A
36 Door Lock 10 A
37ABS FSR/VSA ® FSR30 A
38 − −
* Not available on all models
Main MenuTable of Contents

300
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses1.Turn the ignition switch to LOCK
(0 . Turn
headlights and all accessories off.
2. Check the fuses in the engine
compartment.
uIf the fuse is blown, have it replaced by a dealer.
3. Inspect the small fuses in the vehicle
interior.
uIf there is a burned out fuse, remove it with the fuse puller and replace it with a
new one.
1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with one that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage.
Confirm the specified amperage using the charts on
P. 297 to P. 298.
There is a fuse puller on the fuse box.
Fuse
Blown Fuse
Fuse Puller
Main MenuTable of Contents

320

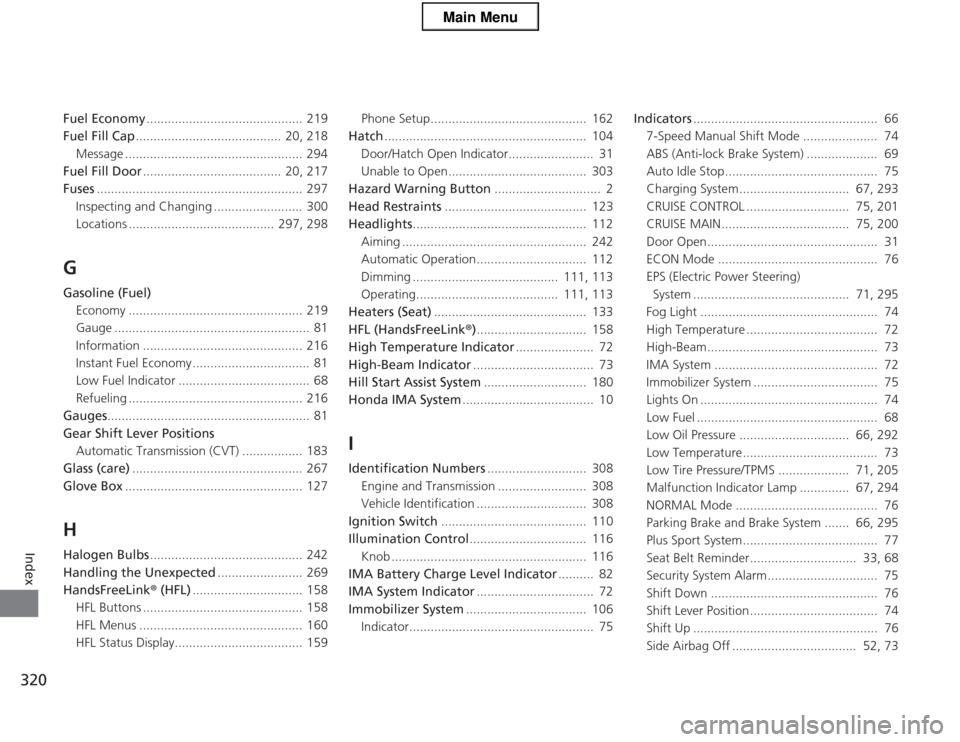

Index
Fuel Economy............................................ 219
Fuel Fill Cap ......................................... 20, 218
Message .................................................. 294
Fuel Fill Door ....................................... 20, 217
Fuses .......................................................... 297
Inspecting and Changing ......................... 300
Locations ......................................... 297, 298
G Gasoline (Fuel) Economy ................................................. 219
Gauge ....................................................... 81
Information ............................................. 216
Instant Fuel Economy ................................. 81
Low Fuel Indicator ..................................... 68
Refueling ................................................. 216
Gauges ......................................................... 81
Gear Shift Lever Positions Automatic Transmissi on (CVT) ................. 183
Glass (care) ................................................ 267
Glove Box .................................................. 127
H
Halogen Bulbs ........................................... 242
Handling the Unexpected ........................ 269
HandsFreeLink ® (HFL) ............................... 158
HFL Buttons ............................................. 158
HFL Menus .............................................. 160
HFL Status Display.................................... 159 Phone Setup............................................ 162
Hatch ......................................................... 104
Door/Hatch Open Indicator........................ 31
Unable to Open....................................... 303
Hazard Warning Button .............................. 2
Head Restraints ........................................ 123
Headlights ................................................. 112
Aiming .................................................... 242
Automatic Operation............................... 112
Dimming ......................................... 111, 113
Operating........................................ 111, 113
Heaters (Seat) ........................................... 133
HFL (HandsFreeLink ®)............................... 158
High Temperature Indicator ...................... 72
High-Beam Indicator .................................. 73
Hill Start Assist System ............................. 180
Honda IMA System ..................................... 10
I Identification Numbers ............................ 308
Engine and Transmission ......................... 308
Vehicle Identification ............................... 308
Ignition Switch ......................................... 110
Illumination Control ................................. 116
Knob ....................................................... 116
IMA Battery Charge Level Indicator .......... 82
IMA System Indicator ................................. 72
Immobilizer System .................................. 106
Indicator.................................................... 75 Indicators
.................................................... 66
7-Speed Manual Shift Mode ..................... 74
ABS (Anti-lock Brake System) .................... 69
Auto Idle Stop........................................... 75
Charging System............................... 67, 293
CRUISE CONTROL ............................. 75, 201
CRUISE MAIN.................................... 75, 200
Door Open................................................ 31
ECON Mode ............................................. 76
EPS (Electric Power Steering)
System ............................................ 71, 295
Fog Light .................................................. 74
High Temperature ..................................... 72
High-Beam................................................ 73
IMA System .............................................. 72
Immobilizer System ................................... 75
Lights On .................................................. 74
Low Fuel ................................................... 68
Low Oil Pressure ............................... 66, 292
Low Temperature...................................... 73
Low Tire Pressure/TPMS .................... 71, 205
Malfunction Indicator Lamp .............. 67, 294
NORMAL Mode ........................................ 76
Parking Brake and Brake System ....... 66, 295
Plus Sport System...................................... 77
Seat Belt Reminder.............................. 33, 68
Security System Alarm............................... 75
Shift Down ............................................... 76
Shift Lever Position.................................... 74
Shift Up .................................................... 76
Side Airbag Off ................................... 52, 73
