2013 HONDA CR-Z Owners Manual

uuAirbagsuSide Airbags
48
Safe Driving
To reduce the likelihood that a passenger may be injured by an inflating side airbag,
the passenger side airbag is automatically turned off when:• The height sensors detect a child or short-statured adult is seated in the passenger
seat.
• The position sensor detects that the passe nger is leaning into the deployment
path of the side airbag.
When the side airbag cutoff system is activated, the side airbag off indicator comes
on. 2 Side Airbag Off Indicator P. 52
If the side airbag off indicator comes on, have the passenger sit upright. A few
seconds after the passenger is sitting properly, the side airbag will automatically be
turned on, and the indicator will go off.
If the passenger is a child, the indicator will remain on so long as the child is seated.
Since this vehicle does not have a back seat, we recommend that you do not carry
any child who is not large enough and mature enough to ride in front.
■Side Airbag Cutoff System
■Side Airbag Off Indicator
1Side Airbag Cutoff System
The sensors that monitor the passenger's height and
body position may not work if: • The seat-back is wet
• The passenger is touching a metal or other
electrical conductive object
• A seat cushion is on the seat
• The passenger is wearing excessively thick clothing
Sensors that
monitor the
passenger’s height.
Sensors that monitor the
passenger’s position.
Main MenuTable of Contents

49
uuAirbagsuSide Curtain Airbags
Safe Driving
Side Curtain Airbags
The side curtain airbags help protect the heads of the driver and a passenger during
a moderate-to-severe side impact.
The side curtain airbags are located in the
ceiling above the side windows on both sides of the vehicle.
The side curtain airbag is designed to deploy
in a moderate-to-severe side impact.
■ When side curtain airbags de ploy in a frontal collision
One or both side curtain airbags may inflate in a moderate-to-severe angled frontal
collision.
In this case, the side curtain airbags will deploy slightly after the front airbags.
■Housing Locations
1Side Curtain Airbags
The side curtain airbags are most effective when an
occupant is wearing their seat belt properly and
sitting upright, well back in their seat.
Do not attach any objects to the side windows or roof
pillars as they can interf ere with the proper operation
of the side curtain airbags.
Side Curtain Airbag Storage
■Operation
Deployed Side Curtain Airbag
Main MenuTable of Contents

50
uuAirbagsuAirbag System Indicators
Safe Driving
Airbag System Indicators
If a problem occurs in the airbag system, the SRS indicator will come on and a
message appears on the multi-information display.■When the ignition switch is turned to ON
(w
The indicator comes on for a few seconds,
then goes off. This tells you the system is
working properly.
If the indicator comes on at any other time, or does not come on at all, have the
system checked by a dealer as soon as possible. If you don't, your airbags and seat
belt tensioners may not work properly when they are needed.
■SRS (Supplemental Restraint System) Indicator1SRS (Supplemental Restraint System) Indicator
3WARNING
Ignoring the SRS indicator can result in
serious injury or death if the airbag systems
or tensioners do not work properly.
Have your vehicle checked by a dealer as
soon as possible if the SRS indicator alerts
you to a possible problem.
READY
Main MenuTable of Contents

Continued51
uuAirbagsuAirbag System Indicators
Safe Driving
■When the passenger airbag off
indicator comes on
The indicator comes on to alert you that the
passenger's front airbag has been turned off.
This occurs when the passenger’s weight
sensors detect 65 lbs (29 kg) or less, the
weight of an infant or small child, on the seat.
Your vehicle is not recommended for child
passengers. Never put a rear-facing child seat
in this vehicle.
If you decided to disregard our
recommendations and transport a small child,
they should be properly restrained. 2 Child Safety P. 54
Objects placed on the seat can also cause the indicator to come on.
If the passenger seat is empty, the passenger's front airbag will not deploy and the
indicator will not come on.
■Passenger Airbag Off Indicator1Passenger Airbag Off Indicator
If the indicator comes on with no passenger and no objects on the passenger’s seat, or with an adult
riding there, something may be interfering with the weight sensors. Such as: • An object hanging on the seat.
• An object pressing the rear of the seat-back.
• The seat or seat-back is forced back against cargo
on the rear trays or floor behind it.
• An object placed under the passenger's seat.
If none of these conditions exist, have your vehicle
checked by a dealer as soon as possible.
The passenger airba g off indicator may come on and
goes off repeatedly if the total weight on the seat is
near the airbag cutoff threshold.
OFFOFF
PASSENGER
AIRBAG
OFFOFF
PASSENGER
AIRBAG
Canada
U.S.
Canada
Vehicle without
navigation system
Vehicle with
navigation systemU.S.
Main MenuTable of Contents

uuAirbagsuAirbag System Indicators
52
Safe Driving

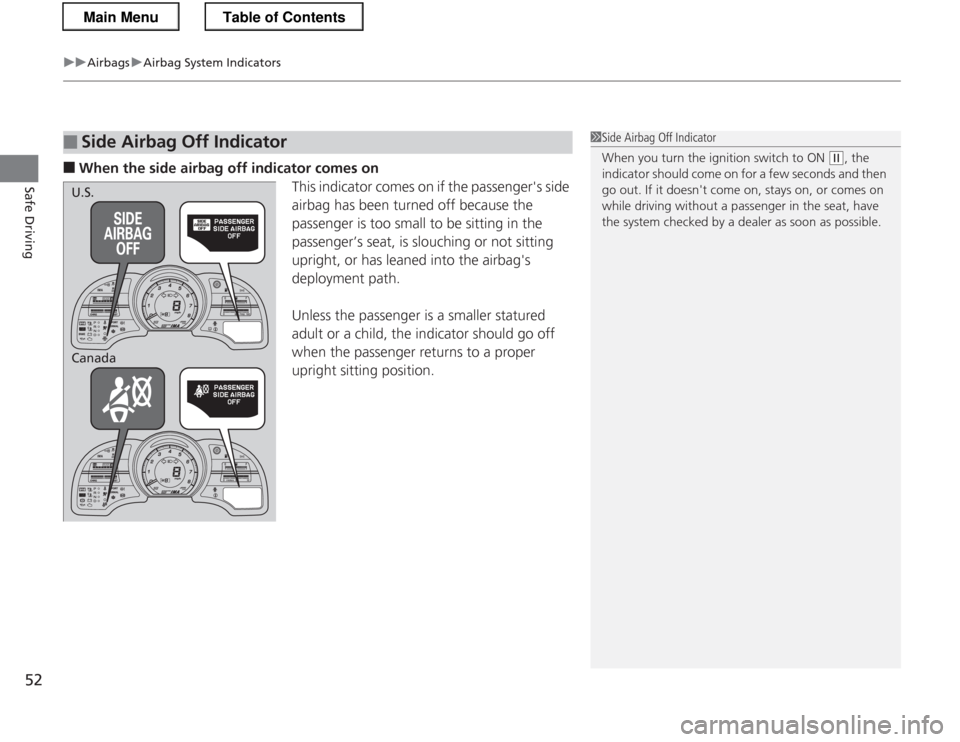

■ When the side airbag off indicator comes on
This indicator comes on if the passenger's side
airbag has been turned off because the
passenger is too small to be sitting in the
passenger’s seat, is slouching or not sitting
upright, or has leaned into the airbag's
deployment path.
Unless the passenger is a smaller statured
adult or a child, the indicator should go off
when the passenger returns to a proper
upright sitting position.
■Side Airbag Off Indicator1Side Airbag Off Indicator
When you turn the ignition switch to ON
(w, the
indicator should come on for a few seconds and then
go out. If it doesn't come on, stays on, or comes on
while driving without a passenger in the seat, have
the system checked by a dealer as soon as possible.
READY
READY
U.S.
Canada
Main MenuTable of Contents

53
uuAirbagsuAirbag Care
Safe Driving
Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle
inspected by a dealer in the following situations: ■When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced.
Similarly, once an automatic seat belt tensioner has been activated, it must be
replaced. ■ When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the driver’s
seat position sensor, weight sensors in the passenger’s seat, seat belt tensioners,
and each seat belt that was worn during the crash.
■ Do not remove or modify a seat without consulting a dealer
This would likely disable the driver's seat position sensor or the weight sensors in the
passenger’s seat. If it is necessary to remove or modify a seat to accommodate a
person with disabilities, contact a Honda dealer, or for U.S. vehicles, American Honda Automobile Customer Service at 800-999-10 09 and for Canadian vehicles,
Honda Canada Customer Relations at 888-9-HONDA-9.
1Airbag Care
We recommend against the use of salvaged airbag
system components, including the airbag, tensioners,
sensors, and control unit.
Main MenuTable of Contents

54
Safe Driving
Child Safety
Protecting Child Passengers
Each year, many children are injured or killed in vehicle crashes because they are
either unrestrained or not properly restrained. In fact, vehicle accidents are the
number one cause of death of children age 12 and under.
To reduce the number of child deaths and injuries, every state, Canadian province
and territory requires that children be properly restrained when they ride in a vehicle.
Since this vehicle does not have a back seat, Honda recommends that you do
not carry a child, age 12 or under, as a passenger. This is because:
• An inflating front or side airbag can injure or kill a child sitting in the passenger’s
seat.
• A child in the passenger’s seat is more likely to interfere with the driver’s ability to
safely control the vehicle.
• Statistics show that ch ildren of all sizes and ages are safer when they are properly
restrained in a rear seat. Because this vehicle does not have a rear seat, we
recommend that you do not carry a ch ild aged 12 or under in this vehicle.
1Protecting Child Passengers
The National Highway Traffic Safety
Administration and Transport Canada recommend
that all children age 12 and under be properly
restrained in a rear seat. Some states or provinces/
territories have laws restricting where children may
ride.
Never put a rear-facing child seat in this vehicle.
3WARNING
Children who are unrestrained or
improperly restrained can be seriously
injured or killed in a crash.
Any child too small for a seat belt should be
properly restrained in a child seat. A larger
child should be properly restrained with a
seat belt, using a booster seat if necessary.
Main MenuTable of Contents

55
uuChild SafetyuProtecting Child Passengers
Safe Driving
•Any child who is too small to wear a seat belt correctly must be restrained in an
approved child seat that is properly secured to the vehicle using the lap belt
portion of the lap/shoulder belt.
• Never hold a child on your lap because it is impossible to protect them in the
event of a collision.
• Never put a seat belt over yourself and a child. During a crash, the belt would
likely press deep into the child and cause serious or fatal injuries.
• Never let two children use the same seat belt. Both children could be very
seriously injured in a crash.
• Do not allow children to operate the doors, windows or seat adjustments.
• Do not leave children in the vehic le unattended, especially in hot weather when
the inside of the vehicle can get hot enou gh to kill them. They could also activate
vehicle controls causing it to move unexpectedly.1Protecting Child Passengers
To deactivate a lockable retractor, release the buckle
and allow the seat belt to wind up all the way.
To remind you of the passenger's front airbag
hazards and child safety, your vehicle has warning
labels on the dashboard (U.S. models) and on the
front visors. Please read and follow the instructions
on these labels. 2 Safety Labels P. 63
3WARNING
Allowing a child to play with a seat belt or
wrap one around their neck can result in
serious injury or death.
Instruct children not to play with any seat
belt and make sure any unused seat belt a
child can reach is bu ckled, fully retracted,
and locked.
