2013 HONDA CIVIC HYBRID Owners Manual

8Quick Reference Guide
Eco Assist SystemAmbient Meter●Changes color to reflect your driving
style.
Green: Fuel efficient driving
Blue green: Moderate acceleration/
deceleration
Blue: Aggressive acceleration/
deceleration
●The ambient meter color changes in
accordance with your brake or
accelerator pedal operation.
ECON Button
(P221)
ECON Mode Indicator
(P76) Helps maximize fuel economy.
Comes on when the ECON mode is on.
The message is displayed for a few seconds
when the ECON mode is on.

9Quick Reference Guide

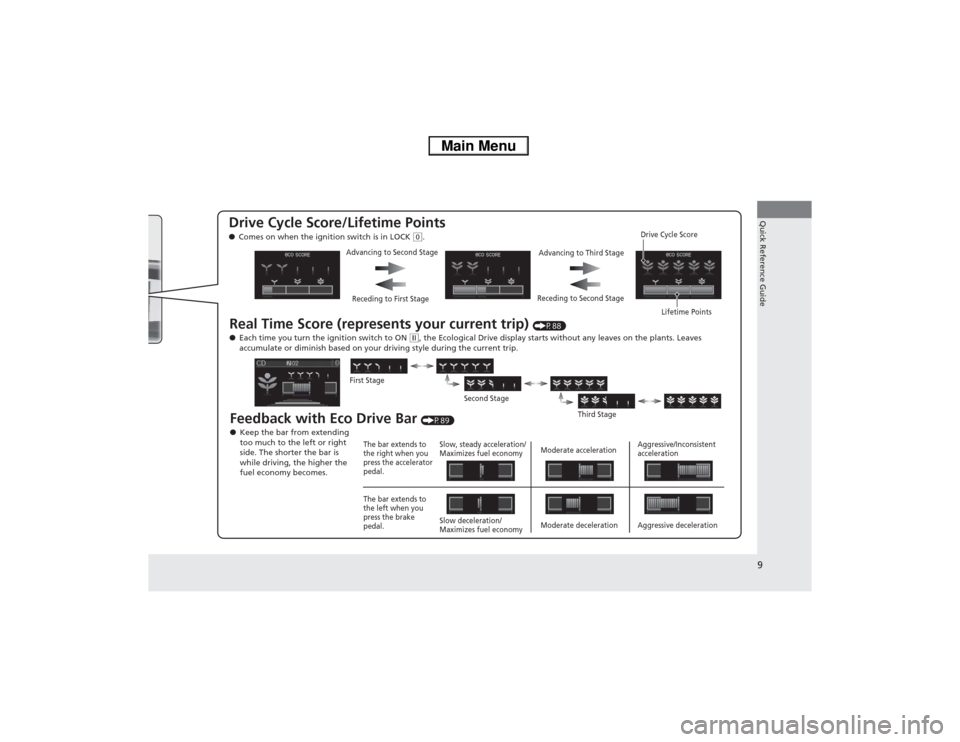

Drive Cycle Score/Lifetime Points ●Comes on when the ignition switch is in LOCK
(0.
Real Time Score (represents your current trip)
(P88)
●Each time you turn the ignition switch to ON
(w, the Ecological Drive display starts without any leaves on the plants. Leaves
accumulate or diminish based on your driving style during the current trip.
Feedback with Eco Drive Bar
(P89)
Advancing to Second Stage
Advancing to Third Stage
Receding to Second Stage
Receding to First StageDrive Cycle Score
Lifetime Points
The bar extends to
the right when you
press the accelerator
pedal.
The bar extends to
the left when you
press the brake
pedal.Slow, steady acceleration/
Maximizes fuel economy
Slow deceleration/
Maximizes fuel economyModerate deceleration Moderate accelerationAggressive/Inconsistent
acceleration
Aggressive deceleration First Stage
Second Stage
Third Stage
●Keep the bar from extending
too much to the left or right
side. The shorter the bar is
while driving, the higher the
fuel economy becomes.

10Quick Reference Guide
The Honda IMA SystemThe main power source for the Honda IMA system is the gasoline engine.
The electric motor assists the engine to improve fuel economy, based on
current operating conditions.
Tips to Improve Fuel Economy To help your vehicle’s fuel economy:
●Avoid aggressive acceleration/braking
●Monitor the ambient meter and the Eco drive bar
displayed on the intelligent multi-information
display.
It reflects your driving style. (P8, 88)
Start-up/Low speed cruise/
Aggressive acceleration
●The electric motor assists the
engine.Low speed cruise
●Only IMA motor is
powering the vehicle and
IMA battery is discharging.
Slow acceleration/High
speed cruise
●Only the engine powers
the vehicle.Deceleration
●The IMA system charges
the IMA battery.
Stop
●Auto Idle Stop is in
operation.
Vehicle
Speed
TimeEco Drive Bar
Display
IMA
SystemIMA
System IMA
System
IMA
System
IMA
System
Electric
Motor
AssistEngine
ONElectric
Motor
AssistElectric
Motor
OFF
Charging Engine
OFFEngine
ON
Engine
OFF
Engine
OFF
IMA
BatteryIMA
BatteryIMA
Battery
IMA
Battery
IMA
Battery FuelFuelFuel
Fuel
Fuel
Electric
Motor
OFF

11Quick Reference Guide
To Keep the IMA Battery in Good Condition Drive your vehicle at least once a month, and drive for more than 30 minutes at a time. Parking your vehicle for an
extended period can cause the IMA battery to weaken or decrease the IMA battery life.Safety Precautions Do not cover the air intake.Air IntakeIf the air intake is obstructed during
vehicle operation, the IMA battery can
become too hot. To protect the battery,
the system may start limiting IMA battery
output power and cause the IMA system
and 12 volt battery charging system
indicators to come on.
IMA System Indicator (P88)
12 Volt Battery Charging
System Indicator (P69)
Do not touch the Honda IMA SystemA high voltage current runs through Honda IMA System. Consult your authorized dealer
when maintenance or repair is needed.
IMA Battery
IMA Power Cable
If a crash occurs●Be careful of electric shock hazard.
uIf a crash severely damaged your vehicle, there is a possibility of electrical shock. Do
not touch the IMA system components or their wiring (orange).
●Avoid contact with IMA battery fluid.
uThe battery fluid may leak as a result of a severe crash. Avoid any skin or eye
contact with the fluid. The battery fluid is corrosive. If you accidentally touch it,
flush the affected area(s) with a large quantity of water for at least five minutes,
and seek medical attention immediately.
●Use a fire extinguisher for an electrical fire.
uAttempting to extinguish an electrical fire with a small quantity of water can be
dangerous.When the vehicle is disposed●The IMA battery is a Lithium ion battery. Honda collects and recycles used IMA
batteries – consult with your dealer for proper battery disposal in the event your
vehicle is not repairable.

12Quick Reference Guide
Safe Driving
(P27)
Airbags
(P39)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety
(P52)
●All children 12 and younger should be seated in the rear seat.
●Smaller children should be properly restrained in a forward-facing child seat.
●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard
(P64)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist
(P208)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts
(P32)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.

13Quick Reference Guide
Instrument Panel
(P67)
System Indicators
Malfunction
Indicator Lamp
Low Oil Pressure
IndicatorAnti-lock Brake
System (ABS)
Indicator Vehicle Stability
Assist (VSA®) System
Indicator VSA® OFF Indicator Electric Power
Steering (EPS) System
IndicatorLights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
Lights Reminders
CRUISE MAIN
Indicator System Message
Indicator
Brake System
Indicator (Amber)Supplemental
Restraint System
Indicator
Forward Collision
Warning (FCW)
Indicator
*
Door Open Indicator
TachometerInstant Fuel
Economy Gauge Speedometer Fuel Gauge Security System Alarm Indicator
Shift Lever Position Indicator Low Fuel Indicator
Gauges
(P82)
/intelligent Multi-Information Display (i-MID)
(P83)
/
System Indicators
(P68)
Trunk Open Indicator
ECON Mode IndicatorTurn Signal and
Hazard Warning
Indicators
High Temperature
Indicator
Low Temperature
IndicatorAmbient Meter
System Indicators System Indicators
Low Tire Pressure/
TPMS IndicatorU.S. models only
Parking Brake
and Brake System
Indicator (Red)
IMA System
Indicator
CRUISE CONTROL
Indicator
System Indicators
12 Volt Battery
Charging System
Indicator
Auto Idle Stop
Indicator
U.S.CanadaU.S.Canada
Lane Departure
Warning (LDW)
Indicator
*
* Not available on all models

14Quick Reference Guide
Controls
(P103)
Clock
(P104)
a
Press the CLOCK knob to access the
clock adjustment mode screen.
b
Turn the CLOCK knob to adjust the
hours.
c
Press the CLOCK knob. The display
switches to minute adjustment.
d
Turn the CLOCK knob to adjust the
minutes.
e
Press the CLOCK knob to complete
clock adjustment.
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
Models without navigation systemModels with navigation system
Turn Signals
(P120)
Lights
(P120)Turn Signal Control Lever
Right
Left
Light Control Switches
Low BeamHigh Beam
Flashing
Wipers and Washers (P124)
Wiper/Washer Control Lever
Adjustment Ring
: Long Delay
: Short DelayMIST
OFF
INT: Low speed with intermittent
LO: Low speed wipe
HI: High speed wipePull toward
you to spray
washer fluid.

15Quick Reference Guide
Steering Wheel
(P127)
●To adjust, pull the adjustment lever
towards you, adjust to the desired
position, then lock the lever back in place.
Unlocking the Front
Doors from the Inside (P109)
●Pull either front door inner handle to
unlock and open it at the same time.
Trunk
(P112)
●To unlock and open the trunk:
• Pull the trunk release.
• Press the trunk release button.
Power Door Mirrors (P128)
●With the ignition switch in ON
(w, move
the selector switch to L or R.
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
Trunk Release
Selector Switch
Adjustment Switch
Power Windows
(P117)
●With the ignition switch in ON
(w, open
and close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window
SwitchIndicator
