2013 HONDA ACCORD SEDAN Technology Reference Guide

1415
How It Works
O N E T O U C H T U R N S I G N A L
Use this quick and convenient method to signal a lane change.
• Lightly push the turn signallever up or down for a three\b
blink sequence.
• For a continuous signal, push the lever up or down until it
locks into place.
How It Works
A U T O H E A D L I G H T S W I T H W I P E R I N T E G R A T I O N
For your safety and convenience, your vehicle’s headlights automatically turn on when
you activate the windshield wipers.
• Make sure your headlights are in the AUTO position.
• Turn on your windshield wipers. The headlights also turn on.
• When you turn off the windshield wipers, the headlights turn off shortly after.
D R I V I N G P O S I T I O N M E M O R Y S Y S T E M ( D P M S )
Store driver’s seat positions into memory for each corresponding keyless remote
(\f or 2), which are recalled when you unlock the driver’s door with the remote
and enter the vehicle.
How It Works
\f. Turn on the vehicle. Make sure
the shift lever is in Park (P).3. Press SET. You will hear a beep.
2.Adjust your preferred seat
settings. 4.
Press the memory button
corresponding to the remote (\f
or 2) you are using. You will
hear two beeps.
Note\f Stored positions can also be recalled by pressing memory buttons
(\f or 2) on the door.
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f42 PM Page 9

1\b17
Camera Settings
Use the interface dial to make and enter selections.
\f.Press SETTINGS.
2. Select Camera Settings. Fixed Guidelines:
Guidelines
appear when you shift into
Reverse. SelectOn or Off.
Dynamic Guidelines: Guidelines
move as you turn the steering
wheel. Select On or Off.
Turn the guidelines on or off.4.
Select one of the options.
5.Press BACK to exit the
menu.
3. Select Rear Camera.

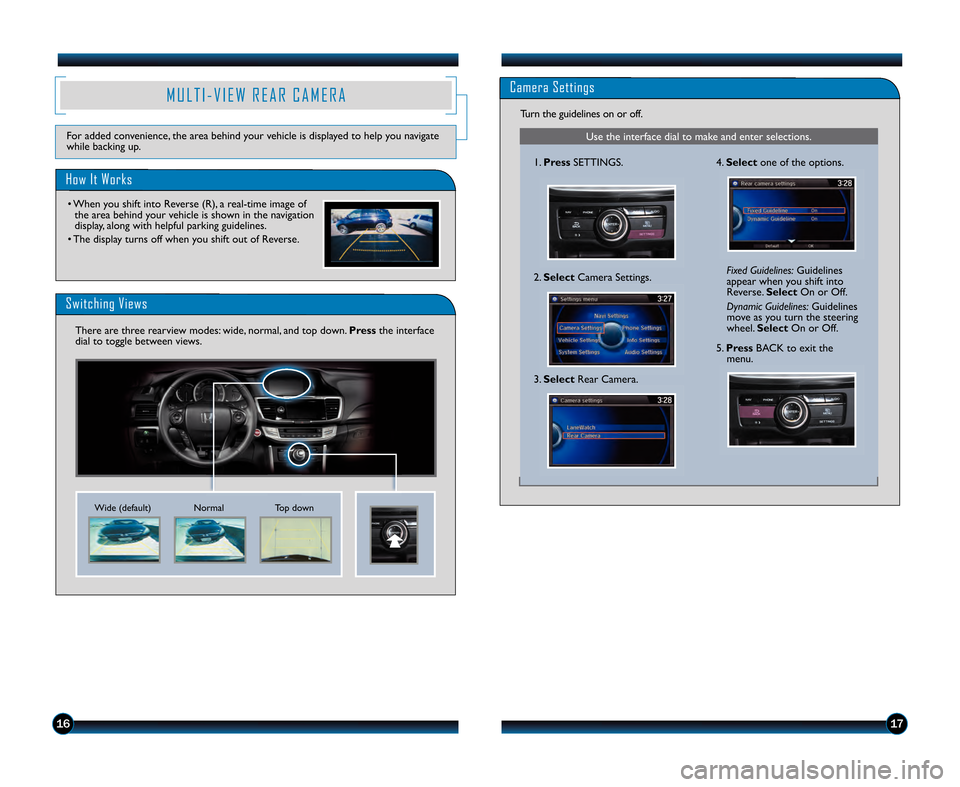

M U L T I V I E W R E A R C A M E R A
How It Works
Switching Views
• When you shift into Reverse (R), a real\btime image of
the area behind your vehicle is shown in the navigation
display, along with helpful parking guidelines.
• The display turns off when you shift out of Reverse.
For added convenience, the area behind your vehicle is displayed to help you navigate
while backing up.
There are three rearview modes: wide, normal, and top down. Pressthe interface
dial to toggle between views.
Normal Top down
Wide (default)
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f42 PM Page 10

1819

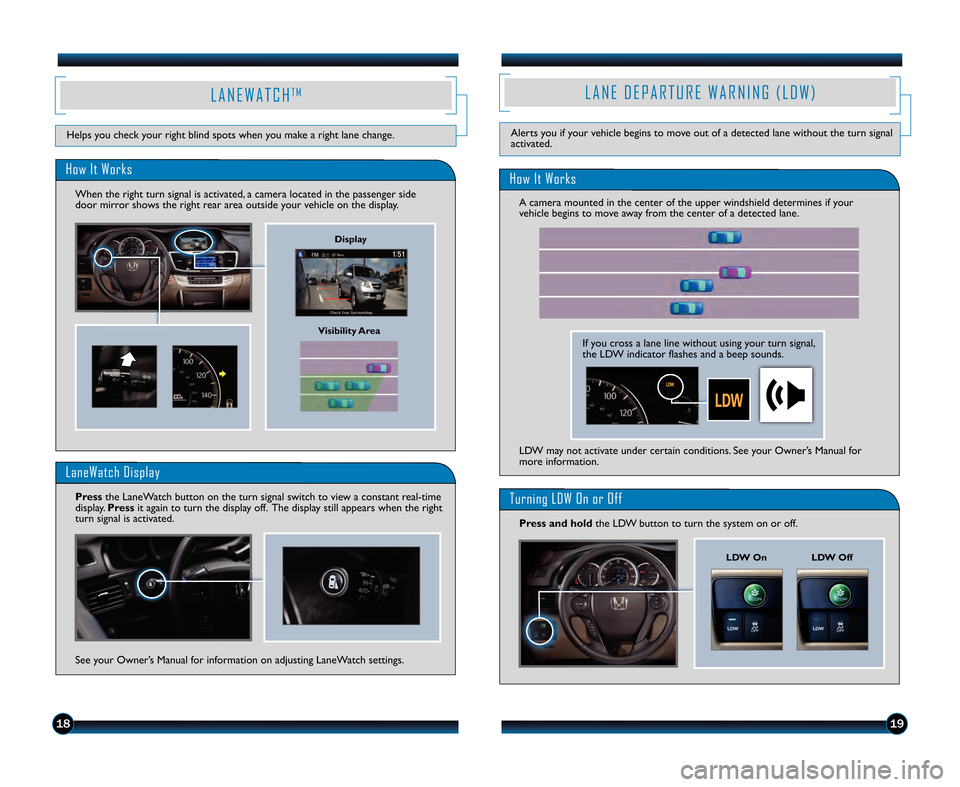

L A N E D E P A R T U R E W A R N I N G ( L D W )
Alerts you if your vehicle begins to move out of a detected lane without the turn signal
activated.
A camera mounted in the center of the upper windshield determines if your
vehicle begins to move away from the center of a detected lane.
How It Works
Turning LDW On or Off
Press and hold the LDW button to turn the system on or off.
LDW On LDW Off
L A N E W A T C HT M
Helps you check your right blind spots when you make a right lane change.
Visibility Area
How It Works
When the right turn signal is activated, a camera located in the passenger side
door mirror shows the right rear area outside your vehicle on the display.
LaneWatch Display
Press the LaneWatch button on the turn signal switch to view a constant real\btime
display. Pressit again to turn the display off. The display still appears when the right
turn signal is activated.
See your Owner’s Manual for information on adjusting LaneWatch settings.
Display
LDW may not activate under certain conditions. See your Owner’s Manual for
more information.
If you cross a lane line without using your turn signal,
the LDW indicator flashes and a beep sounds.
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f43 PM Page 11

2021
Customizing FCW
Use the interface dial to make and enter selections.
\f.Press SETTINGS.
2. Select Vehicle Settings.
5.Select one of the options.
Long: early warning timing
Normal: standard warning timing
Short: late warning timing
Off: Turn the system off
6.Press BACK to exit the
menu.
3.
Move the interface dial to the
right to Driver Assist Style.
4. Select Forward Collision
Warning Distance.
F O R W A R D C O L L I S I O N W A R N I N G ( F C W )
Alerts you to the possibility of a front\bend collision.
How It Works
FCW may not activate under certain conditions. See your Owner’s Manual for more information.
If the camera mounted in the center of the upper windshield detects a vehicle in front of
you when your vehicle speed is \f0 mph or higher _
and it determines there is a likelihood
of a frontal collision _
the system provides you with visual and audible warnings.
If you do not brake in time or take preventive action:
• the heads\bup light near the windshield flashes twice
• the FCW indicator flashes continuously
• a beep sounds continuously
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f43 PM Page 12

2223
V O I C E R E C O G N I T I O NTo keep your eyes on the road and hands on the wheel, use voice commands for
hands\bfree calling, navigation, audio, and climate control. For a full list of commands,
say “Information ” and “Voice Command Help. ”
How It Works
Control four different systems with the steering wheel buttons and the ceiling
microphone.
To reduce the likelihood of driver distraction, certain manual functions
may be inoperable or grayed out while the vehicle is moving. Voice
commands are always available.
Voice Command Portal
Voice Command Tips
• To hear a list of available commands at any time, press and release the Talk
button, then say “Help.”
• When using the Talk button, wait for a beep, then give a command.
• When the Talk button is pressed, all available voice commands are highlighted in yellow.
• Speak in a clear, natural voice.
• Reduce all background noise.
• Adjust the dashboard and side vents away from the microphone in the ceiling.
• Close the windows.
PickUp button\f Answer an incoming
call or go to a phone\bspecific voice
portal screen.
HangUp/Back button\f End a call,
decline an incoming call, or cancel an
operation.
Talk button\f Give phone, navigation,
audio, or climate control commands.
The system recognizes
your command. The system confirms the
command.
Press the Talk button again,
and the system waits for
you to say a command.
When you press the Talk button from any of the main screens (NAV, PHONE,
INFO, AUDIO), the voice portal screen appears and the system gives you examples
of voice commands that can be used. For more examples, see page 24.
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f44 PM Page 13

2425
Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these
to familiarize yourself with the voice command system.
Press and release the Talk button before you give a command.
G e n e r a l C o m m a n d s(Accepted on most screens to change
displays)
• Display map
• Display menu
• Display phone
• Information
• Display audio screen
• What time is it?
F i n d P l a c e C o m m a n d s(Accepted on Map screen)
• Find nearest:
\b ATM \b Honda dealer
\b gas station \b airport
\b Mexican \b hospital restaurant \b bank
\b post office
N a v i g a t i o n C o m m a n d s(Accepted on Map screen)
• How long/far to the destination?
• Display destination map
• Display entire route
D i s p l a y C o m m a n d s(Accepted on Map screen)
• Display (or hide): \b ATM
\b gas station
\b restaurant
\b post office
• Display north up/heading up
• Zoom in/out
• Go home
• Display current location
Press and release the Talk button before you give a command.
A u d i o C o m m a n d s(Accepted on most screens)
• Radio on
• Radio # FM/AM
• Radio preset \f/2/3/4/5/6
• XM channel #
• XM preset \f/2/3/4/5/6
• DISC play
• DISC play track #
• DISC skip forward/back
• iPod/USB/HDD play
P h o n e C o m m a n d s(Accepted on most screens)
• Call “phone number”
• Call “voice tag”
C l i m a t e C o n t r o l C o m m a n d s(Accepted on most screens)
• Air conditioner on/off
• Rear defrost on/off
• Climate control recirculate/ fresh air
• Fan speed up/down
• Temperature # degrees (# = 57–87)
• Temperature max hot/cold
H e l p C o m m a n d s(Accepted on most screens)
• Voice help (list of all available commands by category)
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f44 PM Page 14

2\b27
N A V I G A T I O NReal\btime navigation system uses GPS and a map database to show your current
location and help guide you to a desired destination.
Entering a Destination Using Voice Commands
Find a nearby point of interest, such as a gas station, movie theater, restaurant, etc.
Press and release the Talk button before you give a command.
\f. From the map screen, say“Find
nearest ATM.”
2. A list of the nearest ATMs in your area is displayed by
shortest distance to destination. 3.
Say the number next to the
destination you want to select.
4. Say “Set as destination” to set
the route.
Calculated route
Time to go
Distance to go Next guidance
point
Current vehicle
location
Set a destination using a street address. For other destination options, see your
Navigation Manual.
Press and release the Talk button before you give a command.
\f. Say “Address.”
2. Say “Street,” then say the street
name on the next screen. Do
not include the direction (N, S, E,
W) or type (St., Ave., Blvd., etc.).
3. A list of street names appears. Say the number next to the
street you want.
NOTE\f It is recommended that you enter your destination before
driving or when the vehicle is stopped. 4.
Say the entire street address
number. For example, “123\f.”If
necessary, say“OK” to proceed.
5. If the street address is in more than one city, a list of city names
appears. Saythe number next to
the city you want to select.
6. Say “Set as destination” to set the
route.
Using the “Find Nearest” Command
Map Screen Legend
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f44 PM Page 15

2829
FM Traffic
Press and release the Talk button before you give a command.
Displaying Traffic Information
Say“Display traffic” to view traffic flow and icons.
Note:Traffic flow and incident icons are
only displayed on map scales of 5 miles
(8 km) or less.
Heavy traffic
Moderate traffic
Traffic
Flow
data
Traffic
Flow
data
Incident
icon
Incident
icon
Incident
Incident Icons\f
Congestion
Construction
Road closed
Weather
Provides continuously updated info, including traffic speed, incidents, and
construction in major metro areas. Works in cities where a clear FM traffic signal
is available.
Traffic Rerouting
The system can automatically provide detours around traffic or incidents
when a destination is set and Traffic Rerouting is turned on in Navi Settings
(see page 43).
\f. Say “Display traffic on my
route” to view a list of
incidents on your route.
4.Say “Recalculate route” to set
the new route.
3.
Say “Avoid” and the incident
list returns.
2. Say the number of the
incident you want to avoid.
Using HFL
PickUp button\f Answer an incoming call
or go to a phone\bspecific voice portal
screen.
HangUp/Back button\f End a call, decline
an incoming call, or cancel an operation.
Talk button\f Make a call using a stored
voice tag, phonebook name, or phone
number.
B L U E T O O T H®H A N D S F R E E L I N K®
Make and receive phone calls through your vehicle’s audio system.Visit
handsfreelink.honda.com to check if your phone is Bluetooth\bcompatible.
To reduce the likelihood of driver distraction, certain functions may be
inoperable or grayed out while the vehicle is moving. Stop or pull over to
perform the function.
Use these buttons to navigate through the HFL menus.
PHONE button\f Go
to the phone screen.
BACK button\f
Cancel an operation
or return to the
previous screen.
SETTINGS button\f
Go to Phone Settings
to pair a phone and
set up text/mail
options. Interface Dial\f
Rotate to scroll
through selections
and press to make a
selection.
MENU button\f
From the Phone
screen, access Speed
Dial, Redial, Call
History, Phonebook,
Dial, and Text/Mail
options.
13 Accord4D TRG_EXL NAVI\fATG_NEW STYLE 7/13/2012 3\f45 PM Page 1\b
