2013 HONDA ACCORD Navigation Manual

48
GuidanceEstimated Time
Estimated Time
HSETTINGS button  Navi Settings  Guidance  Estimated Time
Select the estimated time to display on the screen.
Rotate i to select an option.
The following options are available:
• Arrival : Displays the arrival time to the destination or the next waypoint.
• Remaining (factory default): Displays the rema ining time to the destination or the
next waypoint.
QRG
Index
Home
Sys tem SetupTOC
Press u .

49
Map
HSETTINGS button  Navi Settings  Map
Select the landmark icons to display on the map, change the orientation of the map,
display your current location, and learn the meaning of the icons, colors, and
symbols displayed on the map.
Rotate i to select an item. Press u.
The following items are available:
• Show Icon on Map : Selects the icons to display on the map.
2Showing Icons on Map P. 51
• Color (Day) : Selects the color of the map for the Day mode.
2Color P. 53
• Color (Night) : Selects the color of the map for the Night mode.
2Color P. 53
• View : Selects the map orientation (No rth-up, Heading-up, or 3D map).
2View (Map Orientation) P. 56
• 3D Angle Adjustment: Adjusts the viewing angle for the 3D map.
2 3D Angle Adjustment P. 57
• Straight Line Guide : Sets whether to display a straight guideline to the
destination or waypoint.
2 Straight Line Guide P. 57
Continued
QRG
Index
Home
Sys tem SetupTOC

50
MapEstimated Time
•Current Location : Displays and saves your current location.
2Current Location P. 58
• Map Legend : Displays an overview of the map features.
2Map Legend P. 59
• Display Tracking : Sets whether to display the tracking dots on the map.
2Display Tracking P. 63
• Delete Tracking : Deletes the tracking dots on the map.
2Deleting Tracking Dots P. 63
• Correct Vehicle Position : Adjusts the position of the vehicle on the map.
2Correct Vehicle Position P. 64
• System Device Information : Views database, software, device, and vehicle
identification information.
2 System Device Information P. 65
• Map Data Update : Checks the map data update status when updating the map
database.
2 Map Data Update P. 65
QRG
Index
Home
Sys tem SetupTOC

51
MapShowing Icons on Map
Showing Icons on Map
HSETTINGS button  Navi Settings  Map  Show Icon on Map
Select the icons that are displayed on the map. 1.Rotate i to select an item.
2. Rotate i to select an option.
Press u.
Repeat step1 and 2 as
necessary.
3. Move r to select OK. Press u.
The following options are available:
• All On : Displays the landmark icons.
2Map Screen Legend P. 8
• Customize : Fine-tunes the icon display.
2Fine-tuning the Icons P. 52
• Off : Hides the landmark icons.
1Showing Icons on Map
You can display or hide the icons using voice
commands on the Voice Portal screen (e.g., say
d “Display hospital” ).
2 Map Display Commands P. 142
Continued
QRG
Index
Home
System SetupTOC
Press u.

52
MapShowing Icons on Map
Icons in some categories can be fine-tuned to display or hide.1.Rotate i to select the icons to
display on the map. Press u.
Pressing u toggles the icon
display on or off.
Repeat the procedure as
necessary.
2. Move r and rotate i to select
OK . Press u.
■Fine-tuning the Icons
QRG
Index
Home
Sys tem SetupTOC

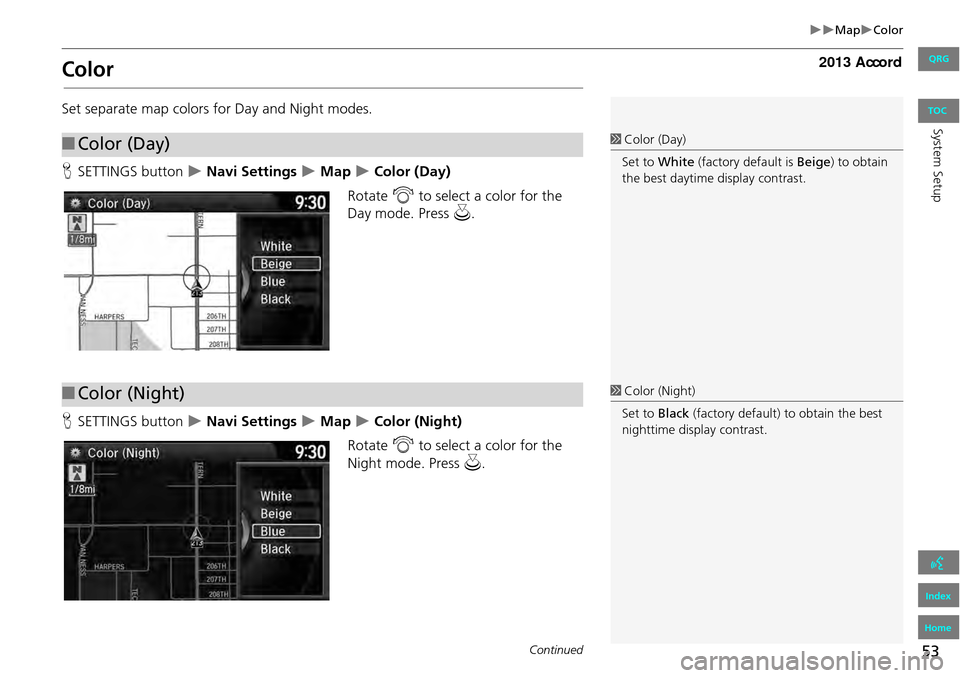

53
MapColor
Color
Set separate map colors for Day and Night modes.
HSETTINGS button
 Navi Settings  Map  Color (Day)
Rotate i to select a color for the
Day mode. Press u.
H SETTINGS button
 Navi Settings  Map  Color (Night)
Rotate i to select a color for the
Night mode. Press u.
■Color (Day)1 Color (Day)
Set to White (factory default is Beige ) to obtain
the best daytime display contrast.
■Color (Night)1 Color (Night)
Set to Black (factory default) to obtain the best
nighttime display contrast.
Continued
QRG
Index
Home
Sys tem SetupTOC

54
MapColor
Set the screen brightness separately for Day and Night modes. Press the a
(Display mode) button to cycle through the display modes (Day to Night to Off).
1. Press the a button.
The Brightness bar is displayed
for a few seconds.
Rotate i to adjust the
brightness. Press u.
2. Press the a button again.
Repeat the procedure to switch
the display modes.
■Switching Display Mode Manually1 Switching Display Mode Manually
A visual guide helps y ou see the difference
between Day an d Night modes.
2 Day or Night Mode P. 9
Recommended Settings
•Select mid-range for the dash illumination.
•Select White for the map Day display and
Black for the map Night display.
QRG
Index
Home
System SetupTOC

55
MapColor
Illumination control Priority
Operation
a button1Selects Day, Night, or Off display mode. This button has
the highest priority and overrides all other display control
adjustments listed below.
Remember : Once you press this button, you assume full
manual control of the display mode until the power mode
is set to VEHICLE OFF (LOCK).
Sunlight sensor
(see your
Owner’s Manual
for location) 2 If the sunlight sensor detects daylight and the headlights
are turned on, the system automatically overrides the
Night display and displays the Day display mode.
Remember : If desired, use the a button to override
this automatic choice.
Dash illumination
adjustment
buttons (see your
Owner’s Manual
for location)3When headlights are turned on, and you wish to have the
Day display mode, adjust the illumination to the full
brightness setting (beeps).
Remember : Adjust the dash brightness back to mid-range
to allow auto switching by sensing the headlights are on or
off.
Headlights
(Auto/On/Off) 4 When turned on, the display changes to Night display
mode. The previous three controls listed above can
“cancel” this function.
Remember : Use the a button, or adjust the dash
illumination to full brightness, to set the display to your
desired choice.
Screen color
choiceN/AThe user can select the color of the screen that will be
displayed for the Day and Night display modes described
above.
Remember : For best contrast, ensure that the map color is
white for Day and black for Night.
QRG
Index
Home
Sys tem SetupTOC
