2013 GMC SIERRA 1500 Owners Manual

Black plate (3,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
In Brief 1-3
A.Air Vents on page 8‑10.
B. Turn and Lane‐Change Lever. See Turn and Lane-Change
Signals on page 6‑5.
Windshield Wiper/Washer on
page 5‑4.
C. Driver Information Center (DIC) Buttons. See Driver Information
Center (DIC) on page 5‑28.
D. Hazard Warning Flashers on
page 6‑5 (Out of View).
E. Instrument Cluster on
page 5‑11.
F. Shift Lever. See Automatic
Transmission on page 9‑32.
Tow/Haul Selector Button (If
Equipped). See Tow/Haul Mode
on page 9‑37.
Range Selection Mode (Allison
Transmission and Hydra-Matic
®
6‐Speed Button) (If Equipped).
See Manual Mode on
page 9‑36.
G. Infotainment on page 7‑1. H.
Instrument Panel Storage on
page 4‑1.
I. Integrated Trailer Brake Controller (If Equipped). See
Trailer Towing on page 9‑73.
J. Exterior Lamp Controls on
page 6‑1.
K. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5‑21.
L. Hood Release. See Hood on
page 10‑4.
M. Parking Brake on page 9‑51.
N. Dome Lamps on page 6‑7.
Fog Lamps on page 6‑6 (If
Equipped).
O. Cruise Control on page 9‑56.
P. Steering Wheel Adjustment on
page 5‑2.
Q. Horn on page 5‑4.
R. Steering Wheel Controls on
page 5‑2 (If Equipped). S. Automatic Transfer Case
Control (If Equipped). See
Four-Wheel Drive on
page 10‑28.
T. Ashtray (If Equipped). See Ashtrays on page 5‑10 and
Cigarette Lighter on page 5‑9.
U. StabiliTrak
®System on
page 9‑53 (If Equipped).
Ultrasonic Parking Assist on
page 9‑59 (If Equipped).
Pedal Adjust Button (If
Equipped). See Adjustable
Throttle and Brake Pedal on
page 9‑23.
Exhaust Brake (If Equipped).
See “Brakes” in the Duramax
diesel supplement.
V. Power Outlets on page 5‑9.

Black plate (4,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
1-4 In Brief
W.Climate Control Systems (with
Air Conditioning) on page 8‑1 or
Climate Control Systems (with
Heater Only) on page 8‑4 (If
Equipped).
Dual Automatic Climate Control
System on page 8‑5 (If
Equipped).
X. Power Take Off (PTO) Control (If Equipped). See Power Take
Off (PTO) in the Duramax diesel
supplement.
Y. Passenger Airbag Off Control (If Equipped). See Airbag On-Off
Switch on page 3‑28.

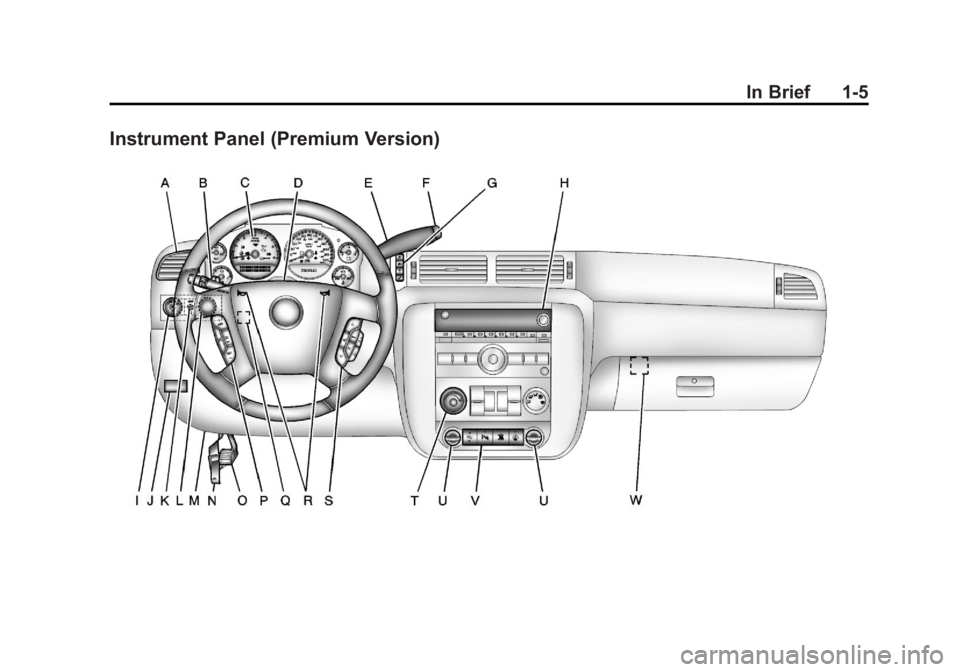

Black plate (5,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
In Brief 1-5
Instrument Panel (Premium Version)

Black plate (6,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
1-6 In Brief
A.Air Vents on page 8‑10.
B. Turn and Lane‐Change Lever. See Turn and Lane-Change
Signals on page 6‑5.
Windshield Wiper/Washer on
page 5‑4.
C. Instrument Cluster on
page 5‑11.
D. Hazard Warning Flashers on
page 6‑5 (Out of View).
E. Shift Lever. See Automatic
Transmission on page 9‑32.
Range Selection Mode (If
Equipped). See Manual Mode
on page 9‑36.
F. Tow/Haul Mode on page 9‑37 (If
Equipped). G. Driver Information Center (DIC)
Buttons. See Driver Information
Center (DIC) on page 5‑28.
H. Infotainment on page 7‑1.
I. Exterior Lamp Controls on
page 6‑1.
J. Integrated Trailer Brake Controller (If Equipped). See
Trailer Towing on page 9‑73.
K. Dome Lamps on page 6‑7.
L. Automatic Transfer Case Control (If Equipped). See
Four-Wheel Drive on
page 10‑28.
M. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5‑21.
N. Hood Release. See Hood on
page 10‑4. O.
Parking Brake on page 9‑51.
P. Cruise Control on page 9‑56.
Q. Steering Wheel Adjustment on
page 5‑2.
R. Horn on page 5‑4.
S. Steering Wheel Controls on
page 5‑2.
T. Climate Control Systems (with
Air Conditioning) on page 8‑1 or
Climate Control Systems (with
Heater Only) on page 8‑4 (If
Equipped).
Dual Automatic Climate Control
System on page 8‑5 (If
Equipped).
U. Power Outlets on page 5‑9.
Cigarette Lighter (If Equipped).
See Ashtrays on page 5‑10 and
Cigarette Lighter on page 5‑9.

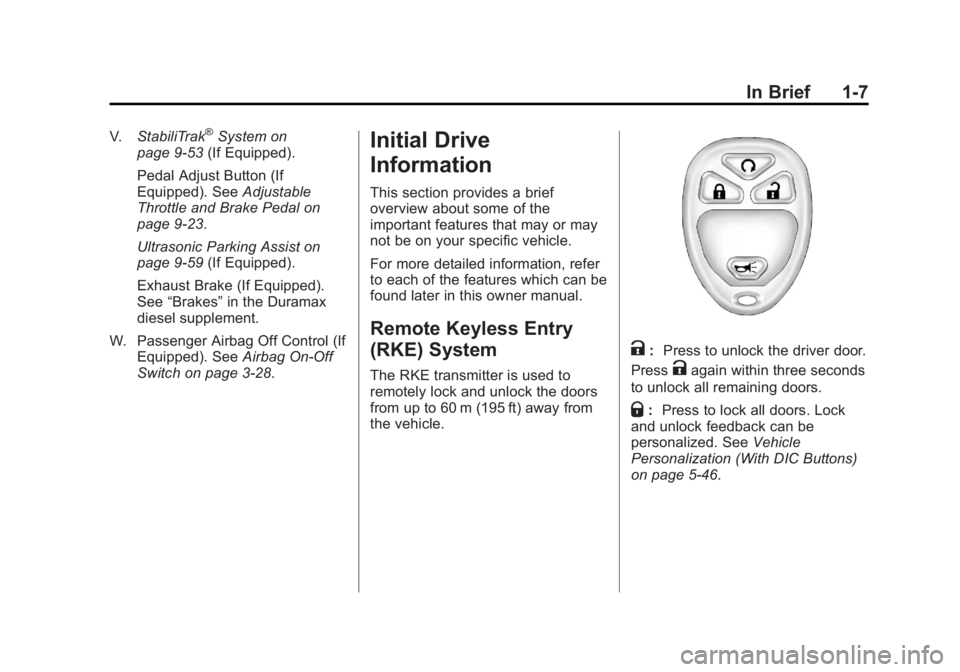

Black plate (7,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
In Brief 1-7
V.StabiliTrak®System on
page 9‑53 (If Equipped).
Pedal Adjust Button (If
Equipped). See Adjustable
Throttle and Brake Pedal on
page 9‑23.
Ultrasonic Parking Assist on
page 9‑59 (If Equipped).
Exhaust Brake (If Equipped).
See “Brakes” in the Duramax
diesel supplement.
W. Passenger Airbag Off Control (If Equipped). See Airbag On-Off
Switch on page 3‑28.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
The RKE transmitter is used to
remotely lock and unlock the doors
from up to 60 m (195 ft) away from
the vehicle.
K: Press to unlock the driver door.
Press
Kagain within three seconds
to unlock all remaining doors.
Q: Press to lock all doors. Lock
and unlock feedback can be
personalized. See Vehicle
Personalization (With DIC Buttons)
on page 5‑46.

Black plate (8,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
1-8 In Brief
L:Press and release to locate
the vehicle. Press
Land hold for
more than two seconds to sound the
panic alarm. Press
Lagain to
cancel the panic alarm.
See Keys on page 2‑1 andRemote
Keyless Entry (RKE) System
Operation on page 2‑2.
Remote Vehicle Start
With this feature the engine can be
started from outside of the vehicle.
Starting the Vehicle
1. Aim the RKE transmitter at the vehicle.
2. Press and release
Q.
3. Immediately after completing Step 2, press and hold
/for at
least two seconds or until the
turn signal lamps flash. When the vehicle starts, the parking
lamps will turn on and remain on as
long as the engine is running. The
doors will be locked and the climate
control system may come on.
The engine will continue to run for
10 minutes. Repeat the steps for a
10-minute time extension. Remote
start can be extended only once.
Canceling a Remote Start
To cancel a remote start, do one of
the following:
.Aim the RKE transmitter at the
vehicle and press and hold
/
until the parking lamps turn off.
.Turn on the hazard warning
flashers.
.Turn the vehicle on and then
back off.
See Remote Vehicle Start on
page 2‑4.
Door Locks
There are several ways to lock and
unlock the vehicle.
From outside, use the Remote
Keyless Entry (RKE) transmitter or
the key in the driver door.
From inside, use the power door
locks or the manual door locks. To
lock or unlock the door with the
manual locks, push down or pull up
on the manual lock knob.

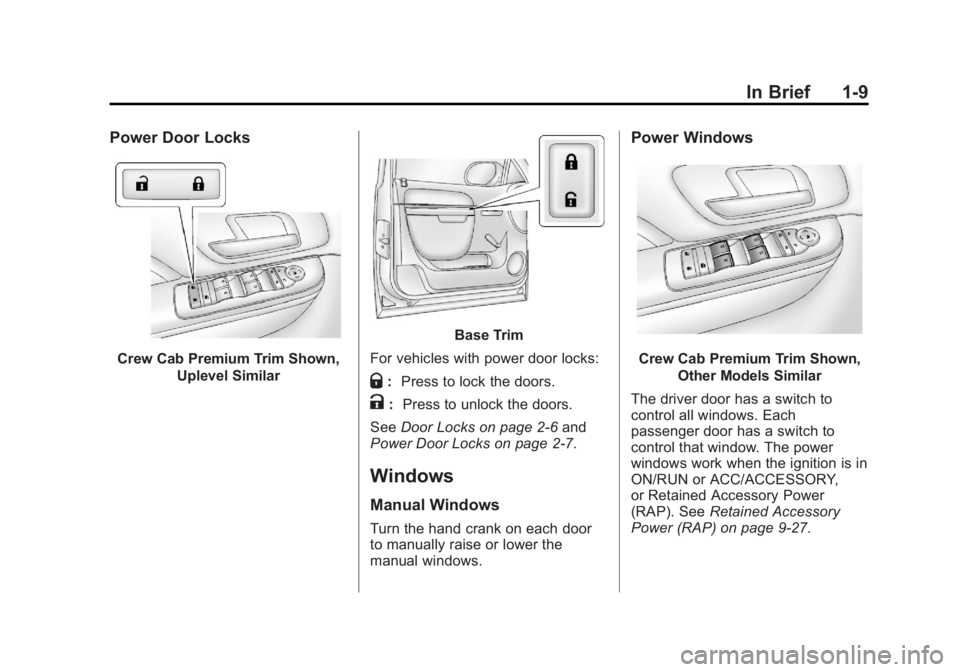

Black plate (9,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
In Brief 1-9
Power Door Locks
Crew Cab Premium Trim Shown,Uplevel Similar
Base Trim
For vehicles with power door locks:
Q: Press to lock the doors.
K: Press to unlock the doors.
See Door Locks on page 2‑6 and
Power Door Locks on page 2‑7.
Windows
Manual Windows
Turn the hand crank on each door
to manually raise or lower the
manual windows.
Power Windows
Crew Cab Premium Trim Shown,
Other Models Similar
The driver door has a switch to
control all windows. Each
passenger door has a switch to
control that window. The power
windows work when the ignition is in
ON/RUN or ACC/ACCESSORY,
or Retained Accessory Power
(RAP). See Retained Accessory
Power (RAP) on page 9‑27.

Black plate (10,1)GMC Sierra Owner Manual - 2013 - crc - 8/14/12
1-10 In Brief
Press the switch to lower the
window. Pull the switch up to raise
it. SeeWindows on page 2‑17 and
Power Windows on page 2‑18.
Power Sliding Rear Window
If equipped, the power sliding rear
window works when the ignition has
been turned to ACC/ACCESSORY
or ON/RUN, or when Retained
Accessory Power (RAP) is active.
See Retained Accessory Power
(RAP) on page 9‑27.
.Press the switch to open the
window.
.Pull the switch to close the
window.
The power sliding rear window
cannot be operated manually.
Seat Adjustment
Manual Seats
To adjust the seat:
1. Lift the bar to unlock the seat.
2. Slide the seat to the desired position and release the bar. 3. Try to move the seat back and
forth to be sure the seat is
locked in place.
See Seat Adjustment on page 3‑3.
Power Seats
To adjust a power seat, if equipped:
.Move the seat forward or
rearward by sliding the control
forward or rearward.
.If available, raise or lower the
front or rear part of the seat
cushion by moving the front or
rear of the control up or down.
