2013 FORD TAURUS CD player

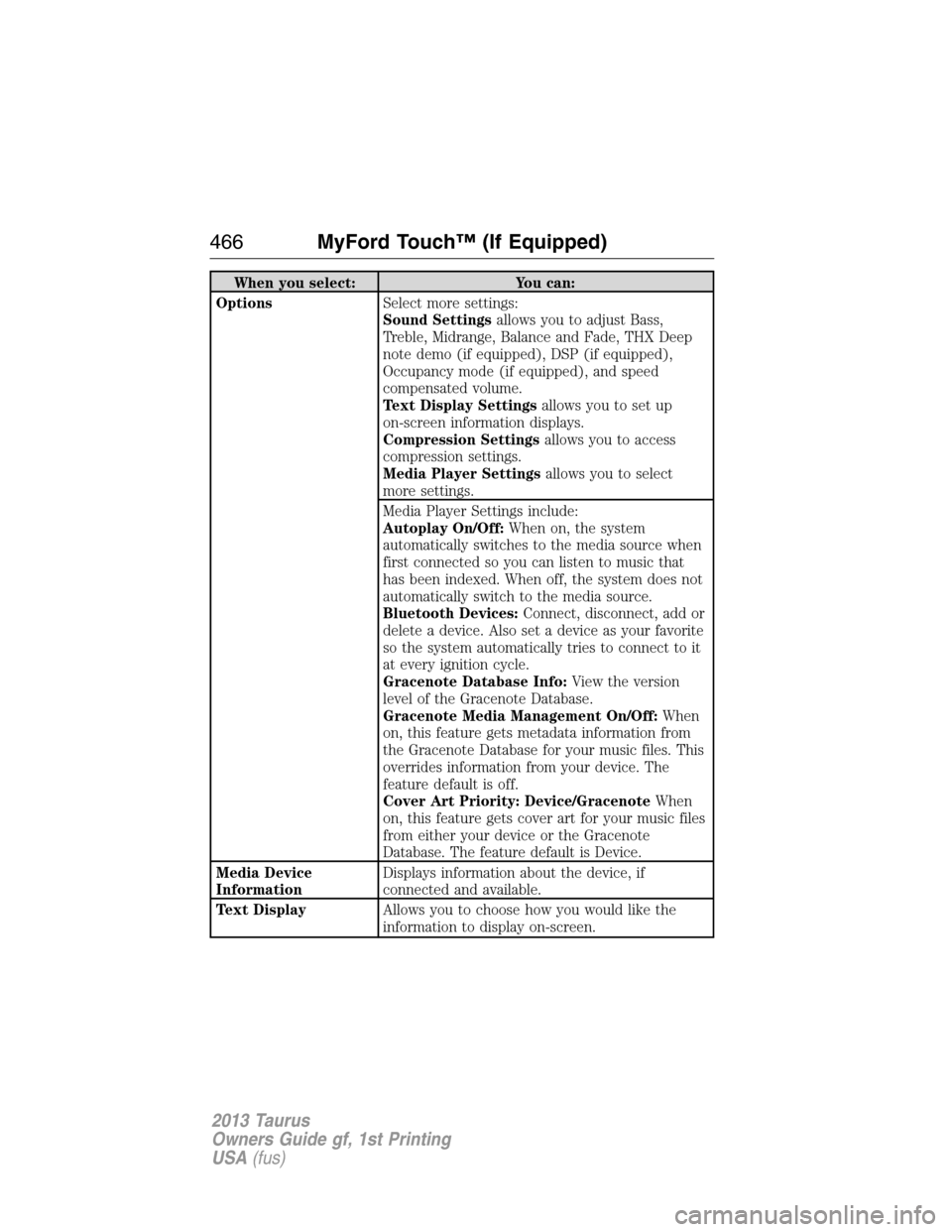

When you select: You can:
OptionsSelect more settings:
Sound Settingsallows you to adjust Bass,
Treble, Midrange, Balance and Fade, THX Deep
note demo (if equipped), DSP (if equipped),
Occupancy mode (if equipped), and speed
compensated volume.
Text Display Settingsallows you to set up
on-screen information displays.
Compression Settingsallows you to access
compression settings.
Media Player Settingsallows you to select
more settings.
Media Player Settings include:
Autoplay On/Off:When on, the system
automatically switches to the media source when
first connected so you can listen to music that
has been indexed. When off, the system does not
automatically switch to the media source.
Bluetooth Devices:Connect, disconnect, add or
delete a device. Also set a device as your favorite
so the system automatically tries to connect to it
at every ignition cycle.
Gracenote Database Info:View the version
level of the Gracenote Database.
Gracenote Media Management On/Off:When
on, this feature gets metadata information from
the Gracenote Database for your music files. This
overrides information from your device. The
feature default is off.
Cover Art Priority: Device/GracenoteWhen
on, this feature gets cover art for your music files
from either your device or the Gracenote
Database. The feature default is Device.
Media Device
InformationDisplays information about the device, if
connected and available.
Text DisplayAllows you to choose how you would like the
information to display on-screen.
466MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

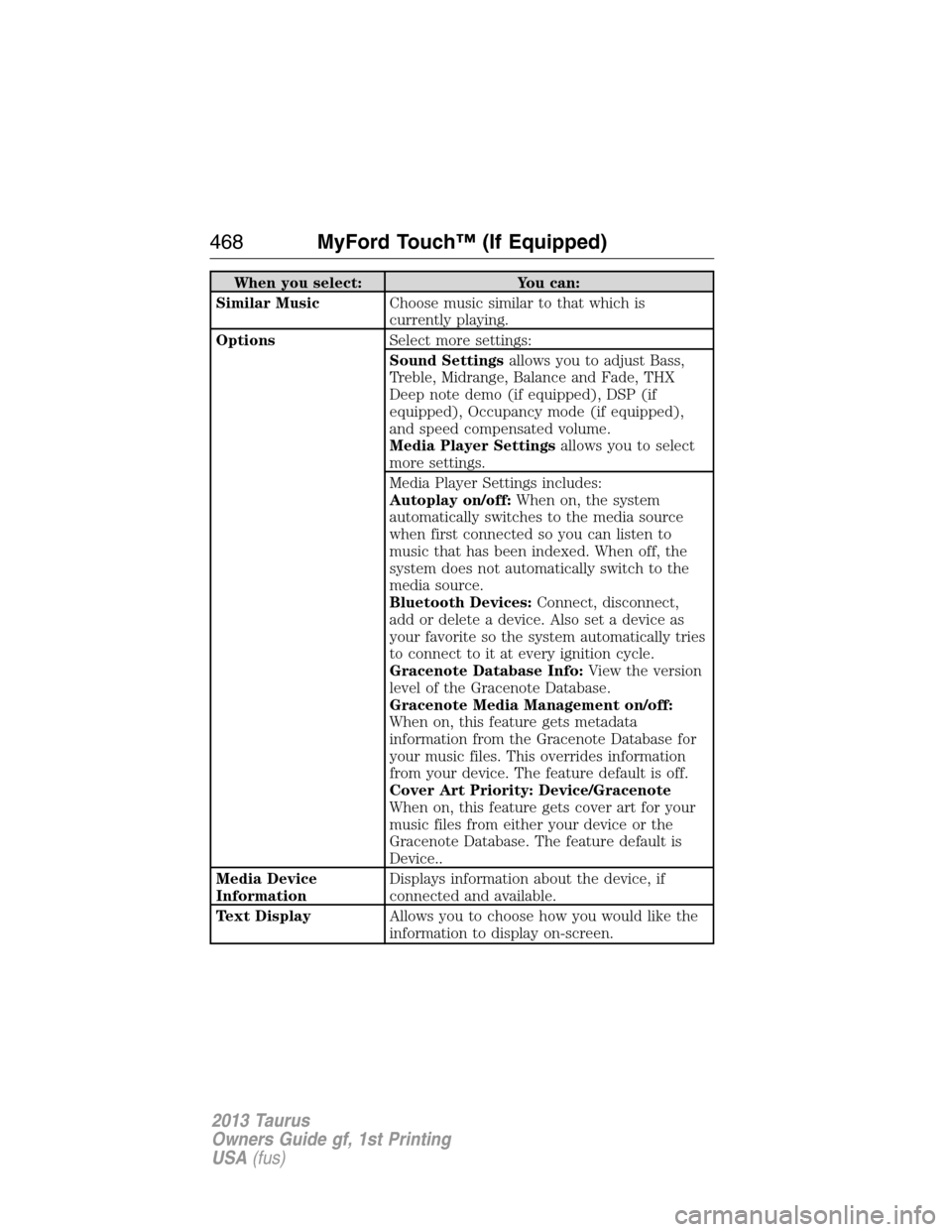

When you select: You can:
Similar MusicChoose music similar to that which is
currently playing.
OptionsSelect more settings:
Sound Settingsallows you to adjust Bass,
Treble, Midrange, Balance and Fade, THX
Deep note demo (if equipped), DSP (if
equipped), Occupancy mode (if equipped),
and speed compensated volume.
Media Player Settingsallows you to select
more settings.
Media Player Settings includes:
Autoplay on/off:When on, the system
automatically switches to the media source
when first connected so you can listen to
music that has been indexed. When off, the
system does not automatically switch to the
media source.
Bluetooth Devices:Connect, disconnect,
add or delete a device. Also set a device as
your favorite so the system automatically tries
to connect to it at every ignition cycle.
Gracenote Database Info:View the version
level of the Gracenote Database.
Gracenote Media Management on/off:
When on, this feature gets metadata
information from the Gracenote Database for
your music files. This overrides information
from your device. The feature default is off.
Cover Art Priority: Device/Gracenote
When on, this feature gets cover art for your
music files from either your device or the
Gracenote Database. The feature default is
Device..
Media Device
InformationDisplays information about the device, if
connected and available.
Text DisplayAllows you to choose how you would like the
information to display on-screen.
468MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

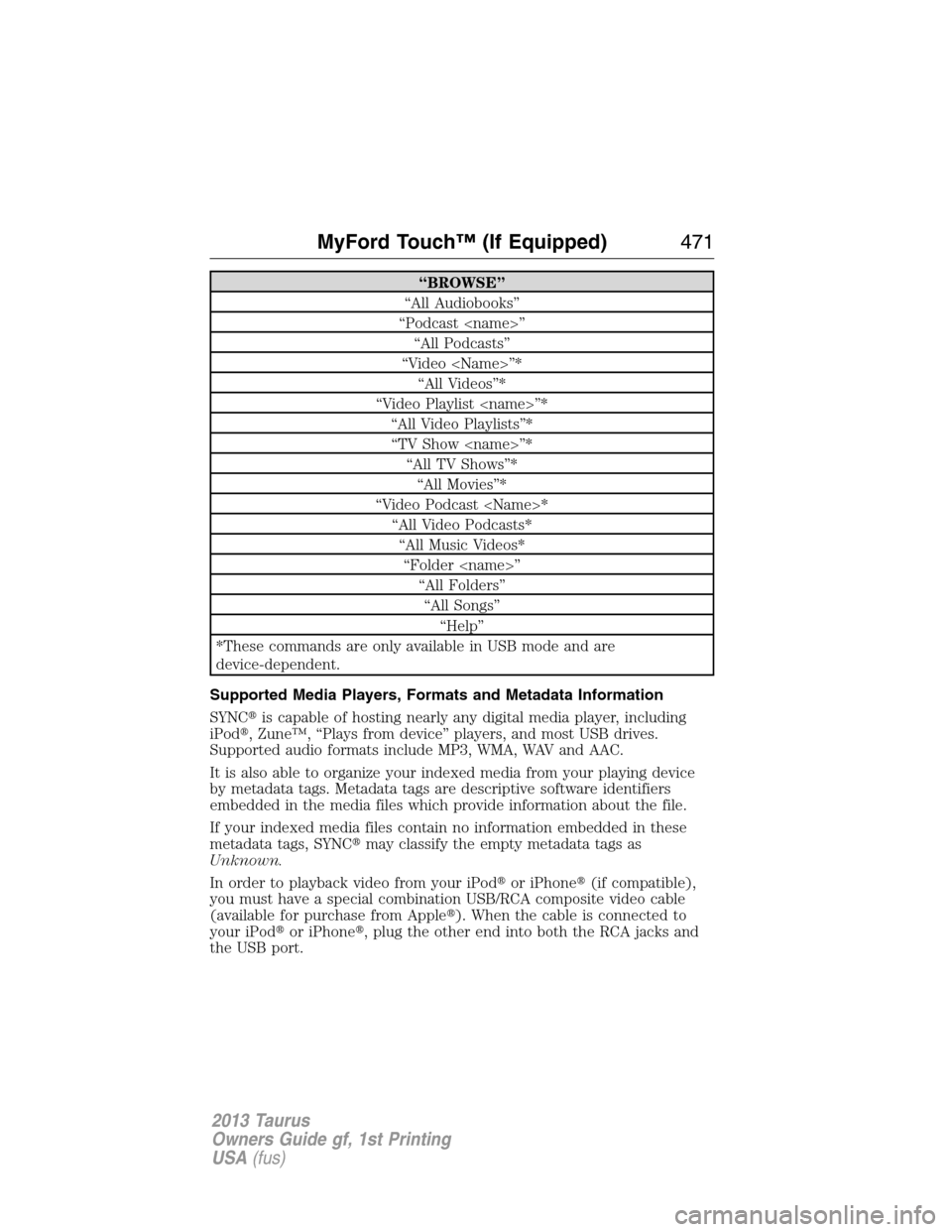

“BROWSE”
“All Audiobooks”
“Podcast ”
“All Podcasts”
“Video ”*
“All Videos”*
“Video Playlist ”*
“All Video Playlists”*
“TV Show ”*
“All TV Shows”*
“All Movies”*
“Video Podcast *
“All Video Podcasts*
“All Music Videos*
“Folder ”
“All Folders”
“All Songs”
“Help”
*These commands are only available in USB mode and are
device-dependent.
Supported Media Players, Formats and Metadata Information
SYNCis capable of hosting nearly any digital media player, including
iPod, Zune™, “Plays from device” players, and most USB drives.
Supported audio formats include MP3, WMA, WAV and AAC.
It is also able to organize your indexed media from your playing device
by metadata tags. Metadata tags are descriptive software identifiers
embedded in the media files which provide information about the file.
If your indexed media files contain no information embedded in these
metadata tags, SYNCmay classify the empty metadata tags as
Unknown.
In order to playback video from your iPodor iPhone(if compatible),
you must have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPodor iPhone, plug the other end into both the RCA jacks and
the USB port.
MyFord Touch™ (If Equipped)471
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

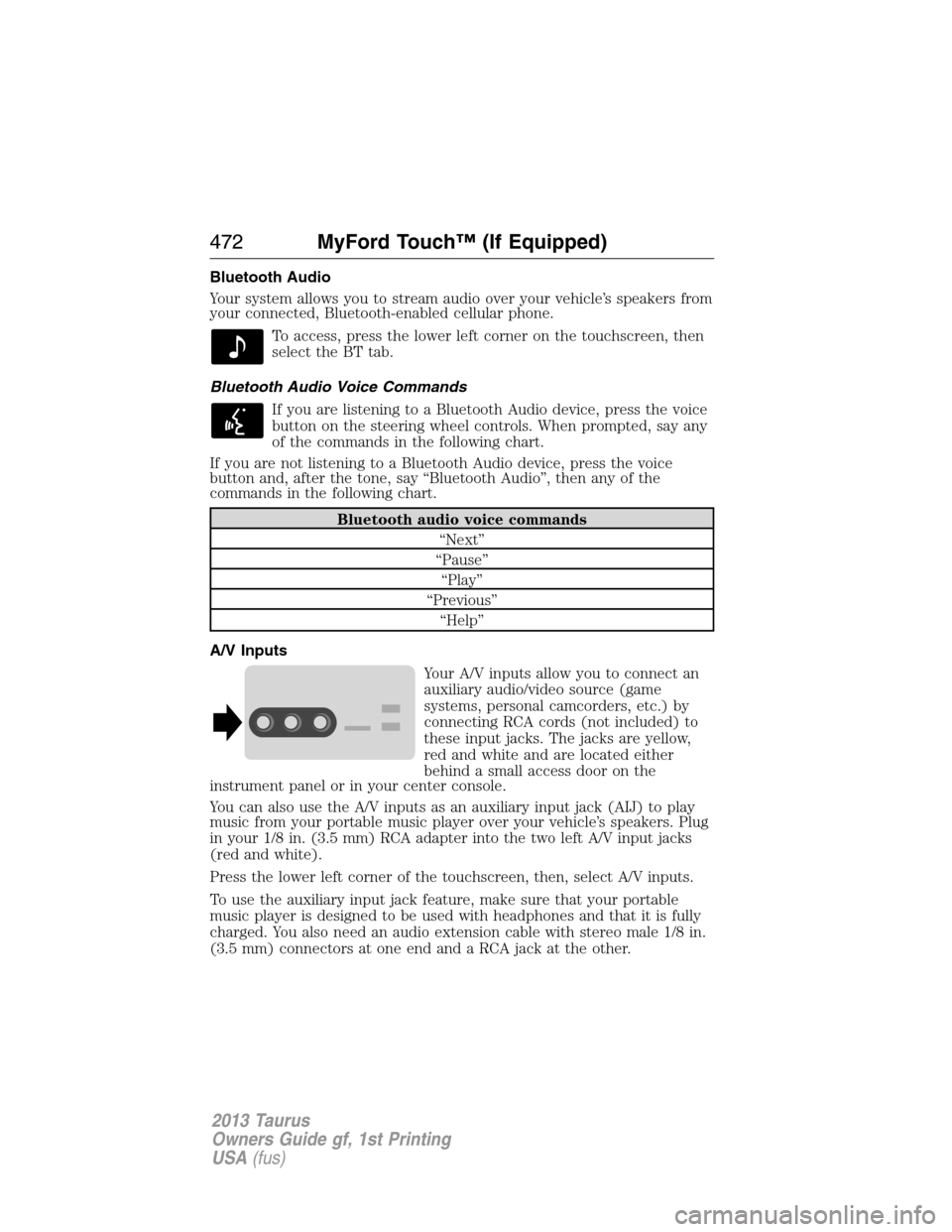

Bluetooth Audio
Your system allows you to stream audio over your vehicle’s speakers from
your connected, Bluetooth-enabled cellular phone.
To access, press the lower left corner on the touchscreen, then
select the BT tab.
Bluetooth Audio Voice Commands
If you are listening to a Bluetooth Audio device, press the voice
button on the steering wheel controls. When prompted, say any
of the commands in the following chart.
If you are not listening to a Bluetooth Audio device, press the voice
button and, after the tone, say “Bluetooth Audio”, then any of the
commands in the following chart.
Bluetooth audio voice commands
“Next”
“Pause”
“Play”
“Previous”
“Help”
A/V Inputs
Your A/V inputs allow you to connect an
auxiliary audio/video source (game
systems, personal camcorders, etc.) by
connecting RCA cords (not included) to
these input jacks. The jacks are yellow,
red and white and are located either
behind a small access door on the
instrument panel or in your center console.
You can also use the A/V inputs as an auxiliary input jack (AIJ) to play
music from your portable music player over your vehicle’s speakers. Plug
in your 1/8 in. (3.5 mm) RCA adapter into the two left A/V input jacks
(red and white).
Press the lower left corner of the touchscreen, then, select A/V inputs.
To use the auxiliary input jack feature, make sure that your portable
music player is designed to be used with headphones and that it is fully
charged. You also need an audio extension cable with stereo male 1/8 in.
(3.5 mm) connectors at one end and a RCA jack at the other.
472MyFord Touch™ (If Equipped)
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

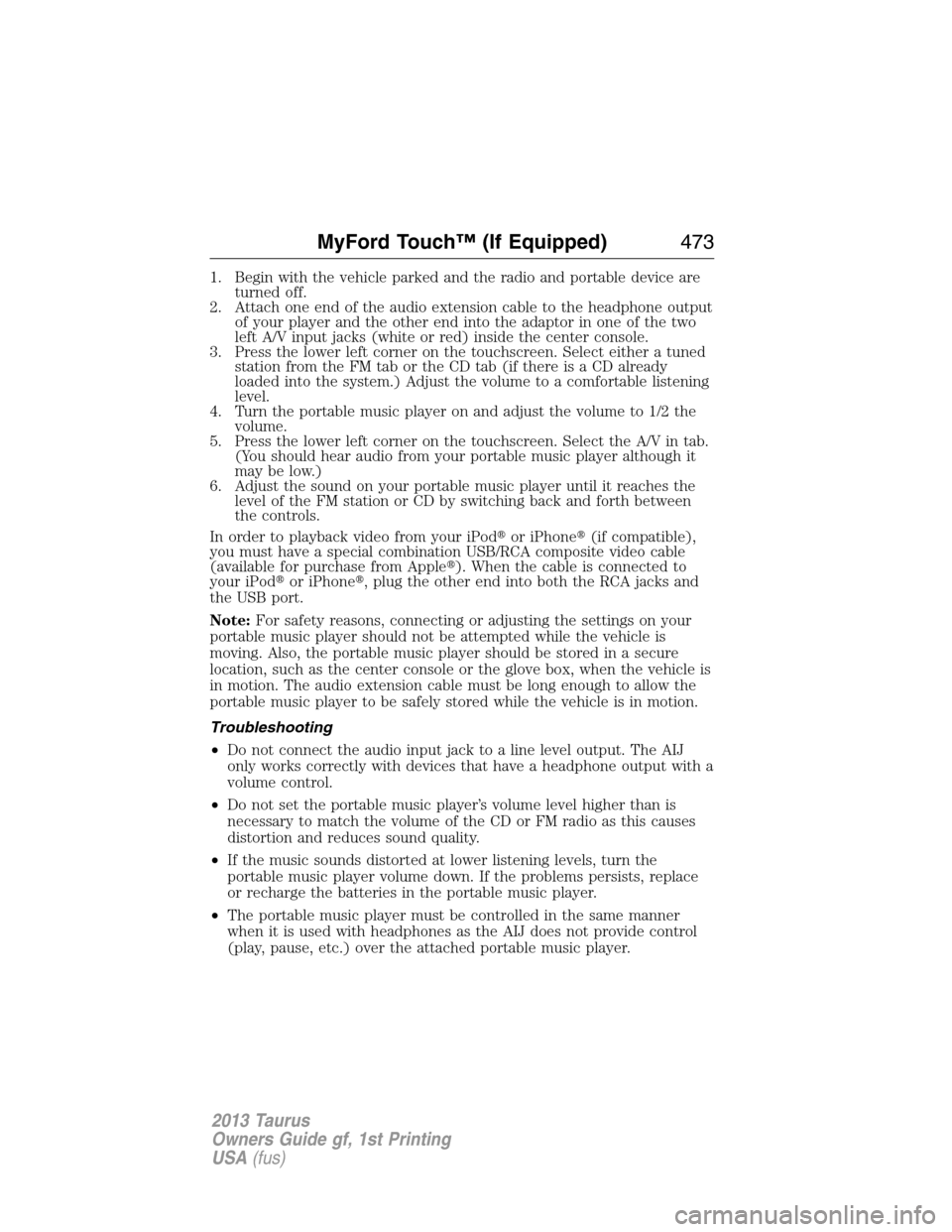

1. Begin with the vehicle parked and the radio and portable device are
turned off.
2. Attach one end of the audio extension cable to the headphone output
of your player and the other end into the adaptor in one of the two
left A/V input jacks (white or red) inside the center console.
3. Press the lower left corner on the touchscreen. Select either a tuned
station from the FM tab or the CD tab (if there is a CD already
loaded into the system.) Adjust the volume to a comfortable listening
level.
4. Turn the portable music player on and adjust the volume to 1/2 the
volume.
5. Press the lower left corner on the touchscreen. Select the A/V in tab.
(You should hear audio from your portable music player although it
may be low.)
6. Adjust the sound on your portable music player until it reaches the
level of the FM station or CD by switching back and forth between
the controls.
In order to playback video from your iPodor iPhone(if compatible),
you must have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPodor iPhone, plug the other end into both the RCA jacks and
the USB port.
Note:For safety reasons, connecting or adjusting the settings on your
portable music player should not be attempted while the vehicle is
moving. Also, the portable music player should be stored in a secure
location, such as the center console or the glove box, when the vehicle is
in motion. The audio extension cable must be long enough to allow the
portable music player to be safely stored while the vehicle is in motion.
Troubleshooting
•Do not connect the audio input jack to a line level output. The AIJ
only works correctly with devices that have a headphone output with a
volume control.
•Do not set the portable music player’s volume level higher than is
necessary to match the volume of the CD or FM radio as this causes
distortion and reduces sound quality.
•If the music sounds distorted at lower listening levels, turn the
portable music player volume down. If the problems persists, replace
or recharge the batteries in the portable music player.
•The portable music player must be controlled in the same manner
when it is used with headphones as the AIJ does not provide control
(play, pause, etc.) over the attached portable music player.
MyFord Touch™ (If Equipped)473
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

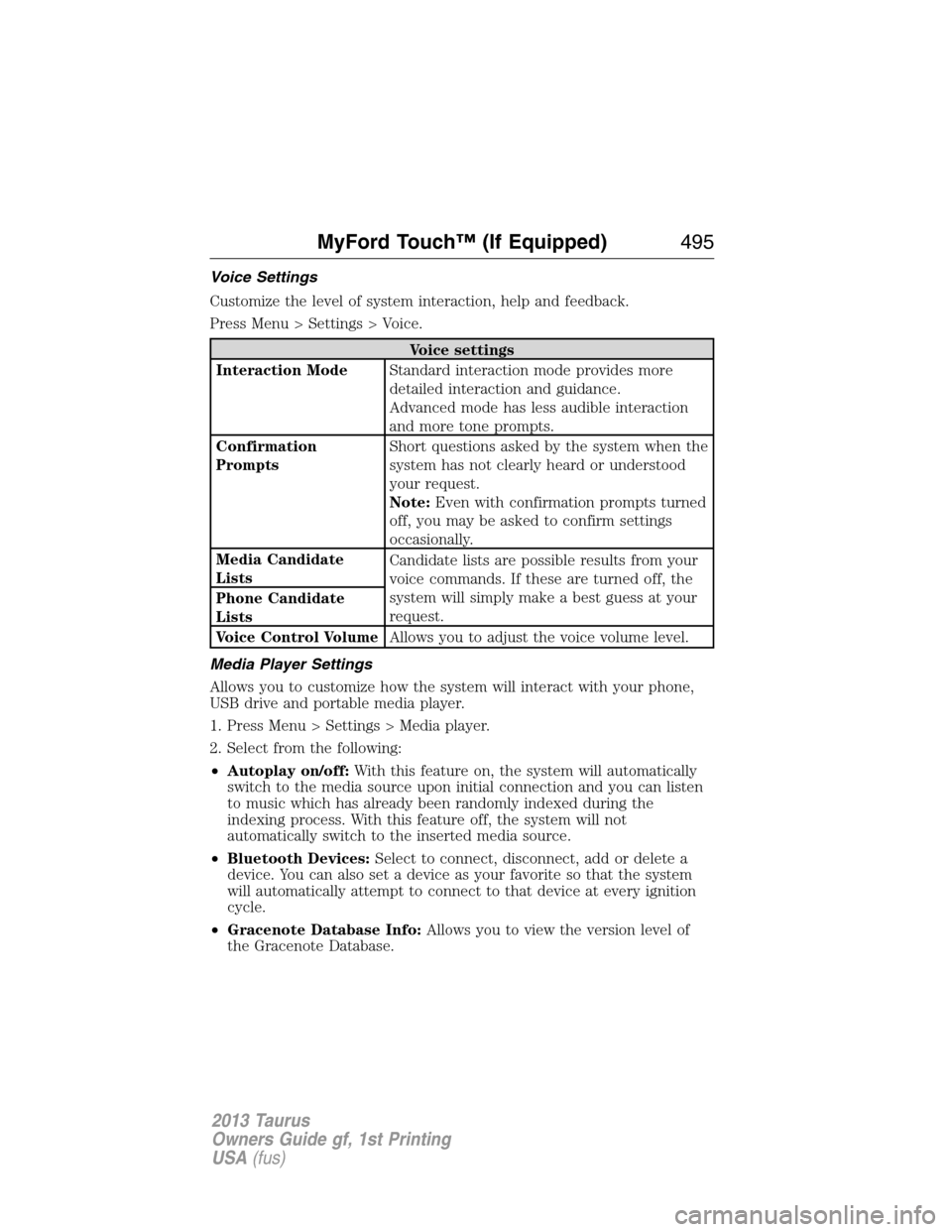

Voice Settings
Customize the level of system interaction, help and feedback.
Press Menu > Settings > Voice.
Voice settings
Interaction ModeStandard interaction mode provides more
detailed interaction and guidance.
Advanced mode has less audible interaction
and more tone prompts.
Confirmation
PromptsShort questions asked by the system when the
system has not clearly heard or understood
your request.
Note:Even with confirmation prompts turned
off, you may be asked to confirm settings
occasionally.
Media Candidate
ListsCandidate lists are possible results from your
voice commands. If these are turned off, the
system will simply make a best guess at your
request. Phone Candidate
Lists
Voice Control VolumeAllows you to adjust the voice volume level.
Media Player Settings
Allows you to customize how the system will interact with your phone,
USB drive and portable media player.
1. Press Menu > Settings > Media player.
2. Select from the following:
•Autoplay on/off:With this feature on, the system will automatically
switch to the media source upon initial connection and you can listen
to music which has already been randomly indexed during the
indexing process. With this feature off, the system will not
automatically switch to the inserted media source.
•Bluetooth Devices:Select to connect, disconnect, add or delete a
device. You can also set a device as your favorite so that the system
will automatically attempt to connect to that device at every ignition
cycle.
•Gracenote Database Info:Allows you to view the version level of
the Gracenote Database.
MyFord Touch™ (If Equipped)495
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

Brakes ........................................ 204
anti-lock ................................... 205
anti-lock brake system (ABS)
warning light ........................... 205
brake warning light ................ 205
fluid, checking and adding .... 297
fluid, refill capacities .............. 356
fluid, specifications ................. 356
lubricant specifications .......... 356
parking .................................... 205
shift interlock .......................... 195
trailer ....................................... 249
C
Capacities for refilling fluids .... 356
Cargo net ................................... 240
CD .............................. 130, 134, 136
CD player .......................... 128, 463
CD voice commands ................. 464
Cell phone use ............................ 16
Changing a tire ......................... 339
Child safety restraints .......... 28, 30
Child safety seats
attaching with tether straps .... 30
automatic locking mode
(retractor) ................................. 36
LATCH ....................................... 28
Child safety seats - booster
seats ............................................. 23
Cleaning the touchscreen ........ 438
Cleaning your vehicle ............... 309
engine compartment .............. 311
instrument panel .................... 313
interior ..................................... 312
plastic parts ............................ 310
washing .................................... 309
waxing ..................................... 311wheels ...................................... 314
wiper blades ............................ 312
Climate control (see Air
conditioning or Heating) .......... 142
Climate voice commands ......... 503
Clock .................................. 130, 492
Collision Warning System ......... 234
Compass Display ....................... 112
Console ...................................... 174
overhead .................................. 175
Coolant
checking and adding .............. 287
refill capacities ........................ 356
specifications .......................... 356
Cross Traffic Alert .................... 229
Cruise control ........................... 220
Cupholder(s) ............................. 166
Customer Assistance ................ 257
Ford Extended Service
Plan .................................. 366, 369
Getting assistance outside
the U.S. and Canada .............. 267
Getting roadside assistance ... 257
Getting the service you
need ......................................... 263
Ordering additional owner’s
literature ................................. 269
Utilizing the
Mediation/Arbitration
Program ................................... 267
Customizing your home
screen ........................................ 437
D
Defrost ............... 142, 144, 146, 148
rear window ............................ 151
Index535
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)

SecuriCode keyless entry
system .......................................... 73
SecuriLock passive anti-theft
system .......................................... 77
Selecting your media source
(USB, Line in, BT audio) ......... 420
Sending new text messages ..... 477
Setting a destination ................ 504
Setting a destination
by voice ..................................... 505
Setting the clock ............... 130, 492
Setting your wallpaper ............. 492
Side air curtain ........................... 51
Side-curtain airbags system ....... 51
SIRIUSsatellite radio ..... 130, 458
SIRIUS satellite radio voice
commands ................................. 460
SIRIUS Travel Link ................... 485
SIRIUS Travel Link voice
commands ................................. 486
SOS Post Crash Alert ................. 44
Spark plugs,
specifications ..................... 354, 360
Specification chart,
lubricants ................................... 356
Stability system ......................... 209
Starting your vehicle ................ 179
jump starting .......................... 259
push button start system ....... 177
Steering wheel ............................ 81
controls ...................................... 83
tilting ......................................... 81
Sunshade ................................... 100
Supplemental Restraint System
(SRS) (see airbags) .................... 45Supported media file types ...... 471
Supported player, media
formats and metadata
information ................................ 471
SYNCcustomer support ......... 390
SYNCServices ................. 413, 481
System settings ......................... 494
T
Temperature control
(see Climate control) ...... 142, 144,
146, 148, 501
Temporary mobility kit ............. 345
Text messaging ................. 401, 477
Text messaging (sending,
downloading, deleting) ..... 401, 403
Tilt steering wheel ...................... 81
Tires ........................... 318–319, 339
alignment ................................ 332
care .......................................... 318
changing .......................... 339, 341
checking the pressure ............ 328
inflating ................................... 326
label ......................................... 325
replacing .................................. 330
rotating .................................... 333
safety practices ....................... 332
sidewall information ............... 321
snow tires and chains ............ 334
spare tire ................................. 339
Temporary mobility kit .......... 345
terminology ............................. 319
tire grades ............................... 319
treadwear ........................ 318, 328
Touchscreen features
(climate) .................................... 501
540Index
2013 Taurus
Owners Guide gf, 1st Printing
USA(fus)
