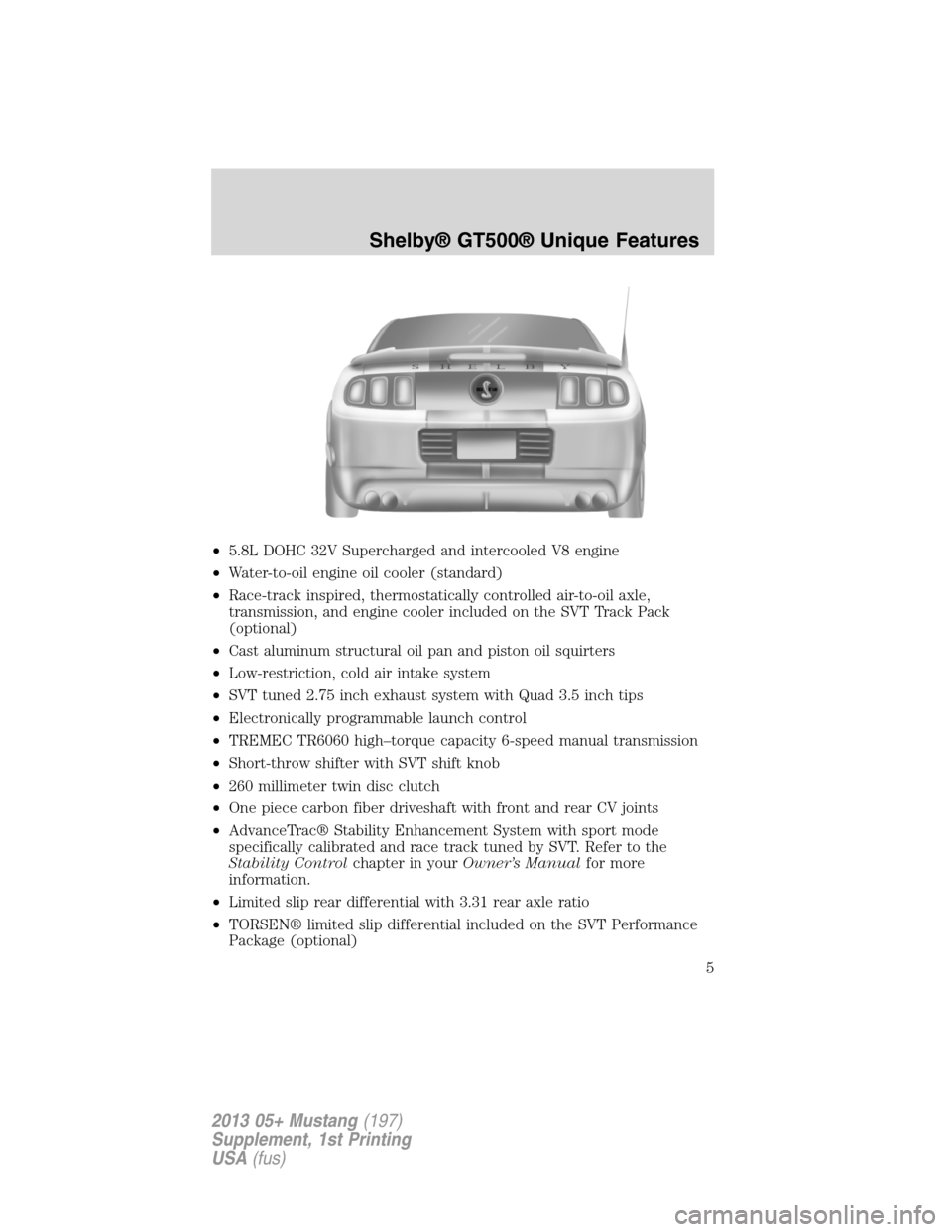

•5.8L DOHC 32V Supercharged and intercooled V8 engine
•Water-to-oil engine oil cooler (standard)
•Race-track inspired, thermostatically controlled air-to-oil axle,
transmission, and engine cooler included on the SVT Track Pack
(optional)
•Cast aluminum structural oil pan and piston oil squirters
•Low-restriction, cold air intake system
•SVT tuned 2.75 inch exhaust system with Quad 3.5 inch tips
•Electronically programmable launch control
•TREMEC TR6060 high–torque capacity 6-speed manual transmission
•Short-throw shifter with SVT shift knob
•260 millimeter twin disc clutch
•One piece carbon fiber driveshaft with front and rear CV joints
•AdvanceTrac® Stability Enhancement System with sport mode
specifically calibrated and race track tuned by SVT. Refer to the
Stability Controlchapter in yourOwner’s Manualfor more
information.
•Limited slip rear differential with 3.31 rear axle ratio
•TORSEN® limited slip differential included on the SVT Performance
Package (optional)
Shelby® GT500® Unique Features
5
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

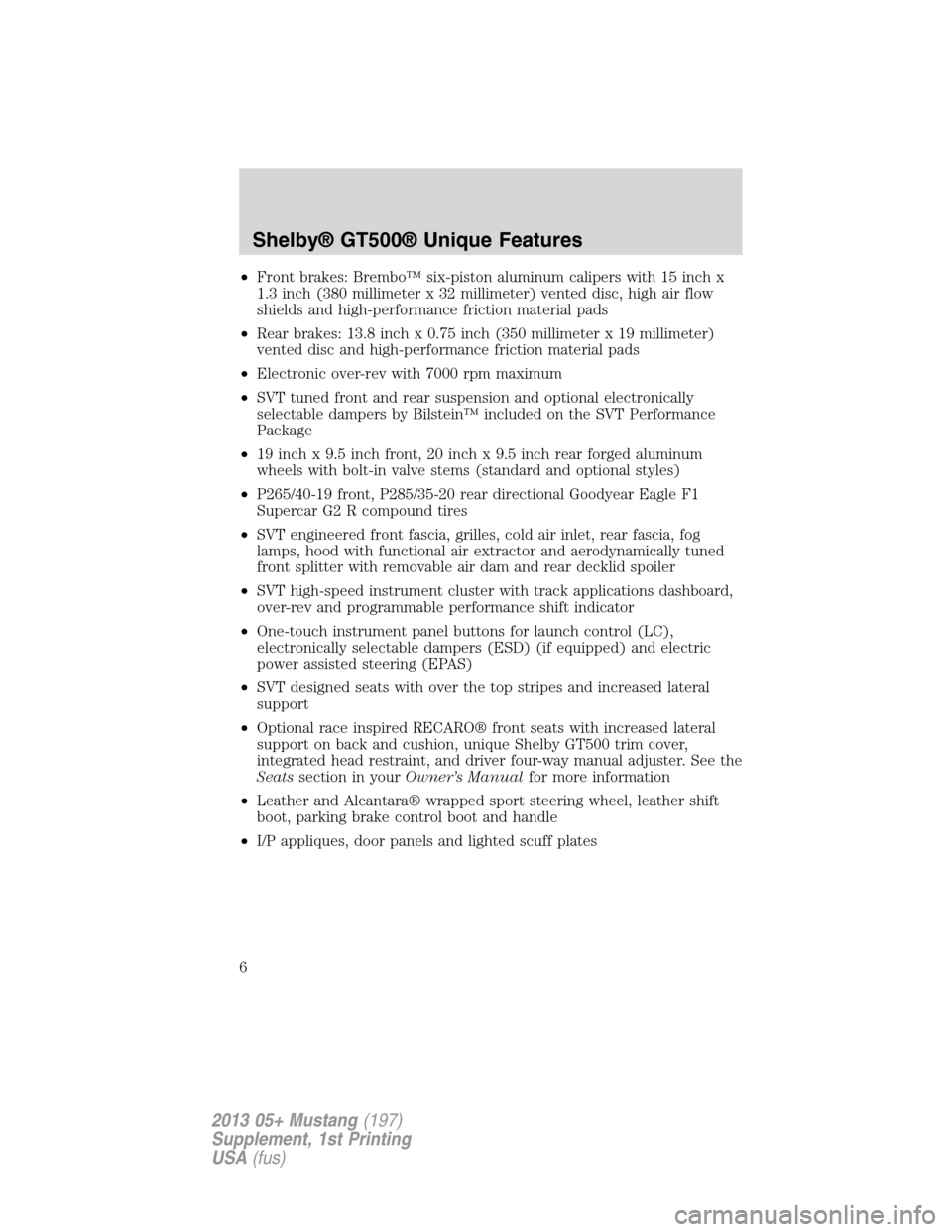

•Front brakes: Brembo™ six-piston aluminum calipers with 15 inch x
1.3 inch (380 millimeter x 32 millimeter) vented disc, high air flow
shields and high-performance friction material pads
•Rear brakes: 13.8 inch x 0.75 inch (350 millimeter x 19 millimeter)
vented disc and high-performance friction material pads
•Electronic over-rev with 7000 rpm maximum
•SVT tuned front and rear suspension and optional electronically
selectable dampers by Bilstein™ included on the SVT Performance
Package
•19 inch x 9.5 inch front, 20 inch x 9.5 inch rear forged aluminum
wheels with bolt-in valve stems (standard and optional styles)
•P265/40-19 front, P285/35-20 rear directional Goodyear Eagle F1
Supercar G2 R compound tires
•SVT engineered front fascia, grilles, cold air inlet, rear fascia, fog
lamps, hood with functional air extractor and aerodynamically tuned
front splitter with removable air dam and rear decklid spoiler
•SVT high-speed instrument cluster with track applications dashboard,
over-rev and programmable performance shift indicator
•One-touch instrument panel buttons for launch control (LC),
electronically selectable dampers (ESD) (if equipped) and electric
power assisted steering (EPAS)
•SVT designed seats with over the top stripes and increased lateral
support
•Optional race inspired RECARO® front seats with increased lateral
support on back and cushion, unique Shelby GT500 trim cover,
integrated head restraint, and driver four-way manual adjuster. See the
Seatssection in yourOwner’s Manualfor more information
•Leather and Alcantara® wrapped sport steering wheel, leather shift
boot, parking brake control boot and handle
•I/P appliques, door panels and lighted scuff plates
Shelby® GT500® Unique Features
6
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

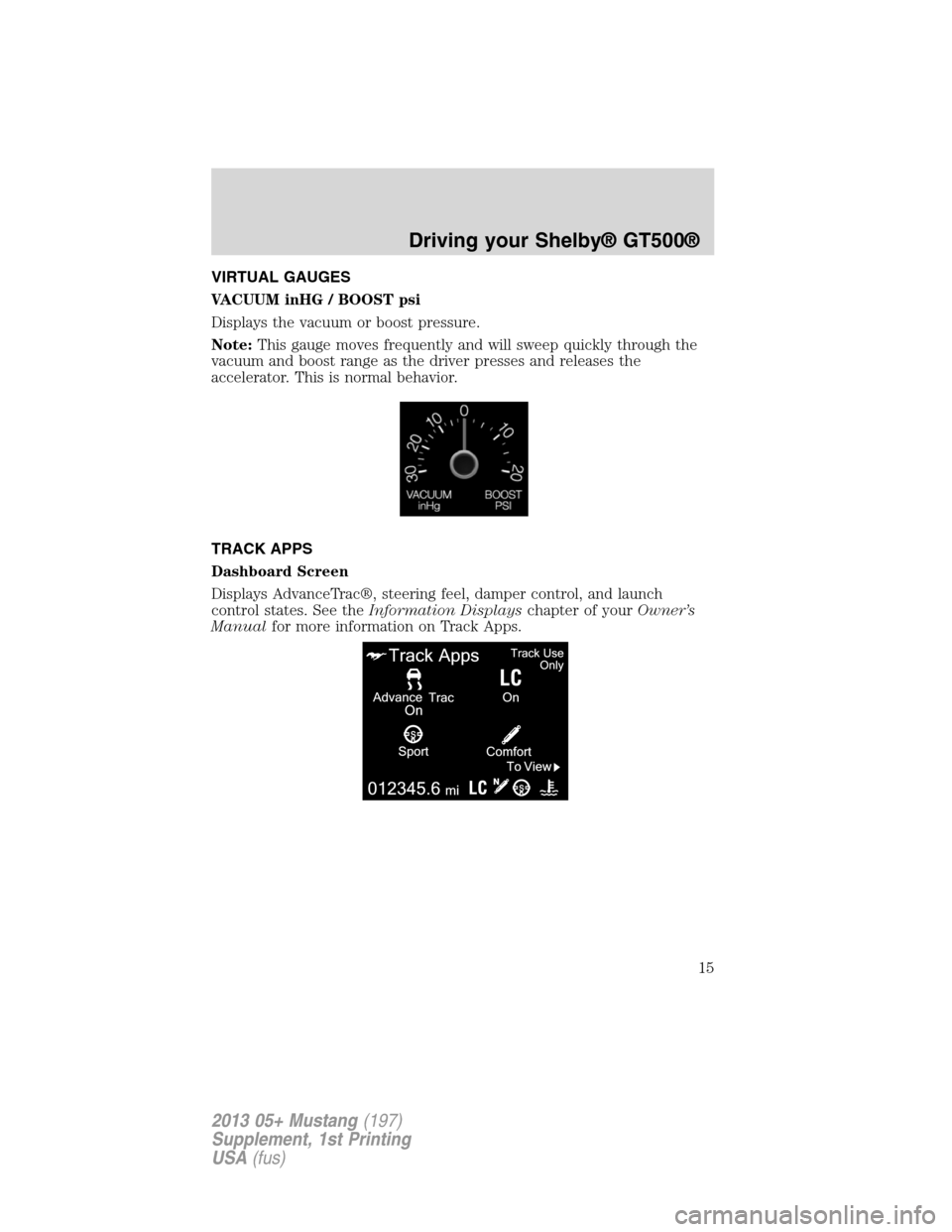

VIRTUAL GAUGES
VACUUM inHG / BOOST psi
Displays the vacuum or boost pressure.
Note:This gauge moves frequently and will sweep quickly through the
vacuum and boost range as the driver presses and releases the
accelerator. This is normal behavior.
TRACK APPS
Dashboard Screen
Displays AdvanceTrac®, steering feel, damper control, and launch
control states. See theInformation Displayschapter of yourOwner’s
Manualfor more information on Track Apps.
Driving your Shelby® GT500®
15
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

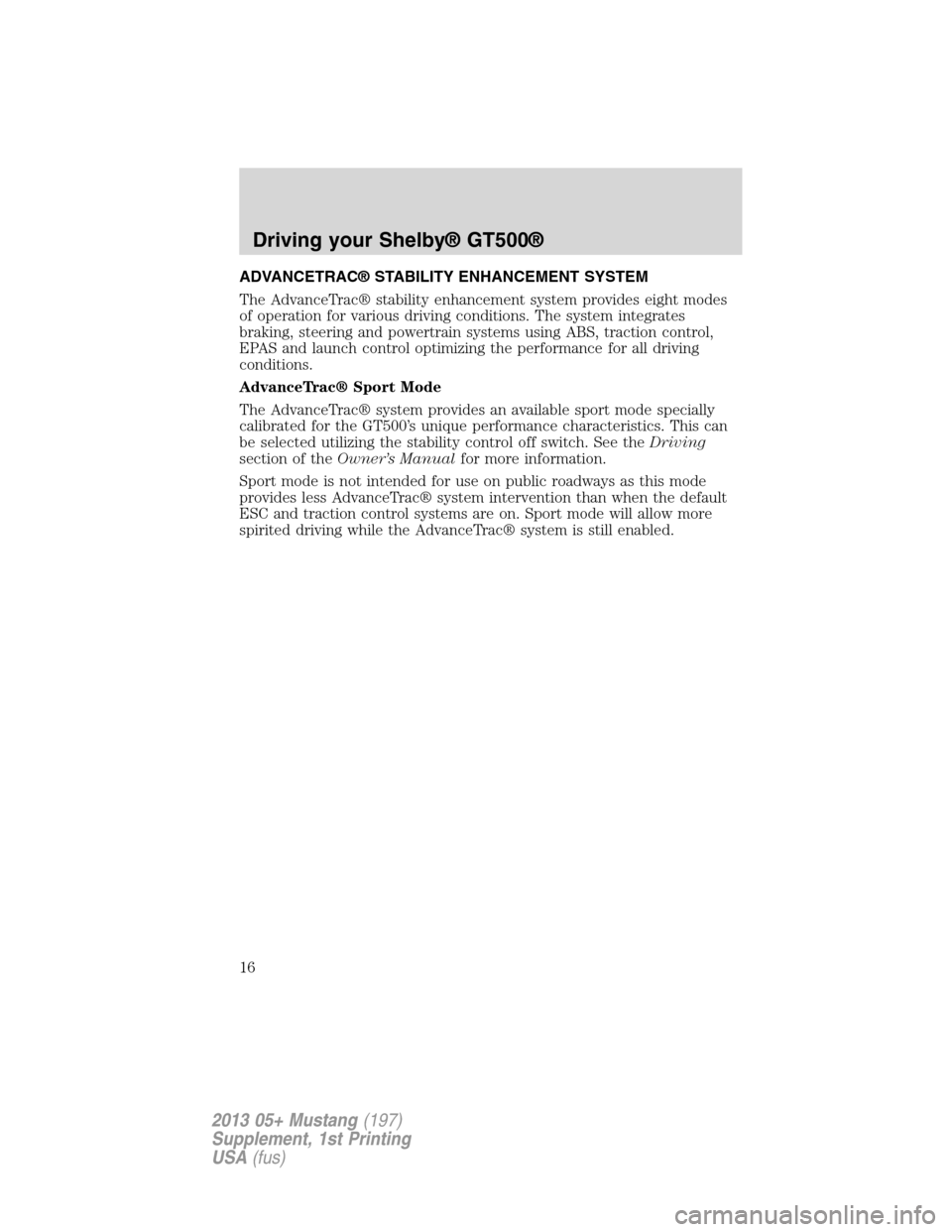

ADVANCETRAC® STABILITY ENHANCEMENT SYSTEM
The AdvanceTrac® stability enhancement system provides eight modes
of operation for various driving conditions. The system integrates
braking, steering and powertrain systems using ABS, traction control,
EPAS and launch control optimizing the performance for all driving
conditions.
AdvanceTrac® Sport Mode
The AdvanceTrac® system provides an available sport mode specially
calibrated for the GT500’s unique performance characteristics. This can
be selected utilizing the stability control off switch. See theDriving
section of theOwner’s Manualfor more information.
Sport mode is not intended for use on public roadways as this mode
provides less AdvanceTrac® system intervention than when the default
ESC and traction control systems are on. Sport mode will allow more
spirited driving while the AdvanceTrac® system is still enabled.
Driving your Shelby® GT500®
16
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

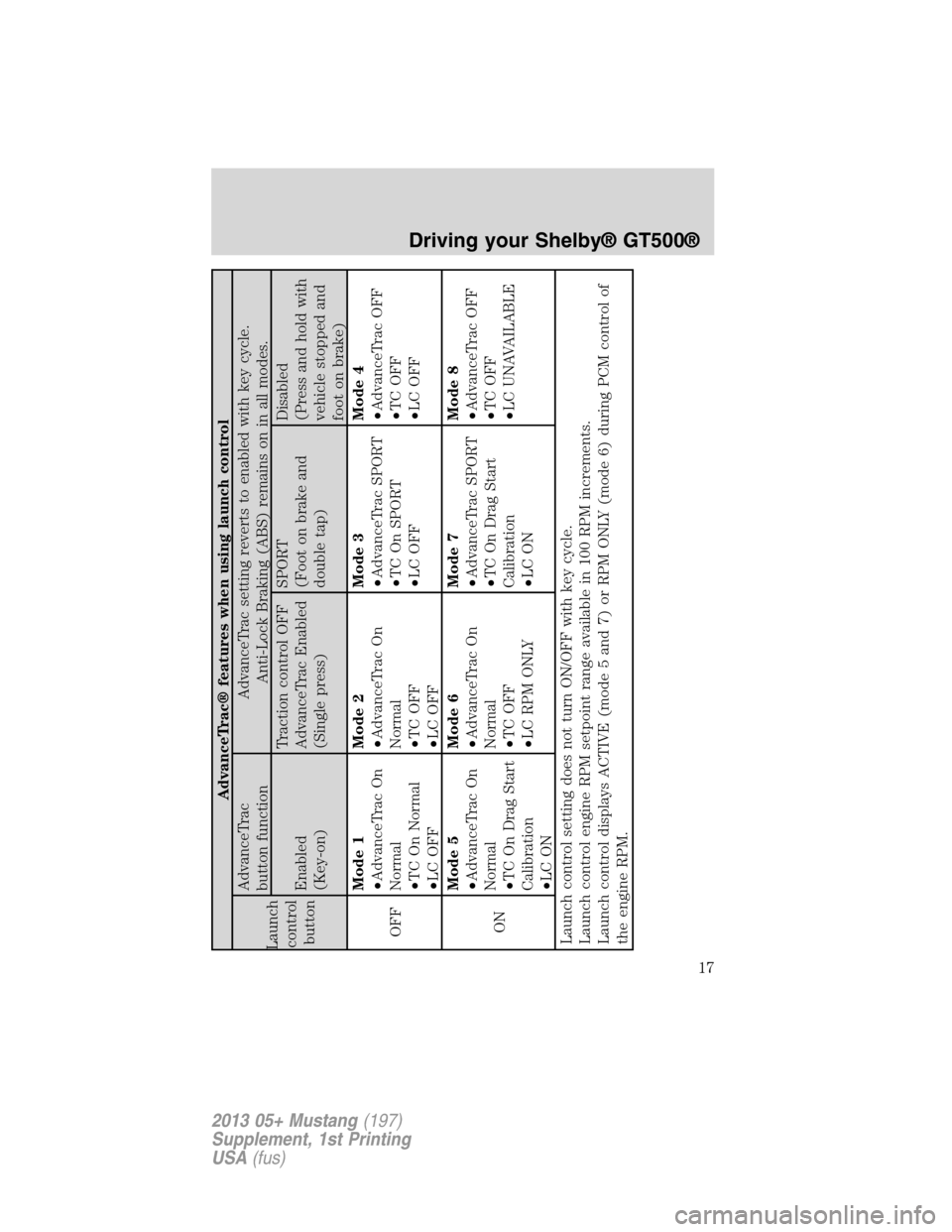

AdvanceTrac® features when using launch control
Launch
control
buttonAdvanceTrac
button functionAdvanceTrac setting reverts to enabled with key cycle.
Anti-Lock Braking (ABS) remains on in all modes.
Enabled
(Key-on)Traction control OFF
AdvanceTrac Enabled
(Single press)SPORT
(Foot on brake and
double tap)Disabled
(Press and hold with
vehicle stopped and
foot on brake)
OFFMode 1
•AdvanceTrac On
Normal
•TC On Normal
•LC OFFMode 2
•AdvanceTrac On
Normal
•TC OFF
•LC OFFMode 3
•AdvanceTrac SPORT
•TC On SPORT
•LC OFFMode 4
•AdvanceTrac OFF
•TC OFF
•LC OFF
ONMode 5
•AdvanceTrac On
Normal
•TC On Drag Start
Calibration
•LC ONMode 6
•AdvanceTrac On
Normal
•TC OFF
•LC RPM ONLYMode 7
•AdvanceTrac SPORT
•TC On Drag Start
Calibration
•LC ONMode 8
•AdvanceTrac OFF
•TC OFF
•LC UNAVAILABLE
Launch control setting does not turn ON/OFF with key cycle.
Launch control engine RPM setpoint range available in 100 RPM increments.
Launch control displays ACTIVE (mode 5 and 7) or RPM ONLY (mode 6) during PCM control of
the engine RPM.
Driving your Shelby® GT500®
17
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

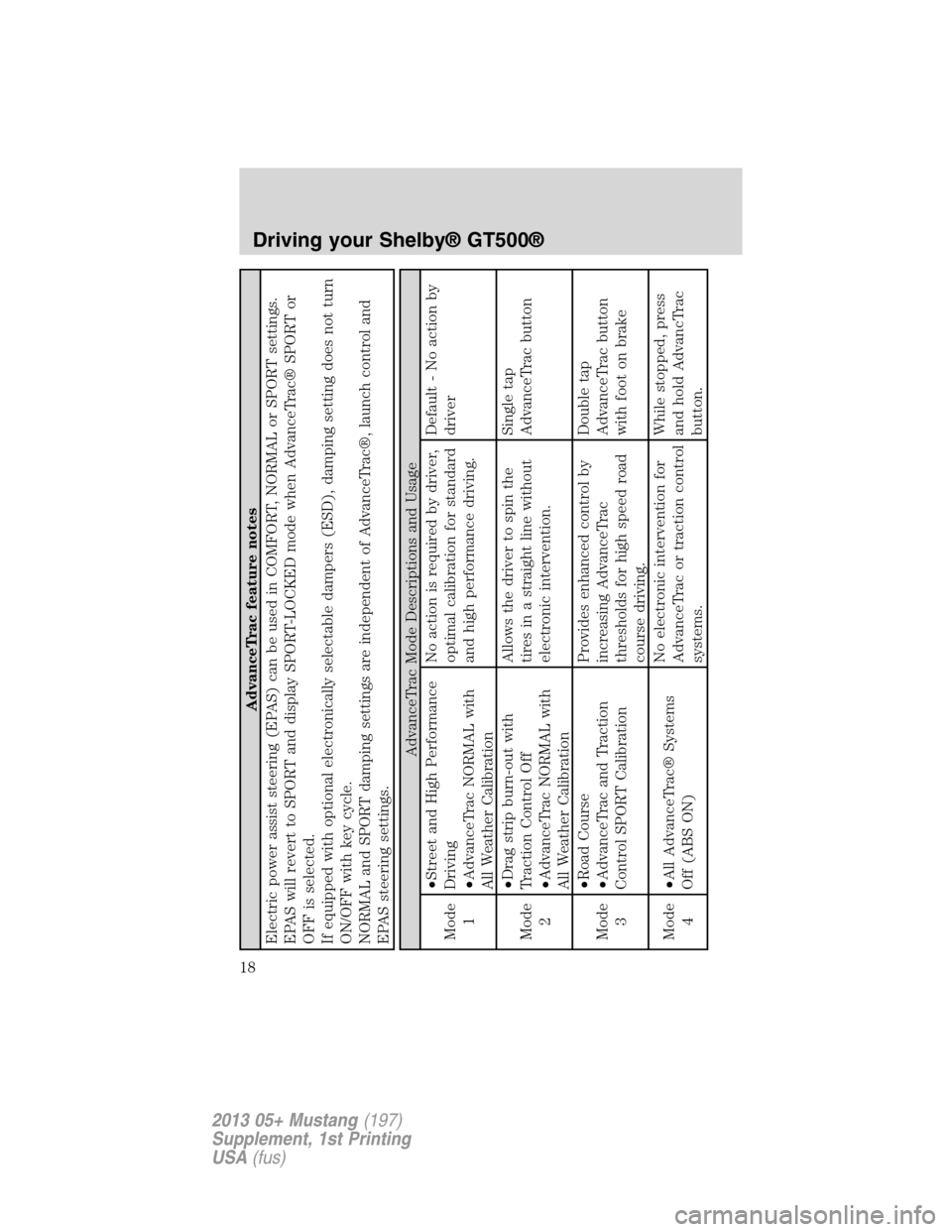

AdvanceTrac feature notes
Electric power assist steering (EPAS) can be used in COMFORT, NORMAL or SPORT settings.
EPAS will revert to SPORT and display SPORT-LOCKED mode when AdvanceTrac® SPORT or
OFF is selected.
If equipped with optional electronically selectable dampers (ESD), damping setting does not turn
ON/OFF with key cycle.
NORMAL and SPORT damping settings are independent of AdvanceTrac®, launch control and
EPAS steering settings.
AdvanceTrac Mode Descriptions and Usage
Mode
1•Street and High Performance
Driving
•AdvanceTrac NORMAL with
All Weather CalibrationNo action is required by driver,
optimal calibration for standard
and high performance driving.Default - No action by
driver
Mode
2•Drag strip burn-out with
Traction Control Off
•AdvanceTrac NORMAL with
All Weather CalibrationAllows the driver to spin the
tires in a straight line without
electronic intervention.Single tap
AdvanceTrac button
Mode
3•Road Course
•AdvanceTrac and Traction
Control SPORT CalibrationProvides enhanced control by
increasing AdvanceTrac
thresholds for high speed road
course driving.Double tap
AdvanceTrac button
with foot on brake
Mode
4•All AdvanceTrac® Systems
Off (ABS ON)No electronic intervention for
AdvanceTrac or traction control
systems.While stopped, press
and hold AdvancTrac
button.
Driving your Shelby® GT500®
18
2013 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

AdvanceTrac Mode Descriptions and Usage
Mode

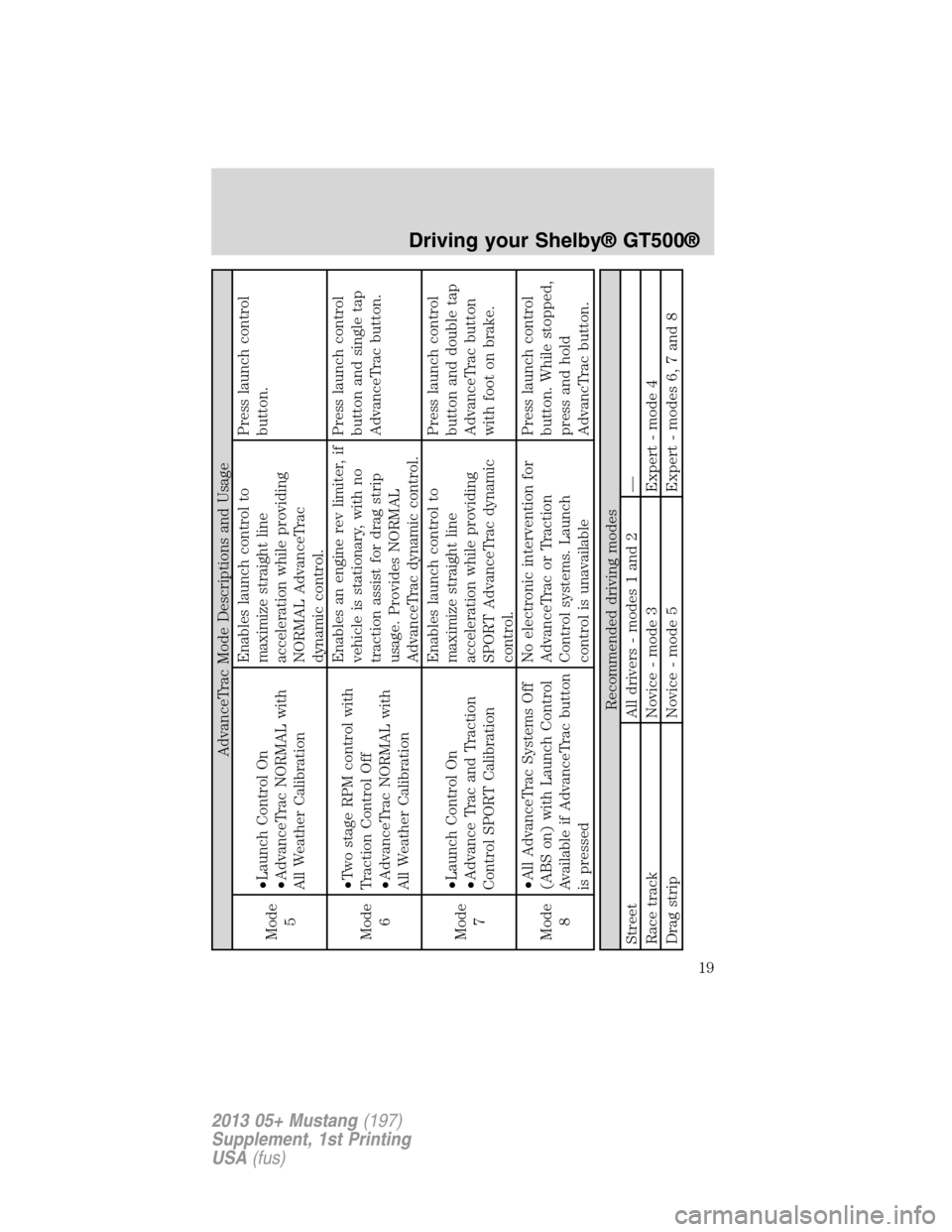

5•Launch Control On
•AdvanceTrac NORMAL with
All Weather CalibrationEnables launch control to
maximize straight line
acceleration while providing
NORMAL AdvanceTrac
dynamic control.Press launch control
button.
Mode
6•Two stage RPM control with
Traction Control Off
•AdvanceTrac NORMAL with
All Weather CalibrationEnables an engine rev limiter, if
vehicle is stationary, with no
traction assist for drag strip
usage. Provides NORMAL
AdvanceTrac dynamic control.Press launch control
button and single tap
AdvanceTrac button.
Mode
7•Launch Control On
•Advance Trac and Traction
Control SPORT CalibrationEnables launch control to
maximize straight line
acceleration while providing
SPORT AdvanceTrac dynamic
control.Press launch control
button and double tap
AdvanceTrac button
with foot on brake.
Mode
8•All AdvanceTrac Systems Off
(ABS on) with Launch Control
Available if AdvanceTrac button
is pressedNo electronic intervention for
AdvanceTrac or Traction
Control systems. Launch
control is unavailablePress launch control
button. While stopped,
press and hold
AdvancTrac button.
Recommended driving modes
Street All drivers - modes 1 and 2 —
Race track Novice - mode 3 Expert - mode 4
Drag strip Novice - mode 5 Expert - modes 6, 7 and 8
Driving your Shelby® GT500®
19
2013 05+ Mustang(197)
Supplement, 1st Printing
