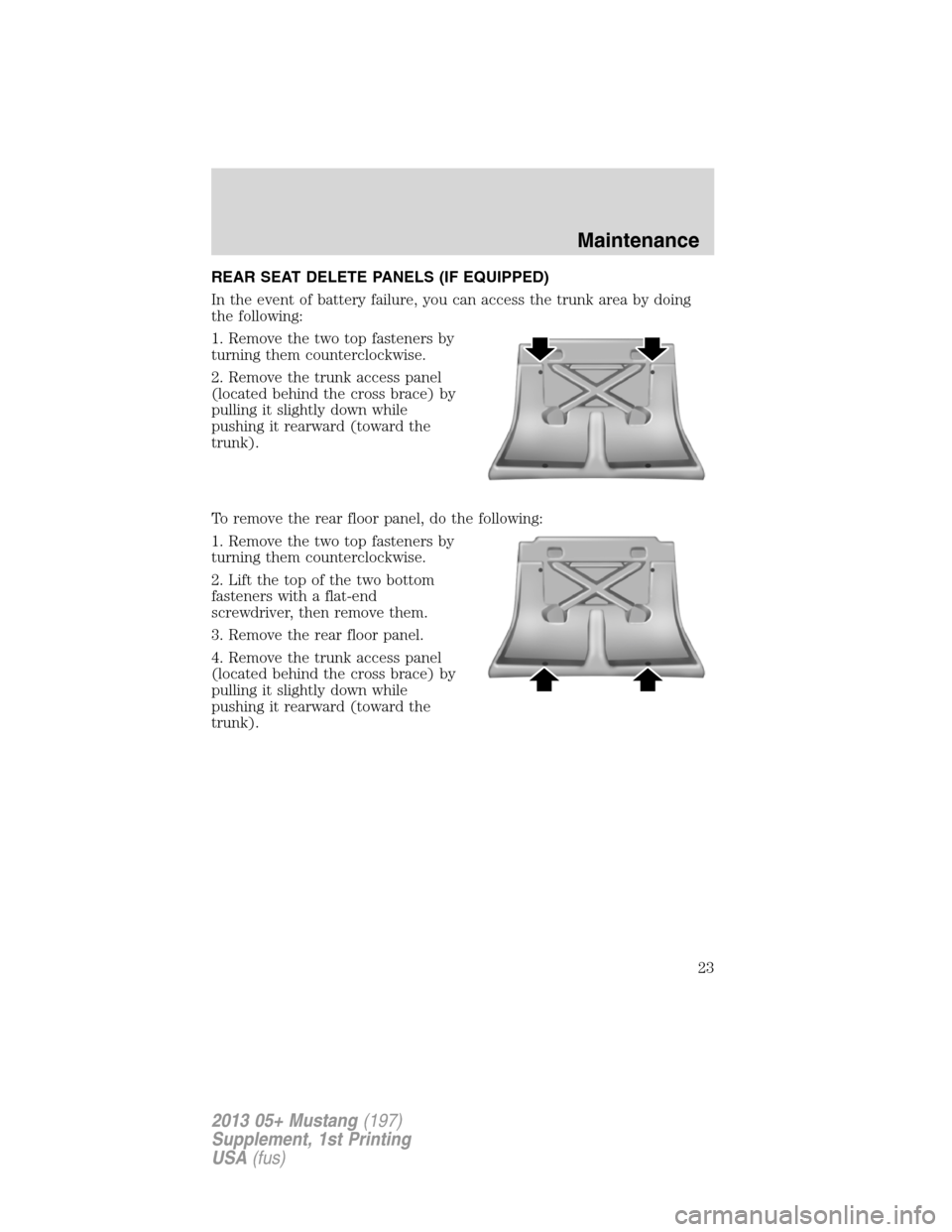

REAR SEAT DELETE PANELS (IF EQUIPPED)
In the event of battery failure, you can access the trunk area by doing
the following:
1. Remove the two top fasteners by
turning them counterclockwise.
2. Remove the trunk access panel
(located behind the cross brace) by
pulling it slightly down while
pushing it rearward (toward the
trunk).
To remove the rear floor panel, do the following:
1. Remove the two top fasteners by
turning them counterclockwise.
2. Lift the top of the two bottom
fasteners with a flat-end
screwdriver, then remove them.
3. Remove the rear floor panel.
4. Remove the trunk access panel
(located behind the cross brace) by
pulling it slightly down while
pushing it rearward (toward the
trunk).
