2013 FORD FUSION (AMERICAS) headlamp

6. Remove the three front bumper cover
lower fasteners, only on the side of
headlamp being serviced. 7.
Separate the front bumper cover from
the fender, pull the fender outward 3
cm. 8. From the front of the vehicle, pull the
front bumper cover forward 10 cm. 9. Carefully pull the headlamp assembly
outward to disengage it from the lower
fixing point.
10. Carefully lift the headlamp and remove from vehicle.
11. Disconnect the electrical connector.
CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to
accommodate normal changes in pressure.
Condensation can be a natural by-product
of this design. When moist air enters the
lamp assembly through the vents, there is
a possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a thin film of
mist can form on the interior of the lens.
The thin mist eventually clears and exits
through the vents during normal operation.
Clearing time may take as long as 48 hours
under dry weather conditions.
Examples of acceptable condensation are:
• Presence of thin mist (no streaks, drip
marks or droplets).
• Fine mist covers less than 50% of the
lens.
Examples of unacceptable moisture
(usually caused by a lamp water leak) are:
• Water puddle inside the lamp.
• Large water droplets, drip marks or
streaks present on the interior of the
lens.
Take your vehicle to a dealer for service if
any of the above conditions of
unacceptable moisture are present.
257
Fusion/Mondeo (CC7) MaintenanceE159697 E159698 E159699

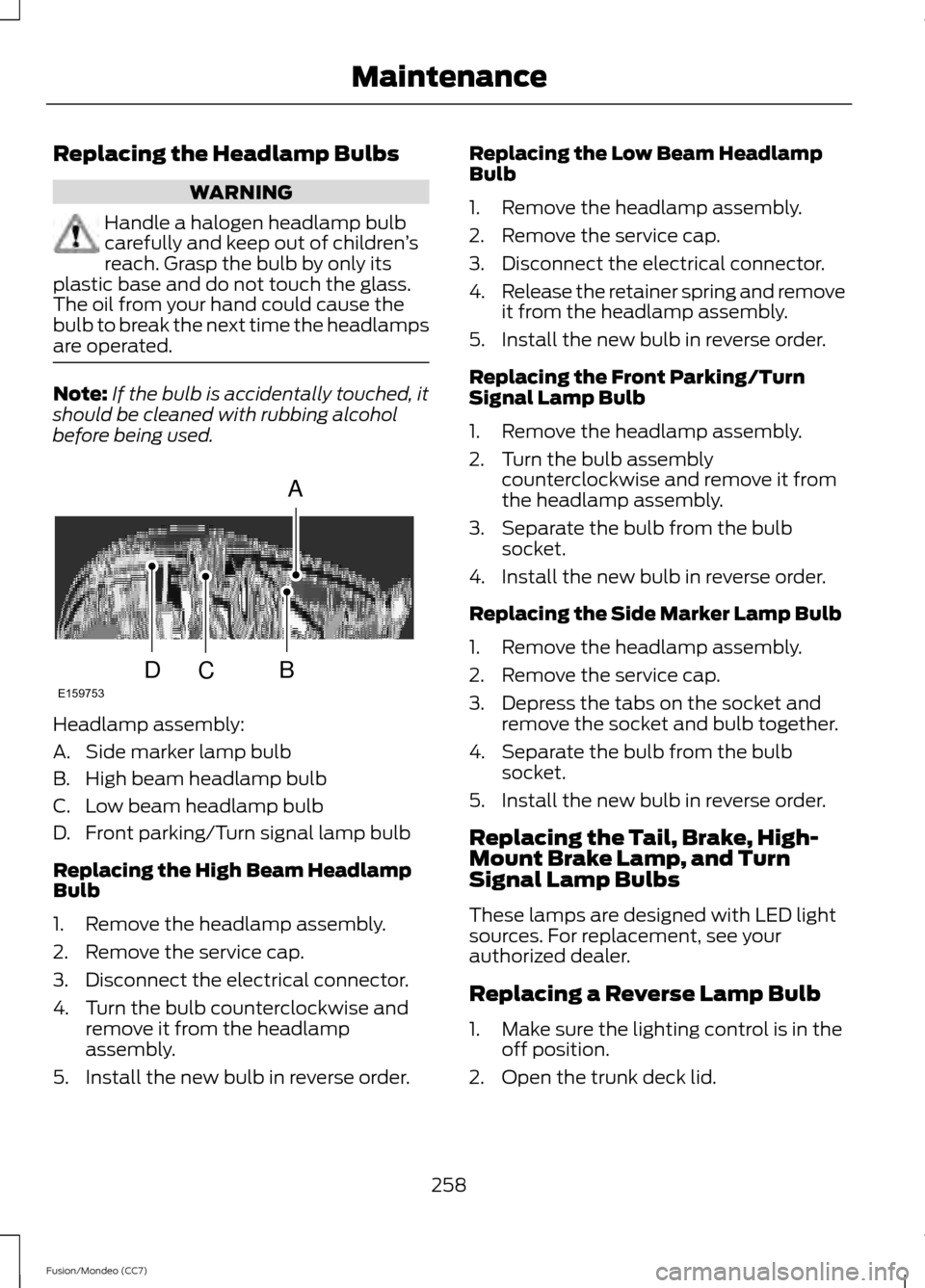

Replacing the Headlamp Bulbs
WARNING
Handle a halogen headlamp bulb
carefully and keep out of children
’s
reach. Grasp the bulb by only its
plastic base and do not touch the glass.
The oil from your hand could cause the
bulb to break the next time the headlamps
are operated. Note:
If the bulb is accidentally touched, it
should be cleaned with rubbing alcohol
before being used. Headlamp assembly:
A. Side marker lamp bulb
B. High beam headlamp bulb
C. Low beam headlamp bulb
D. Front parking/Turn signal lamp bulb
Replacing the High Beam Headlamp
Bulb
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Disconnect the electrical connector.
4. Turn the bulb counterclockwise and
remove it from the headlamp
assembly.
5. Install the new bulb in reverse order. Replacing the Low Beam Headlamp
Bulb
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Disconnect the electrical connector.
4.
Release the retainer spring and remove
it from the headlamp assembly.
5. Install the new bulb in reverse order.
Replacing the Front Parking/Turn
Signal Lamp Bulb
1. Remove the headlamp assembly.
2. Turn the bulb assembly counterclockwise and remove it from
the headlamp assembly.
3. Separate the bulb from the bulb socket.
4. Install the new bulb in reverse order.
Replacing the Side Marker Lamp Bulb
1. Remove the headlamp assembly.
2. Remove the service cap.
3. Depress the tabs on the socket and remove the socket and bulb together.
4. Separate the bulb from the bulb socket.
5. Install the new bulb in reverse order.
Replacing the Tail, Brake, High-
Mount Brake Lamp, and Turn
Signal Lamp Bulbs
These lamps are designed with LED light
sources. For replacement, see your
authorized dealer.
Replacing a Reverse Lamp Bulb
1. Make sure the lighting control is in the off position.
2. Open the trunk deck lid.
258
Fusion/Mondeo (CC7) MaintenanceA
BCDE159753

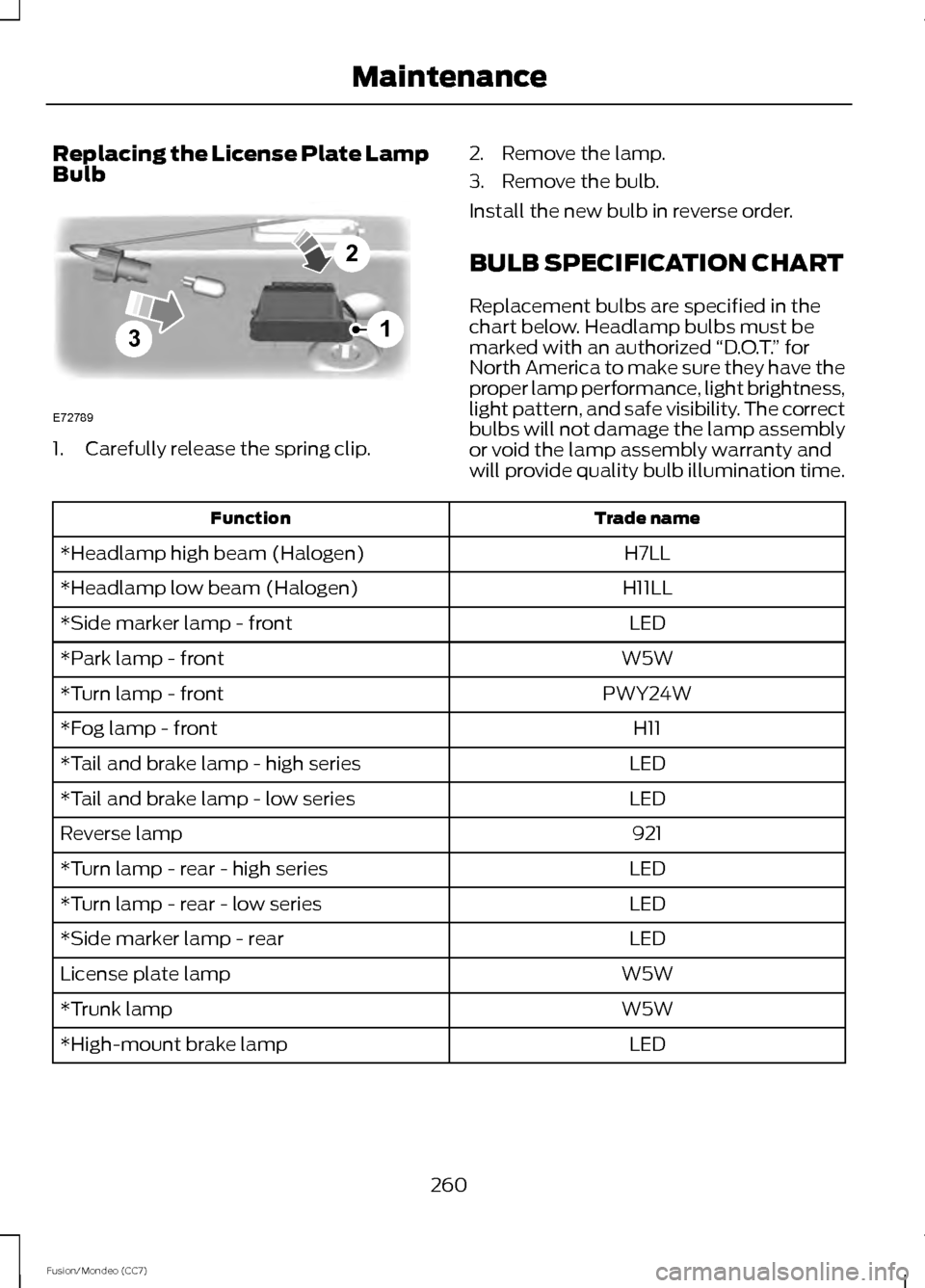

Replacing the License Plate Lamp
Bulb
1. Carefully release the spring clip.
2. Remove the lamp.
3. Remove the bulb.
Install the new bulb in reverse order.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized
“D.O.T.” for
North America to make sure they have the
proper lamp performance, light brightness,
light pattern, and safe visibility. The correct
bulbs will not damage the lamp assembly
or void the lamp assembly warranty and
will provide quality bulb illumination time. Trade name
Function
H7LL
*Headlamp high beam (Halogen)
H11LL
*Headlamp low beam (Halogen)
LED
*Side marker lamp - front
W5W
*Park lamp - front
PWY24W
*Turn lamp - front
H11
*Fog lamp - front
LED
*Tail and brake lamp - high series
LED
*Tail and brake lamp - low series
921
Reverse lamp
LED
*Turn lamp - rear - high series
LED
*Turn lamp - rear - low series
LED
*Side marker lamp - rear
W5W
License plate lamp
W5W
*Trunk lamp
LED
*High-mount brake lamp
260
Fusion/Mondeo (CC7) Maintenance3
2
1
E72789

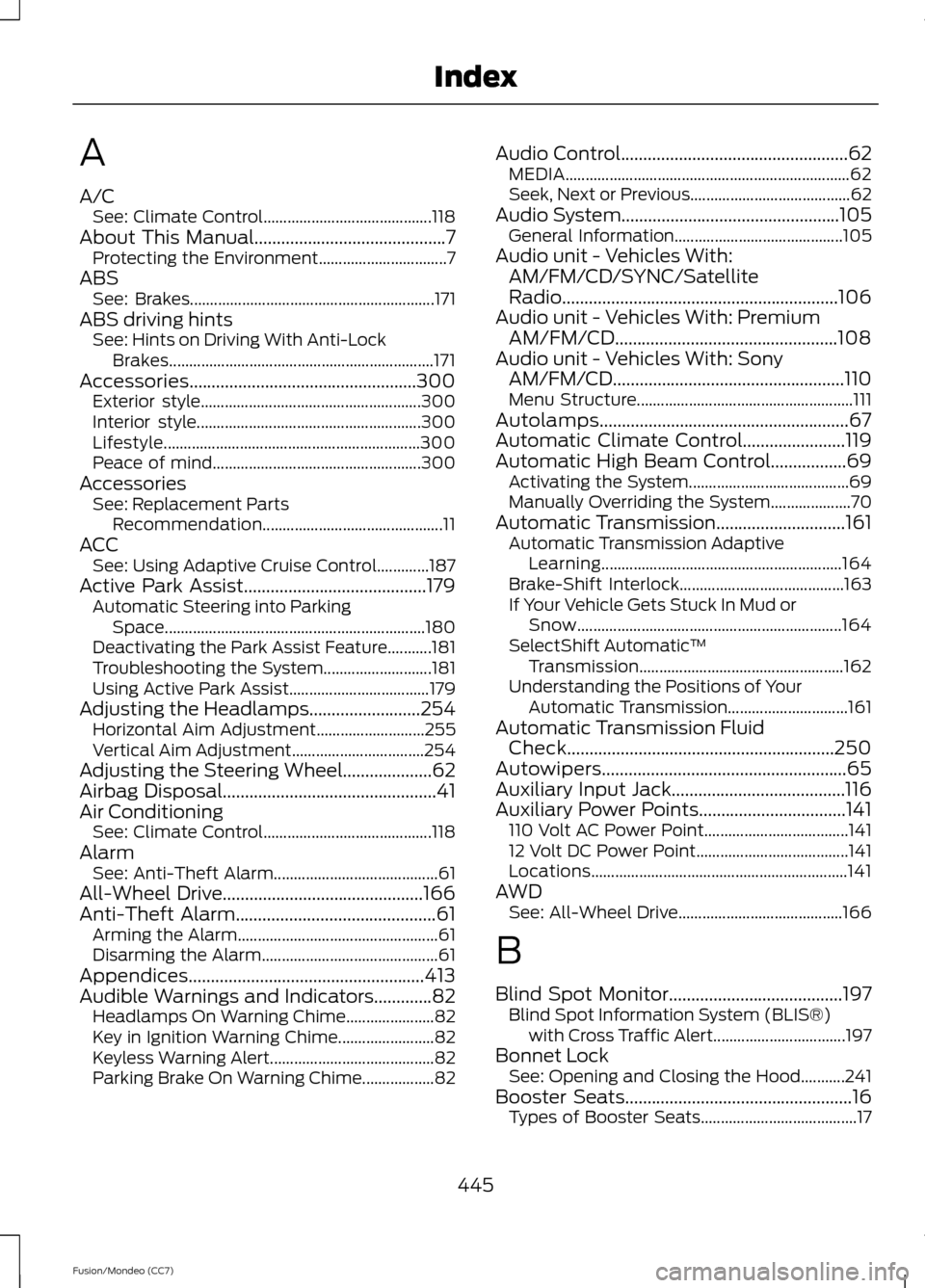

A
A/C
See: Climate Control.......................................... 118
About This Manual...........................................7
Protecting the Environment................................ 7
ABS See: Brakes............................................................. 171
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes.................................................................. 171
Accessories...................................................300 Exterior style....................................................... 300
Interior style........................................................ 300
Lifestyle................................................................ 300
Peace of mind.................................................... 300
Accessories See: Replacement Parts
Recommendation............................................. 11
ACC See: Using Adaptive Cruise Control.............187
Active Park Assist.........................................179 Automatic Steering into Parking
Space................................................................. 180
Deactivating the Park Assist Feature...........181
Troubleshooting the System........................... 181
Using Active Park Assist................................... 179
Adjusting the Headlamps
.........................254
Horizontal Aim Adjustment........................... 255
Vertical Aim Adjustment................................. 254
Adjusting the Steering Wheel....................62
Airbag Disposal................................................41
Air Conditioning See: Climate Control.......................................... 118
Alarm See: Anti-Theft Alarm......................................... 61
All-Wheel Drive.............................................166
Anti-Theft Alarm
.............................................61
Arming the Alarm.................................................. 61
Disarming the Alarm............................................ 61
Appendices
.....................................................413
Audible Warnings and Indicators.............82 Headlamps On Warning Chime...................... 82
Key in Ignition Warning Chime........................ 82
Keyless Warning Alert......................................... 82
Parking Brake On Warning Chime.................. 82Audio Control
...................................................62
MEDIA....................................................................... 62
Seek, Next or Previous........................................ 62
Audio System
.................................................105
General Information.......................................... 105
Audio unit - Vehicles With: AM/FM/CD/SYNC/Satellite
Radio..............................................................106
Audio unit - Vehicles With: Premium AM/FM/CD..................................................108
Audio unit - Vehicles With: Sony AM/FM/CD....................................................110
Menu Structure...................................................... 111
Autolamps........................................................67
Automatic Climate Control.......................119
Automatic High Beam Control
.................69
Activating the System........................................ 69
Manually Overriding the System.................... 70
Automatic Transmission
.............................161
Automatic Transmission Adaptive
Learning............................................................ 164
Brake-Shift Interlock......................................... 163
If Your Vehicle Gets Stuck In Mud or Snow.................................................................. 164
SelectShift Automatic ™
Transmission................................................... 162
Understanding the Positions of Your Automatic Transmission.............................. 161
Automatic Transmission Fluid Check............................................................250
Autowipers.......................................................65
Auxiliary Input Jack.......................................116
Auxiliary Power Points.................................141 110 Volt AC Power Point.................................... 141
12 Volt DC Power Point...................................... 141
Locations................................................................ 141
AWD See: All-Wheel Drive......................................... 166
B
Blind Spot Monitor
.......................................197
Blind Spot Information System (BLIS®)
with Cross Traffic Alert................................. 197
Bonnet Lock See: Opening and Closing the Hood...........241
Booster Seats
...................................................16
Types of Booster Seats....................................... 17
445
Fusion/Mondeo (CC7) Index

Brake Fluid Check........................................250
Brakes.................................................................171
General Information............................................ 171
Breaking-In......................................................218
Bulb Specification Chart..........................260
C
Cabin Air Filter
................................................127
California Proposition 65..............................11
Capacities and Specifications................293 Technical Specifications................................. 297
Car Wash See: Cleaning the Exterior.............................. 262
Center Console
..............................................143
Changing a Bulb...........................................257 Lamp Assembly Condensation.................... 257
Replacing a Reverse Lamp Bulb.................. 258
Replacing the Headlamp Bulbs................... 258
Replacing the License Plate Lamp Bulb................................................................... 260
Replacing the Tail, Brake, High-Mount Brake Lamp, and Turn Signal Lamp
Bulbs.................................................................. 258
Changing a Fuse
............................................231
Fuses........................................................................\
231
Changing a Road Wheel
...........................288
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 288
Stowing the flat tire........................................... 291
Tire Change Procedure.................................... 289
Changing the 12V Battery
..........................251
Changing the Engine Air Filter.................253 ........................................................................\
.......... 254
2.5L Engine........................................................... 254
EcoBoost Engines.............................................. 253
Changing the Wiper Blades.....................252
Checking MyKey System Status..............50
Checking the Wiper Blades......................252
Child Restraint and Safety Belt Maintenance..................................................31
Child Safety
.......................................................13
General Information............................................. 13
Child Safety Locks..........................................23 Left-Hand Side...................................................... 24
Right-Hand Side................................................... 24
Child Seat Positioning
...................................15
Cleaning Leather Seats.............................266 Cleaning Products
.......................................262
Cleaning the Alloy Wheels.......................266
Cleaning the Engine
...................................264
Cleaning the Exterior..................................262 Cleaning Plastic Exterior Parts..................... 263
Exterior Chrome................................................. 262
Underbody........................................................... 263
Cleaning the Instrument Panel and Instrument Cluster Lens........................265
Cleaning the Interior...................................264
Cleaning the Windows and Wiper Blades...........................................................264
Clearing All MyKeys.......................................49
Climate...........................................................400 Climate Control Voice Commands..............401
Climate Control
..............................................118
Collision Warning System........................202 PRINCIPLE OF OPERATION.......................... 202
Coolant Check See: Engine Coolant Check............................ 247
Crash Sensors and Airbag Indicator.......40
Creating a MyKey
...........................................49
Programming/Changing Optional
Settings............................................................... 49
Cruise Control
..................................................63
Principle of Operation...................................... 186
Type 1........................................................................\
63
Type 2....................................................................... 63
Cruise control See: Using Cruise Control................................ 186
Customer Assistance..................................221
D
Data Recording
..................................................9
Event Data Recording........................................... 9
Service Data Recording........................................ 9
Daytime Running Lamps
............................68
Direction Indicators.......................................70
Driver Alert......................................................193
PRINCIPLE OF OPERATION........................... 193
USING DRIVER ALERT..................................... 193
Driver and Passenger Airbags...................34 Children and Airbags........................................... 35
Proper Driver and Front Passenger Seating Adjustment........................................................ 35
Driving Aids.....................................................193
Driving Hints
...................................................218
446
Fusion/Mondeo (CC7) Index

Ford Extended Service Plan (ESP).......302
SERVICE PLANS (CANADA ONLY)............304
SERVICE PLANS (U.S. Only)......................... 302
Front Fog Lamps............................................70
Front Passenger Sensing System............36
Fuel and Refueling.......................................152
Fuel Consumption.......................................156 Calculating Fuel Economy.............................. 156
Filling the Tank.................................................... 156
Fuel Filter
........................................................250
Fuel Quality.....................................................153
Choosing the Right Fuel................................... 153
Octane Recommendations............................ 153
Fuel Shutoff
...................................................228
Fuses..................................................................231
Fuse Specification Chart............................231 Passenger Compartment Fuse
Panel.................................................................. 238
Power Distribution Box..................................... 231
G
Garage Door Opener See: Universal Garage Door Opener............137
Gauges................................................................77 Engine Coolant Temperature Gauge............78
Fuel Gauge.............................................................. 78
Information Display.............................................. 77
Left Information Display.................................... 79
Type 1 and 2............................................................. 77
Type 3....................................................................... 78
General Information on Radio Frequencies...................................................42
Intelligent Access................................................. 42
Getting Assistance Outside the U.S. and Canada.........................................................224
Getting the Services You Need................221 Away From Home............................................... 221
Global Opening and Closing
......................73
Closing the Windows.......................................... 73
Opening the Windows........................................ 73
H
Hazard Warning Flashers..........................228
Headlamp Exit Delay....................................68 Head Restraints.............................................129
Adjusting the Head Restraint......................... 130
Tilting Head Restraints .................................... 130
Heated Seats
..................................................135
Heated Windows and Mirrors..................126 Heated Exterior Mirror....................................... 127
Heated Rear Window........................................ 126
Heating See: Climate Control.......................................... 118
Hill Start Assist..............................................164 Using Hill Start Assist....................................... 165
Hints on Controlling the Interior Climate..........................................................124
Cooling the Interior Quickly............................. 125
General Hints........................................................ 124
Heating the Interior Quickly............................ 125
Recommended Settings for Cooling ..........126
Recommended Settings for Heating...........125
Side Window Defogging in Cold Weather............................................................. 126
Hints on Driving With Anti-Lock Brakes..............................................................171
Hood Lock See: Opening and Closing the Hood...........241
I
Ignition Switch...............................................144
In California (U.S. Only).............................222
Information Display Control.......................63 Cluster Display Control Features................... 64
Information Displays.....................................83 General Information............................................ 83
Information....................................................390 911 Assist............................................................... 397
Alerts....................................................................... 397
Calendar................................................................ 397
SIRIUS Travel Link............................................. 394
SYNC Services (If Equipped, U.S. Only)................................................................... 391
Vehicle Health Report...................................... 399
448
Fusion/Mondeo (CC7) Index

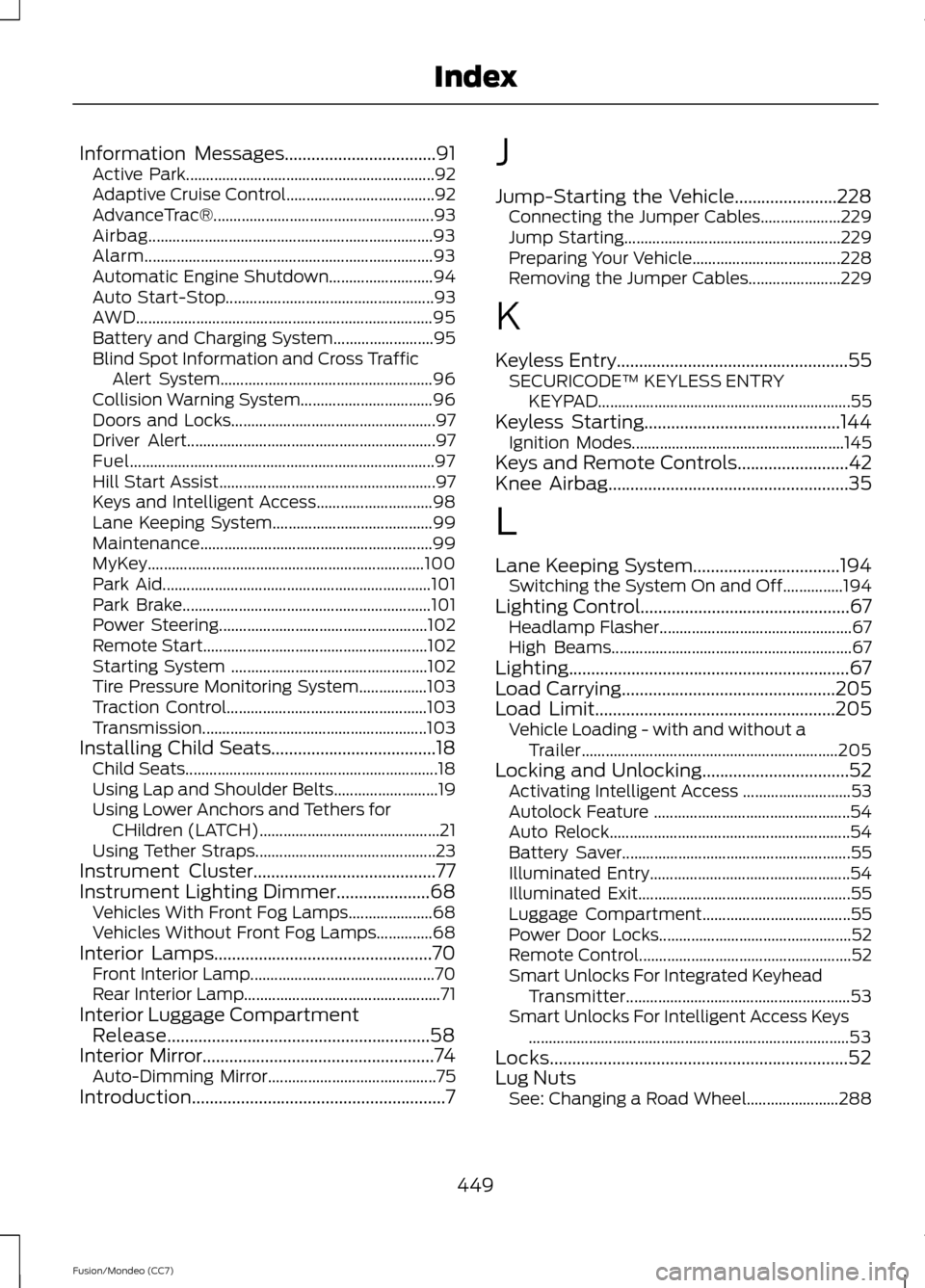

Information Messages..................................91
Active Park.............................................................. 92
Adaptive Cruise Control..................................... 92
AdvanceTrac®....................................................... 93
Airbag....................................................................... 93
Alarm........................................................................\
93
Automatic Engine Shutdown.......................... 94
Auto Start-Stop.................................................... 93
AWD........................................................................\
.. 95
Battery and Charging System......................... 95
Blind Spot Information and Cross Traffic Alert System..................................................... 96
Collision Warning System................................. 96
Doors and Locks................................................... 97
Driver Alert.............................................................. 97
Fuel........................................................................\
.... 97
Hill Start Assist...................................................... 97
Keys and Intelligent Access............................. 98
Lane Keeping System........................................ 99
Maintenance.......................................................... 99
MyKey..................................................................... 100
Park Aid................................................................... 101
Park Brake.............................................................. 101
Power Steering.................................................... 102
Remote Start........................................................ 102
Starting System ................................................. 102
Tire Pressure Monitoring System.................103
Traction Control.................................................. 103
Transmission........................................................ 103
Installing Child Seats
.....................................18
Child Seats............................................................... 18
Using Lap and Shoulder Belts.......................... 19
Using Lower Anchors and Tethers for CHildren (LATCH)............................................. 21
Using Tether Straps............................................. 23
Instrument Cluster
.........................................77
Instrument Lighting Dimmer.....................68 Vehicles With Front Fog Lamps..................... 68
Vehicles Without Front Fog Lamps..............68
Interior Lamps.................................................70 Front Interior Lamp.............................................. 70
Rear Interior Lamp................................................. 71
Interior Luggage Compartment Release...........................................................58
Interior Mirror
....................................................74
Auto-Dimming Mirror.......................................... 75
Introduction.........................................................7 J
Jump-Starting the Vehicle.......................228
Connecting the Jumper Cables.................... 229
Jump Starting...................................................... 229
Preparing Your Vehicle..................................... 228
Removing the Jumper Cables....................... 229
K
Keyless Entry....................................................55 SECURICODE™ KEYLESS ENTRY
KEYPAD
............................................................... 55
Keyless Starting............................................144
Ignition Modes..................................................... 145
Keys and Remote Controls
.........................42
Knee Airbag......................................................35
L
Lane Keeping System.................................194 Switching the System On and Off...............194
Lighting Control...............................................67 Headlamp Flasher................................................ 67
High Beams............................................................ 67
Lighting...............................................................67
Load Carrying
................................................205
Load Limit......................................................205 Vehicle Loading - with and without a
Trailer................................................................ 205
Locking and Unlocking.................................52 Activating Intelligent Access ........................... 53
Autolock Feature ................................................. 54
Auto Relock............................................................ 54
Battery Saver......................................................... 55
Illuminated Entry.................................................. 54
Illuminated Exit..................................................... 55
Luggage Compartment..................................... 55
Power Door Locks................................................ 52
Remote Control..................................................... 52
Smart Unlocks For Integrated Keyhead Transmitter........................................................ 53
Smart Unlocks For Intelligent Access Keys ........................................................................\
........ 53
Locks...................................................................52
Lug Nuts See: Changing a Road Wheel....................... 288
449
Fusion/Mondeo (CC7) Index

R
Rear Seat Armrest........................................136
Rear Seats.......................................................134
Rear View Camera.......................................182
Using the Rear View Camera System.........183
Rear View Camera See: Rear View Camera.................................... 182
Recommended Towing Weights.............212
Refueling..........................................................153 Easy Fuel ™ Capless Fuel System................154
Remote Control
..............................................42
Car Finder................................................................ 46
Integrated Keyhead Transmitters .................. 42
Intelligent Access Key......................................... 43
Remote Start ........................................................ 46
Replacing the Battery......................................... 44
Sounding a Panic Alarm.................................... 46
Using the Key Blade............................................ 43
Remote Start..................................................127 Automatic Settings............................................ 127
Heated and Cooled Devices........................... 128
Last Settings........................................................ 128
Removing a Headlamp..............................255
Repairing Minor Paint Damage
..............263
Replacement Parts Recommendation.........................................11
Collision Repairs..................................................... 11
Scheduled Maintenance and Mechanical Repairs................................................................... 11
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control.............................................................47
Reporting Safety Defects (Canada Only)..............................................................226
Reporting Safety Defects (U.S. Only)..............................................................225
Roadside Assistance
...................................227
Vehicles Sold In Canada : Getting Roadside
Assistance........................................................ 227
Vehicles Sold In Canada : Using Roadside Assistance........................................................ 227
Vehicles Sold In The U.S.: Getting Roadside Assistance........................................................ 227
Vehicles Sold In The U.S. : Using Roadside Assistance........................................................ 227
Roadside Emergencies
...............................227 Running-In
See: Breaking-In.................................................. 218
Running Out of Fuel....................................154 Refilling With a Portable Fuel
Container.......................................................... 155
S
Safety Belt Height Adjustment.................28
Safety Belt Minder
.........................................29
Belt-Minder®......................................................... 29
Safety Belts......................................................25 Principle of Operation......................................... 25
Safety Belt Warning Lamp and Indicator Chime
..............................................................29
Conditions of operation..................................... 29
Safety Precautions
.......................................152
Satellite Radio................................................113 Satellite Radio Electronic Serial Number
(ESN).................................................................. 114
Satellite Radio Reception Factors.................114
SIRIUS® Satellite Radio Service.................... 114
Troubleshooting................................................... 115
Scheduled Maintenance
..........................428
Engine Coolant Change Record................... 442
Exceptions............................................................ 442
General Maintenance Information.............428
Normal Scheduled Maintenance.................431
Special Operating Conditions...................... 438
Seats.................................................................129
Security..............................................................59
Settings...........................................................355 Clock....................................................................... 355
Display................................................................... 356
Settings.................................................................. 357
Sound..................................................................... 356
Vehicle.................................................................... 357
Side Airbags
.....................................................38
Side Curtain Airbags.....................................39
Sitting in the Correct Position..................129
Snow Chains See: Using Snow Chains................................. 287
Special Notices................................................12 New Vehicle Limited Warranty......................... 12
Special Instructions.............................................. 12
Speed Control See: Cruise Control............................................ 186
451
Fusion/Mondeo (CC7) Index
