If the fuse is not blown and the brake lamps are working properly, the
following procedure will allow you to move the gearshift lever from P
(Park):
1. Apply the parking brake, turn the
ignition key to the off position and
remove the key.
2. Using a screwdriver (or similar
tool), carefully pry off and remove
the passenger side access cover.
Remove the fastener, then remove
the console side panel to expose the
inside of the shifter assembly.
3. Locate the brake shift interlock
lever on the passenger side of the
shifter assembly.
4. Apply the brake pedal. Using a
screwdriver (or similar tool), press
and hold the white brake shift
interlock lever forward while pulling
the gearshift lever out of the P
(Park) position and into the N
(Neutral) position.
5. Reinstall the console side panel and attach the fastener.
6. Reinstall the access cover.
7. Apply the brake pedal, start the vehicle and release the parking brake.
See your authorized dealer as soon as possible if this procedure is used.
If Your Vehicle Gets Stuck in Mud or Snow
Note:Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Note:Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.
If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting between forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
Transmission183
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

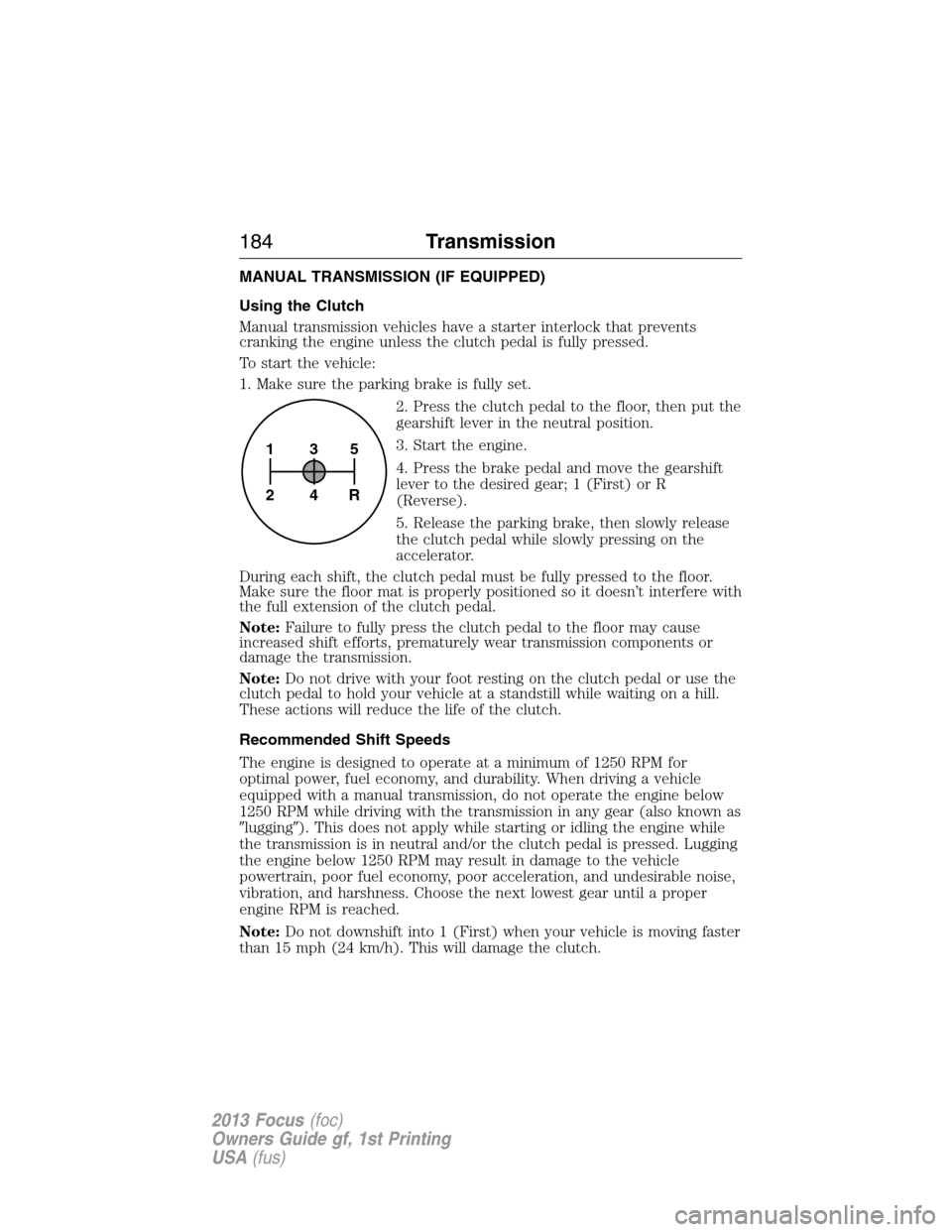

MANUAL TRANSMISSION (IF EQUIPPED)
Using the Clutch
Manual transmission vehicles have a starter interlock that prevents
cranking the engine unless the clutch pedal is fully pressed.
To start the vehicle:
1. Make sure the parking brake is fully set.
2. Press the clutch pedal to the floor, then put the
gearshift lever in the neutral position.
3. Start the engine.
4. Press the brake pedal and move the gearshift
lever to the desired gear; 1 (First) or R
(Reverse).
5. Release the parking brake, then slowly release
the clutch pedal while slowly pressing on the
accelerator.
During each shift, the clutch pedal must be fully pressed to the floor.
Make sure the floor mat is properly positioned so it doesn’t interfere with
the full extension of the clutch pedal.
Note:Failure to fully press the clutch pedal to the floor may cause
increased shift efforts, prematurely wear transmission components or
damage the transmission.
Note:Do not drive with your foot resting on the clutch pedal or use the
clutch pedal to hold your vehicle at a standstill while waiting on a hill.
These actions will reduce the life of the clutch.
Recommended Shift Speeds
The engine is designed to operate at a minimum of 1250 RPM for
optimal power, fuel economy, and durability. When driving a vehicle
equipped with a manual transmission, do not operate the engine below
1250 RPM while driving with the transmission in any gear (also known as
lugging). This does not apply while starting or idling the engine while
the transmission is in neutral and/or the clutch pedal is pressed. Lugging
the engine below 1250 RPM may result in damage to the vehicle
powertrain, poor fuel economy, poor acceleration, and undesirable noise,
vibration, and harshness. Choose the next lowest gear until a proper
engine RPM is reached.
Note:Do not downshift into 1 (First) when your vehicle is moving faster
than 15 mph (24 km/h). This will damage the clutch.
135
24R
184Transmission
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

WARNING:You must remain in the vehicle once you have
activated the hill start assist feature.
WARNING:During all times, you are responsible for controlling
the vehicle, supervising the hill start assist system and
intervening, if required.
WARNING:If the engine is revved excessively, or if a
malfunction is detected when the hill start assist feature is active,
the hill start assist feature will be deactivated.
This feature makes it easier to pull away when the vehicle is on a slope
without the need to use the parking brake. When this feature is active,
the vehicle will remain stationary on the slope for two to three seconds
after you release the brake pedal. This allows you time to move your foot
from the brake to the accelerator pedal. The brakes are released
automatically once the engine has developed sufficient drive to prevent
the vehicle from rolling down the slope. This is an advantage when
pulling away on a slope, (for example from a car park ramp, traffic lights
or when reversing uphill into a parking space).
This feature is activated automatically on any slope that can result in
significant vehicle rollback. This feature will not operate if the parking
brake is activated.
Using Hill Start Assist
Note:If the engine is revved excessively, hill start assist will be
deactivated.
1. Press the brake pedal to bring the vehicle to a complete standstill.
Keep the brake pedal pressed.
2. If the sensors detect that the vehicle is on a slope, the hill start assist
feature will be activated automatically.
3. When you remove your foot from the brake pedal, the vehicle will
remain on the slope without rolling away for approximately two or three
seconds. This hold time will automatically be extended if you are in the
process of driving off.
4. Drive off in the normal manner. The brakes will be released
automatically.
186Transmission
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

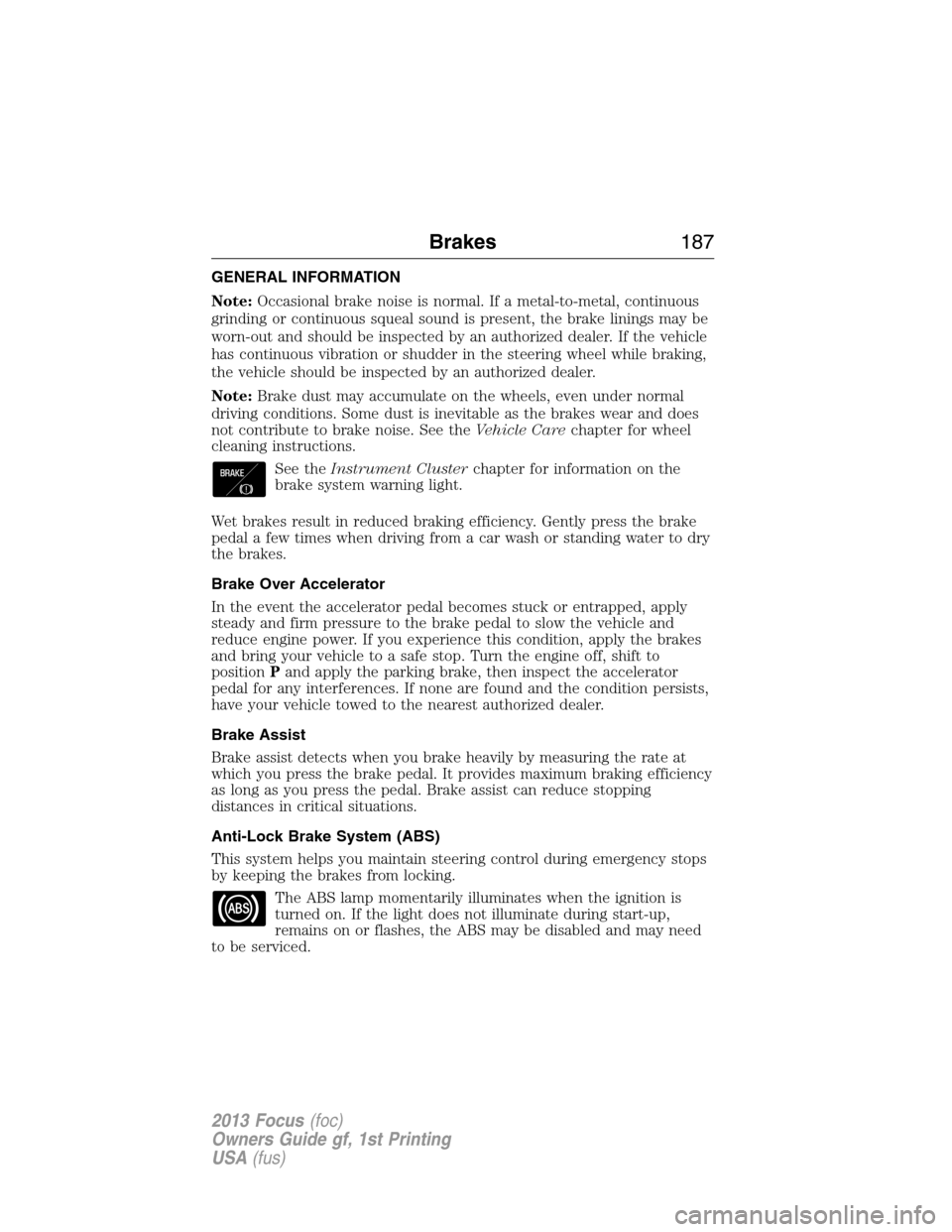

GENERAL INFORMATION
Note:Occasional brake noise is normal. If a metal-to-metal, continuous
grinding or continuous squeal sound is present, the brake linings may be
worn-out and should be inspected by an authorized dealer. If the vehicle
has continuous vibration or shudder in the steering wheel while braking,
the vehicle should be inspected by an authorized dealer.
Note:Brake dust may accumulate on the wheels, even under normal
driving conditions. Some dust is inevitable as the brakes wear and does
not contribute to brake noise. See theVehicle Carechapter for wheel
cleaning instructions.
See theInstrument Clusterchapter for information on the
brake system warning light.
Wet brakes result in reduced braking efficiency. Gently press the brake
pedal a few times when driving from a car wash or standing water to dry
the brakes.
Brake Over Accelerator
In the event the accelerator pedal becomes stuck or entrapped, apply
steady and firm pressure to the brake pedal to slow the vehicle and
reduce engine power. If you experience this condition, apply the brakes
and bring your vehicle to a safe stop. Turn the engine off, shift to
positionPand apply the parking brake, then inspect the accelerator
pedal for any interferences. If none are found and the condition persists,
have your vehicle towed to the nearest authorized dealer.
Brake Assist
Brake assist detects when you brake heavily by measuring the rate at
which you press the brake pedal. It provides maximum braking efficiency
as long as you press the pedal. Brake assist can reduce stopping
distances in critical situations.
Anti-Lock Brake System (ABS)
This system helps you maintain steering control during emergency stops
by keeping the brakes from locking.
The ABS lamp momentarily illuminates when the ignition is
turned on. If the light does not illuminate during start-up,
remains on or flashes, the ABS may be disabled and may need
to be serviced.
Brakes187
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

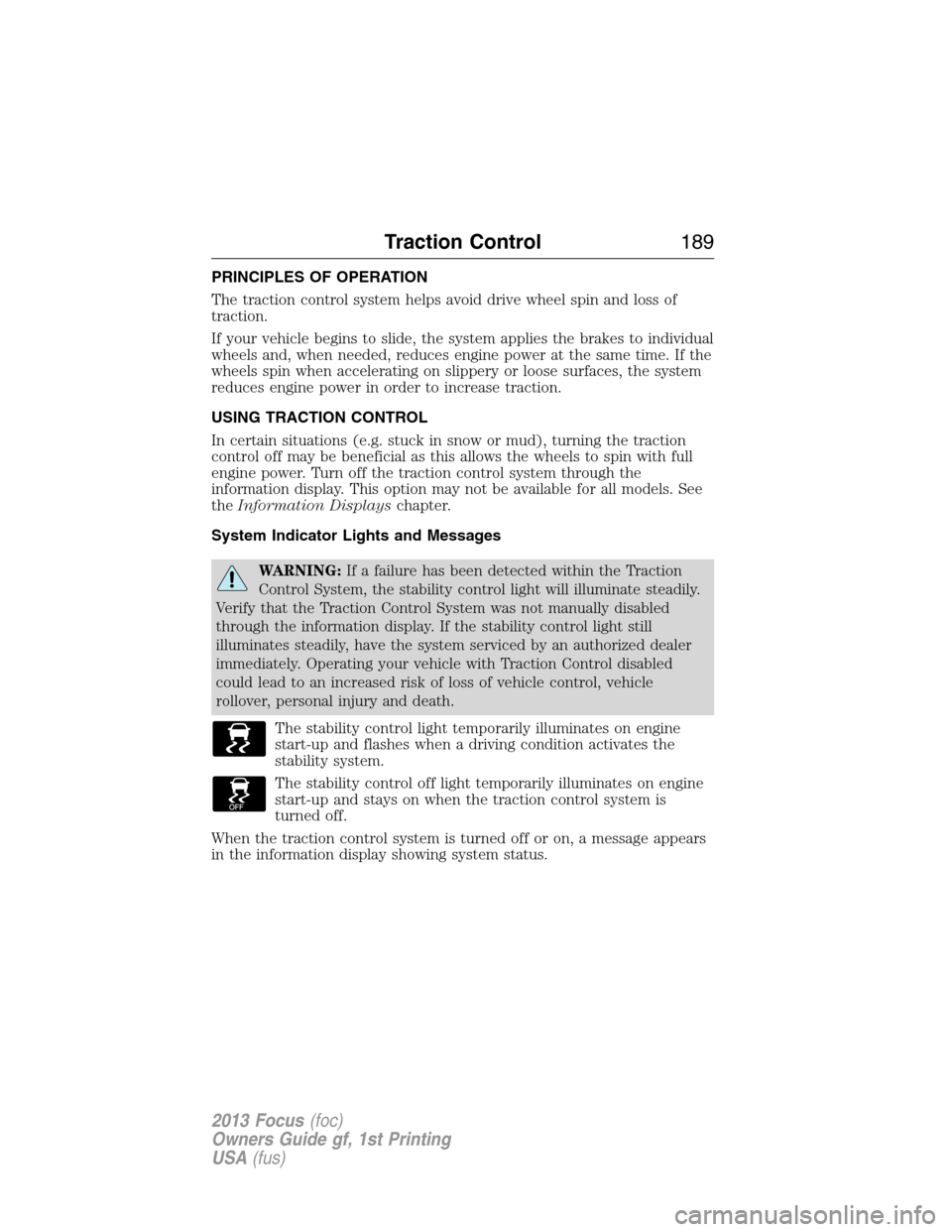

PRINCIPLES OF OPERATION
The traction control system helps avoid drive wheel spin and loss of
traction.
If your vehicle begins to slide, the system applies the brakes to individual
wheels and, when needed, reduces engine power at the same time. If the
wheels spin when accelerating on slippery or loose surfaces, the system
reduces engine power in order to increase traction.
USING TRACTION CONTROL
In certain situations (e.g. stuck in snow or mud), turning the traction
control off may be beneficial as this allows the wheels to spin with full
engine power. Turn off the traction control system through the
information display. This option may not be available for all models. See
theInformation Displayschapter.
System Indicator Lights and Messages
WARNING:If a failure has been detected within the Traction
Control System, the stability control light will illuminate steadily.
Verify that the Traction Control System was not manually disabled
through the information display. If the stability control light still
illuminates steadily, have the system serviced by an authorized dealer
immediately. Operating your vehicle with Traction Control disabled
could lead to an increased risk of loss of vehicle control, vehicle
rollover, personal injury and death.
The stability control light temporarily illuminates on engine
start-up and flashes when a driving condition activates the
stability system.
The stability control off light temporarily illuminates on engine
start-up and stays on when the traction control system is
turned off.
When the traction control system is turned off or on, a message appears
in the information display showing system status.
Traction Control189
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

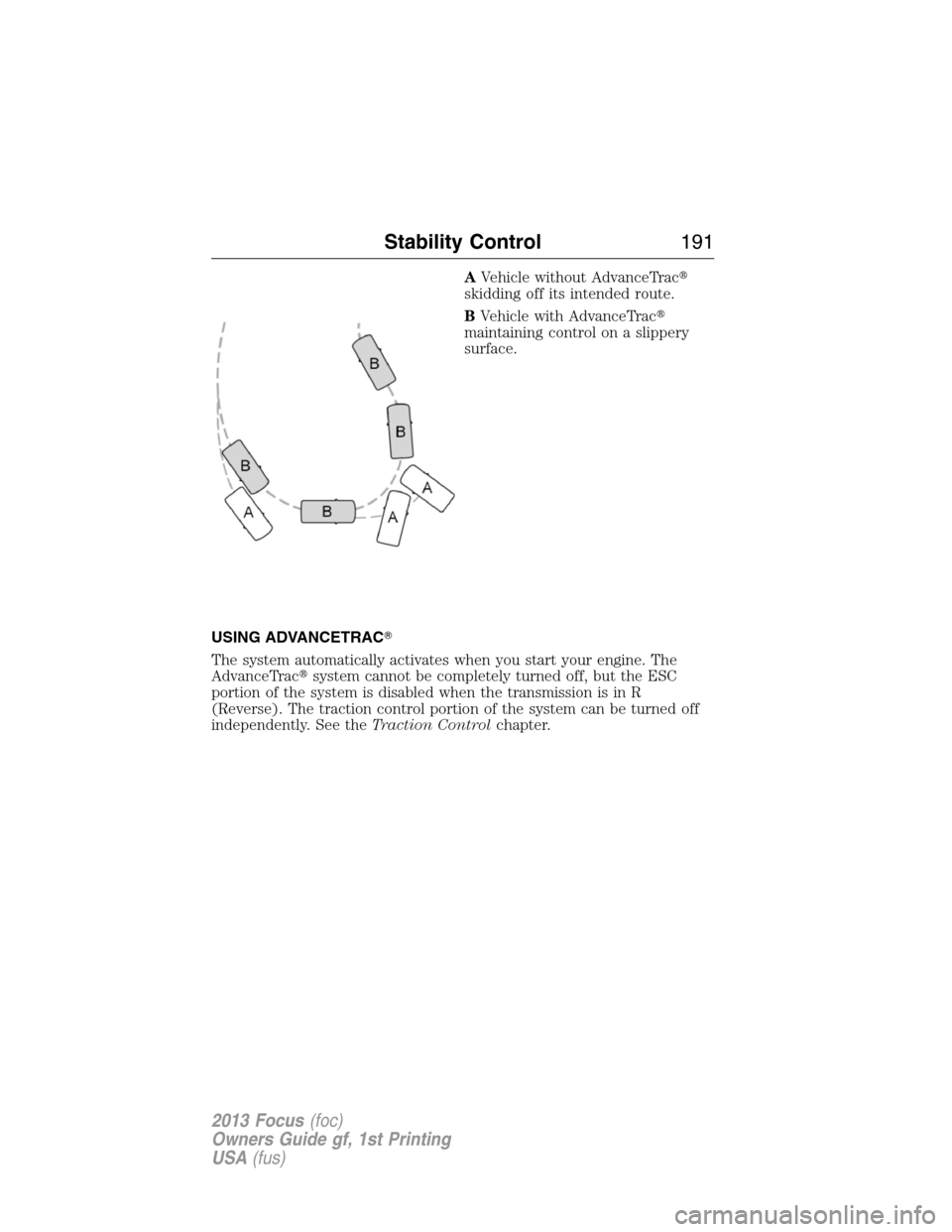

AVehicle without AdvanceTrac
skidding off its intended route.
BVehicle with AdvanceTrac
maintaining control on a slippery
surface.
USING ADVANCETRAC
The system automatically activates when you start your engine. The
AdvanceTracsystem cannot be completely turned off, but the ESC
portion of the system is disabled when the transmission is in R
(Reverse). The traction control portion of the system can be turned off
independently. See theTraction Controlchapter.
Stability Control191
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

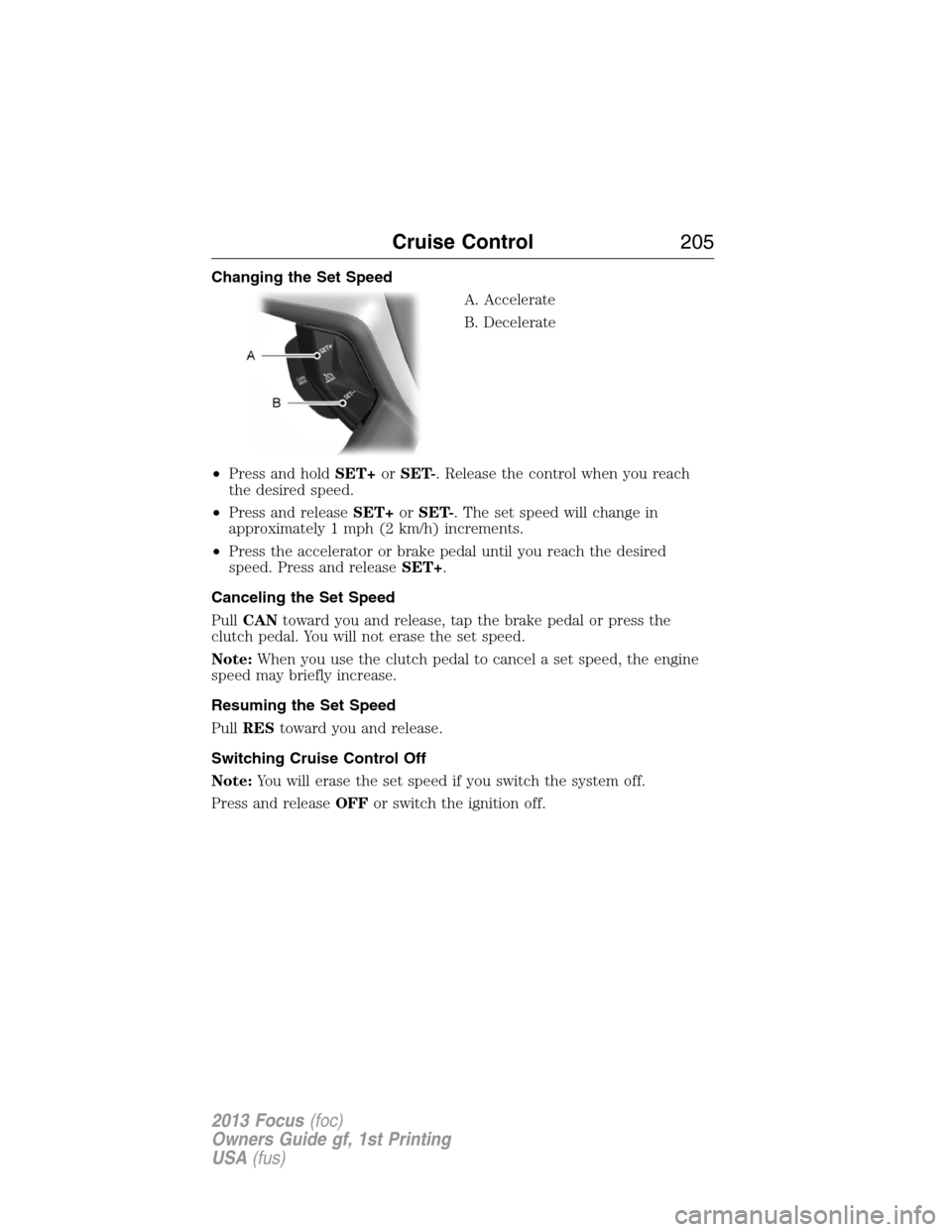

Changing the Set Speed
A. Accelerate
B. Decelerate
•Press and holdSET+orSET-. Release the control when you reach
the desired speed.
•Press and releaseSET+orSET-. The set speed will change in
approximately 1 mph (2 km/h) increments.
•Press the accelerator or brake pedal until you reach the desired
speed. Press and releaseSET+.
Canceling the Set Speed
PullCANtoward you and release, tap the brake pedal or press the
clutch pedal. You will not erase the set speed.
Note:When you use the clutch pedal to cancel a set speed, the engine
speed may briefly increase.
Resuming the Set Speed
PullREStoward you and release.
Switching Cruise Control Off
Note:You will erase the set speed if you switch the system off.
Press and releaseOFFor switch the ignition off.
Cruise Control205
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

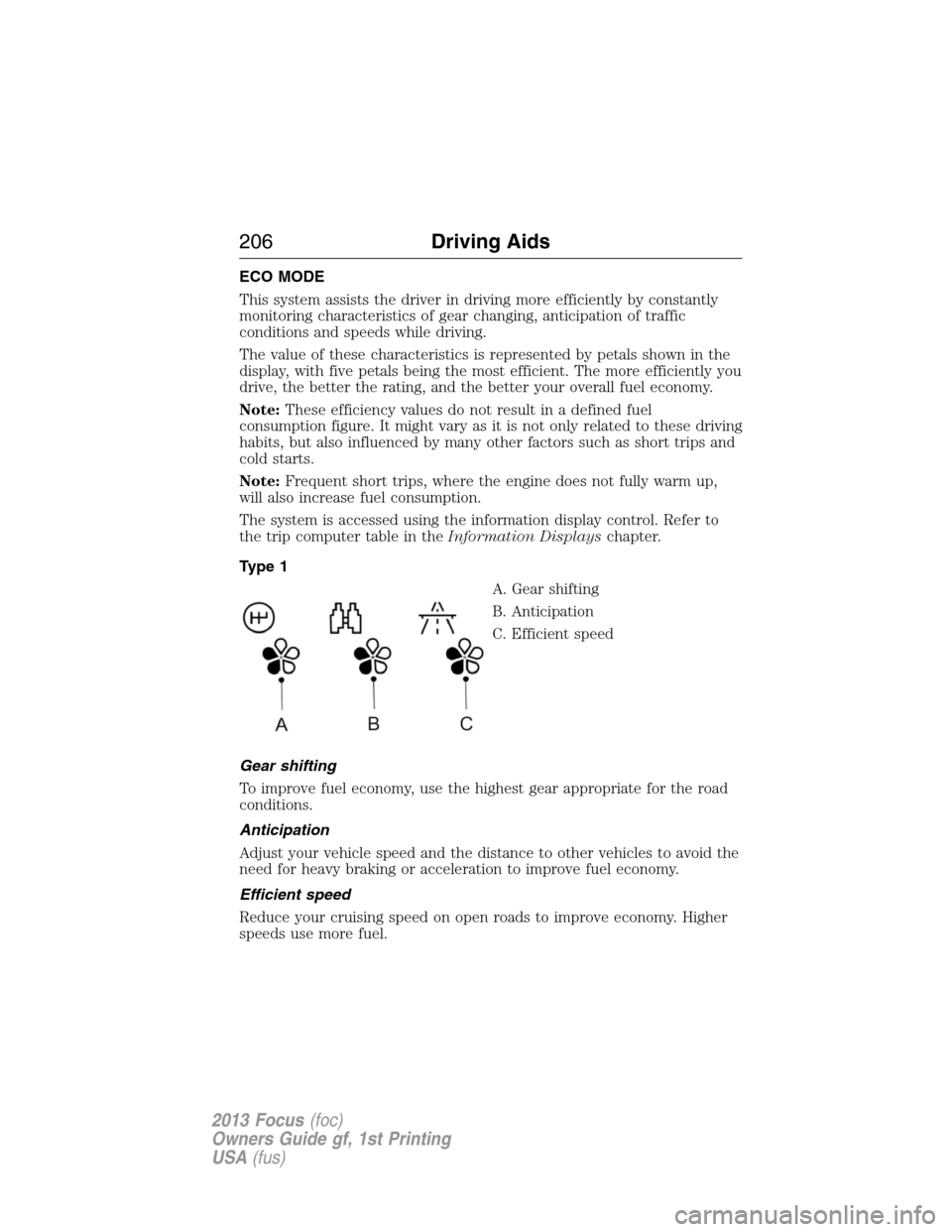

ECO MODE
This system assists the driver in driving more efficiently by constantly
monitoring characteristics of gear changing, anticipation of traffic
conditions and speeds while driving.
The value of these characteristics is represented by petals shown in the
display, with five petals being the most efficient. The more efficiently you
drive, the better the rating, and the better your overall fuel economy.
Note:These efficiency values do not result in a defined fuel
consumption figure. It might vary as it is not only related to these driving
habits, but also influenced by many other factors such as short trips and
cold starts.
Note:Frequent short trips, where the engine does not fully warm up,
will also increase fuel consumption.
The system is accessed using the information display control. Refer to
the trip computer table in theInformation Displayschapter.
Type 1
A. Gear shifting
B. Anticipation
C. Efficient speed
Gear shifting
To improve fuel economy, use the highest gear appropriate for the road
conditions.
Anticipation
Adjust your vehicle speed and the distance to other vehicles to avoid the
need for heavy braking or acceleration to improve fuel economy.
Efficient speed
Reduce your cruising speed on open roads to improve economy. Higher
speeds use more fuel.
206Driving Aids
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
