If you choose Intersection from the navigation screen, you can choose
from the following:
•1st Street
•2nd Street
•City
•State/Prov.
Some of the voice commands that are available while viewing this screen are:
“INTERSECTION”
“Enter first street name”
“Change first street name”
“Enter second street name”
“Change second street name”
“Enter city”
“Change city”
“Enter state”
“Change state”
The dual mode feature is also available when the voice system displays a
list of items to pick from during a voice session, where you would be able
to touch the line item or say “Line 2”. If a command is not understood or
there are multiple options, the system returns a list for you to choose from.
ENTERTAINMENT
Your system offers many media options. You can access these options
using the touchscreen or voice commands.
Browsing Device Content
When listening to any type of audio, you can browse through other
devices without having to change sources. For example, if you are
currently listening to the radio, you can browse all the artists that are
stored on your USB device.
Press the voice icon on the steering wheel. When prompted,
you can say:
“BROWSE” within Devices
“Browse”*
“Browse games”**
“Browse channels”**
“Browse CD track list”
MyFord Touch(If Equipped)387
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

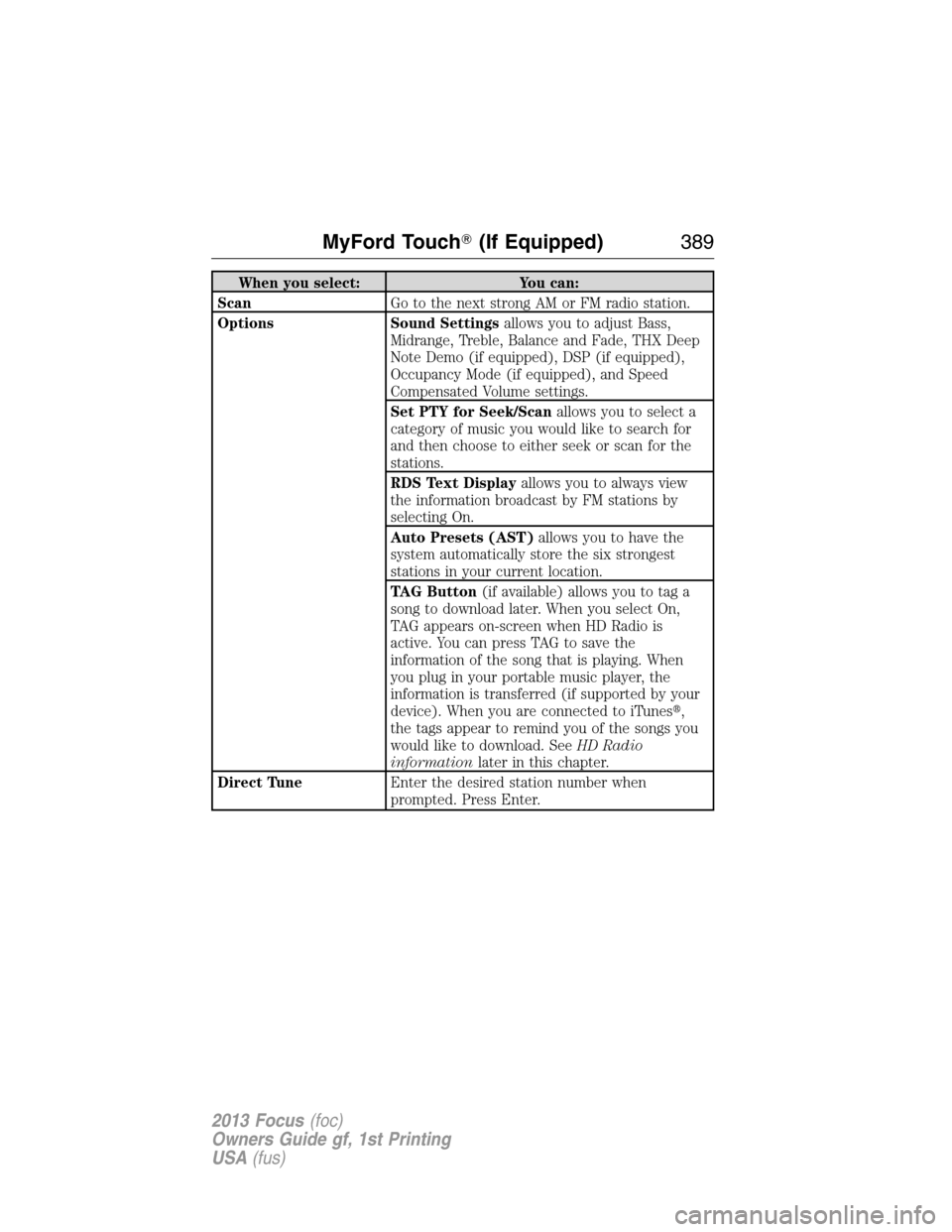

When you select: You can:
ScanGo to the next strong AM or FM radio station.
Options Sound Settingsallows you to adjust Bass,
Midrange, Treble, Balance and Fade, THX Deep
Note Demo (if equipped), DSP (if equipped),
Occupancy Mode (if equipped), and Speed
Compensated Volume settings.
Set PTY for Seek/Scanallows you to select a
category of music you would like to search for
and then choose to either seek or scan for the
stations.
RDS Text Displayallows you to always view
the information broadcast by FM stations by
selecting On.
Auto Presets (AST)allows you to have the
system automatically store the six strongest
stations in your current location.
TAG Button(if available) allows you to tag a
song to download later. When you select On,
TAG appears on-screen when HD Radio is
active. You can press TAG to save the
information of the song that is playing. When
you plug in your portable music player, the
information is transferred (if supported by your
device). When you are connected to iTunes,
the tags appear to remind you of the songs you
would like to download. SeeHD Radio
informationlater in this chapter.
Direct TuneEnter the desired station number when
prompted. Press Enter.
MyFord Touch(If Equipped)389
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

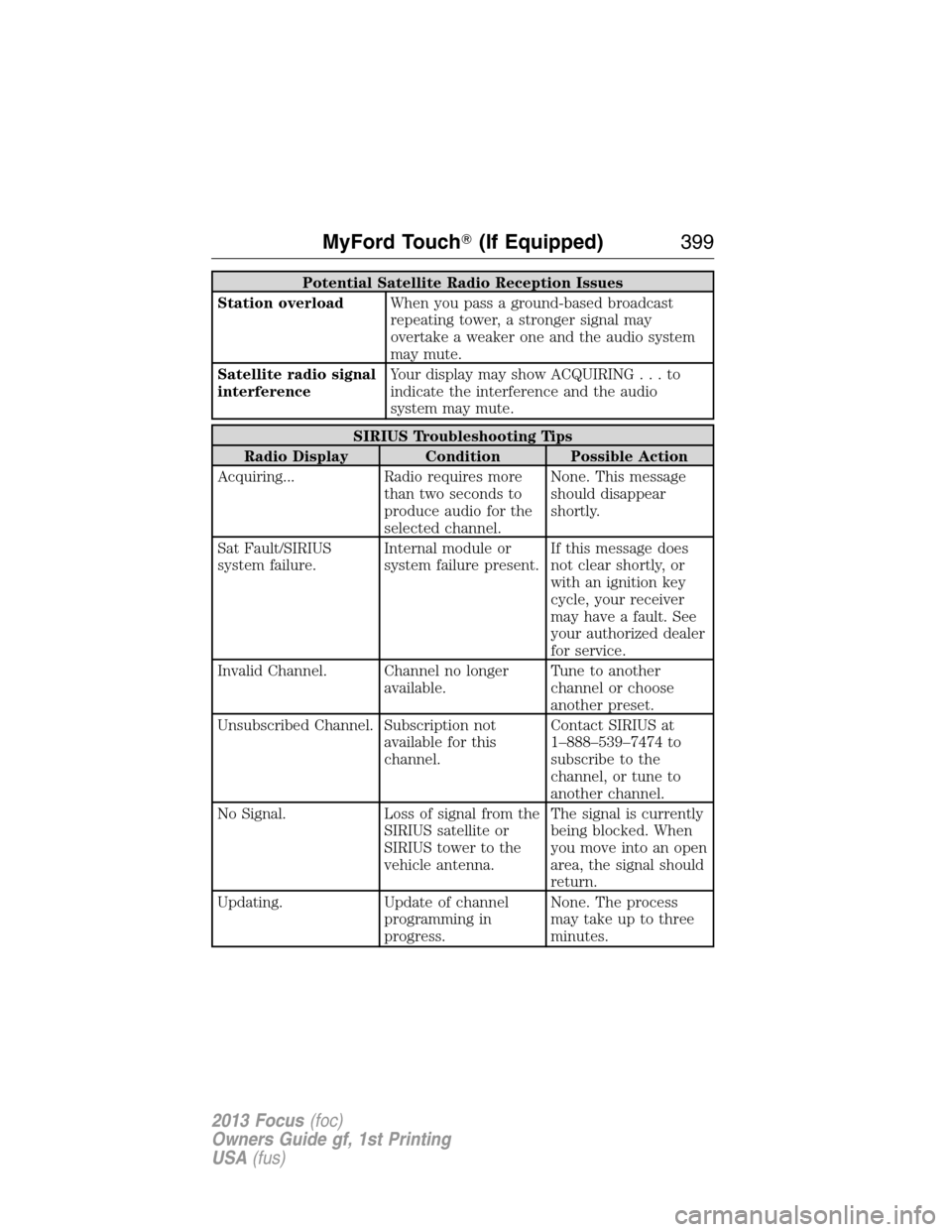

Potential Satellite Radio Reception Issues
Station overloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and the audio system
may mute.
Satellite radio signal
interferenceYour display may show ACQUIRING...to
indicate the interference and the audio
system may mute.
SIRIUS Troubleshooting Tips
Radio Display Condition Possible Action
Acquiring... Radio requires more
than two seconds to
produce audio for the
selected channel.None. This message
should disappear
shortly.
Sat Fault/SIRIUS
system failure.Internal module or
system failure present.If this message does
not clear shortly, or
with an ignition key
cycle, your receiver
may have a fault. See
your authorized dealer
for service.
Invalid Channel. Channel no longer
available.Tune to another
channel or choose
another preset.
Unsubscribed Channel. Subscription not
available for this
channel.Contact SIRIUS at
1–888–539–7474 to
subscribe to the
channel, or tune to
another channel.
No Signal. Loss of signal from the
SIRIUS satellite or
SIRIUS tower to the
vehicle antenna.The signal is currently
being blocked. When
you move into an open
area, the signal should
return.
Updating. Update of channel
programming in
progress.None. The process
may take up to three
minutes.
MyFord Touch(If Equipped)399
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

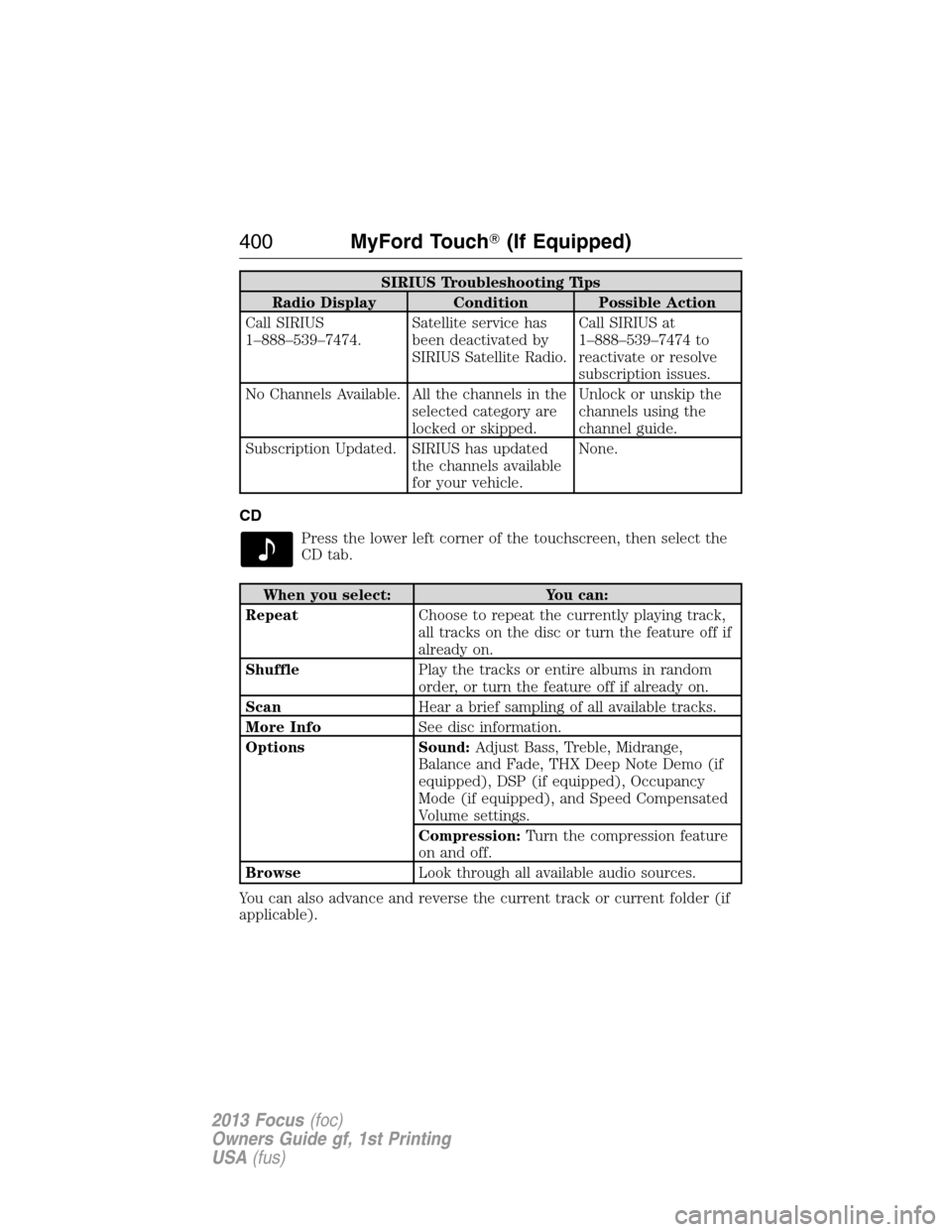

SIRIUS Troubleshooting Tips
Radio Display Condition Possible Action
Call SIRIUS
1–888–539–7474.Satellite service has
been deactivated by
SIRIUS Satellite Radio.Call SIRIUS at
1–888–539–7474 to
reactivate or resolve
subscription issues.
No Channels Available. All the channels in the
selected category are
locked or skipped.Unlock or unskip the
channels using the
channel guide.
Subscription Updated. SIRIUS has updated
the channels available
for your vehicle.None.
CD
Press the lower left corner of the touchscreen, then select the
CD tab.
When you select: You can:
RepeatChoose to repeat the currently playing track,
all tracks on the disc or turn the feature off if
already on.
ShufflePlay the tracks or entire albums in random
order, or turn the feature off if already on.
ScanHear a brief sampling of all available tracks.
More InfoSee disc information.
Options Sound:Adjust Bass, Treble, Midrange,
Balance and Fade, THX Deep Note Demo (if
equipped), DSP (if equipped), Occupancy
Mode (if equipped), and Speed Compensated
Volume settings.
Compression:Turn the compression feature
on and off.
BrowseLook through all available audio sources.
You can also advance and reverse the current track or current folder (if
applicable).
400MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

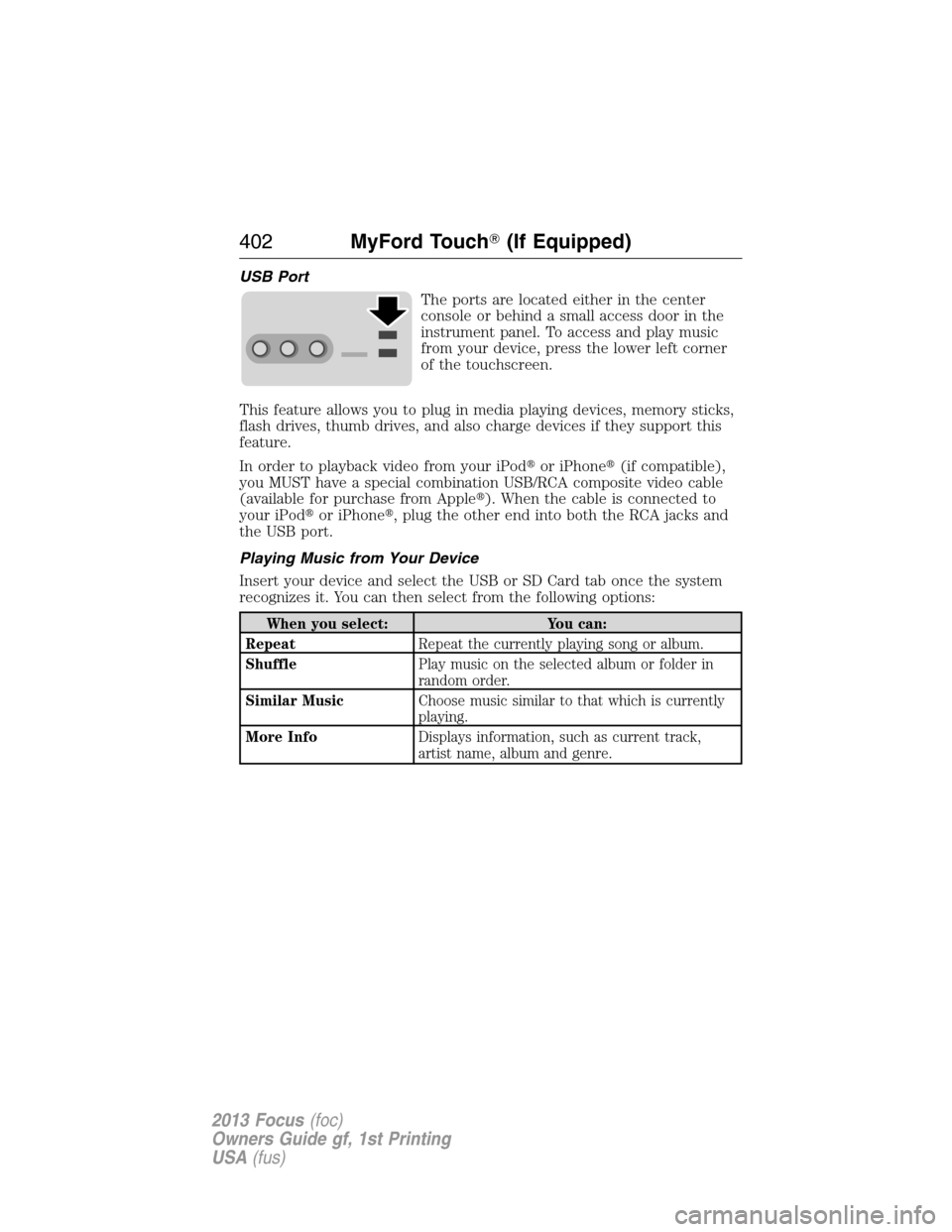

USB Port
The ports are located either in the center
console or behind a small access door in the
instrument panel. To access and play music
from your device, press the lower left corner
of the touchscreen.
This feature allows you to plug in media playing devices, memory sticks,
flash drives, thumb drives, and also charge devices if they support this
feature.
In order to playback video from your iPodor iPhone(if compatible),
you MUST have a special combination USB/RCA composite video cable
(available for purchase from Apple). When the cable is connected to
your iPodor iPhone, plug the other end into both the RCA jacks and
the USB port.
Playing Music from Your Device
Insert your device and select the USB or SD Card tab once the system
recognizes it. You can then select from the following options:
When you select: You can:
RepeatRepeat the currently playing song or album.
ShufflePlay music on the selected album or folder in
random order.
Similar MusicChoose music similar to that which is currently
playing.
More InfoDisplays information, such as current track,
artist name, album and genre.
402MyFord Touch(If Equipped)
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

When you select: You can:
Options Sound Settingsallows you to adjust Bass,
Midrange, Treble, Balance and Fade, THX Deep
Note Demo (if equipped), DSP (if equipped),
Occupancy Mode (if equipped), and Speed
Compensated Volume.
Media Player Settingsallows you to select
more settings, which can be found under
Settingslater in this chapter.
Device Informationdisplays software and
firmware information about the currently
connected media device.
Update Media Indexindexes the device each
time it is connected to make sure you have the
latest voice commands available for all media on
the device.
BrowseBrowse the contents of the device. It also allows
you to search by genre, artist, album, etc.
To view song information, such as Title, Artist, File, Folder, Album, and
Genre, touch the on-screen album art.
You can also pressWhat’s Playing?to hear how the system pronounces
the current band and song. This can be helpful when using voice
commands to make sure the system correctly plays your request.
SD Card and USB Voice Commands
If you are listening to a USB device or an SD card, press the
voice button on the steering wheel control. When prompted, say
any of the commands in the following chart.
If you are not listening to a USB device or an SD card, press the voice
button and, after the tone, say “USB” or “SD card”, then any of the
commands in the following chart.
“USB” or “SD CARD”
“Browse”*“Play podcast episode ”
“Next” “Play similar music”
“Pause” “Play song ”
“Play” “Play TV show ”
**
“Play album ” “Play TV show episode ”**
MyFord Touch(If Equipped)403
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

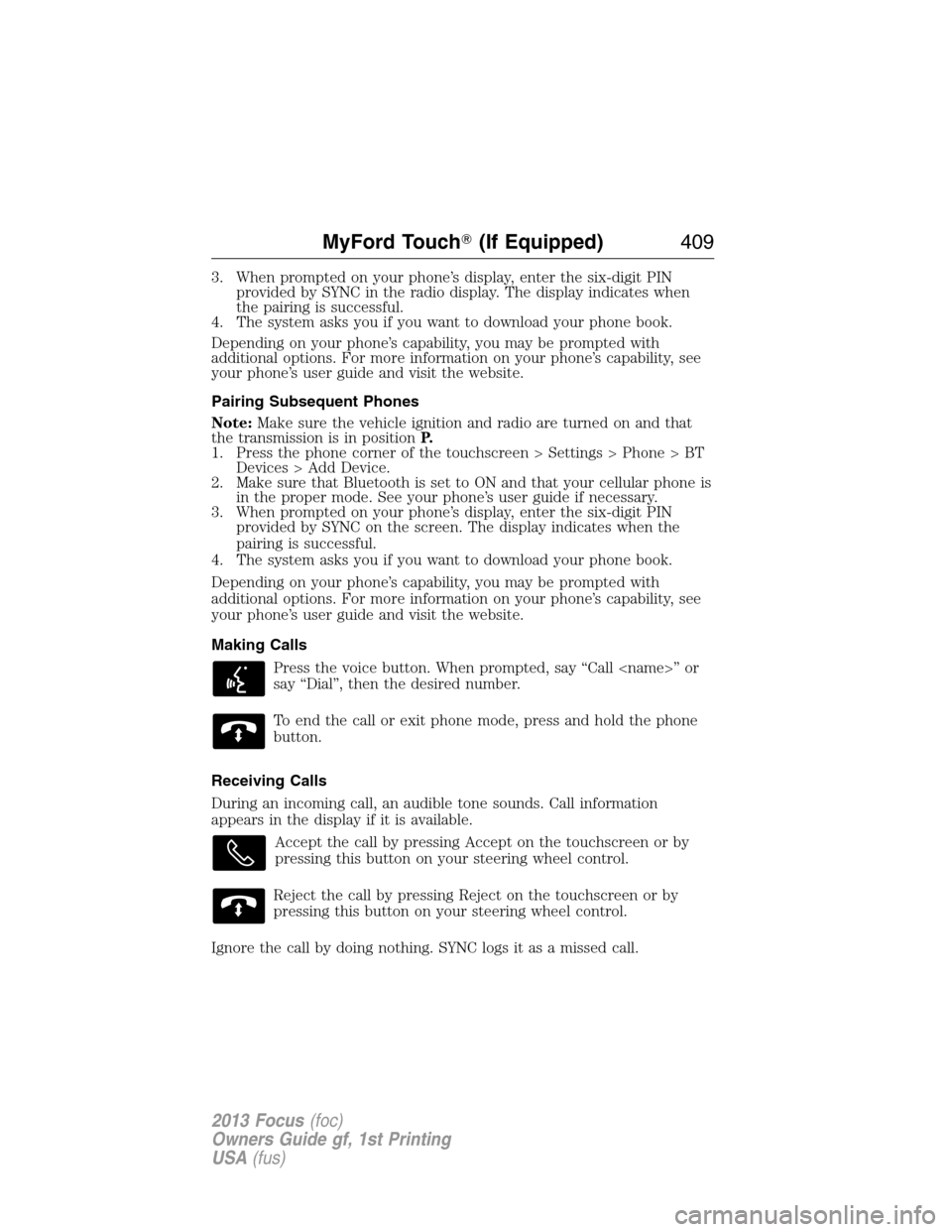

3. When prompted on your phone’s display, enter the six-digit PIN
provided by SYNC in the radio display. The display indicates when
the pairing is successful.
4. The system asks you if you want to download your phone book.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, see
your phone’s user guide and visit the website.
Pairing Subsequent Phones
Note:Make sure the vehicle ignition and radio are turned on and that
the transmission is in positionP.
1. Press the phone corner of the touchscreen > Settings > Phone > BT
Devices > Add Device.
2. Make sure that Bluetooth is set to ON and that your cellular phone is
in the proper mode. See your phone’s user guide if necessary.
3. When prompted on your phone’s display, enter the six-digit PIN
provided by SYNC on the screen. The display indicates when the
pairing is successful.
4. The system asks you if you want to download your phone book.
Depending on your phone’s capability, you may be prompted with
additional options. For more information on your phone’s capability, see
your phone’s user guide and visit the website.
Making Calls
Press the voice button. When prompted, say “Call ” or
say “Dial”, then the desired number.
To end the call or exit phone mode, press and hold the phone
button.
Receiving Calls
During an incoming call, an audible tone sounds. Call information
appears in the display if it is available.
Accept the call by pressing Accept on the touchscreen or by
pressing this button on your steering wheel control.
Reject the call by pressing Reject on the touchscreen or by
pressing this button on your steering wheel control.
Ignore the call by doing nothing. SYNC logs it as a missed call.
MyFord Touch(If Equipped)409
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)

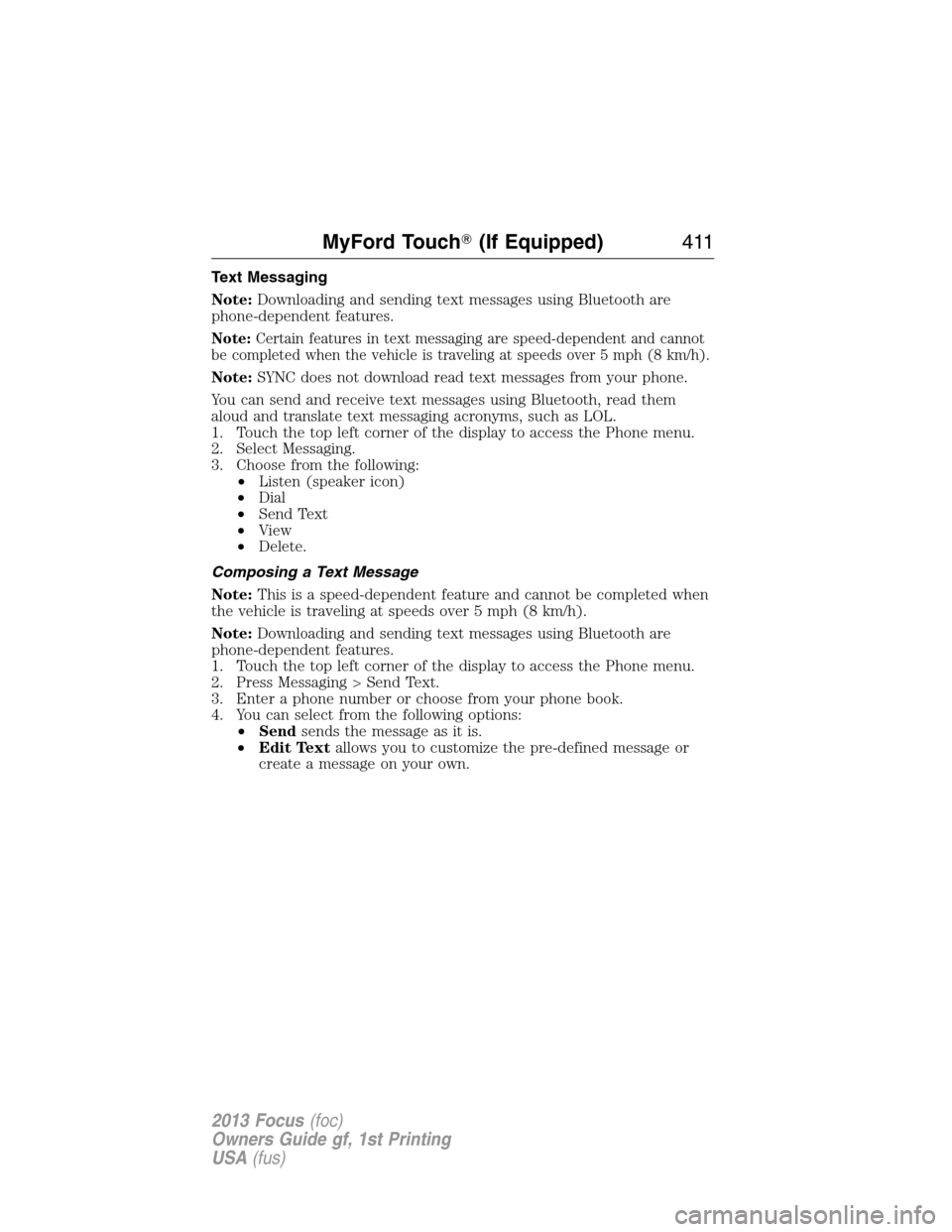

Text Messaging
Note:Downloading and sending text messages using Bluetooth are
phone-dependent features.
Note:Certain features in text messaging are speed-dependent and cannot
be completed when the vehicle is traveling at speeds over 5 mph (8 km/h).
Note:SYNC does not download read text messages from your phone.
You can send and receive text messages using Bluetooth, read them
aloud and translate text messaging acronyms, such as LOL.
1. Touch the top left corner of the display to access the Phone menu.
2. Select Messaging.
3. Choose from the following:
•Listen (speaker icon)
•Dial
•Send Text
•View
•Delete.
Composing a Text Message
Note:This is a speed-dependent feature and cannot be completed when
the vehicle is traveling at speeds over 5 mph (8 km/h).
Note:Downloading and sending text messages using Bluetooth are
phone-dependent features.
1. Touch the top left corner of the display to access the Phone menu.
2. Press Messaging > Send Text.
3. Enter a phone number or choose from your phone book.
4. You can select from the following options:
•Sendsends the message as it is.
•Edit Textallows you to customize the pre-defined message or
create a message on your own.
MyFord Touch(If Equipped)411
2013 Focus(foc)
Owners Guide gf, 1st Printing
USA(fus)
