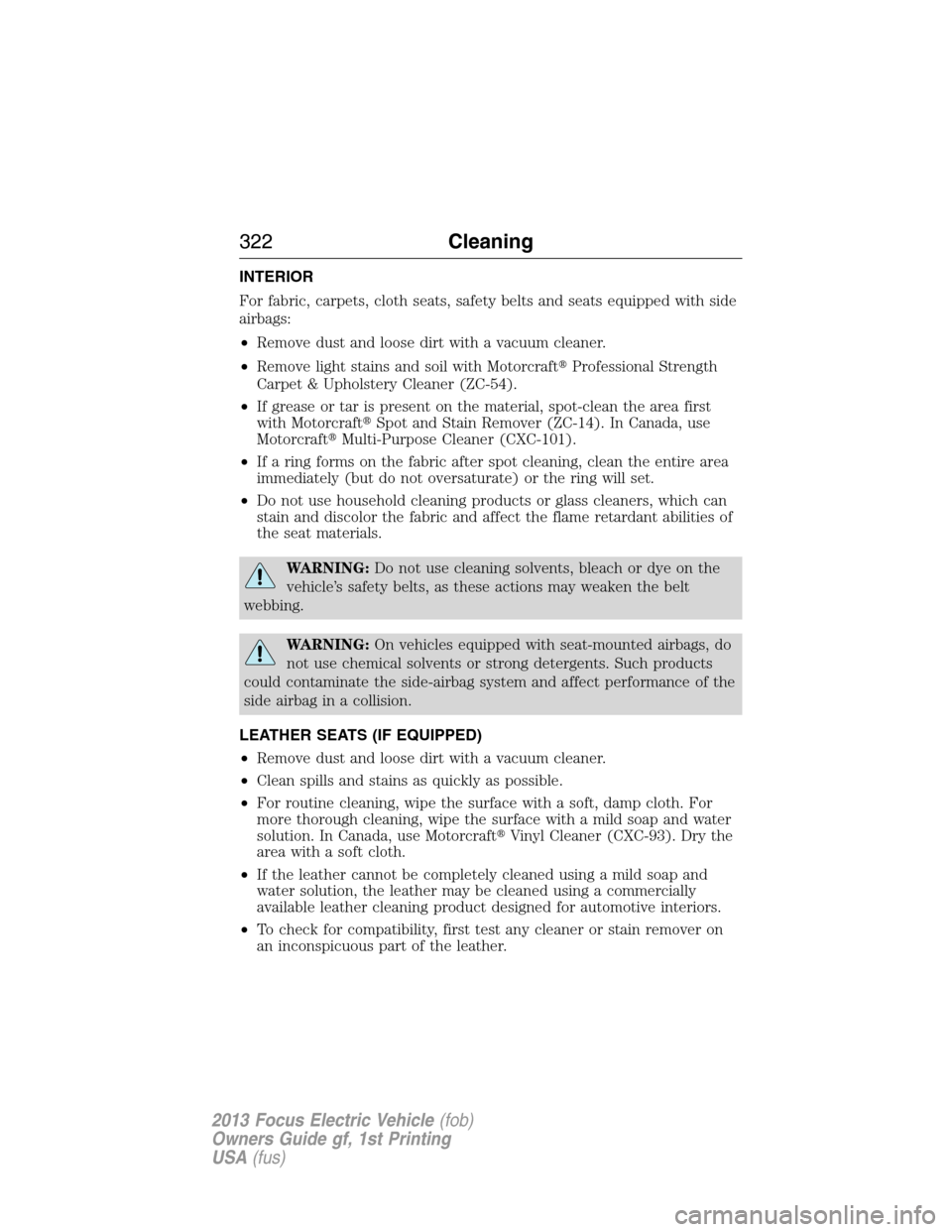

INTERIOR
For fabric, carpets, cloth seats, safety belts and seats equipped with side
airbags:
•Remove dust and loose dirt with a vacuum cleaner.
•Remove light stains and soil with MotorcraftProfessional Strength
Carpet & Upholstery Cleaner (ZC-54).
•If grease or tar is present on the material, spot-clean the area first
with MotorcraftSpot and Stain Remover (ZC-14). In Canada, use
MotorcraftMulti-Purpose Cleaner (CXC-101).
•If a ring forms on the fabric after spot cleaning, clean the entire area
immediately (but do not oversaturate) or the ring will set.
•Do not use household cleaning products or glass cleaners, which can
stain and discolor the fabric and affect the flame retardant abilities of
the seat materials.
WARNING:Do not use cleaning solvents, bleach or dye on the
vehicle’s safety belts, as these actions may weaken the belt
webbing.
WARNING:On vehicles equipped with seat-mounted airbags, do
not use chemical solvents or strong detergents. Such products
could contaminate the side-airbag system and affect performance of the
side airbag in a collision.
LEATHER SEATS (IF EQUIPPED)
•Remove dust and loose dirt with a vacuum cleaner.
•Clean spills and stains as quickly as possible.
•For routine cleaning, wipe the surface with a soft, damp cloth. For
more thorough cleaning, wipe the surface with a mild soap and water
solution. In Canada, use MotorcraftVinyl Cleaner (CXC-93). Dry the
area with a soft cloth.
•If the leather cannot be completely cleaned using a mild soap and
water solution, the leather may be cleaned using a commercially
available leather cleaning product designed for automotive interiors.
•To check for compatibility, first test any cleaner or stain remover on
an inconspicuous part of the leather.
322Cleaning
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

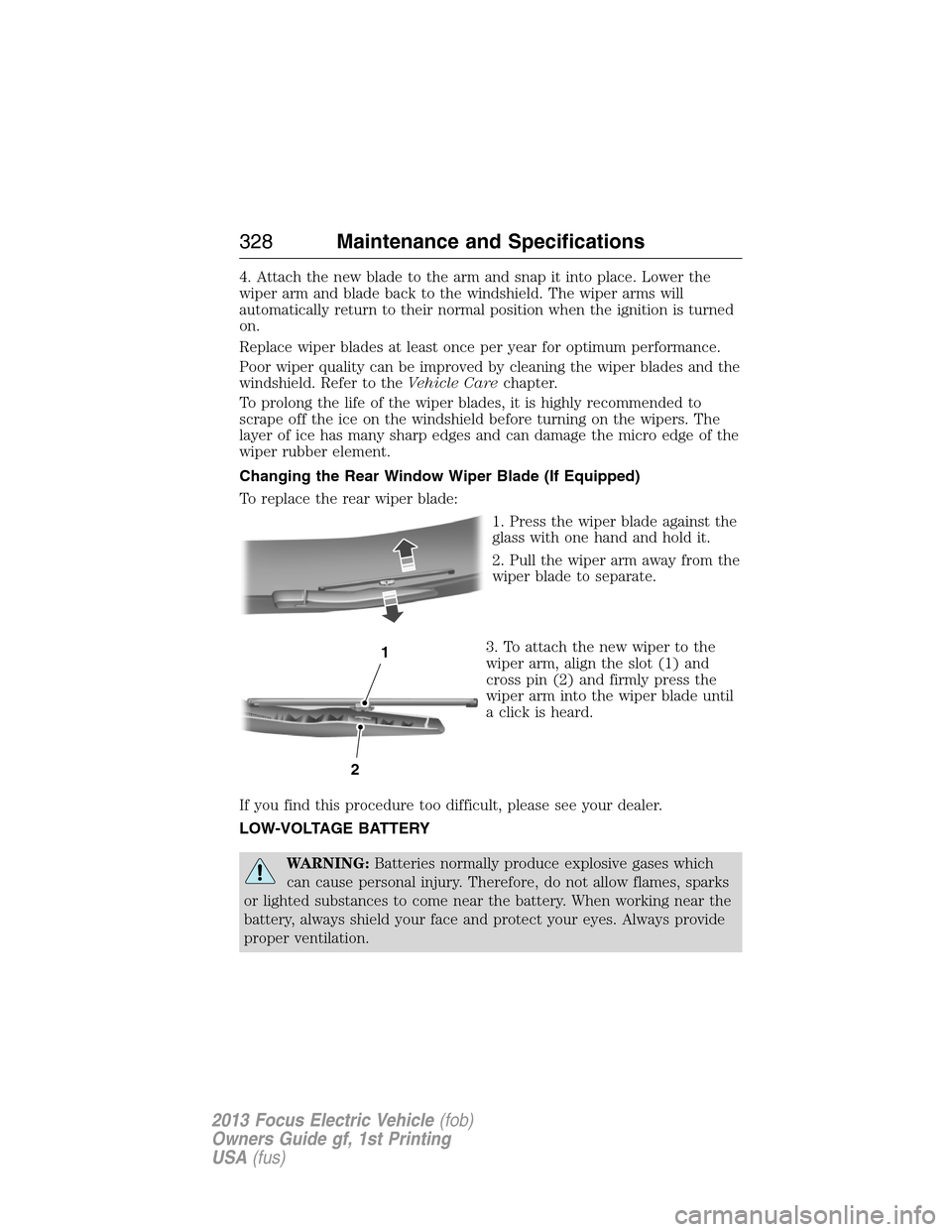

4. Attach the new blade to the arm and snap it into place. Lower the
wiper arm and blade back to the windshield. The wiper arms will
automatically return to their normal position when the ignition is turned
on.
Replace wiper blades at least once per year for optimum performance.
Poor wiper quality can be improved by cleaning the wiper blades and the
windshield. Refer to theVehicle Carechapter.
To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
Changing the Rear Window Wiper Blade (If Equipped)
To replace the rear wiper blade:
1. Press the wiper blade against the
glass with one hand and hold it.
2. Pull the wiper arm away from the
wiper blade to separate.
3. To attach the new wiper to the
wiper arm, align the slot (1) and
cross pin (2) and firmly press the
wiper arm into the wiper blade until
a click is heard.
If you find this procedure too difficult, please see your dealer.
LOW-VOLTAGE BATTERY
WARNING:Batteries normally produce explosive gases which
can cause personal injury. Therefore, do not allow flames, sparks
or lighted substances to come near the battery. When working near the
battery, always shield your face and protect your eyes. Always provide
proper ventilation.
2
1
328Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

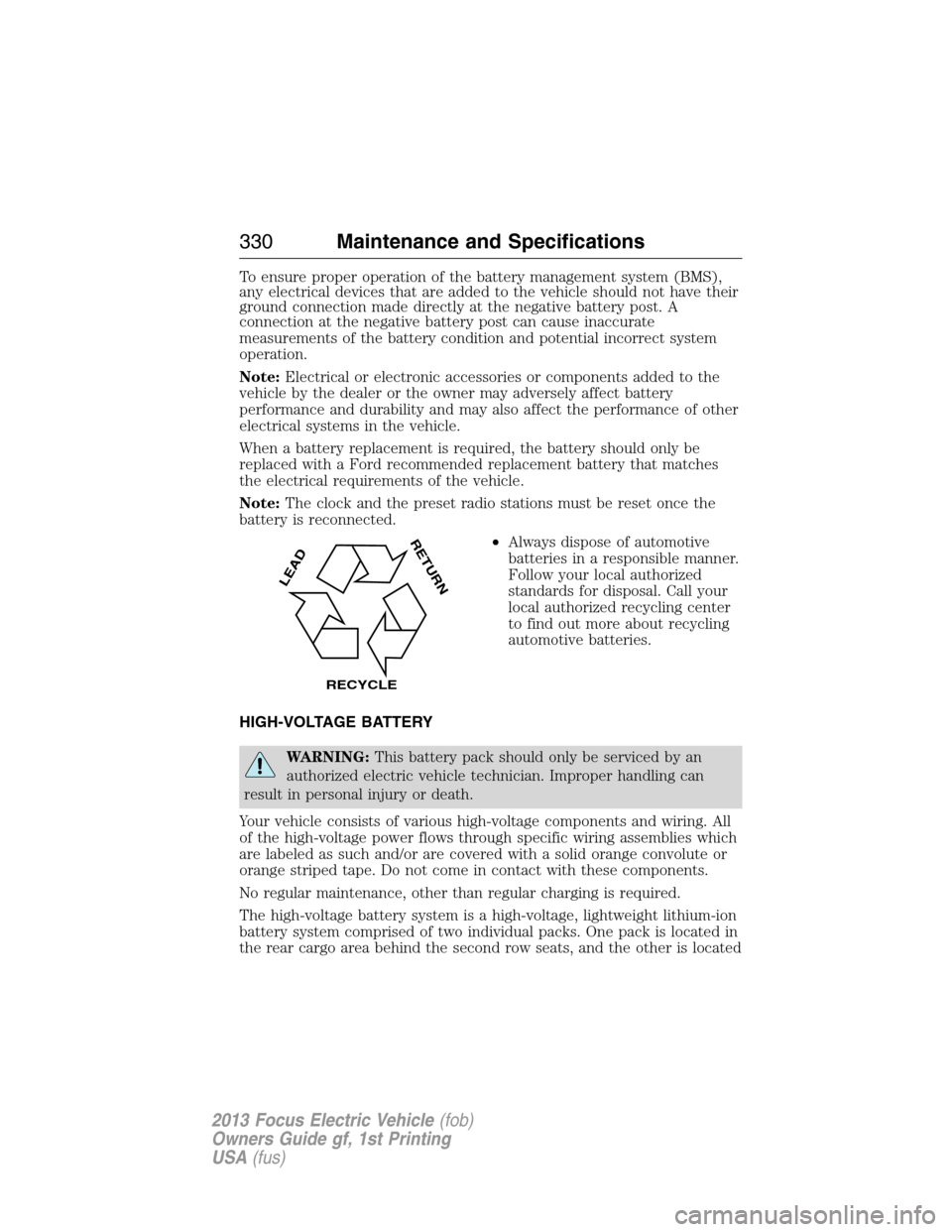

To ensure proper operation of the battery management system (BMS),
any electrical devices that are added to the vehicle should not have their
ground connection made directly at the negative battery post. A
connection at the negative battery post can cause inaccurate
measurements of the battery condition and potential incorrect system
operation.
Note:Electrical or electronic accessories or components added to the
vehicle by the dealer or the owner may adversely affect battery
performance and durability and may also affect the performance of other
electrical systems in the vehicle.
When a battery replacement is required, the battery should only be
replaced with a Ford recommended replacement battery that matches
the electrical requirements of the vehicle.
Note:The clock and the preset radio stations must be reset once the
battery is reconnected.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
HIGH-VOLTAGE BATTERY
WARNING:This battery pack should only be serviced by an
authorized electric vehicle technician. Improper handling can
result in personal injury or death.
Your vehicle consists of various high-voltage components and wiring. All
of the high-voltage power flows through specific wiring assemblies which
are labeled as such and/or are covered with a solid orange convolute or
orange striped tape. Do not come in contact with these components.
No regular maintenance, other than regular charging is required.
The high-voltage battery system is a high-voltage, lightweight lithium-ion
battery system comprised of two individual packs. One pack is located in
the rear cargo area behind the second row seats, and the other is located
L
E
A
D
RETURN
RECYCLE
330Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

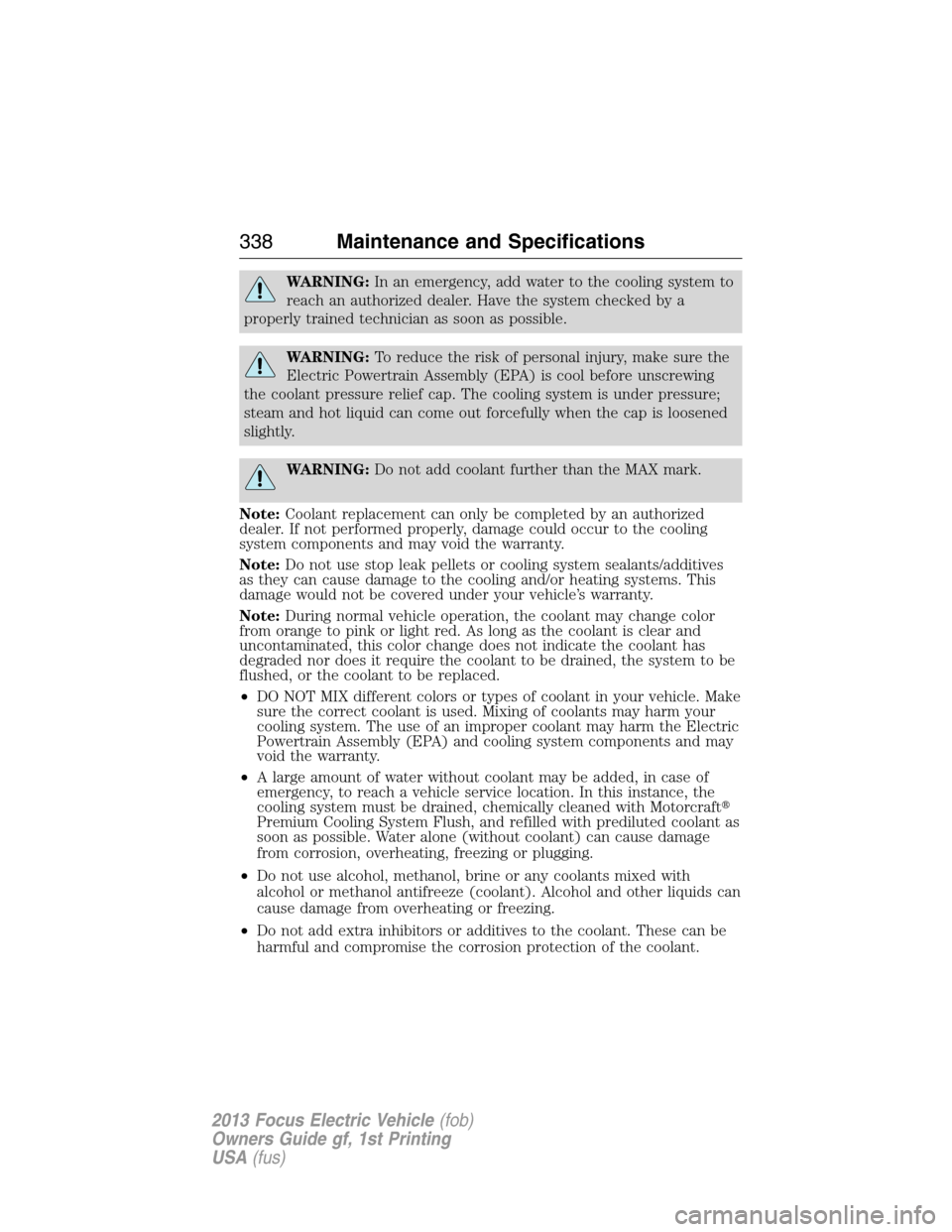

WARNING:In an emergency, add water to the cooling system to
reach an authorized dealer. Have the system checked by a
properly trained technician as soon as possible.
WARNING:To reduce the risk of personal injury, make sure the
Electric Powertrain Assembly (EPA) is cool before unscrewing
the coolant pressure relief cap. The cooling system is under pressure;
steam and hot liquid can come out forcefully when the cap is loosened
slightly.
WARNING:Do not add coolant further than the MAX mark.
Note:Coolant replacement can only be completed by an authorized
dealer. If not performed properly, damage could occur to the cooling
system components and may void the warranty.
Note:Do not use stop leak pellets or cooling system sealants/additives
as they can cause damage to the cooling and/or heating systems. This
damage would not be covered under your vehicle’s warranty.
Note:During normal vehicle operation, the coolant may change color
from orange to pink or light red. As long as the coolant is clear and
uncontaminated, this color change does not indicate the coolant has
degraded nor does it require the coolant to be drained, the system to be
flushed, or the coolant to be replaced.
•DO NOT MIX different colors or types of coolant in your vehicle. Make
sure the correct coolant is used. Mixing of coolants may harm your
cooling system. The use of an improper coolant may harm the Electric
Powertrain Assembly (EPA) and cooling system components and may
void the warranty.
•A large amount of water without coolant may be added, in case of
emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained, chemically cleaned with Motorcraft
Premium Cooling System Flush, and refilled with prediluted coolant as
soon as possible. Water alone (without coolant) can cause damage
from corrosion, overheating, freezing or plugging.
•Do not use alcohol, methanol, brine or any coolants mixed with
alcohol or methanol antifreeze (coolant). Alcohol and other liquids can
cause damage from overheating or freezing.
•Do not add extra inhibitors or additives to the coolant. These can be
harmful and compromise the corrosion protection of the coolant.
338Maintenance and Specifications
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

Value Shopping for Your Vehicle’s Maintenance Needs
Your dealership recognizes the competitive landscape of maintenance and
light repair automotive services. With factory-trained technicians, and
one-stop service from routine maintenance like oil changes and tire
rotations to repairs like brake service, check out the value your dealers
can offer.
Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
by the owner or a service technician at the intervals indicated. Service
information and supporting specifications are provided in this owner’s
guide.
Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Coolant change intervals
Initial change10 years or 150,000 miles (240,000 km)
(whichever comes first)
After initial changeEvery 5 years or 50,000 miles (80,000 km)
Check every month
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance353
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ................................94
A
Accessing and using your USB
port ..............................................74
Accessing your calendar ............94
Accessory delay ........................144
Adding (pairing) a phone ..........81
AdvanceTrac ..............................261
Airbag supplemental restraint
system ................194–195, 203, 205
and child safety seats ............196
description ..............195, 203, 205
disposal ....................................209
driver airbag ............197, 204, 207
indicator light .................202, 209
operation .................197, 204, 207
passenger airbag .....197, 204, 207
side airbag ...............................203
Air filter, cabin ..........................342
Ambient mood/lighting .............134
AM/FM .........................................60
Anti-lock brake system
(see Brakes) ..............................259
Anti-theft system ..............168–169
arming the system ..........169–170
disarming a triggered
system .....................................170
triggering .................................170
Audio system
Single CD ..................................39
Audio system (see Radio) .........39
Automatic transaxle
fluid, adding ............................340
fluid, checking ........................340
Automatic transmission ............267fluid, refill capacities ..............343
fluid, specification ..................343
Auxiliary Input Jack ...................70
Auxiliary powerpoint ................142
A/V inputs ..............................40, 78
B
Battery .......................................328
acid, treating emergencies .....328
jumping a disabled battery ....303
maintenance-free ....................328
replacement, specifications ...342
servicing ..................................328
traction battery pack
assembly ..................................330
Belt-Minder.............................190
Blind spot mirror ......................276
Booster seats .............................223
Brakes ................................258–259
anti-lock ...................................259
anti-lock brake system (ABS)
warning light ...........................259
fluid, checking and adding ....340
fluid, refill capacities ..............343
fluid, specifications .................343
lubricant specifications ..........343
parking ....................................261
shift interlock ..........................265
Break-in period .............................6
Bulbs ..........................................134
C
Capacities for refilling fluids ....343
Cargo management system ......152
CD ................................................39
CD player ....................................72
380Index
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

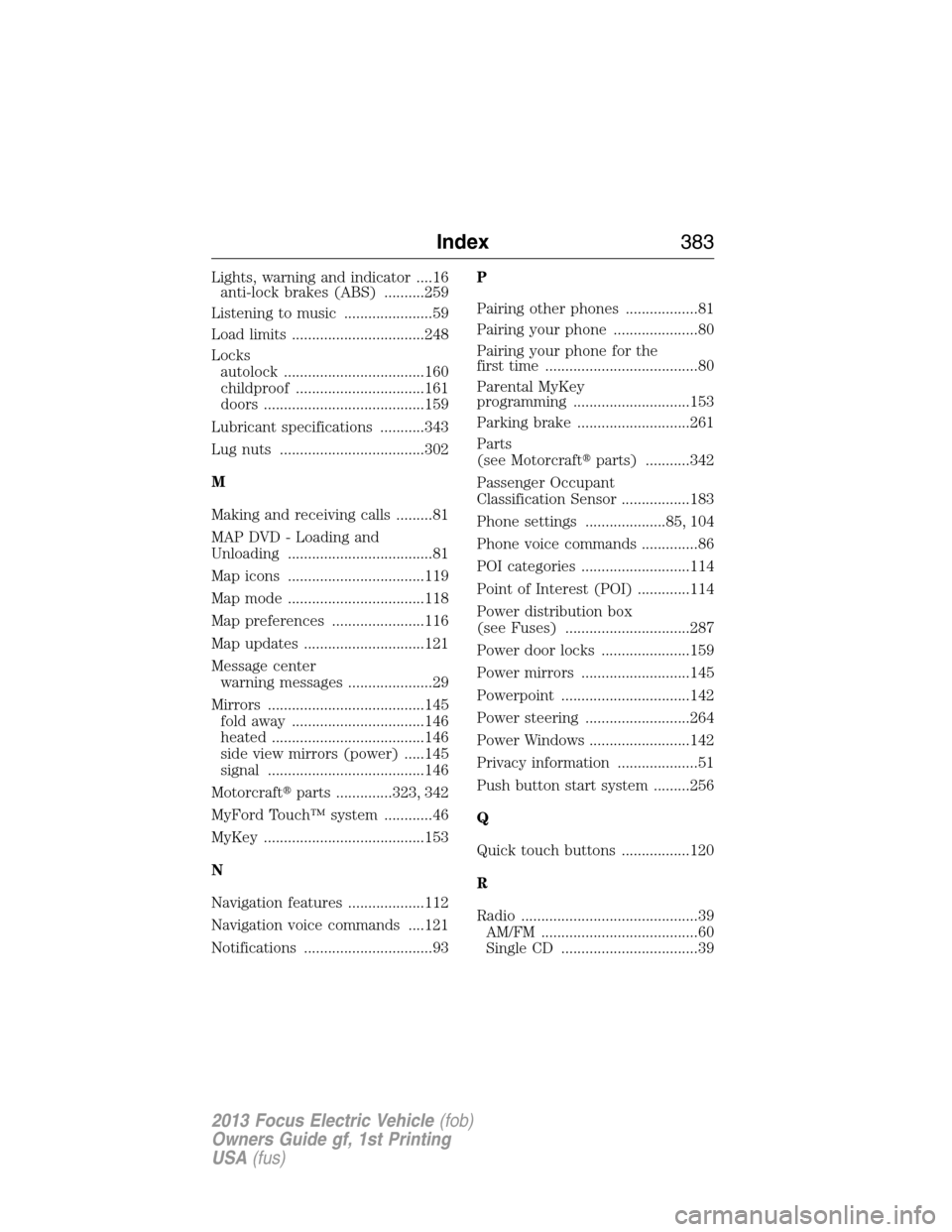

Lights, warning and indicator ....16
anti-lock brakes (ABS) ..........259
Listening to music ......................59
Load limits .................................248
Locks
autolock ...................................160
childproof ................................161
doors ........................................159
Lubricant specifications ...........343
Lug nuts ....................................302
M
Making and receiving calls .........81
MAP DVD - Loading and
Unloading ....................................81
Map icons ..................................119
Map mode ..................................118
Map preferences .......................116
Map updates ..............................121
Message center
warning messages .....................29
Mirrors .......................................145
fold away .................................146
heated ......................................146
side view mirrors (power) .....145
signal .......................................146
Motorcraftparts ..............323, 342
MyFord Touch™ system ............46
MyKey ........................................153
N
Navigation features ...................112
Navigation voice commands ....121
Notifications ................................93P
Pairing other phones ..................81
Pairing your phone .....................80
Pairing your phone for the
first time ......................................80
Parental MyKey
programming .............................153
Parking brake ............................261
Parts
(see Motorcraftparts) ...........342
Passenger Occupant
Classification Sensor .................183
Phone settings ....................85, 104
Phone voice commands ..............86
POI categories ...........................114
Point of Interest (POI) .............114
Power distribution box
(see Fuses) ...............................287
Power door locks ......................159
Power mirrors ...........................145
Powerpoint ................................142
Power steering ..........................264
Power Windows .........................142
Privacy information ....................51
Push button start system .........256
Q
Quick touch buttons .................120
R
Radio ............................................39
AM/FM .......................................60
Single CD ..................................39
Index383
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)

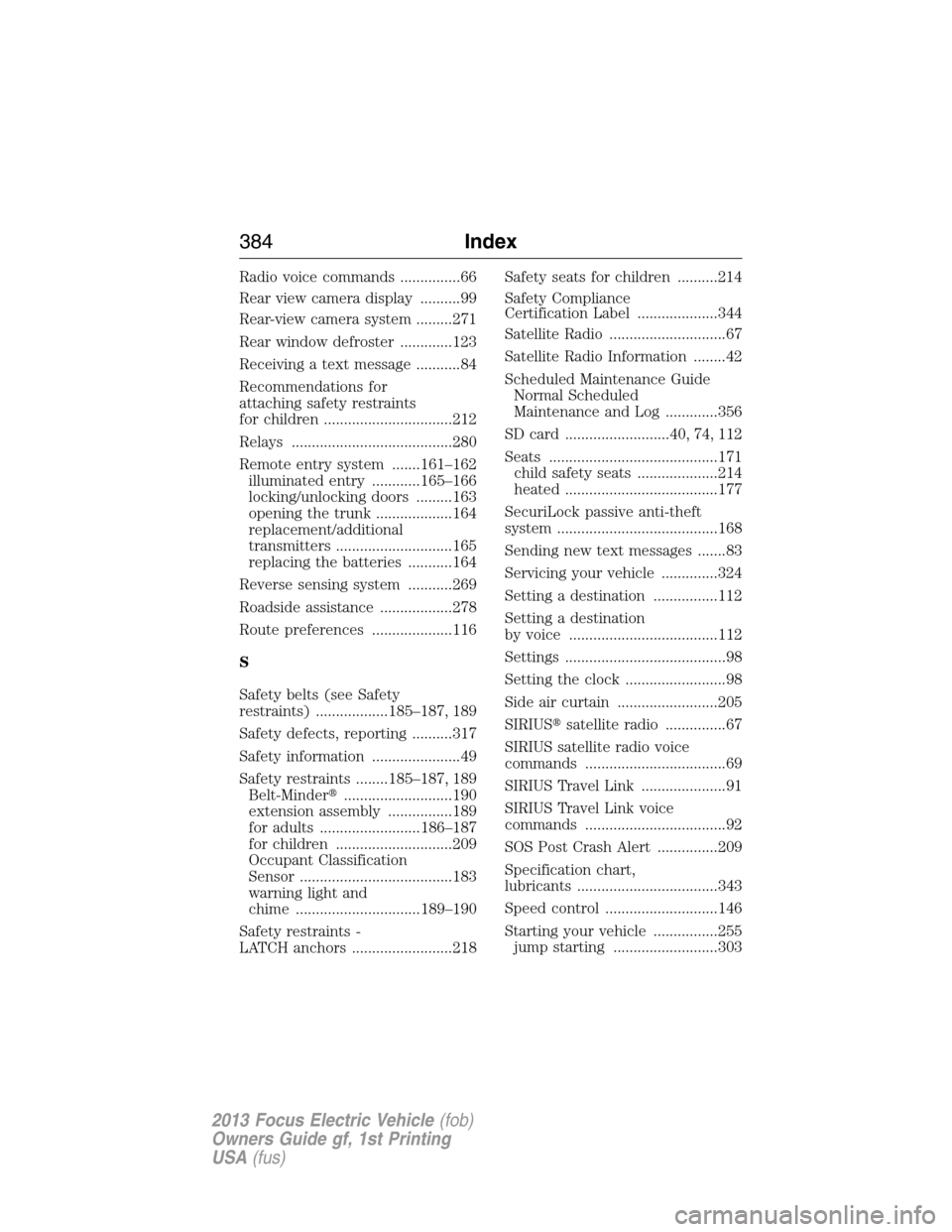

Radio voice commands ...............66
Rear view camera display ..........99
Rear-view camera system .........271
Rear window defroster .............123
Receiving a text message ...........84
Recommendations for
attaching safety restraints
for children ................................212
Relays ........................................280
Remote entry system .......161–162
illuminated entry ............165–166
locking/unlocking doors .........163
opening the trunk ...................164
replacement/additional
transmitters .............................165
replacing the batteries ...........164
Reverse sensing system ...........269
Roadside assistance ..................278
Route preferences ....................116
S
Safety belts (see Safety
restraints) ..................185–187, 189
Safety defects, reporting ..........317
Safety information ......................49
Safety restraints ........185–187, 189
Belt-Minder...........................190
extension assembly ................189
for adults .........................186–187
for children .............................209
Occupant Classification
Sensor ......................................183
warning light and
chime ...............................189–190
Safety restraints -
LATCH anchors .........................218Safety seats for children ..........214
Safety Compliance
Certification Label ....................344
Satellite Radio .............................67
Satellite Radio Information ........42
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............356
SD card ..........................40, 74, 112
Seats ..........................................171
child safety seats ....................214
heated ......................................177
SecuriLock passive anti-theft
system ........................................168
Sending new text messages .......83
Servicing your vehicle ..............324
Setting a destination ................112
Setting a destination
by voice .....................................112
Settings ........................................98
Setting the clock .........................98
Side air curtain .........................205
SIRIUSsatellite radio ...............67
SIRIUS satellite radio voice
commands ...................................69
SIRIUS Travel Link .....................91
SIRIUS Travel Link voice
commands ...................................92
SOS Post Crash Alert ...............209
Specification chart,
lubricants ...................................343
Speed control ............................146
Starting your vehicle ................255
jump starting ..........................303
384Index
2013 Focus Electric Vehicle(fob)
Owners Guide gf, 1st Printing
USA(fus)
