2013 FORD FLEX mirror controls

Front fog lamps......................................101
Turn signal control....................................101
Interior lamps........................................102
Windows and Mirrors 103
Power windows.......................................103
Exteriormirrors......................................104
Interiormirrors.......................................107
Sun visors..........................................107
Moonroof...........................................108
Instrument Cluster 110
Gauges.............................................110
Warning lamps and indicators............................111
Audible warnings and indicators..........................116
Information Displays 117
Controls............................................117
Trip computer........................................121
Information messages..................................129
Audio System 138
MyFord™ system.....................................140
Auxiliary input jack....................................147
USBport ...........................................149
Satellite radio information...............................150
Climate Control 153
Manual heating and air conditioning........................153
Dual automatic temperature control........................155
Auxiliary passenger climate control........................158
Rear window defroster.................................161
Cabin air filter.......................................161
Table of Contents3
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Memory feature (if equipped)
This feature allows you to recall the driver seat, power mirrors and
adjustable pedals (if equipped) memory positions.
Press the unlock button on the remote control or activate intelligent
access (if equipped) to recall memory. The seat and power mirrors
automatically move to the memory position. The mirrors will move to the
programmed position and the seat will move to the easy entry position.
The seat will move to the final position when the ignition is switched out
of off (if easy entry feature is enabled).
Programming memory to the transmitter
To activate this feature:
1. Move the memory features to the desired positions using the
associated controls.
2. Press and hold button 1 for five
seconds. A tone will sound
confirming memory position has
been set. Continue to hold until a
second tone is heard after five
seconds.
3. Within three seconds press the lock button on the remote control.
4. Wait 10 seconds, then press the unlock button on the remote control.
5. Repeat this procedure for memory 2 and another transmitter if
desired.
Deactivating memory from the transmitter
To deactivate this feature:
1. Press and hold either the 1 or 2 button for five seconds. A tone will
sound when the memory store is done. Continue to hold until a second
tone is heard.
2. Within three seconds press the unlock button on the remote control .
3. Repeat this procedure for each additional transmitter if desired.
21
66Keys and Remote Control
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

Window Lock
A. Unlock
B. Lock
Press the control to lock or unlock the rear window controls.
Accessory Delay
You can use the window switches for several minutes after you turn the
ignition off, or until either front door is opened.
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while the vehicle is in
motion.
A. Left-hand mirror
B. Off
C. Right-hand mirror
To adjust your mirrors:
1. Select the mirror you want to adjust.
2. Move the control in the direction you want to tilt the mirror.
3. Return the control to the center position to lock mirrors in place.
Fold-Away Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully
engage the mirror in its support when returning it to its original position.
AB
B
AC
104Windows and Mirrors
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

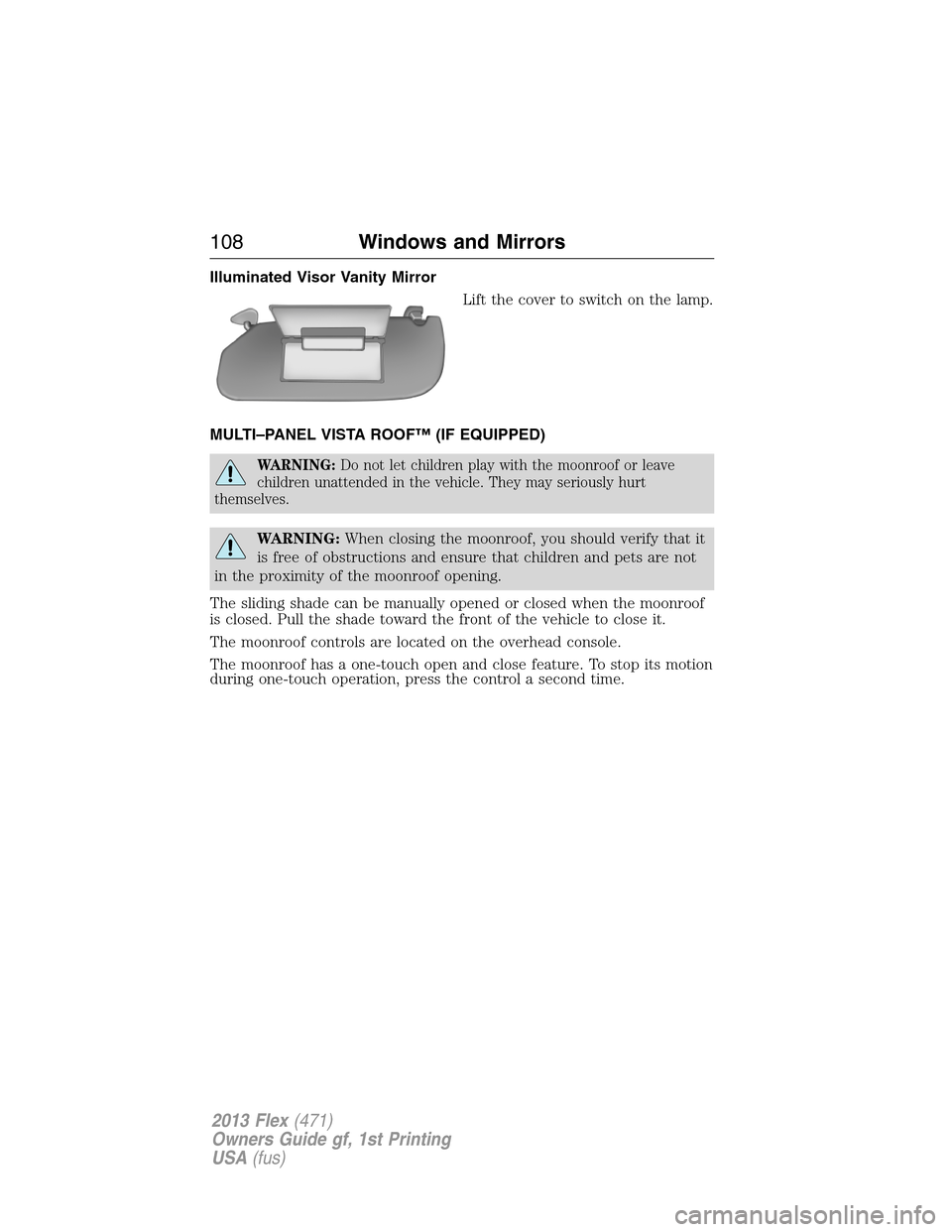

Illuminated Visor Vanity Mirror
Lift the cover to switch on the lamp.
MULTI–PANEL VISTA ROOF™ (IF EQUIPPED)
WARNING:Do not let children play with the moonroof or leave
children unattended in the vehicle. They may seriously hurt
themselves.
WARNING:When closing the moonroof, you should verify that it
is free of obstructions and ensure that children and pets are not
in the proximity of the moonroof opening.
The sliding shade can be manually opened or closed when the moonroof
is closed. Pull the shade toward the front of the vehicle to close it.
The moonroof controls are located on the overhead console.
The moonroof has a one-touch open and close feature. To stop its motion
during one-touch operation, press the control a second time.
108Windows and Mirrors
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

REMOTE START CLIMATE OPERATION (IF EQUIPPED)
The climate control system adjusts the cabin temperature during remote
start.
You cannot adjust the system during remote start operation. Turn the
ignition on to return the system to its previous settings. You can now
make adjustments. You will need to turn certain vehicle-dependent
features back on, such as:
•Heated seats.
•Cooled seats.
•Heated steering wheel.
•Heated mirrors.
•Rear defroster.
You can adjust the settings using the information display controls. See
theInformation Displayschapter.
Manual Climate Systems
In hot weather, the climate control system is set to MAX A/C.
In moderate weather, the system either heats or cools (based on previous
settings). The rear defroster and/or heated mirrors are not automatically
turned on.
In cold weather, maximum heat is provided in floor/defrost mode. The
rear defroster and/or heated mirrors are automatically turned on.
Automatic Climate Systems
In hot weather, the system is set to 72°F (22°C). Cooled seats are set to
high (if available and selected to AUTO in the message center).
In moderate weather, the system either heats or cools (based on previous
settings). The rear defroster, heated mirrors and heated/cooled seats are
not automatically turned on.
In cold weather, the system is set to 72°F (22°C). The heated seats are
set to high (if available and selected to AUTO in the message center).
The rear defroster and heated mirrors are automatically turned on.
162Climate Control
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)

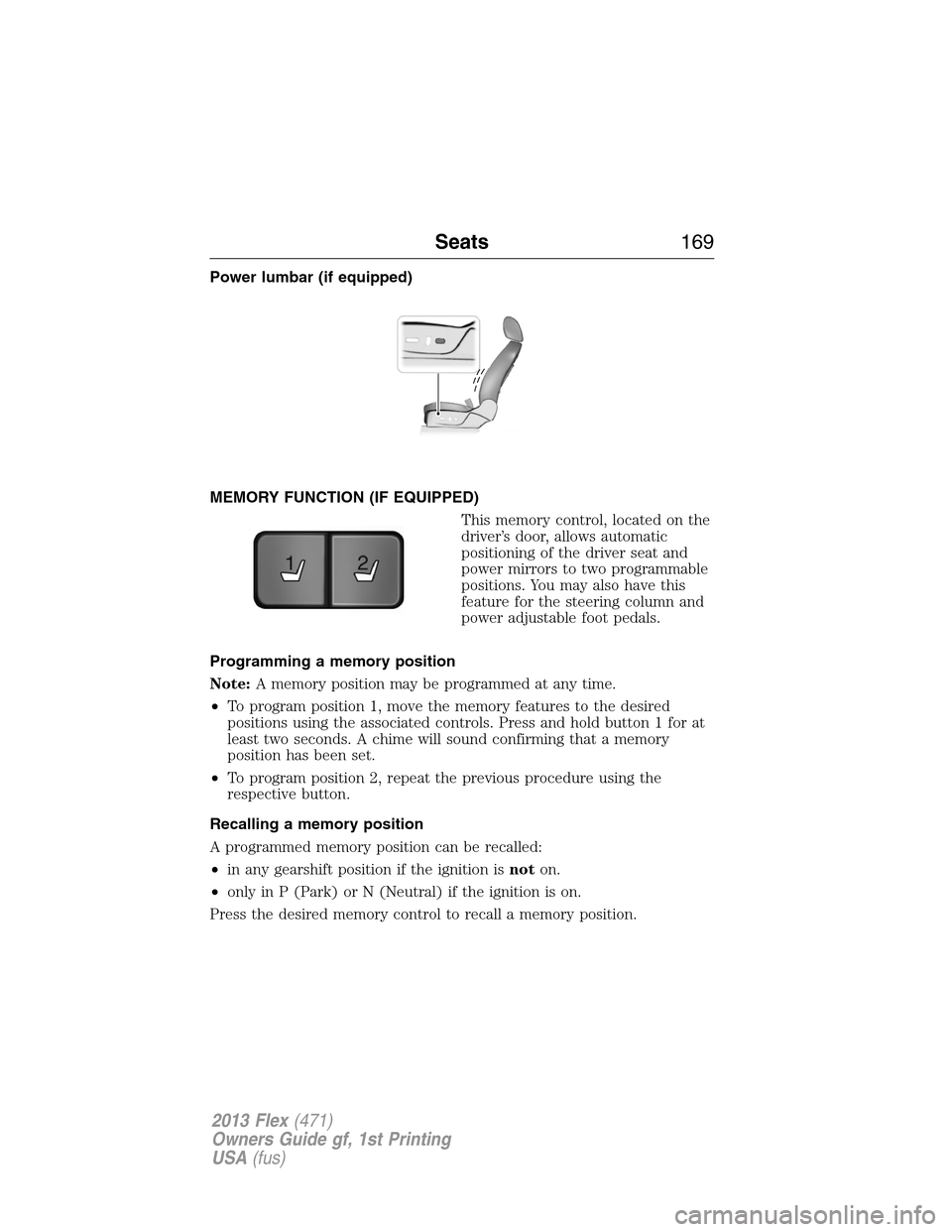

Power lumbar (if equipped)
MEMORY FUNCTION (IF EQUIPPED)
This memory control, located on the
driver’s door, allows automatic
positioning of the driver seat and
power mirrors to two programmable
positions. You may also have this
feature for the steering column and
power adjustable foot pedals.
Programming a memory position
Note:A memory position may be programmed at any time.
•To program position 1, move the memory features to the desired
positions using the associated controls. Press and hold button 1 for at
least two seconds. A chime will sound confirming that a memory
position has been set.
•To program position 2, repeat the previous procedure using the
respective button.
Recalling a memory position
A programmed memory position can be recalled:
•in any gearshift position if the ignition isnoton.
•only in P (Park) or N (Neutral) if the ignition is on.
Press the desired memory control to recall a memory position.
21
Seats169
2013 Flex(471)
Owners Guide gf, 1st Printing
USA(fus)
