2013 FORD FIESTA trunk

Locks 61
Locking and unlocking..................................61
Locks..............................................61
Trunk release.........................................67
Interior luggage compartment release.......................68
Security 69
SecuriLockpassive anti-theft system.......................69
Steering Wheel 72
Adjusting the steering wheel..............................72
Steering wheel controls.................................73
Wipers and Washers 75
Windshield wipers.....................................75
Windshield washers....................................76
Rear-window wiper and washer............................76
Lighting 77
Lighting control.......................................77
Instrument lighting dimmer...............................77
Headlamp exit delay....................................78
Daytime running lamps..................................78
Turn signal control.....................................78
Interior lamps........................................79
Ambient lighting.......................................80
Windows and Mirrors 81
Power windows.......................................81
Exteriormirrors.......................................83
Interiormirrors .......................................84
Moonroof............................................85
Instrument Cluster 86
Gauges.............................................86
Warning lamps and indicators.............................87
Audible warnings and indicators...........................92
2Table of Contents
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

LOCKING AND UNLOCKING
You can use the power door lock control or the remote control to lock
and unlock the vehicle.
Power Door Locks
Type 1
Type 2
The power door lock control is located on the instrument panel near the
radio.
Press the control to lock/unlock the doors. When the light or lock symbol
on the button is on, it indicates that all doors and the trunk are locked.
When the light is off it indicates one or more doors are unlocked.
Rear Door Unlocking and Opening
Pull the interior door release handle twice to unlock/open the rear door.
The first pull unlocks the door and the second pull will unlatch the door.
Central Locking and Unlocking
To centrally lock/unlock all doors (from the driver’s side only) using the
key from the outside when they are closed:
•Turn the key counterclockwise to lock all doors. The turn signal lamps
will flash twice.
•Turn the key clockwise once to unlock the driver’s door or twice to
unlock all doors. The turn signal lamps will flash once.
Locks61
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

If the central locking function fails to
operate, the doors can be individually locked
using the key in the position shown.
On the driver’s side, turn the key clockwise
to lock. On the passenger’s side, turn the key
counterclockwise to lock.
Remote Control
The remote control can be used any time the vehicle is not running.
Unlocking the Doors (Two-Stage Unlock)
Press the button to unlock the driver’s door.
Press the button again within three seconds to unlock all doors.
The turn signals will flash.
Press and hold both the lock and unlock buttons on the remote control
for four seconds to disable or enable two-stage unlocking. Disabling
two-stage unlocking allows all vehicle doors to unlock with one press of
the button. The turn signals will flash twice to indicate the unlocking
mode was changed. The unlocking mode will be applied to the remote
control, keyless entry keypad and intelligent access (if equipped).
Intelligent access at the driver’s door will unlock all doors when
two-stage unlocking is disabled.
Locking the Doors
Press the button to lock all the doors. The turn signals will
illuminate.
Press the button again within three seconds to confirm that all the doors
are closed. The doors will lock again, the horn will chirp and the turn
signals will illuminate if all the doors and the liftgate/trunk are closed.
Note:If any door or the liftgate/trunk is not closed, or if the hood is not
closed on vehicles equipped with an anti-theft alarm, the horn will chirp
twice and the lamps will not flash.
62Locks
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Opening the Luggage Compartment
Press twice (within 3 seconds) to open the luggage
compartment.
Note:This feature will not operate when the engine is running and
vehicle speed is more than 4 mph (7 km/h).
Ensure that the trunk is closed and latched before driving your vehicle.
Failure to properly latch the trunk may cause objects to fall out or block
the driver’s rear view.
Activating Intelligent Access (If Equipped)
The intelligent access key must be within 3 feet (1 meter) of the vehicle.
At the Front Doors
Pull a front exterior door handle. The door will unlock and can be
opened.
Press and hold the door handle lock
sensor to lock the vehicle.
At the Luggage Compartment
Press the exterior release button
above the license plate.
Locks63
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Illuminated Exit
The interior lamps and parking lamps will illuminate for 25 seconds
when:
•the ignition is turned off.
•an IKT is removed from, or reinserted into, the ignition.
The lamps will turn off:
•if the ignition is turned off.
•if the vehicle is locked by any method other than the power door lock
control.
•after 25 seconds of illumination.
Accessory Mode Battery Saver for Intelligent Access Keys
(If Equipped)
If you shut off the engine and leave the ignition in the on or accessory
mode, the ignition will shut off after 30 minutes.
TRUNK RELEASE
To open the trunk with the outside
release button:
1. Unlock the trunk with the remote control or power door lock control.
The trunk will unlock when you press the release button if the intelligent
access transmitter is within 3 feet (1 meter) of the trunk.
2. Press the release button located above the license plate.
Locks67
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

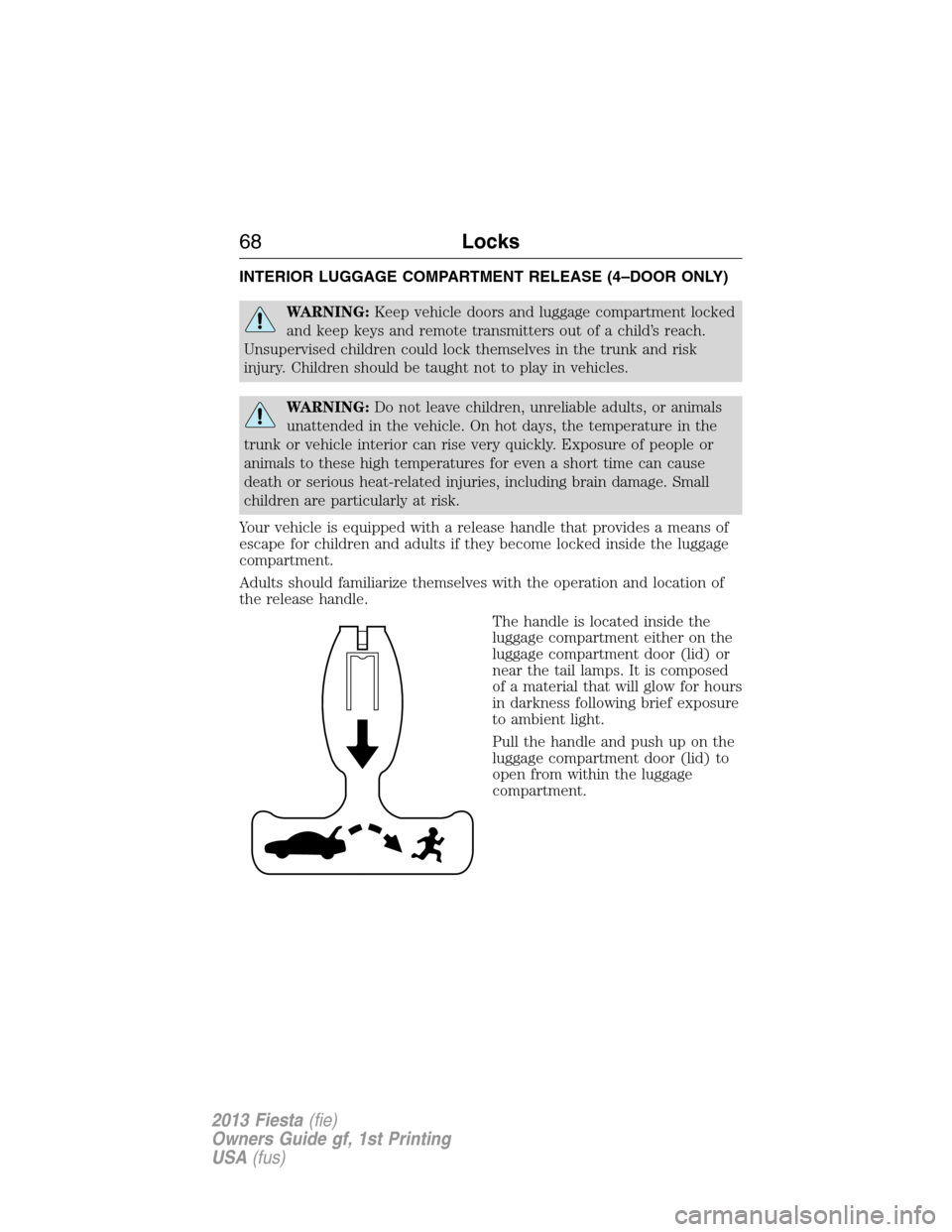

INTERIOR LUGGAGE COMPARTMENT RELEASE (4–DOOR ONLY)
WARNING:Keep vehicle doors and luggage compartment locked
and keep keys and remote transmitters out of a child’s reach.
Unsupervised children could lock themselves in the trunk and risk
injury. Children should be taught not to play in vehicles.
WARNING:Do not leave children, unreliable adults, or animals
unattended in the vehicle. On hot days, the temperature in the
trunk or vehicle interior can rise very quickly. Exposure of people or
animals to these high temperatures for even a short time can cause
death or serious heat-related injuries, including brain damage. Small
children are particularly at risk.
Your vehicle is equipped with a release handle that provides a means of
escape for children and adults if they become locked inside the luggage
compartment.
Adults should familiarize themselves with the operation and location of
the release handle.
The handle is located inside the
luggage compartment either on the
luggage compartment door (lid) or
near the tail lamps. It is composed
of a material that will glow for hours
in darkness following brief exposure
to ambient light.
Pull the handle and push up on the
luggage compartment door (lid) to
open from within the luggage
compartment.
68Locks
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Message Warning Lamp at
Instrument ClusterSystem
STEERING
MALFUNCTION
SERVICE NOW—Passive Entry/Passive
Start
STEERING
MALFUNCTION
STOP SAFELY—Passive Entry/Passive
Start
POWER STEERING
MALFUNCTION
SERVICE NOW— Power Steering
KEY NOT
DETECTED—Passive entry/passive
start system
TURN IGNITION
OFF USE POWER
BUTTON—Passive entry/passive
start system
KEY OUTSIDE CAR
—Passive entry/passive
start system
KEY BATTERY LOW
REPLACE BATTERY—Passive entry/passive
start system
TO START PRESS
BRAKE—Passive Entry/Passive
Start
CLOSE TRUNK OR
USE SPARE KEY— Trunk
TO START PRESS
CLUTCH—Passive Entry/Passive
Start
ENGINE
MALFUNCTION
SERVICE NOW
Engine
TRANSMISSION
MALFUNCTION
SERVICE NOW— Transmission
TRANSMISSION
HOT STOP SAFELY— Transmission
96Information Displays
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)

Message Warning Lamp at
Instrument ClusterSystem
TRANSMISSION
HOT STOP OR
SPEED UP— Transmission
USE BRAKE STOP
SAFELY— Transmission
TRANSMISSION
HOT WAIT X MIN— Transmission
TRANSMISSION
HOT WAIT...— Transmission
TRANSMISSION
READY— Transmission
HILL START ASSIST
ACTIVE— Transmission
HILL START ASSIST
OFF— Transmission
VEHICLE NOT IN
PARK SELECT P— Starting/Transmission
VEHICLE NOT IN
PARK SELECT P— Starting/Transmission
DOOR OPEN APPLY
BRAKE— Doors
X DOOR OPEN
Doors
TRUNK OPEN
Doors
HOOD OPEN
Hood
AIRBAG
MALFUNCTION
SERVICE NOW
Airbag
ENGINE OIL
CHANGE DUE NEXT
SERVICE
Engine Oil (SeeOil
life monitoring
system resetlater in
this section)
Information Displays97
2013 Fiesta(fie)
Owners Guide gf, 1st Printing
USA(fus)
