2013 FORD F650 set clock

AM/FM
WARNING:Driving while distracted can result in loss of vehicle
control, crash and injury. We strongly recommend that you use
extreme caution when using any device that may take your focus off
the road. Your primary responsibility is the safe operation of your
vehicle. We recommend against the use of any hand-held device while
driving and encourage the use of voice-operated systems when possible.
Make sure you are aware of all applicable local laws that may affect the
use of electronic devices while driving.
A.CLK:Press this button to switch the display between the clock and
radio frequency. To set the time:
1. Press and holdCLKuntil the hours start to flash.
2. Press the arrow buttons to adjust the hours. Repeat Steps 1 and 2 to
set the minutes.
3. PressCLKagain to exit clock mode.
B.Tune:Press these arrow buttons to manually search through the radio
frequency band. Press and hold for a fast search. In AUDIO mode, press
the buttons to adjust different sound settings.
C.AUDIO:Press this button to access settings for Treble, Middle, Bass,
Fade and Balance.
D.SEEK:Press this button to go to the previous or next strong station
on the frequency band.
CLK
AUDIOC
EG
F
BA
D
Audio System79
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

Fuel Filler Cap
WARNING:The fuel system may be under pressure. If the fuel
filler cap is venting vapor or if you hear a hissing sound, wait
until it stops before completely removing the fuel filler cap. Otherwise,
fuel may spray out and injure you or others.
WARNING:If you do not use the proper fuel filler cap, excessive
pressure or vacuum in the fuel tank may damage the fuel system
or cause the fuel cap to disengage in a crash, which may result in
possible personal injury.
Note:If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may be
void for any damage to the fuel tank or fuel system if the correct
genuine Ford, Motorcraft® or other certified fuel filler cap is not used.
Your fuel tank filler cap has an indexed design with a
14–turn on and off
feature. When fueling your vehicle:
1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise until it spins off.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise a
14–turn until it clicks at least once.
If the check fuel cap light appears in the instrument cluster and stays on
after you start the engine, the fuel filler cap may not be properly
installed.
If the fuel cap light remains on, at the next opportunity, safely pull off of
the road, remove the fuel filler cap, align the cap properly and reinstall
it. The check fuel cap light may not reset immediately; it may take
several driving cycles for the indicators to turn off. A driving cycle
consists of an engine start-up (after four or more hours with the engine
off) followed by normal city and highway driving.
FUEL CONSUMPTION
Filling the Tank
The advertised capacity is the indicated capacity and the empty reserve
combined. Indicated capacity is the difference in the amount of fuel in a
full tank and a tank when the fuel gauge indicates empty. Empty reserve
is the amount of fuel in the tank after the fuel gauge indicates empty.
11 8Fuel and Refueling
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

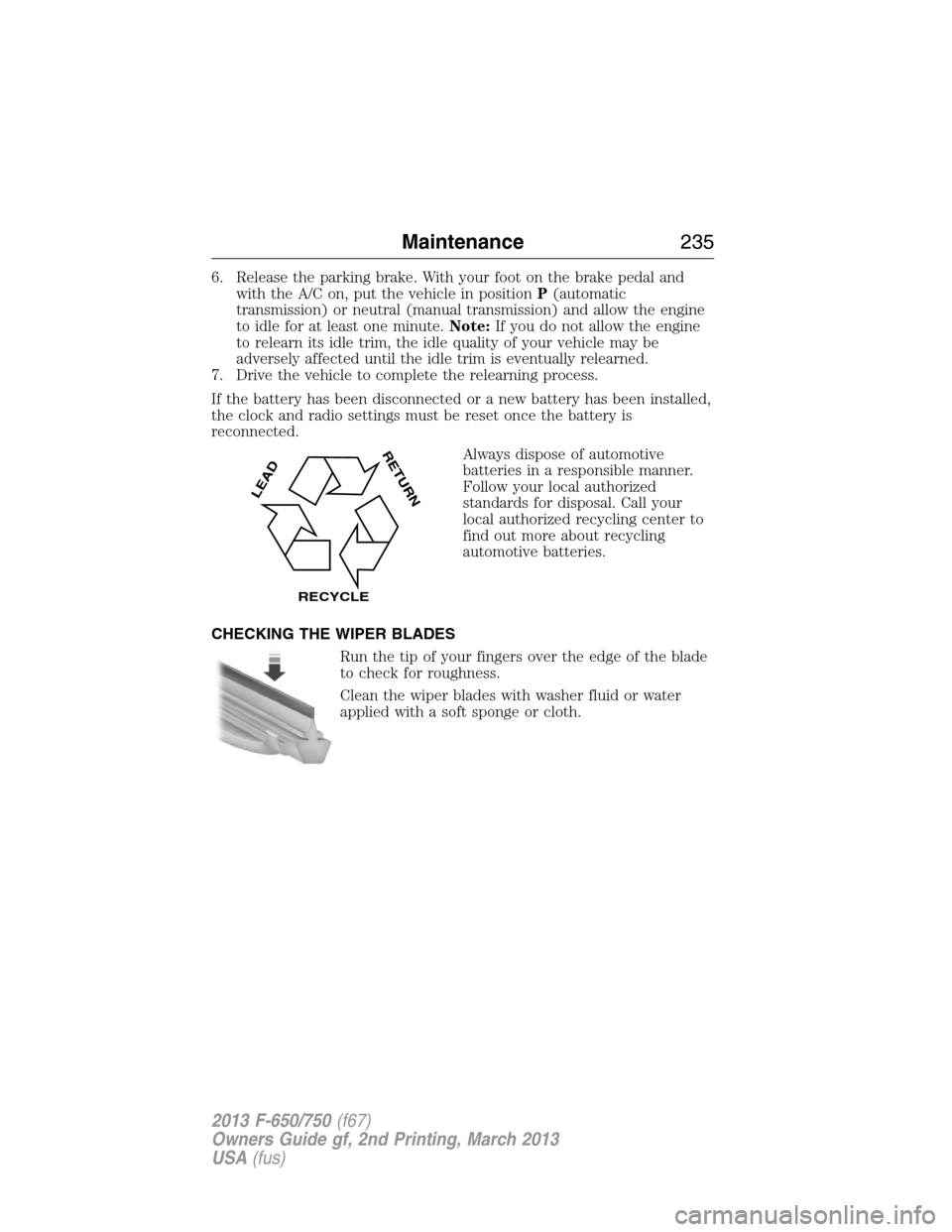

6. Release the parking brake. With your foot on the brake pedal and
with the A/C on, put the vehicle in positionP(automatic
transmission) or neutral (manual transmission) and allow the engine
to idle for at least one minute.Note:If you do not allow the engine
to relearn its idle trim, the idle quality of your vehicle may be
adversely affected until the idle trim is eventually relearned.
7. Drive the vehicle to complete the relearning process.
If the battery has been disconnected or a new battery has been installed,
the clock and radio settings must be reset once the battery is
reconnected.
Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center to
find out more about recycling
automotive batteries.
CHECKING THE WIPER BLADES
Run the tip of your fingers over the edge of the blade
to check for roughness.
Clean the wiper blades with washer fluid or water
applied with a soft sponge or cloth.
L
E
A
D
RETURN
RECYCLE
Maintenance235
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

for adults .................42–43, 45, 47
for children .........................28, 33
safety belt maintenance ...........51
seat belt maintenance ..............51
warning light and chime ..........48
Safety restraints - LATCH
anchors ........................................36
Safety seats for children ......28, 33
Safety Compliance
Certification Label ....................281
Seat belts (see Safety
restraints) ....................................42
Seats
child safety seats ................28, 33
front seats .................................96
heated ........................................99
Selecting your media source
(USB, Line in, BT audio) .........350
Setting the clock ...................79–80
Spark plugs,
specifications .....................263, 280
Specification chart, lubricants..264
Starting your vehicle ........103, 105
jump starting ..........................185
Steering .....................................212
Steering wheel ............................54
controls ......................................54
tilting .........................................54
Suspension ........................171, 214
SYNC® AppLink™ ...................346
SYNC® customer support ........320
SYNC® Services ........................343
T
Tail lamps
bulb replacement ....................239Temperature control
(see Climate control) .................88
Text messaging .........................331
Text messaging (sending,
downloading, deleting) .....331, 333
Tilt steering wheel ......................54
Tires ...........................................252
Towing .......................................175
trailer towing ..........................175
wrecker ....................................179
Traction control ........................164
Traffic, Directions and
Information ................................343
Transmission .....................132, 136
automatic operation ...............136
brake-shift interlock (BSI) ....136
fluid, checking and adding
(automatic) .............................223
fluid, checking and adding
(manual) .................................225
fluid, refill capacities ..............277
lubricant specifications ..........264
manual operation ....................132
Turn signal ..................................58
U
Upfitter controls .......................172
UREA .........................................120
USB port ......................................84
Using privacy mode ..................328
V
Vehicle health report ................341
Vehicle Identification Number
(VIN) ..................................281–282
Vehicle loading ..........................174
376Index
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)
