2013 FORD F650 headlamp

ADJUSTING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
CHANGING A BULB
Lamp Assembly Condensation
Exterior lamps are vented to accommodate normal changes in pressure.
Condensation can be a natural by-product of this design. When moist air
enters the lamp assembly through the vents, there is a possibility that
condensation can occur when the temperature is cold. When normal
condensation occurs, a thin film of mist can form on the interior of the
lens. The thin mist eventually clears and exits through the vents during
normal operation. Clearing time may take as long as 48 hours under dry
weather conditions.
Examples of acceptable condensation are:
•Presence of thin mist (no streaks, drip marks or droplets).
•Fine mist covers less than 50% of the lens.
Examples of unacceptable moisture (usually caused by a lamp water
leak) are:
•Water puddle inside the lamp.
•Large water droplets, drip marks or streaks present on the interior of
the lens.
Take your vehicle to a dealer for service if any of the above conditions of
unacceptable moisture are present.
Replacing Headlamp Bulbs
1. Make sure the headlamp control is in the off position.
2. Remove the four screws, then
move the parking lamp assembly
away from the headlamp bulb.
Maintenance239
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

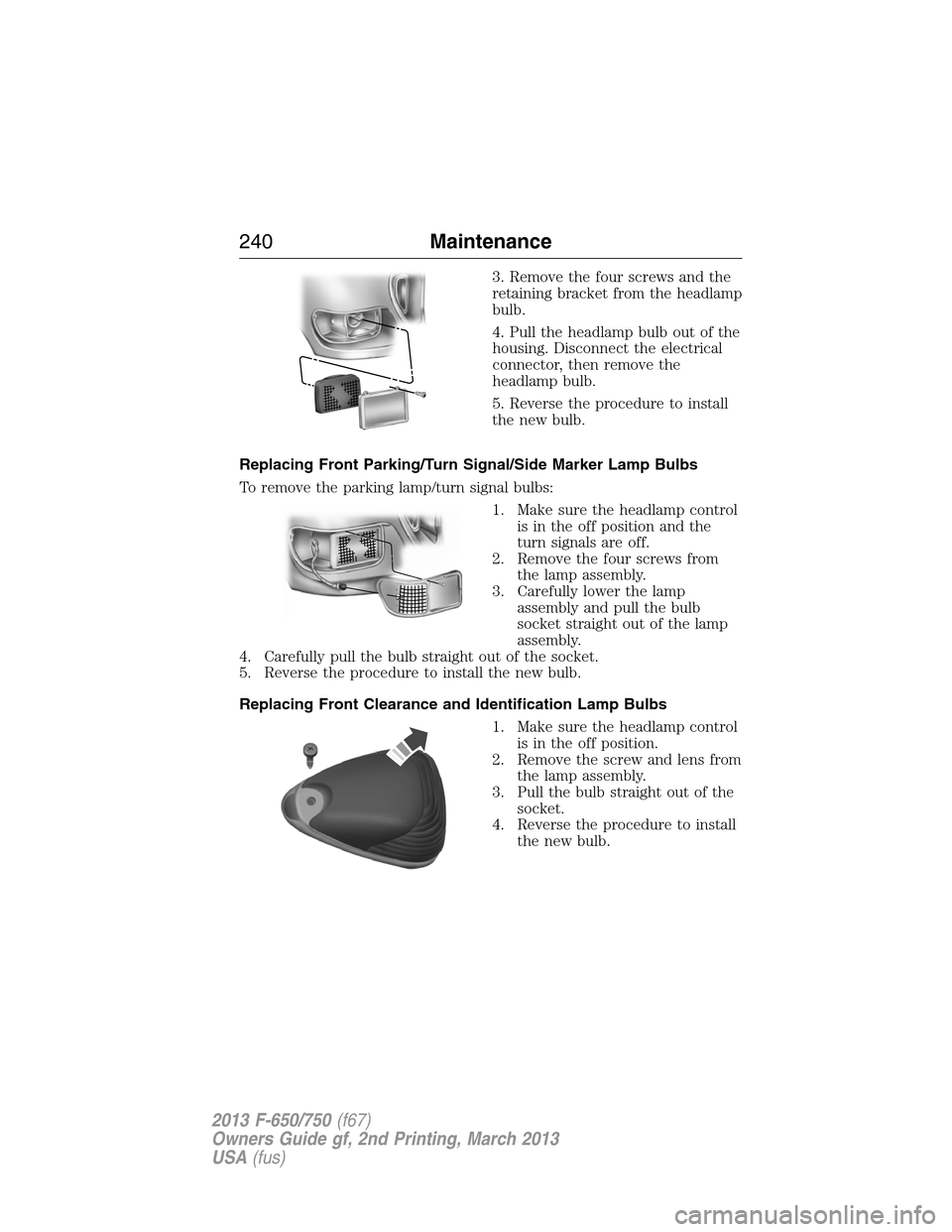

3. Remove the four screws and the
retaining bracket from the headlamp
bulb.
4. Pull the headlamp bulb out of the
housing. Disconnect the electrical
connector, then remove the
headlamp bulb.
5. Reverse the procedure to install
the new bulb.
Replacing Front Parking/Turn Signal/Side Marker Lamp Bulbs
To remove the parking lamp/turn signal bulbs:
1. Make sure the headlamp control
is in the off position and the
turn signals are off.
2. Remove the four screws from
the lamp assembly.
3. Carefully lower the lamp
assembly and pull the bulb
socket straight out of the lamp
assembly.
4. Carefully pull the bulb straight out of the socket.
5. Reverse the procedure to install the new bulb.
Replacing Front Clearance and Identification Lamp Bulbs
1. Make sure the headlamp control
is in the off position.
2. Remove the screw and lens from
the lamp assembly.
3. Pull the bulb straight out of the
socket.
4. Reverse the procedure to install
the new bulb.
240Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

Replacing Brake/Tail/Rear Turn Signal/Reverse/License Plate Lamp
Bulbs
1. Remove the four screws and the
lamp lens from the lamp
assembly.
2. Carefully pull the bulb straight
out of the socket.
3. Reverse the procedure to install
the new bulb.
BULB SPECIFICATION CHART
Replacement bulbs are specified in the chart below. Headlamp bulbs
must be marked with an authorized D.O.T. for North America and an E
for Europe to make sure lamp performance, light brightness and pattern
and safe visibility. The correct bulbs will not damage the lamp assembly
or void the lamp assembly warranty and will provide quality bulb
illumination time.
Function Number of
BulbsTrade Number
Headlamps 2 H6054
Front turn signal lamps 2 1157
Front sidemarker lamps, parking
lamps2 (amber) 194
Brake lamps, tail lamps, stop lamps,
rear turn signals lamps, license plate
lamps1 (each side) 1157
Back up lamps 2 1156
Front clearance and identification
lamps5 194
Dome lamp 1 105
To replace all instrument panel lights, see your authorized dealer.
Maintenance241
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

Observation Maintenance Operation
Cleaning the wiper blades with a
clean cloth and mild detergent and
washing with a cleaner does not
restore a clean wipe.Replace wiper blades.
Noisy or difficult to operate. Lubricate body lock cylinders.
Headlamp beams in wrong position
when vehicle operating loaded.Check headlamp alignment.
Windshield washers do not spray
when operated.Check windshield washer fluid
level. Add fluid if required.
1During maintenance and repair, protect the fuel tube and the hose
assemblies, power steering lines, and brake lines from external heat,
acids and abrasions that could damage them.
2Check for (free) linkage action and make sure that (return) spring force
is adequate to maintain pedal free play.
3Adjust, repair or replace, as required, with the same or equivalent parts.
Emissions Control System
WARNING:Because of high engine compartment and exhaust
system temperatures resulting from emissions equipment, do not
park, idle or operate your vehicle in dry grass or other dry ground
cover where the possibility of ground fire exists.
To make sure the emissions control systems operate effectively, you
should have the services listed in the maintenance schedule performed at
the specified time and mileage intervals. You should avoid running out of
fuel or turning off the ignition while the vehicle is in motion, especially
at high speeds.
Do not make unauthorized modifications to the engine or vehicle.
Modifications causing increased amounts of unburned fuel to reach the
exhaust system can significantly increase the temperature of the engine
compartment and the exhaust system.
Avoid driving your vehicle if it does not operate properly. If the engine
diesels (more than five seconds of engine run-on after shut-off), misfires,
surges, stalls or backfires, see your dealer. Be alert for fluid leakage, odor,
smoke, loss of oil pressure, or charge indicator or over temperature warning.
288Scheduled Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

Exhaust fumes ..........................104
F
Fail safe cooling ........................222
Fan, Engine Cooling .................219
Filter
fuel ...........................................232
Fuel
cap ...........................................118
capacity ...................................277
filler funnel .............................116
filling your vehicle with fuel ..118
octane rating ...................116, 263
quality ......................................114
running out of fuel .................116
safety information relating to
automotive fuels .....................113
Fuses ..........................194–195, 203
G
Gas cap (see Fuel cap) ............118
Gauges ...................................64, 66
H
Hazard flashers .........................185
Headlamps ...................................56
aiming ......................................239
bulb specifications ..................241
daytime running lights .............57
flash to pass ..............................56
replacing bulbs .......................239
turning on and off ....................56
Head restraints ...........................92
Heating ........................................88
Hood ..........................................215I
Ignition ...............................103, 263
Information displays ...................74
Instrument panel
cleaning ...................................247
cluster ........................................68
lighting up panel and
interior .......................................57
J
Joining two calls
(multiparty/conference call) ....328
Jump-starting your vehicle ......185
K
Keys
positions of the ignition .........103
L
Lamps ..........................................56
bulb replacement
specifications chart ................241
daytime running light ...............57
headlamps .................................56
headlamps, flash to pass ..........56
instrument panel, dimming .....57
interior lamps .....................58–59
replacing bulbs .......................239
Lane change indicator
(see Turn signal) ........................58
LATCH anchors ...........................36
Lights, warning and indicator ....68
Load limits .................................174
Locks
childproof ..................................40
doors ..........................................53
374Index
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)
