2013 FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS display

Introduction 4
Steering Wheel 11
Adjusting the steering wheel..............................11
Wipers and Washers 12
Windshield wipers.....................................12
Windshield washers....................................12
Lighting 13
Lighting control.......................................13
Instrument lighting dimmer...............................14
Daytime running lamps..................................14
Directionindicators ....................................15
Instrument Cluster 16
Gauges.............................................16
Warning lamps and indicators.............................18
Audible warnings and indicators...........................21
Information Displays 22
Controls.............................................22
Starting and Stopping the Engine 27
Ignition switch........................................28
Starting the engine.....................................28
Fuel and Refueling 30
Fuel quality..........................................32
Refueling............................................33
Fuel consumption......................................34
Transmission 39
Transmission operation..................................39
Brakes 44
Brakes..............................................44
Hints on driving with anti-lock brakes.......................45
Table of Contents1
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

GAUGES
A. Engine oil pressure gauge
B. Tachometer
C. Information display. SeeInformation displaysfor more information.
D. Speedometer. Vehicle speed is limited to either 65 mph (105 km/h) or
75 mph (120 km/h).
E. Transmission fluid temperature gauge
F. Engine coolant temperature gauge
G. Fuel gauge
Engine Oil Pressure Gauge
Indicates engine oil pressure. The needle should stay in the normal
operating range (between “L” and “H”). If the needle falls below the
normal range, stop the vehicle, turn off the engine and check the engine
oil level. Add oil if needed. If the oil level is correct, have your vehicle
checked by your authorized dealer.
ABDEC
GF
16Instrument Cluster
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

AUDIBLE WARNINGS AND INDICATORS
Headlamps On Warning Chime
Sounds when the headlamps or parking lamps are on, the ignition is off
(the key is not in the ignition) and the driver’s door is opened.
Fail-Safe Cooling Warning Chime
Sounds when the coolant gauge pointer has moved to hot. There are
three stages of chimes:
•Stage 1 is a single chime when the engine temperature begins to
overheat.
•Stage 2 is multiple chimes and engine power becomes limited in order
to help cool the engine.
•Stage 3 is multiple chimes and the engine will shut down.
Key In Ignition Warning Chime
Sounds when the key is left in the ignition in the off or accessory
position and the driver’s door is opened.
Information Display Chime
Sounds when some warning messages appear in the display for the first
time.
Parking Brake On Warning Chime
Sounds when you have left the parking brake on and you drive your
vehicle. If the warning chime remains on after you have released the
parking brake, have the system checked by your authorized dealer
immediately.
Instrument Cluster21
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

GENERAL INFORMATION
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device or feature that may
take their focus off the road. Your primary responsibility is the safe
operation of the vehicle. We recommend against the use of any
handheld device while driving and that you comply with all applicable
laws.
Various systems on your vehicle can be controlled using the information
display controls located on the on the steering wheel . Corresponding
information is displayed in the information display.
Information Display Controls
•Press the info button to scroll
through trip, outside air
temperature, engine hours and
miles to empty.
•Press the setup button to scroll
through various vehicle feature
settings.
•Press the reset button to choose
settings, reset information and
confirm messages.
Info
Press the INFO button repeatedly to
cycle through the following features:
RESET
SETUP
INFO
RESET
SETUP
INFO
22Information Displays
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

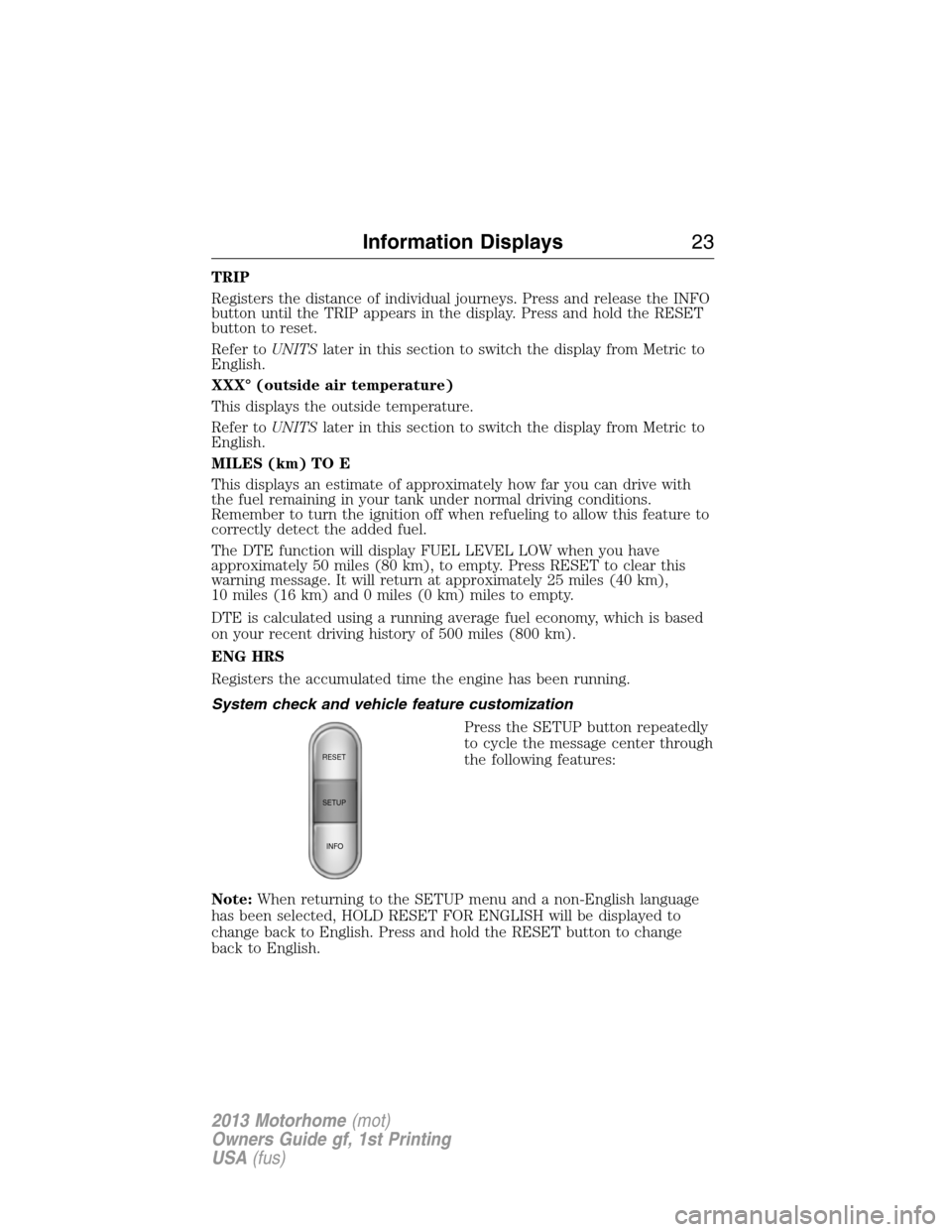

TRIP
Registers the distance of individual journeys. Press and release the INFO
button until the TRIP appears in the display. Press and hold the RESET
button to reset.
Refer toUNITSlater in this section to switch the display from Metric to
English.
XXX° (outside air temperature)
This displays the outside temperature.
Refer toUNITSlater in this section to switch the display from Metric to
English.
MILES (km) TO E
This displays an estimate of approximately how far you can drive with
the fuel remaining in your tank under normal driving conditions.
Remember to turn the ignition off when refueling to allow this feature to
correctly detect the added fuel.
The DTE function will display FUEL LEVEL LOW when you have
approximately 50 miles (80 km), to empty. Press RESET to clear this
warning message. It will return at approximately 25 miles (40 km),
10 miles (16 km) and 0 miles (0 km) miles to empty.
DTE is calculated using a running average fuel economy, which is based
on your recent driving history of 500 miles (800 km).
ENG HRS
Registers the accumulated time the engine has been running.
System check and vehicle feature customization
Press the SETUP button repeatedly
to cycle the message center through
the following features:
Note:When returning to the SETUP menu and a non-English language
has been selected, HOLD RESET FOR ENGLISH will be displayed to
change back to English. Press and hold the RESET button to change
back to English.
RESET
SETUP
INFO
Information Displays23
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

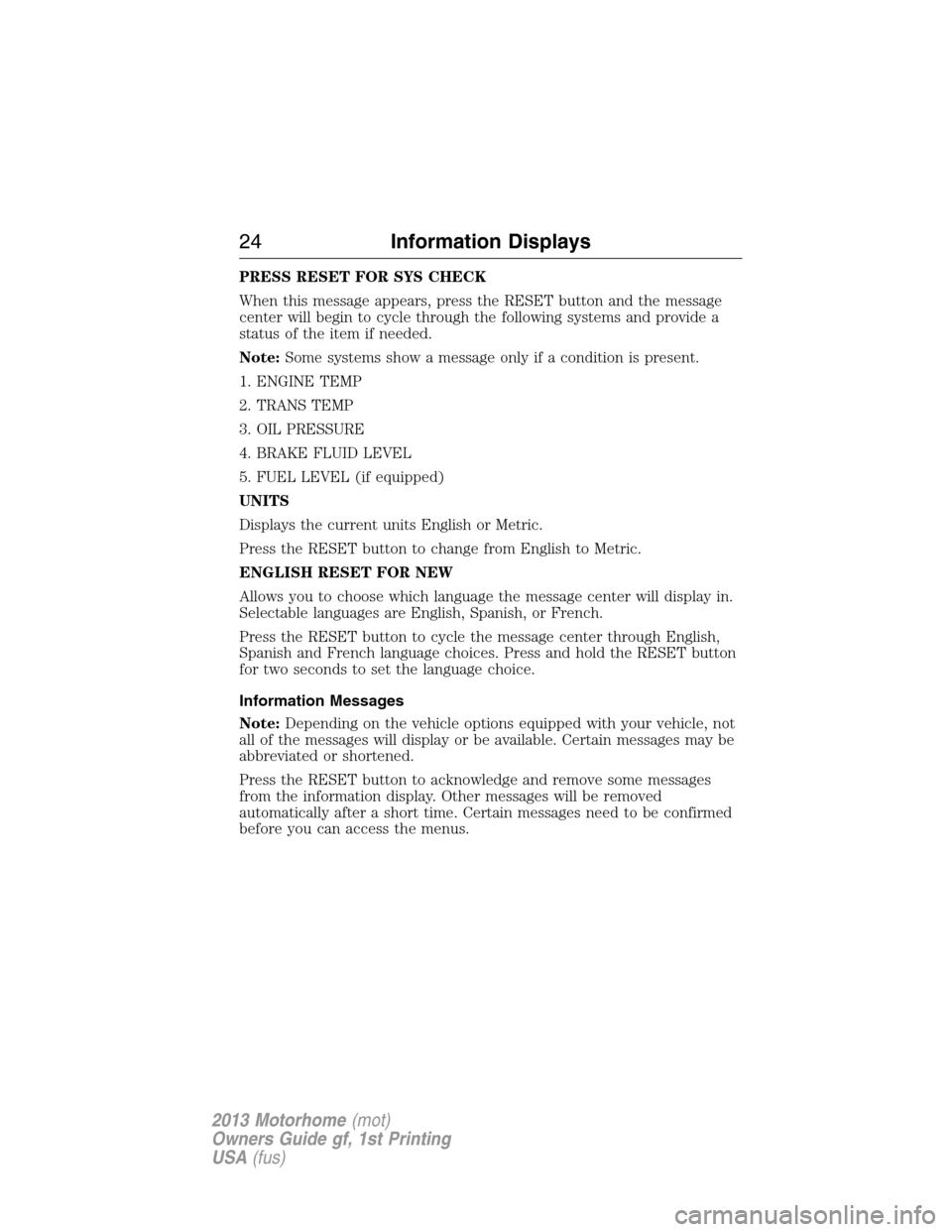

PRESS RESET FOR SYS CHECK
When this message appears, press the RESET button and the message
center will begin to cycle through the following systems and provide a
status of the item if needed.
Note:Some systems show a message only if a condition is present.
1. ENGINE TEMP
2. TRANS TEMP
3. OIL PRESSURE
4. BRAKE FLUID LEVEL
5. FUEL LEVEL (if equipped)
UNITS
Displays the current units English or Metric.
Press the RESET button to change from English to Metric.
ENGLISH RESET FOR NEW
Allows you to choose which language the message center will display in.
Selectable languages are English, Spanish, or French.
Press the RESET button to cycle the message center through English,
Spanish and French language choices. Press and hold the RESET button
for two seconds to set the language choice.
Information Messages
Note:Depending on the vehicle options equipped with your vehicle, not
all of the messages will display or be available. Certain messages may be
abbreviated or shortened.
Press the RESET button to acknowledge and remove some messages
from the information display. Other messages will be removed
automatically after a short time. Certain messages need to be confirmed
before you can access the menus.
24Information Displays
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

Engine Cooling
System MessagesAction / Description
REDUCED ENGINE
POWERDisplayed when the engine is overheating.
Stop the vehicle as soon as safely possible,
turn off the engine. If the warning stays on
followed by an indicator chime or continues to
come on, contact your authorized dealer as
soon as possible. Never remove the coolant
reservoir cap while the engine is running or
hot.
STOP ENGINE
SAFELYDisplayed when the engine is overheating.
Stop the vehicle as soon as safely possible,
turn off the engine. If the warning stays on
followed by an indicator chime or continues to
come on, contact your authorized dealer as
soon as possible.
CHECK ENGINE
TEMPERATUREDisplayed when the engine coolant is
overheating. Stop the vehicle as soon as safely
possible, turn off the engine and let it cool.
Check the coolant and coolant level. If the
warning stays on or continues to come on,
contact your authorized dealer as soon as
possible.
Brake, Oil, Fuel and
Transmission
MessagesAction / Description
FUEL LEVEL LOWDisplayed as an early reminder of a low fuel
condition.
BRAKE FLUID
LEVEL LOWIndicates the brake fluid level is low and the
brake system should be inspected immediately.
Information Displays25
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)

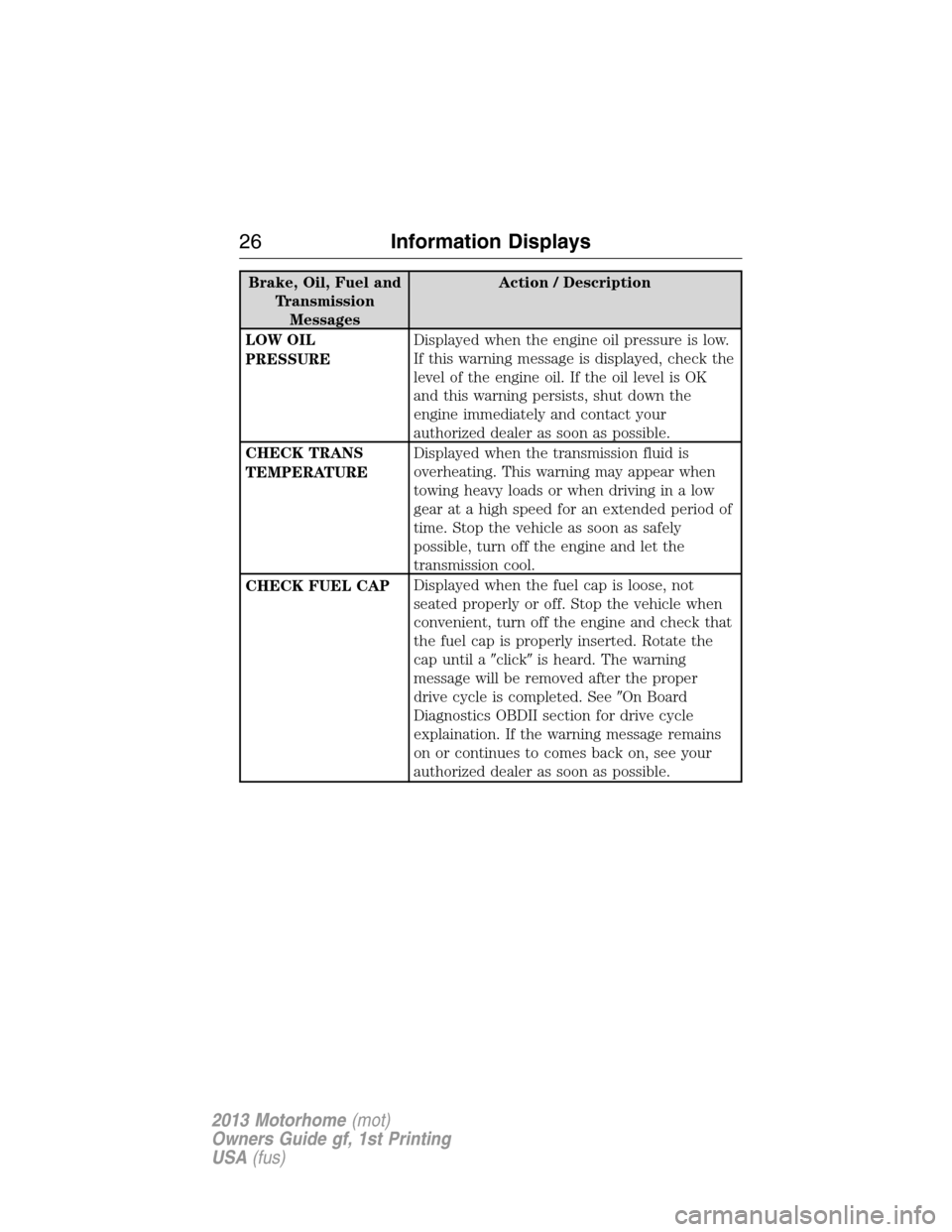

Brake, Oil, Fuel and
Transmission
MessagesAction / Description
LOW OIL
PRESSUREDisplayed when the engine oil pressure is low.
If this warning message is displayed, check the
level of the engine oil. If the oil level is OK
and this warning persists, shut down the
engine immediately and contact your
authorized dealer as soon as possible.
CHECK TRANS
TEMPERATUREDisplayed when the transmission fluid is
overheating. This warning may appear when
towing heavy loads or when driving in a low
gear at a high speed for an extended period of
time. Stop the vehicle as soon as safely
possible, turn off the engine and let the
transmission cool.
CHECK FUEL CAPDisplayed when the fuel cap is loose, not
seated properly or off. Stop the vehicle when
convenient, turn off the engine and check that
the fuel cap is properly inserted. Rotate the
cap until aclickis heard. The warning
message will be removed after the proper
drive cycle is completed. SeeOn Board
Diagnostics OBDII section for drive cycle
explaination. If the warning message remains
on or continues to comes back on, see your
authorized dealer as soon as possible.
26Information Displays
2013 Motorhome(mot)
Owners Guide gf, 1st Printing
USA(fus)
