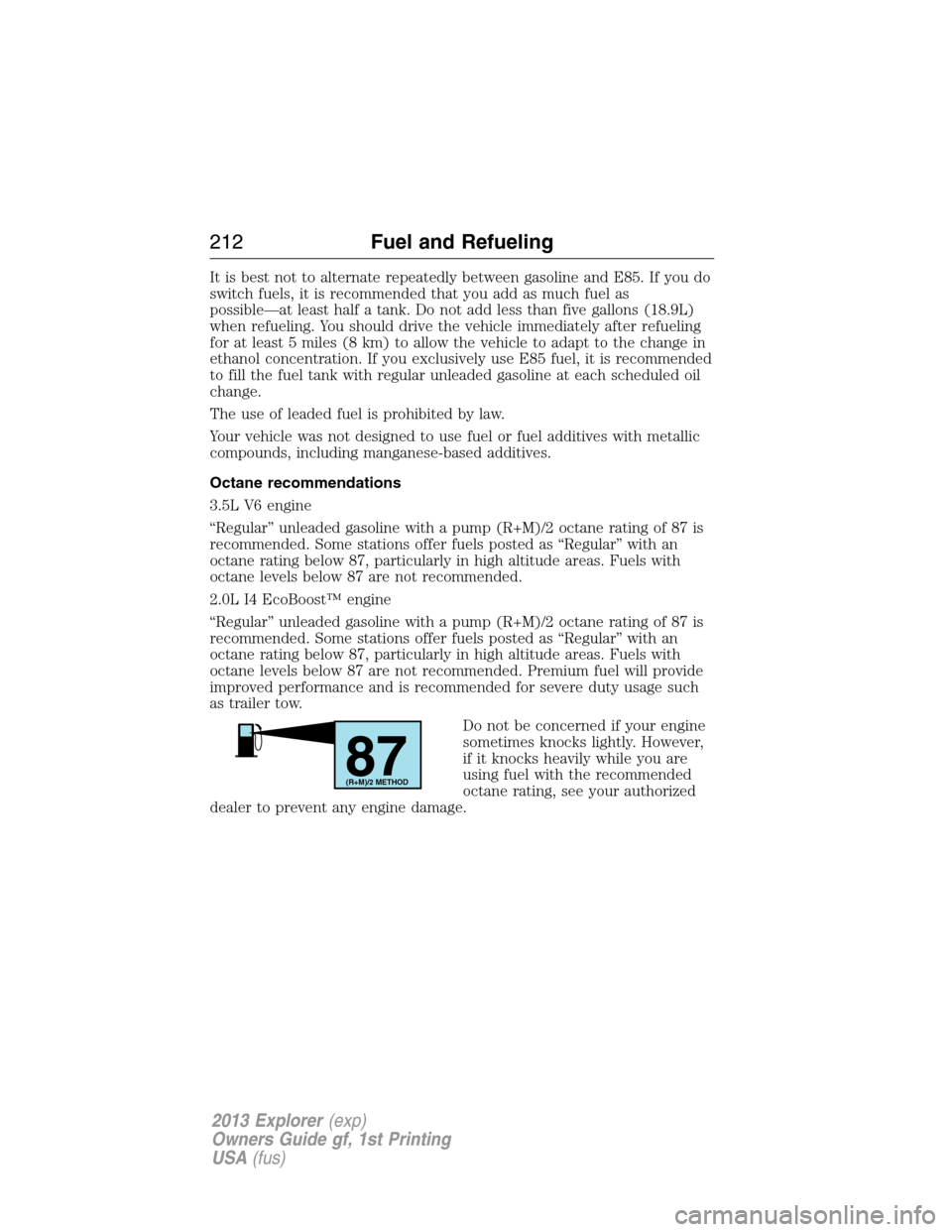

2013 FORD EXPLORER octane

It is best not to alternate repeatedly between gasoline and E85. If you do
switch fuels, it is recommended that you add as much fuel as
possible—at least half a tank. Do not add less than five gallons (18.9L)
when refueling. You should drive the vehicle immediately after refueling
for at least 5 miles (8 km) to allow the vehicle to adapt to the change in
ethanol concentration. If you exclusively use E85 fuel, it is recommended
to fill the fuel tank with regular unleaded gasoline at each scheduled oil
change.
The use of leaded fuel is prohibited by law.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives.
Octane recommendations
3.5L V6 engine
“Regular” unleaded gasoline with a pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer fuels posted as “Regular” with an
octane rating below 87, particularly in high altitude areas. Fuels with
octane levels below 87 are not recommended.
2.0L I4 EcoBoost™ engine
“Regular” unleaded gasoline with a pump (R+M)/2 octane rating of 87 is
recommended. Some stations offer fuels posted as “Regular” with an
octane rating below 87, particularly in high altitude areas. Fuels with
octane levels below 87 are not recommended. Premium fuel will provide
improved performance and is recommended for severe duty usage such
as trailer tow.
Do not be concerned if your engine
sometimes knocks lightly. However,
if it knocks heavily while you are
using fuel with the recommended
octane rating, see your authorized
dealer to prevent any engine damage.
87(R+M)/2 METHOD
212Fuel and Refueling
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

ENGINE SPECIFICATIONS
Engine 3.5L V6 engine2.0L EcoBoost™
engine
Cubic inches 213 122
Required fuel Minimum 87 octane Minimum 87 octane
Firing order 1-4-2-5-3-6 1-3-4-2
Ignition system EDIS Coil on plug
Spark plug gap 0.049–0.053 inch
(1.25–1.35 mm)0.027-0.031 inch
(0.70-0.80 mm)
Compression ratio 10.8:1 9.3:1
Engine drivebelt routing
3.5L V6 engine
2.0L EcoBoost™ engine
392Capacities and Specifications
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

D
Defrost ....................... 158, 160, 162
rear window ............................ 166
Dipstick
automatic transmission
fluid .................................. 333–334
engine oil ................................. 327
Display settings ......................... 527
Driver alert ................................ 262
Driving under special
conditions .................. 225, 229, 231
sand ......................................... 230
snow and ice ........................... 232
through water ................. 231, 297
Dual automatic temperature
control (DATC) ................. 160, 162
E
Electronic message center ....... 122
Electronic stability control ...... 238
Emergencies, roadside
jump-starting .......................... 302
running out of fuel ................. 213
Emergency brake
(see Parking brake) .................. 235
Emission control system .......... 217
End user license agreement .... 551
Engine ........................................ 392
cleaning ................................... 352
fail-safe cooling ....................... 332
idle speed control ................... 337
lubrication specifications ....... 393
refill capacities ........................ 393
service points .................. 325–326
Engine block heater ................. 208Engine oil
checking and adding .............. 327
dipstick .................................... 327
filter, specifications ................ 397
refill capacities ........................ 393
specifications .......................... 393
Event data recording .................. 12
Exhaust fumes .......................... 208
F
Fail safe cooling ........................ 332
Fleet MyKey programming ........ 69
Flexible Fuel Vehicle
(FFV) ......................................... 210
Floor mats ................................. 298
Fluid capacities ......................... 393
Fuel
cap ........................................... 215
capacity ................................... 393
choosing the right fuel ........... 211
filler funnel ............................. 213
filling your vehicle with fuel .. 215
filter, specifications ........ 336, 397
fuel pump shut-off .................. 302
octane rating ........................... 392
running out of fuel ................. 213
safety information relating to
automotive fuels ..................... 210
Fuel and distance computer .... 125
outside temperature
indicator .................................. 125
to empty indicator .................. 125
trip distance ............................ 125
trip/reset button ..................... 125
Fuel - flex fuel vehicle
(FFV) ................................. 210–211
Fuses .......................... 313–314, 319
Index571
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)
