Introduction 9
Child Safety 18
Child seats...........................................20
Child seat positioning...................................20
Booster seats.........................................22
Installing child seats with lap and shoulder belts................25
Installing child safety seats with lower anchors and tethers for
children.............................................30
Installing child safety seats with tether straps..................32
Child safety locks......................................36
Safety Belts 37
Fastening the safety belts................................39
Safety belt height adjustment.............................42
Safetybeltwarninglightandindicatorchime..................43
Safety belt-minder.....................................43
Rear inflatable safety belt................................46
Child restraint and safety belt maintenance...................47
Personal Safety System 48
Supplementary Restraints System 49
Driver and passenger airbags..............................51
Front passenger sensing system............................53
Side airbags..........................................55
Safety canopy curtain airbags.............................57
Crash sensors and airbag indicator..........................59
Airbag disposal........................................60
Keys and Remote Control 61
General information on radio frequencies.....................61
Remote control........................................62
Keys...............................................62
Replacing a lost key or remote control.......................68
Table of Contents1
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

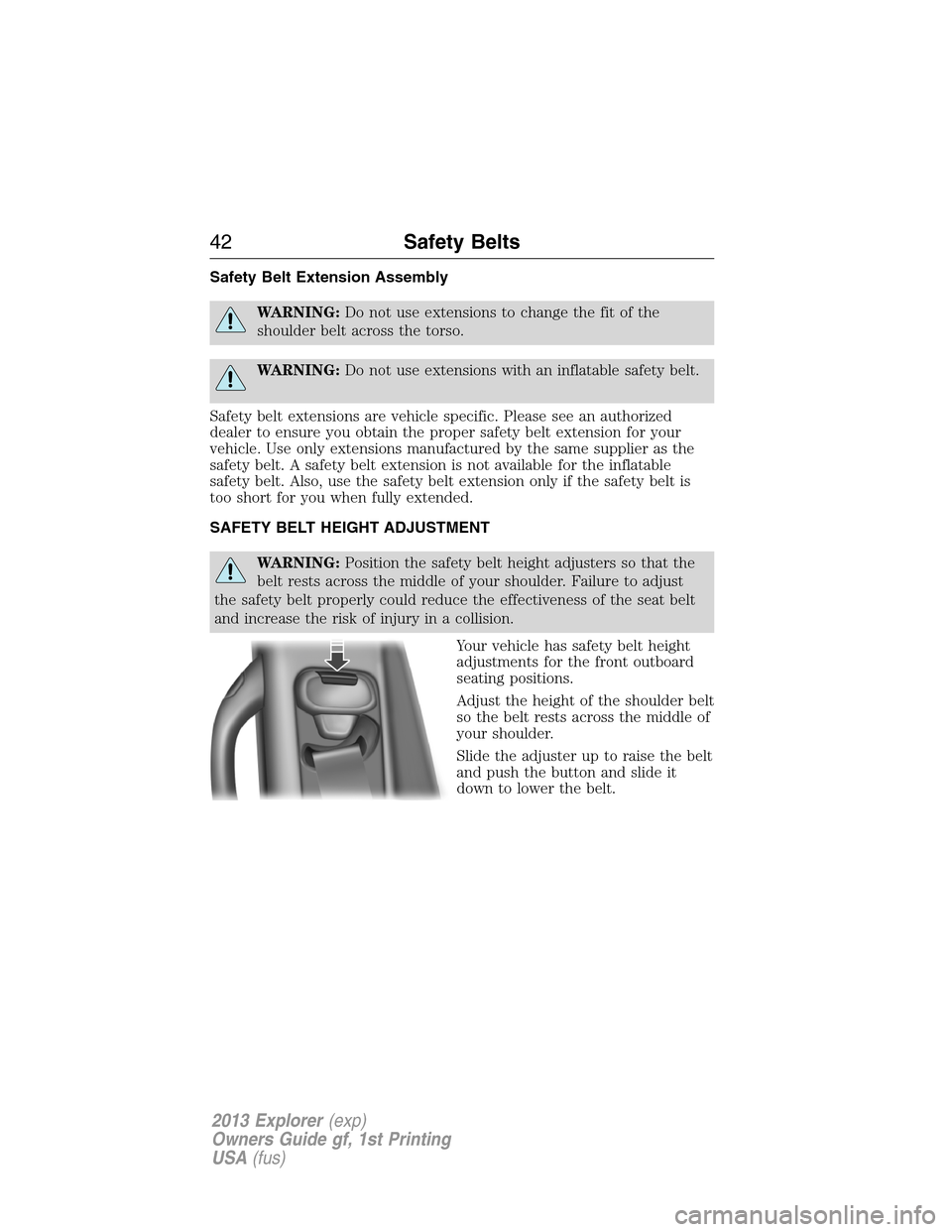

Safety Belt Extension Assembly
WARNING:Do not use extensions to change the fit of the
shoulder belt across the torso.
WARNING:Do not use extensions with an inflatable safety belt.
Safety belt extensions are vehicle specific. Please see an authorized
dealer to ensure you obtain the proper safety belt extension for your
vehicle. Use only extensions manufactured by the same supplier as the
safety belt. A safety belt extension is not available for the inflatable
safety belt. Also, use the safety belt extension only if the safety belt is
too short for you when fully extended.
SAFETY BELT HEIGHT ADJUSTMENT
WARNING:Position the safety belt height adjusters so that the
belt rests across the middle of your shoulder. Failure to adjust
the safety belt properly could reduce the effectiveness of the seat belt
and increase the risk of injury in a collision.
Your vehicle has safety belt height
adjustments for the front outboard
seating positions.
Adjust the height of the shoulder belt
so the belt rests across the middle of
your shoulder.
Slide the adjuster up to raise the belt
and push the button and slide it
down to lower the belt.
42Safety Belts
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

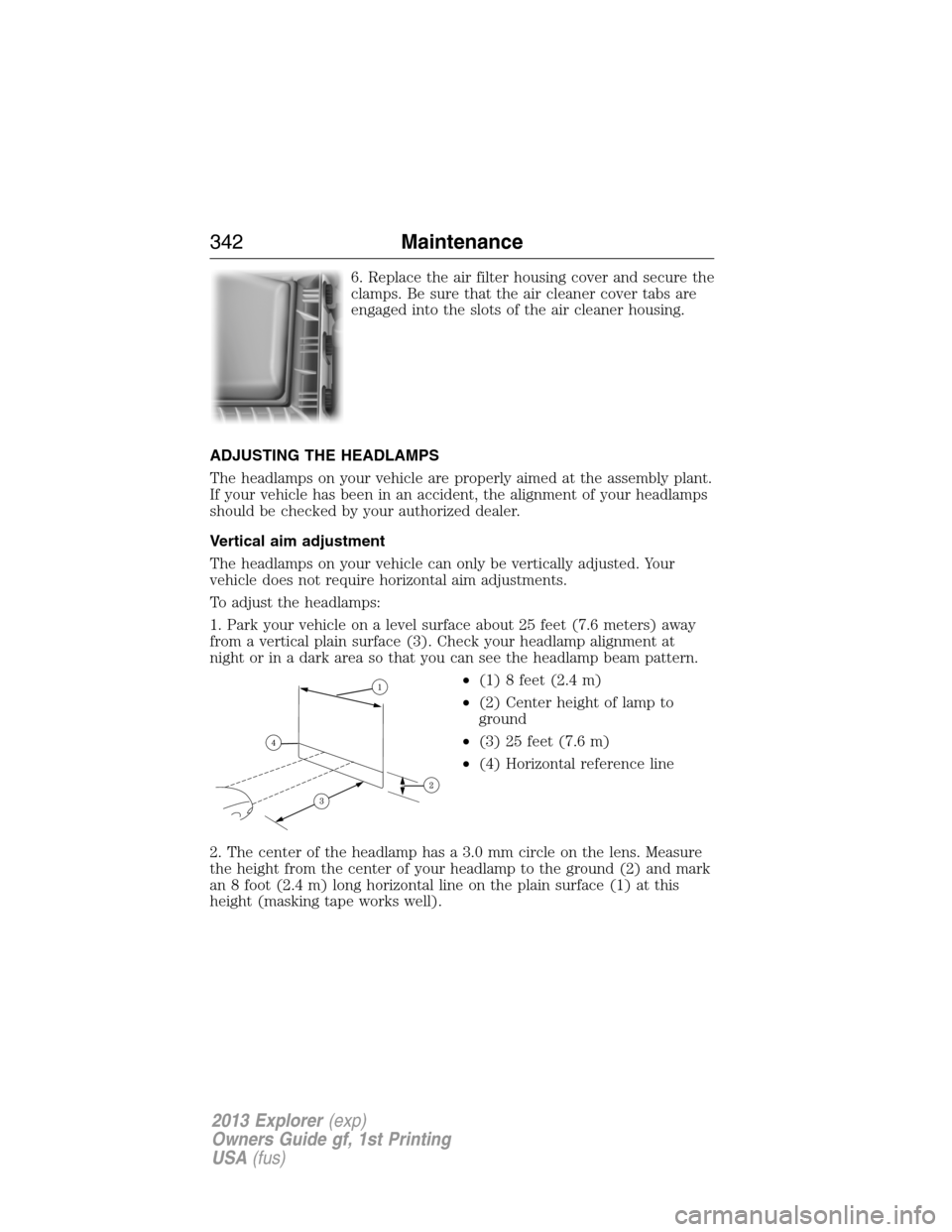

6. Replace the air filter housing cover and secure the
clamps. Be sure that the air cleaner cover tabs are
engaged into the slots of the air cleaner housing.
ADJUSTING THE HEADLAMPS
The headlamps on your vehicle are properly aimed at the assembly plant.
If your vehicle has been in an accident, the alignment of your headlamps
should be checked by your authorized dealer.
Vertical aim adjustment
The headlamps on your vehicle can only be vertically adjusted. Your
vehicle does not require horizontal aim adjustments.
To adjust the headlamps:
1. Park your vehicle on a level surface about 25 feet (7.6 meters) away
from a vertical plain surface (3). Check your headlamp alignment at
night or in a dark area so that you can see the headlamp beam pattern.
•(1) 8 feet (2.4 m)
•(2) Center height of lamp to
ground
•(3) 25 feet (7.6 m)
•(4) Horizontal reference line
2. The center of the headlamp has a 3.0 mm circle on the lens. Measure
the height from the center of your headlamp to the ground (2) and mark
an 8 foot (2.4 m) long horizontal line on the plain surface (1) at this
height (masking tape works well).
342Maintenance
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)
