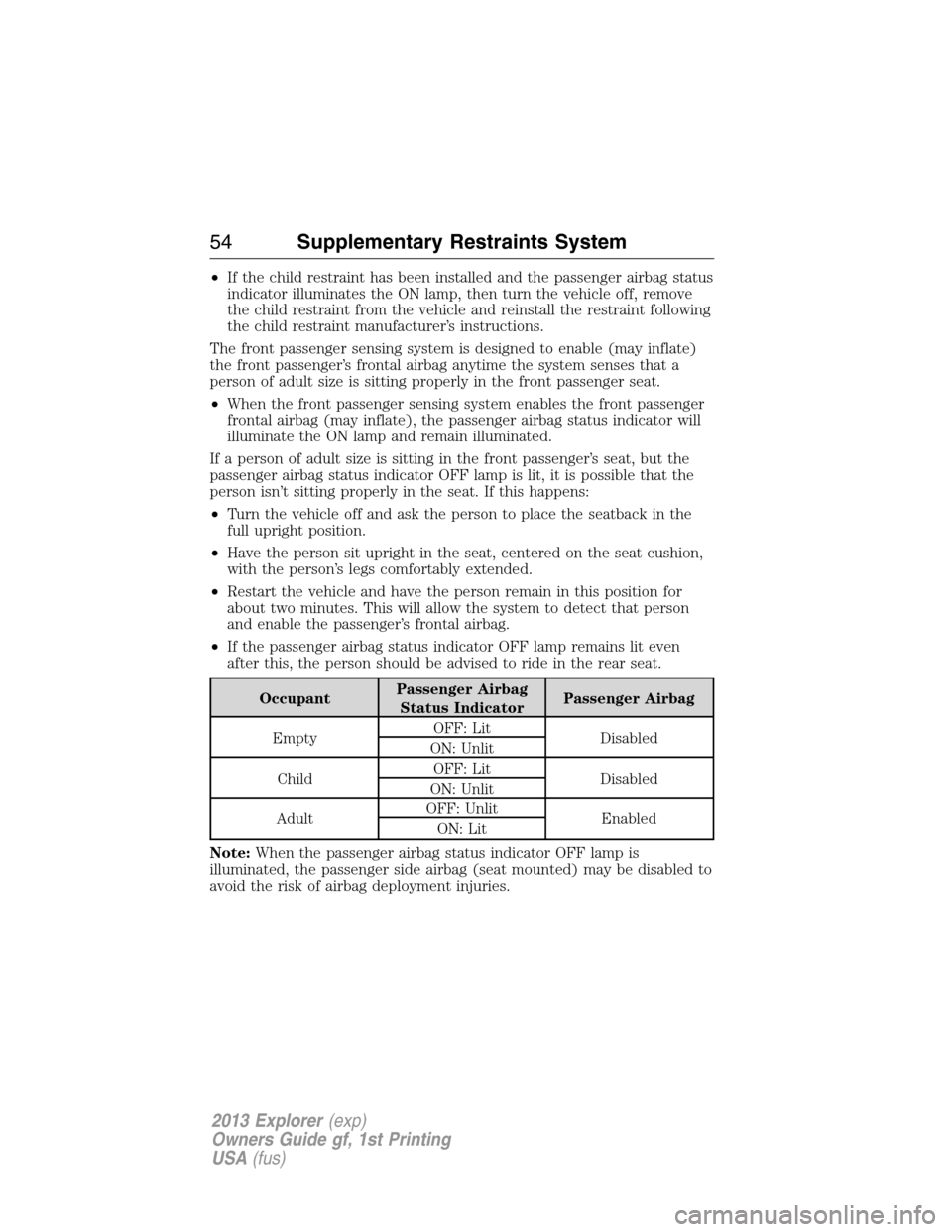

2013 FORD EXPLORER child restraint

•If the child restraint has been installed and the passenger airbag status
indicator illuminates the ON lamp, then turn the vehicle off, remove
the child restraint from the vehicle and reinstall the restraint following
the child restraint manufacturer’s instructions.
The front passenger sensing system is designed to enable (may inflate)
the front passenger’s frontal airbag anytime the system senses that a
person of adult size is sitting properly in the front passenger seat.
•When the front passenger sensing system enables the front passenger
frontal airbag (may inflate), the passenger airbag status indicator will
illuminate the ON lamp and remain illuminated.
If a person of adult size is sitting in the front passenger’s seat, but the
passenger airbag status indicator OFF lamp is lit, it is possible that the
person isn’t sitting properly in the seat. If this happens:
•Turn the vehicle off and ask the person to place the seatback in the
full upright position.
•Have the person sit upright in the seat, centered on the seat cushion,
with the person’s legs comfortably extended.
•Restart the vehicle and have the person remain in this position for
about two minutes. This will allow the system to detect that person
and enable the passenger’s frontal airbag.
•If the passenger airbag status indicator OFF lamp remains lit even
after this, the person should be advised to ride in the rear seat.
OccupantPassenger Airbag
Status IndicatorPassenger Airbag
EmptyOFF: Lit
Disabled
ON: Unlit
ChildOFF: Lit
Disabled
ON: Unlit
AdultOFF: Unlit
Enabled
ON: Lit
Note:When the passenger airbag status indicator OFF lamp is
illuminated, the passenger side airbag (seat mounted) may be disabled to
avoid the risk of airbag deployment injuries.
54Supplementary Restraints System
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

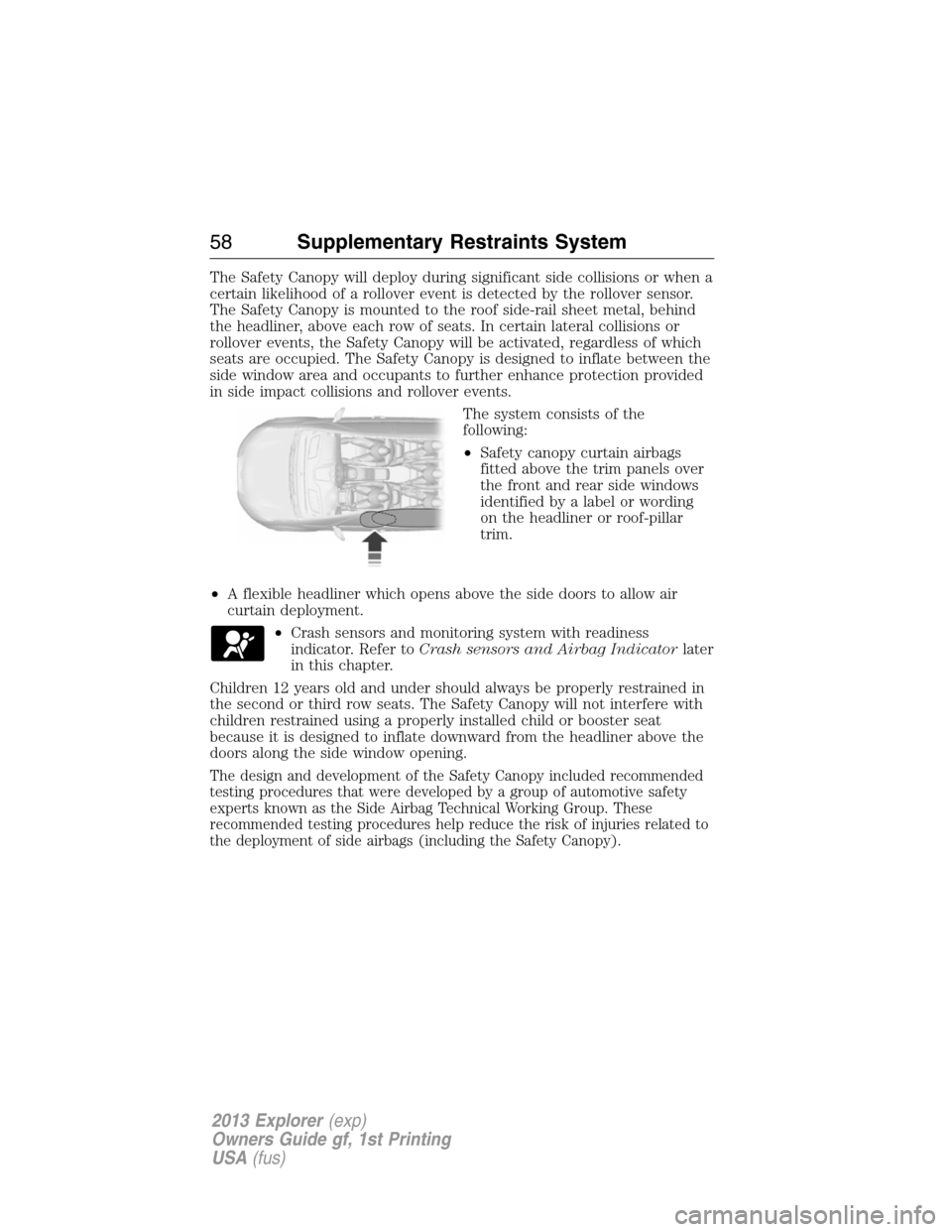

The Safety Canopy will deploy during significant side collisions or when a
certain likelihood of a rollover event is detected by the rollover sensor.
The Safety Canopy is mounted to the roof side-rail sheet metal, behind
the headliner, above each row of seats. In certain lateral collisions or
rollover events, the Safety Canopy will be activated, regardless of which
seats are occupied. The Safety Canopy is designed to inflate between the
side window area and occupants to further enhance protection provided
in side impact collisions and rollover events.
The system consists of the
following:
•Safety canopy curtain airbags
fitted above the trim panels over
the front and rear side windows
identified by a label or wording
on the headliner or roof-pillar
trim.
•A flexible headliner which opens above the side doors to allow air
curtain deployment.
•Crash sensors and monitoring system with readiness
indicator. Refer toCrash sensors and Airbag Indicatorlater
in this chapter.
Children 12 years old and under should always be properly restrained in
the second or third row seats. The Safety Canopy will not interfere with
children restrained using a properly installed child or booster seat
because it is designed to inflate downward from the headliner above the
doors along the side window opening.
The design and development of the Safety Canopy included recommended
testing procedures that were developed by a group of automotive safety
experts known as the Side Airbag Technical Working Group. These
recommended testing procedures help reduce the risk of injuries related to
the deployment of side airbags (including the Safety Canopy).
58Supplementary Restraints System
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

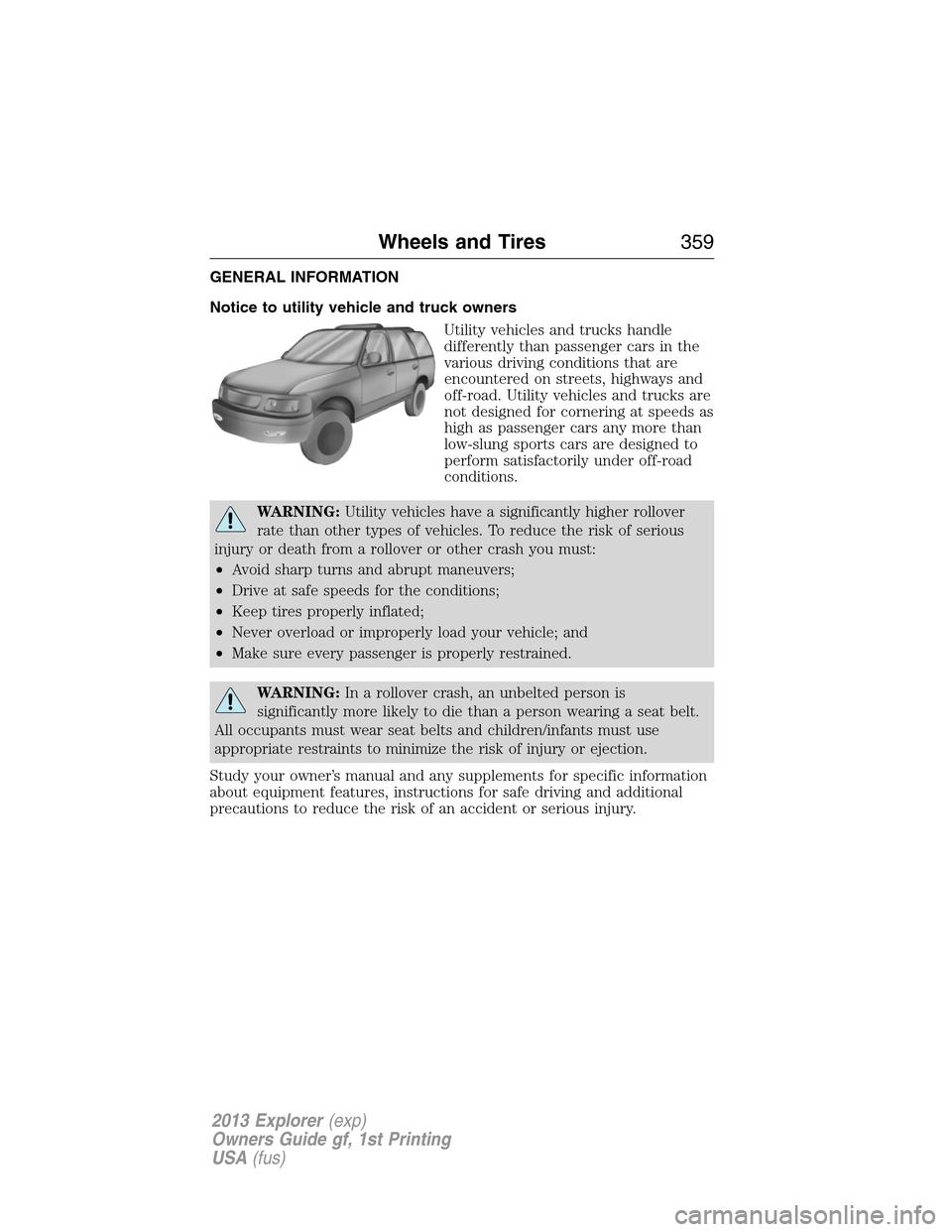

GENERAL INFORMATION
Notice to utility vehicle and truck owners
Utility vehicles and trucks handle
differently than passenger cars in the
various driving conditions that are
encountered on streets, highways and
off-road. Utility vehicles and trucks are
not designed for cornering at speeds as
high as passenger cars any more than
low-slung sports cars are designed to
perform satisfactorily under off-road
conditions.
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles. To reduce the risk of serious
injury or death from a rollover or other crash you must:
•Avoid sharp turns and abrupt maneuvers;
•Drive at safe speeds for the conditions;
•Keep tires properly inflated;
•Never overload or improperly load your vehicle; and
•Make sure every passenger is properly restrained.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt.
All occupants must wear seat belts and children/infants must use
appropriate restraints to minimize the risk of injury or ejection.
Study your owner’s manual and any supplements for specific information
about equipment features, instructions for safe driving and additional
precautions to reduce the risk of an accident or serious injury.
Wheels and Tires359
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

911 Assist™ ...................... 446, 523
A
ABS (see Brakes) ..................... 235
Accessing and using your
USB port .................................... 502
Accessing call history/phone
book during active call ............. 435
Accessing your calendar .......... 523
Accessing your media menu
features ...................................... 458
Accessing your phone menu
features ...................................... 436
Accessory delay ........................ 107
Active call menu options ......... 435
Active Park Assist ..................... 244
Adaptive Cruise Control ........... 254
Adding (pairing) a phone ........ 510
Advanced menu options ... 445, 464
Advanced menu options
(prompts, languages, defaults,
master reset, installing
applications) .............................. 445
Airbag supplemental restraint
system .......................................... 51
and child safety seats .............. 52
description ................................ 51
disposal ...................................... 60
driver airbag .............................. 51
passenger airbag ....................... 51
side airbag ........................... 51, 55
Air cleaner filter ............... 341, 397
Air conditioning ........................ 158
manual heating and air
conditioning system ............... 158All Wheel Drive (AWD),
driving off road ......................... 227
Ambient mood/lighting ............. 528
Ambulance packages .................. 16
AM/FM ....................................... 487
Anti-lock brake system
(see Brakes) .............................. 235
Anti-theft system .................. 86, 89
arming the system .............. 86, 89
disarming a triggered system .. 89
Audio system
Single CD ................ 146, 150–151
Audio system
(see Radio) ................ 146, 150–151
Automatic transmission ............ 220
fluid, adding .................... 333–334
fluid, checking ................ 333–334
fluid, refill capacities .............. 393
fluid, specification .................. 393
Selectshift (SST) .................... 223
Auxiliary Input Jack ................. 498
Auxiliary input jack (Line in) .. 152
Auxiliary powerpoint ................ 199
A/V inputs .......................... 154, 507
Axle
lubricant specifications .......... 393
refill capacities ........................ 393
B
Battery ....................................... 337
acid, treating emergencies ..... 337
jumping a disabled battery .... 302
maintenance-free .................... 337
replacement, specifications ... 397
servicing .................................. 337
Index569
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Blind Spot Information
System ....................................... 268
Booster seats ............................... 23
Brakes ........................................ 234
anti-lock ................................... 235
anti-lock brake system
(ABS) warning light ............... 235
brake warning light ................ 235
fluid, checking and adding .... 336
fluid, refill capacities .............. 393
fluid, specifications ................. 393
lubricant specifications .......... 393
parking .................................... 235
shift interlock .......................... 224
trailer ....................................... 292
C
Capacities for refilling
fluids .......................................... 393
Car2UHome Automation
System ....................................... 189
Cargo net ................................... 279
CD .............................. 146, 150–151
CD player .......................... 144, 501
CD voice commands ................. 501
Cell phone use ............................ 16
Changing a tire ......................... 383
Child safety restraints .......... 30, 32
Child safety seats
attaching with tether
straps ......................................... 32
automatic locking mode
(retractor) ................................. 40
LATCH ....................................... 30
Child safety seats -
booster seats ............................... 23
Cleaning the touchscreen ........ 475Cleaning your vehicle ............... 350
engine compartment .............. 352
instrument panel .................... 354
interior ..................................... 353
plastic parts ............................ 351
washing .................................... 350
waxing ..................................... 352
wheels ...................................... 355
wiper blades ............................ 353
Climate control (see Air
conditioning or Heating) .......... 158
Climate voice commands ......... 538
Clock .................................. 146, 527
Collision Warning System ......... 273
Console ...................................... 202
overhead .................................. 203
rear .......................................... 202
Coolant
checking and adding .............. 328
refill capacities ........................ 393
specifications .......................... 393
Cross Traffic Alert .................... 268
Cruise control ........................... 253
Customer Assistance ................ 300
Ford Extended Service
Plan .................................. 403, 406
Getting assistance outside
the U.S. and Canada .............. 309
Getting roadside assistance ... 300
Getting the service you
need ......................................... 305
Ordering additional owner’s
literature ................................. 311
Utilizing the
Mediation/Arbitration
Program ................................... 309
Customizing your home
screen ........................................ 474
570Index
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Power steering .......................... 277
Power Windows ......................... 106
Privacy information .......... 428, 478
Push button start system ......... 205
Putting a call on/off hold ......... 435
Q
Quick touch buttons ................. 548
R
Radio .......................... 146, 150–151
AM/FM ..................................... 487
Single CD ................ 146, 150–151
Radio reception ......................... 144
Radio voice commands ............. 493
Rear view camera
display ................................ 248, 528
Rear window
defroster .................... 158, 160, 162
Receiving a text
message ............................. 438, 513
Recommendations for
attaching safety restraints
for children .................................. 25
Relays ................................ 313–314
Remote entry system
illuminated entry ...................... 79
locking/unlocking doors ........... 75
opening the trunk ..................... 76
replacing the batteries ............. 63
Reverse sensing system ........... 243
Roadside assistance .................. 300
Roll stability control ................. 238
Roof rack ................................... 279
Route preferences .................... 544S
Safety Belt Maintenance ............ 47
Safety belts
(see Safety restraints) ......... 39, 42
Safety defects, reporting .......... 312
Safety information ............ 427, 476
Safety restraints .............. 39–40, 42
Belt-Minder............................. 43
Belt-Minder,
deactivating/activating ............. 44
extension assembly .................. 42
for adults ............................. 39–40
for children ......................... 20, 25
inflatable safety belt ................. 46
Occupant Classification
Sensor ........................................ 53
safety belt maintenance ........... 47
seat belt maintenance .............. 47
warning light and chime .......... 43
Safety restraints -
LATCH anchors ........................... 30
Safety seats for children ...... 20, 25
Safety Compliance
Certification Label .................... 398
Satellite Radio ................... 146, 494
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log ............. 412
SD card ...................... 154, 502, 539
Seat belts
(see Safety restraints) ............... 39
Seats .......................................... 178
child safety seats ................ 20, 25
climate control ........................ 177
easy access/easyout feature .. 175
front seats ............... 172–173, 176
heated ...................................... 175
574Index
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)
