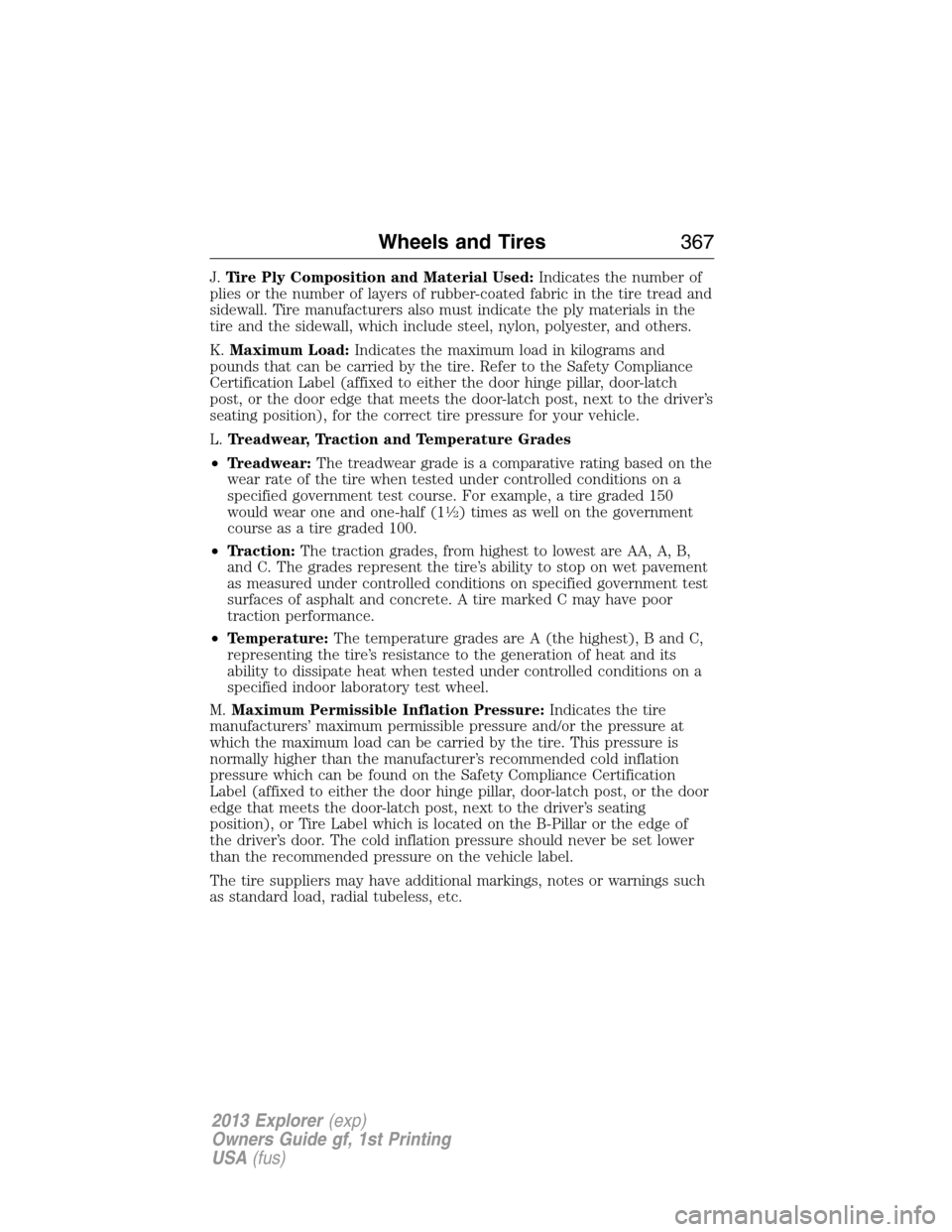

J.Tire Ply Composition and Material Used:Indicates the number of
plies or the number of layers of rubber-coated fabric in the tire tread and
sidewall. Tire manufacturers also must indicate the ply materials in the
tire and the sidewall, which include steel, nylon, polyester, and others.
K.Maximum Load:Indicates the maximum load in kilograms and
pounds that can be carried by the tire. Refer to the Safety Compliance
Certification Label (affixed to either the door hinge pillar, door-latch
post, or the door edge that meets the door-latch post, next to the driver’s
seating position), for the correct tire pressure for your vehicle.
L.Treadwear, Traction and Temperature Grades
•Treadwear:The treadwear grade is a comparative rating based on the
wear rate of the tire when tested under controlled conditions on a
specified government test course. For example, a tire graded 150
would wear one and one-half (1
12) times as well on the government
course as a tire graded 100.
•Traction:The traction grades, from highest to lowest are AA, A, B,
and C. The grades represent the tire’s ability to stop on wet pavement
as measured under controlled conditions on specified government test
surfaces of asphalt and concrete. A tire marked C may have poor
traction performance.
•Temperature:The temperature grades are A (the highest), B and C,
representing the tire’s resistance to the generation of heat and its
ability to dissipate heat when tested under controlled conditions on a
specified indoor laboratory test wheel.
M.Maximum Permissible Inflation Pressure:Indicates the tire
manufacturers’ maximum permissible pressure and/or the pressure at
which the maximum load can be carried by the tire. This pressure is
normally higher than the manufacturer’s recommended cold inflation
pressure which can be found on the Safety Compliance Certification
Label (affixed to either the door hinge pillar, door-latch post, or the door
edge that meets the door-latch post, next to the driver’s seating
position), or Tire Label which is located on the B-Pillar or the edge of
the driver’s door. The cold inflation pressure should never be set lower
than the recommended pressure on the vehicle label.
The tire suppliers may have additional markings, notes or warnings such
as standard load, radial tubeless, etc.
Wheels and Tires367
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

Tire Rotation
Note:If your tires show uneven wear ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
Note:Your vehicle may be equipped with a dissimilar spare tire/wheel. A
dissimilar spare tire/wheel is defined as a spare tire and/or wheel that is
different in brand, size or appearance from the road tires and wheels. If
you have a dissimilar spare tire/wheel it is intended for temporary use
only and should not be used in a tire rotation.
Note:After having your tires rotated, inflation pressure must be checked
and adjusted to the vehicle requirements.
Rotating your tires at the recommended interval (as indicated in the
Scheduled Maintenancechapter) will help your tires wear more evenly,
providing better tire performance and longer tire life.
•Front-wheel drive
(FWD)/All-wheel drive (AWD)
vehicles (front tires at left of
diagram)
Sometimes irregular tire wear can be corrected by rotating the tires.
USING SNOW CHAINS
WARNING:Snow tires must be the same size, load index, speed
rating as those originally provided by Ford. Use of any tire or
wheel not recommended by Ford can affect the safety and performance
of your vehicle, which could result in an increased risk of loss of vehicle
control, vehicle rollover, personal injury and death. Additionally, the use
of non-recommended tires and wheels could cause steering, suspension,
axle or transfer case/power transfer unit failure.
The tires on your vehicle have all-weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that only
cable chains are used with steel wheels (of the same size and
specifications) as chains may chip aluminum wheels.
Wheels and Tires377
2013 Explorer(exp)
Owners Guide gf, 1st Printing
USA(fus)

terminology ............................. 363
tire grades ............................... 363
treadwear ........................ 362, 372
Touchscreen features
(climate) .................................... 536
Towing ....................... 288, 293–294
recreational towing ................. 294
trailer towing .......................... 288
wrecker .................................... 293
Traction control ........................ 236
Traffic, Directions and
Information ................................ 451
Traffic preferences ................... 544
Trailer sway control .................. 288
Transmission
brake-shift interlock (BSI) .... 224
fluid, checking and adding
(automatic) ..................... 333–334
fluid, refill capacities .............. 393
lubricant specifications .......... 393
Turn signal ................................ 103
U
Universal garage door opener .. 189
USB port ............................ 154, 502
Using privacy mode .................. 435V
Vehicle health report ........ 449, 525
Vehicle Identification Number
(VIN) .......................................... 397
Vehicle loading .......................... 280
Ventilating your vehicle ........... 208
Voice commands in media
mode .......................................... 455
Voice commands in phone
mode .......................................... 433
Voice recognition ...................... 480
W
Warning lights (see Lights) ..... 115
Washer fluid .............................. 336
Water, Driving through ............. 297
Wi-Fi .......................................... 532
Windows
power ....................................... 106
rear wiper/washer ..................... 97
Windshield washer fluid and
wipers .......................................... 96
checking and adding fluid ..... 336
replacing wiper blades ........... 340
Wrecker towing ......................... 293
