2013 FORD EXPEDITION warning light

Low tire
pressure
warning lightPossible cause Customer action required
Flashing warning
lightSpare tire in use Repair the damaged road wheel/tire
and reinstall it on the vehicle to
restore system functionality. For a
description on how the system
functions, refer toWhen your
temporary spare tire is installedin
this section.
TPMS
malfunctionIf the tires are properly inflated and
the spare tire is not in use but the
light remains on, contact your
authorized dealer as soon as possible.
When inflating your tires
When putting air into your tires (such as at a gas station or in your
garage), the tire pressure monitoring system may not respond
immediately to the air added to your tires.
It may take up to two minutes of driving over 20 mph (32 km/h) for the
light to turn off after you have filled your tires to the recommended
inflation pressure.
How temperature affects your tire pressure
The tire pressure monitoring system monitors tire pressure in each
pneumatic tire. While driving in a normal manner, a typical passenger
tire inflation pressure may increase approximately 2 to 4 psi (14 to
28 kPa) from a cold start situation. If the vehicle is stationary overnight
with the outside temperature significantly lower than the daytime
temperature, the tire pressure may decrease approximately 3 psi
(21 kPa) for a drop of 30°F (17°C) in ambient temperature. This lower
pressure value may be detected by the TPMS as being significantly lower
than the recommended inflation pressure and activate the TPMS warning
light for low tire pressure. If the low tire pressure warning light is on,
visually check each tire to verify that no tire is flat. (If one or more tires
are flat, repair as necessary.) Check air pressure in the road tires. If any
tire is under-inflated, carefully drive the vehicle to the nearest location
where air can be added to the tires. Inflate all the tires to the
recommended inflation pressure.
Wheels and Tires345
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

CHANGING A ROAD WHEEL
WARNING:The use of tire sealants may damage your tire
pressure monitoring system (TPMS) and should not be used.
However, if you must use a sealant, the TPMS sensor and valve stem on
the wheel must be replaced by an authorized Ford dealer.
WARNING:SeeTire Pressure Monitoring Systemin this
chapter for important information. If the tire pressure monitor
sensor becomes damaged, it will no longer function.
Note:The tire pressure monitoring system indicator light will illuminate
when the spare tire is in use. To restore the full functionality of the
monitoring system, all road wheels equipped with tire pressure
monitoring sensors must be mounted on the vehicle.
If you get a flat tire while driving, do not apply the brake heavily.
Instead, gradually decrease your speed. Hold the steering wheel firmly
and slowly move to a safe place on the side of the road.
Have a flat serviced by an authorized dealer in order to prevent damage
to the TPMS sensors. SeeTire Pressure Monitoring Systemearlier in
the chapter. Replace the spare tire with a road tire as soon as possible.
During repairing or replacing of the flat tire, have the authorized dealer
inspect the TPMS sensor for damage.
Dissimilar Spare Tire and Wheel Assembly Information
WARNING:Failure to follow these guidelines could result in an
increased risk of loss of vehicle control, injury or death.
If you have a dissimilar spare tire and wheel assembly, then it is intended
for temporary use only. This means that if you need to use it, you should
replace it as soon as possible with a road tire and wheel assembly that is
the same size and type as the road tires and wheels that were originally
provided by Ford. If the dissimilar spare tire or wheel is damaged, it
should be replaced rather than repaired.
A dissimilar spare tire and wheel assembly is defined as a spare tire or
wheel that is different in brand, size or appearance from the road tires
and wheels and can be one of three types:
1.T-type mini-spare:This spare tire begins with the letter T for tire
size and may have Temporary Use Only molded in the sidewall.
346Wheels and Tires
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

ACCESSORIES
For a complete listing of the accessories that are available for your
vehicle, please contact your dealer or visit our online store at:
Accessories.Ford.com(U.S. only).
Ford Custom Accessories are available for your vehicle through your
local Ford or Ford of Canada dealer. Ford Motor Company will repair or
replace any properly dealer-installed Ford Custom Accessories found to
be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessories. The accessories will be warranted for whichever provides
you the greatest benefit:
•12 months or 12,000 miles (20,000 km) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
Contact your dealer for details and a copy of the warranty.
Exterior style
•Bug shields•Wheels
•Deflectors•Chrome exhaust tips
•Splash guards
Interior style
•Ambient lighting•Floor mats
•Illuminated door sill plates•Cargo area protector
•Electrochromatic compass/temperature interior mirrors
Lifestyle
•Rear seat entertainment*•Roof crossbars
•Cargo organization and
management•SUV camping tent*
•Racks and carriers*•Towing accessories
Peace of mind
•Remote start•Vehicle security systems
•Back up alarm*•Wheel locks
•Locking gas plug for capless fuel
system•Warning sensors
•Vehicle cover
Accessories363
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

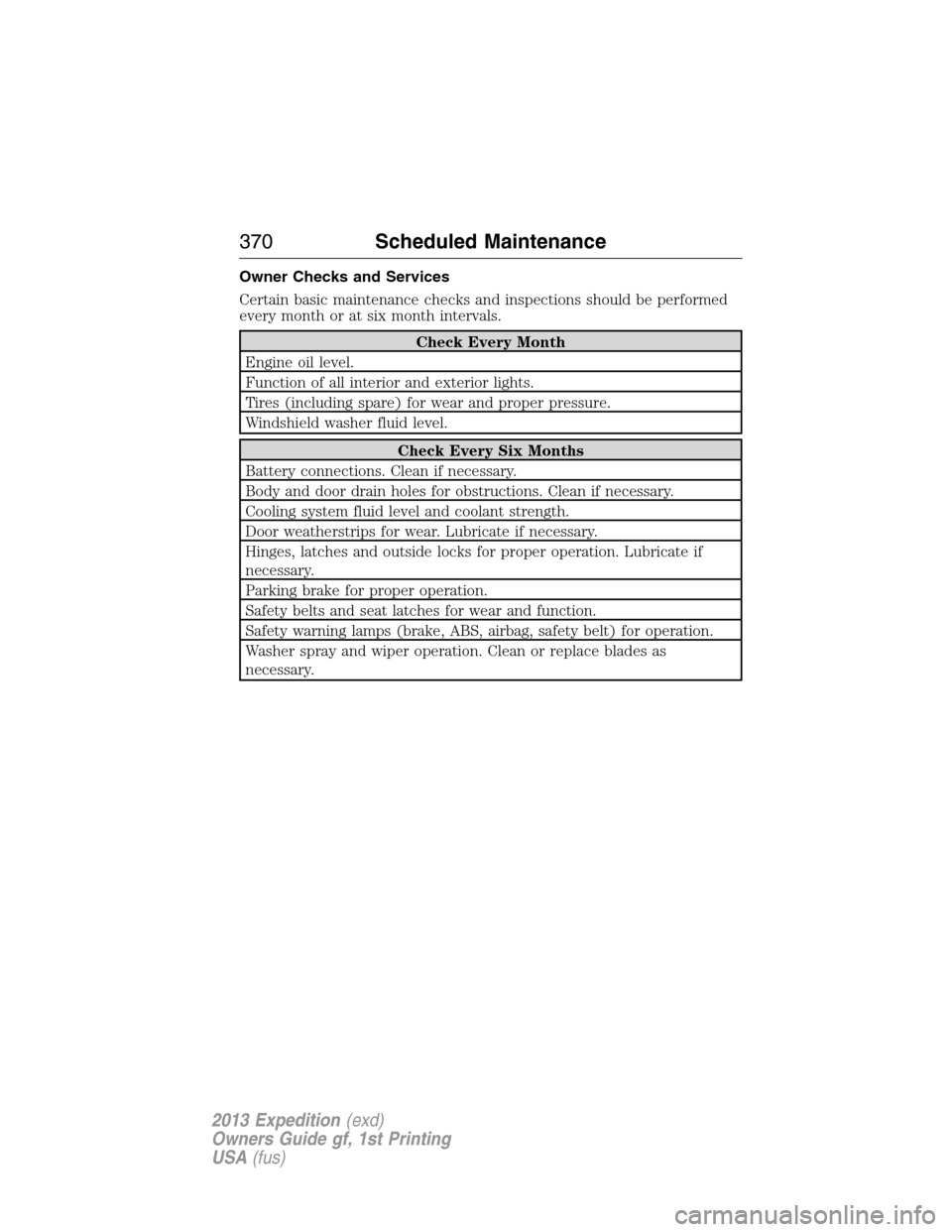

Owner Checks and Services
Certain basic maintenance checks and inspections should be performed
every month or at six month intervals.
Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
Windshield washer fluid level.
Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if
necessary.
Parking brake for proper operation.
Safety belts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag, safety belt) for operation.
Washer spray and wiper operation. Clean or replace blades as
necessary.
370Scheduled Maintenance
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

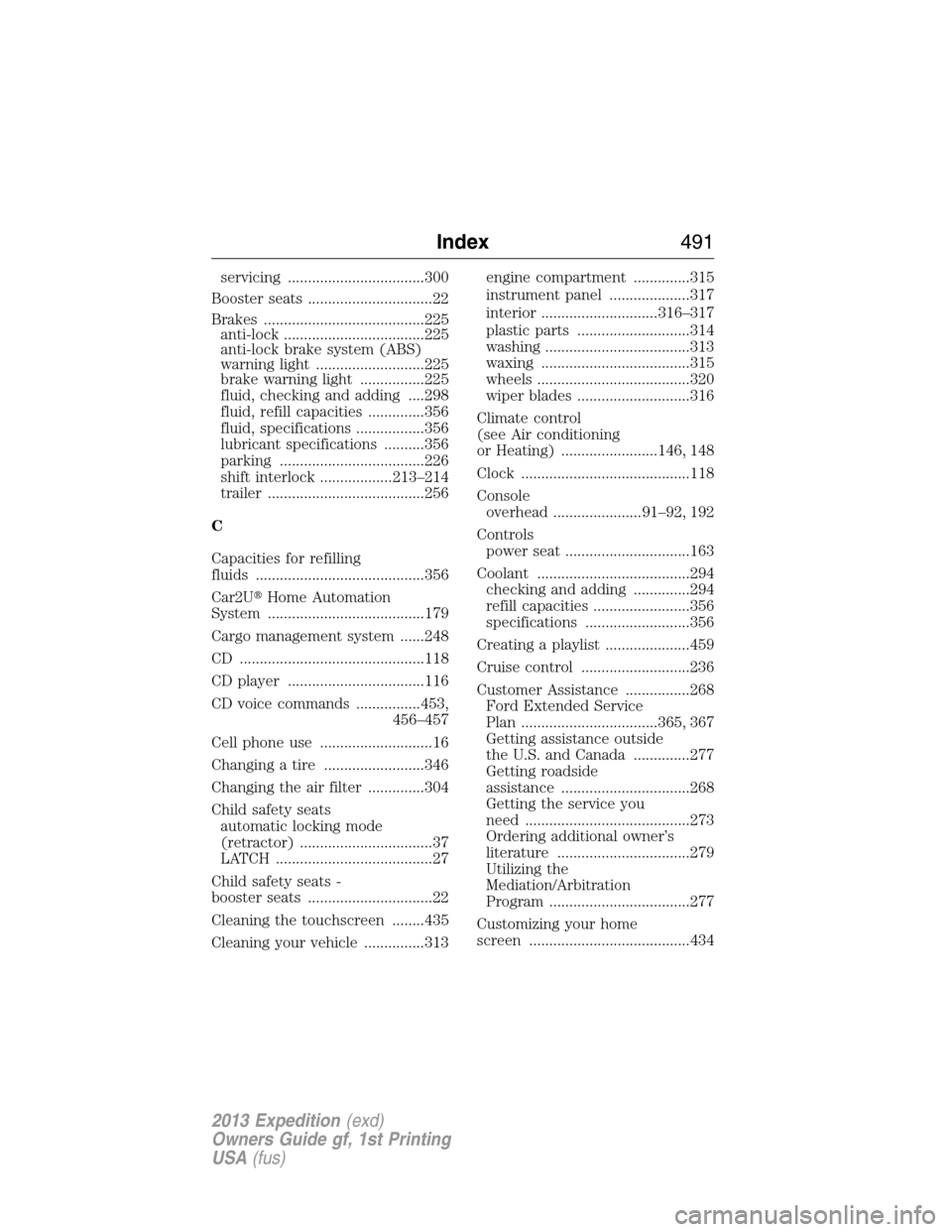

servicing ..................................300
Booster seats ...............................22
Brakes ........................................225
anti-lock ...................................225
anti-lock brake system (ABS)
warning light ...........................225
brake warning light ................225
fluid, checking and adding ....298
fluid, refill capacities ..............356
fluid, specifications .................356
lubricant specifications ..........356
parking ....................................226
shift interlock ..................213–214
trailer .......................................256
C
Capacities for refilling
fluids ..........................................356
Car2UHome Automation
System .......................................179
Cargo management system ......248
CD ..............................................118
CD player ..................................116
CD voice commands ................453,
456–457
Cell phone use ............................16
Changing a tire .........................346
Changing the air filter ..............304
Child safety seats
automatic locking mode
(retractor) .................................37
LATCH .......................................27
Child safety seats -
booster seats ...............................22
Cleaning the touchscreen ........435
Cleaning your vehicle ...............313engine compartment ..............315
instrument panel ....................317
interior .............................316–317
plastic parts ............................314
washing ....................................313
waxing .....................................315
wheels ......................................320
wiper blades ............................316
Climate control
(see Air conditioning
or Heating) ........................146, 148
Clock ..........................................118
Console
overhead ......................91–92, 192
Controls
power seat ...............................163
Coolant ......................................294
checking and adding ..............294
refill capacities ........................356
specifications ..........................356
Creating a playlist .....................459
Cruise control ...........................236
Customer Assistance ................268
Ford Extended Service
Plan ..................................365, 367
Getting assistance outside
the U.S. and Canada ..............277
Getting roadside
assistance ................................268
Getting the service you
need .........................................273
Ordering additional owner’s
literature .................................279
Utilizing the
Mediation/Arbitration
Program ...................................277
Customizing your home
screen ........................................434
Index491
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Fuses ..........................281–282, 286
G
Garage door opener ..........179, 183
Gas cap (see Fuel cap) ............203
Gauges .........................................94
H
Hazard flashers .........................269
HD Radio™ ...............................444
Headlamps ...................................82
aiming ......................................306
autolamp system .......................83
bulb specifications ..................312
checking alignment ................306
flash to pass ..............................82
high beam .................................82
replacing bulbs .......................308
turning on and off ....................82
Head restraints .........................159
Heating ..............146, 148, 150, 152
Homelink wireless control
system ........................................183
Hood ..........................................291
I
Ignition ...............................195, 355
Illuminated visor mirror .............92
Information displays .................101
Inspection/maintenance (I/M)
testing ........................................208
Instrument panel
cleaning ...................................317
cluster ........................................95
lighting up panel and interior...83J
Jack ............................................346
positioning ...............................346
storage .....................................346
Joining two calls
(multiparty/conference call) ....394
Jukebox features .......................457
Jump-starting your vehicle ......270
K
Keyless entry system
autolock .....................................64
keypad .......................................71
locking and unlocking doors ....72
programming entry code .........71
Keys .......................................53, 74
positions of the ignition .........195
L
Lamps ..........................................82
autolamp system .......................83
bulb replacement
specifications chart ................312
fog lamps ...................................84
headlamps .................................82
headlamps, flash to pass ..........82
instrument panel, dimming .....83
interior lamps ...........................85
replacing bulbs ...............308, 311
Lane change indicator
(see Turn signal) ........................84
LATCH anchors ...........................27
Liftgate ............................63, 66–67
Lights, warning and indicator ....95
Loading instructions .................247
Loading pictures .......................434
Index493
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

Load limits .................................241
Locks
autolock .....................................64
childproof ..................................33
doors ..........................................62
Lubricant specifications ...........356
Lug nuts ....................................354
M
MAP DVD - Loading and
Unloading ..................................136
Map icons ..................................468
Map mode ..................................467
Map updates ..............................470
Master lighting switch ................82
Media Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................422
Message center .................101, 106
system check button ..............103
warning messages ...................111
Mirrors ...................................88, 91
fold away ...................................89
programmable memory ............54
side view mirrors (power) .......88
signal ...................................89–90
Moon roof ....................................93
Motorcraftparts ..............313, 360
MyKey ..........................................56
N
Navigation features ...................464
O
Octane rating ............................201P
Pairing other phones ................391
Pairing your phone for the
first time ....................................390
Parental MyKey programming ...56
Parking brake ............................226
Parts
(see Motorcraftparts) ...........360
Phone Bluetooth menu options
(adding, connecting, deleting,
turning on/off) ..........................401
Phone redial ..............................395
Playing a DVD in the system ...136
Playing music (by artist,
album, genre, playlist,
tracks, similar) ..........................419
POI categories ...........................466
Point of Interest (POI) .............466
Power deployable running
boards ........................................249
Power distribution box
(see Fuses) .......................282, 286
Power door locks ........................62
Power liftgate ..............................67
Power mirrors .............................88
Powerpoint ................................189
Power steering ..........................238
fluid, checking and adding ....299
fluid, refill capacity ................356
fluid, specifications .................356
Power Windows ...........................87
Privacy information ..................387
Putting a call on/off hold .........394
494Index
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)

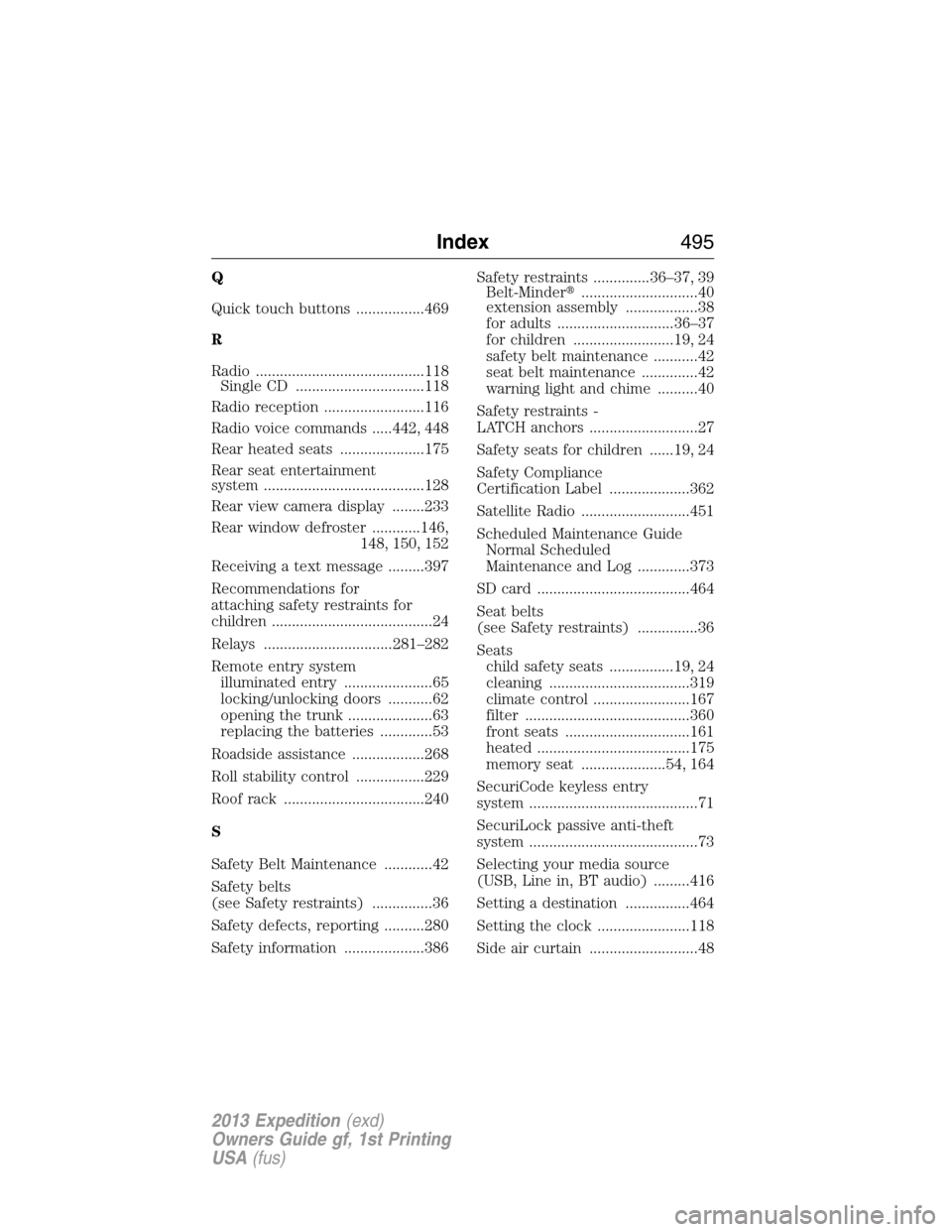

Q
Quick touch buttons .................469
R
Radio ..........................................118
Single CD ................................118
Radio reception .........................116
Radio voice commands .....442, 448
Rear heated seats .....................175
Rear seat entertainment
system ........................................128
Rear view camera display ........233
Rear window defroster ............146,
148, 150, 152
Receiving a text message .........397
Recommendations for
attaching safety restraints for
children ........................................24
Relays ................................281–282
Remote entry system
illuminated entry ......................65
locking/unlocking doors ...........62
opening the trunk .....................63
replacing the batteries .............53
Roadside assistance ..................268
Roll stability control .................229
Roof rack ...................................240
S
Safety Belt Maintenance ............42
Safety belts
(see Safety restraints) ...............36
Safety defects, reporting ..........280
Safety information ....................386Safety restraints ..............36–37, 39
Belt-Minder.............................40
extension assembly ..................38
for adults .............................36–37
for children .........................19, 24
safety belt maintenance ...........42
seat belt maintenance ..............42
warning light and chime ..........40
Safety restraints -
LATCH anchors ...........................27
Safety seats for children ......19, 24
Safety Compliance
Certification Label ....................362
Satellite Radio ...........................451
Scheduled Maintenance Guide
Normal Scheduled
Maintenance and Log .............373
SD card ......................................464
Seat belts
(see Safety restraints) ...............36
Seats
child safety seats ................19, 24
cleaning ...................................319
climate control ........................167
filter .........................................360
front seats ...............................161
heated ......................................175
memory seat .....................54, 164
SecuriCode keyless entry
system ..........................................71
SecuriLock passive anti-theft
system ..........................................73
Selecting your media source
(USB, Line in, BT audio) .........416
Setting a destination ................464
Setting the clock .......................118
Side air curtain ...........................48
Index495
2013 Expedition(exd)
Owners Guide gf, 1st Printing
USA(fus)
