IMPORTANT Before getting out of the car, make
sure that both switches are in the central position:
when the doors are closed the lights will switch
off to avoid draining the battery. In any case, if the
switch is left in the on position, the roof light
switches off automatically about 15 minutes after the
engine has been switched off.
ROOF LIGHT TIMING
On certain versions, to facilitate getting into/out of
the car, especially at night or in poorly-lit areas,
two timed modes have been provided.
Timing when getting into the car
The roof lights switch on according to the following
modes:
❒for about 10 seconds when the doors are
unlocked;
❒for about 3 minutes when one of the doors is
opened;
❒for about 10 seconds when the doors are closed.
The timing is interrupted when the ignition key is
turned to MAR.
Three modes are provided for switching off:
❒when all doors are closed, the 3-minute timer will
stop and a 10-second one will start. This timer will
stop when the key is turned to MAR;❒when doors are locked (either with remote
control or with key on driver side door), the roof
light switches off.
❒the courtesy lights are switched off in any case
after 15 minutes to preserve battery charge
Timing when getting out of the car
After removing the key from the ignition switch, the
roof lights switch on as follows:
❒if the ignition key is removed within 3 minutes
from the engine stopping, the roof lights switch on
for 10 seconds;
❒for about 3 minutes when one of the doors is
opened;
❒for about 10 seconds when one of the doors is
closed.
The timing stops automatically when the doors are
locked.
LUGGAGE COMPARTMENT ROOF LIGHT
(for versions/markets, where provided)
The roof light is located on the left side of the
luggage compartment. This switches on automatically
when the luggage compartment is opened and
switches off when it is closed. The light switches
on/off regardless of the ignition key position.
50GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

CONTROLSHAZARD WARNING LIGHTS
IMPORTANT The use of hazard warning lights is
governed by the highway code of the country you are
driving in: comply with legal requirements.
Emergency braking
In the event of emergency braking the hazard
warning lights switch on automatically as well as
warning lights
and
in the instrument panel. The
lights switch off automatically when emergency
braking ceases.FOG LIGHTS
(for versions/markets, where provided)
Press button
fig. 36 to switch the lights on/off.
Press the button again to switch the lights off. With
lights on, thewarning light on the instrument
panel will switch on.
REAR FOG LIGHTS
Press the
fig. 36 button to switch the lights on/off.
The rear fog lights are only switched on with the
dipped headlights or front fog lights on. Press the
button again to switch the lights off, or switch off the
dipped headlights or the front fog lights (for
versions/markets, where provided).
With the lights on, warning light
in the instrument
panel switches on.
fig. 35
F0W0191
fig. 36
F0W0192
51GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
Press button A fig. 35 to switch the lights on/off.
Warning lights
and
in the instrument panel are
lit up when the lights are ON.

DUALDRIVE ELECTRIC POWER STEERING
(for versions/markets, where provided)
Press the CITY button fig. 37 to activate the function
(see paragraph "Dualdrive electric power steering"
in this section). When this function is active, the
word CITY on the instrument panel will light up. To
deactivate the function press the button again.
ECO FUNCTION
(for versions/markets, where provided)
Press the ECO button fig. 38 to activate the function.
When the ECO function is active, the car is set for
driving characterised by reduced fuel consumption.
When the function is active, the corresponding LED
on the button switches on.
This function stays in the memory and, when the
vehicle is started again, the system keeps the setting
it had before the engine was stopped. Press theECO button again to deactivate the function and
restore the normal driving setting.
FUEL CUT-OFF SYSTEM
This intervenes in the case of an impact causing:
❒the interruption of the fuel supply with the engine
consequently cutting out;
❒the automatic unlocking of the doors;
❒the automatic switching on of the interior lights
❒the switching on of the hazard warning lights.
On some versions, the intervention of the system is
indicated by a message shown on the display.
IMPORTANT Carefully check the car for fuel leaks,
for instance in the engine compartment, under
the car or near the tank area. After an impact, turn
the ignition key to STOP to prevent the battery from
running down.
fig. 37
F0W0082
fig. 38
F0W0039
52GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

To restore the correct operation of the car, proceed
as follows:
❒turn the ignition key to the MAR position;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒activate the right direction indicator;
❒deactivate the right direction indicator;
❒activate the left direction indicator;
❒deactivate the left direction indicator;
❒turn the ignition key to the STOP position.
WARNING
If, after an impact , you smell fuel or
notice leaks from the fuel system, do not
reactivate the system to avoid the risk of fire.
INTERIOR FITTINGSPASSENGER SIDE GLOVE COMPARTMENT
Operate handle A fig. 39 to open the compartment.
WARNING
Never travel with the glove
compartment open: it could injure the
passenger in the event of a crash.
fig. 39
F0W0057
53GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

POWER SOCKET
It is located on the central tunnel fig. 40, near the
handbrake lever. It only operates with the ignition
key at MAR.
IMPORTANT Do not damage the socket by using
unsuitable adaptors.
With the "smoker's kit" optional, the cigar lighter is
fitted instead of the power socket.
To activate the cigar lighter, press the button with
the ignition key at MAR. After about 15 seconds the
button reverts automatically to its initial position
and the cigar lighter is ready for use.
WARNING
The cigar lighter becomes very hot .
Handle it carefully and make sure that
children do not touch it : risk of fire and/or
burns. Always check that the cigar lighter plug
has been released.
ASHTRAY
(for versions/markets, where provided)
The ashtray is a removable spring-loaded plastic
container that must be fitted into the right cup/can
holder on the central tunnel fig. 41.
IMPORTANT Do not use the ashtray as a waste
paper basket: it may catch fire in contact with
cigarette stubs.
fig. 40
F0W0178
fig. 41
F0W0076
54GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT Do not damage the socket by using
unsuitable adaptors.
SUN VISORS
These are located at the sides of the rear-view
mirror. They can be adjusted forwards and sideways.
when specified, the back of the driver's and
passenger side visors houses two courtesy mirrors
(for versions/markets, where provided). To use
the mirror, open the sliding cover A fig. 42.GLASSES HOLDER
(for versions/markets, where provided)
It is located on the left of the driver's side visor
fig. 43.
EXTINGUISHER
(for versions/markets, where provided)
It is located under the passenger side front seat or, in
some versions, at the right side of the luggage
compartment, inside a dedicated container.
fig. 42
F0W0055
fig. 43
F0W0308
55GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

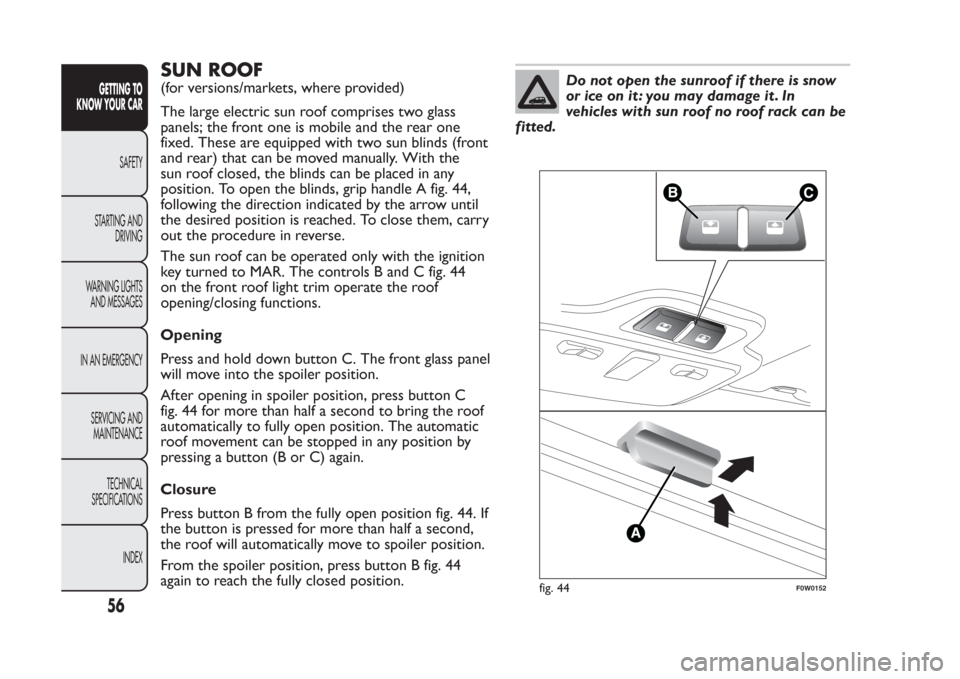

SUN ROOF(for versions/markets, where provided)
The large electric sun roof comprises two glass
panels; the front one is mobile and the rear one
fixed. These are equipped with two sun blinds (front
and rear) that can be moved manually. With the
sun roof closed, the blinds can be placed in any
position. To open the blinds, grip handle A fig. 44,
following the direction indicated by the arrow until
the desired position is reached. To close them, carry
out the procedure in reverse.
The sun roof can be operated only with the ignition
key turned to MAR. The controls B and C fig. 44
on the front roof light trim operate the roof
opening/closing functions.
Opening
Press and hold down button C. The front glass panel
will move into the spoiler position.
After opening in spoiler position, press button C
fig. 44 for more than half a second to bring the roof
automatically to fully open position. The automatic
roof movement can be stopped in any position by
pressing a button (B or C) again.
Closure
Press button B from the fully open position fig. 44. If
the button is pressed for more than half a second,
the roof will automatically move to spoiler position.
From the spoiler position, press button B fig. 44
again to reach the fully closed position.
Do not open the sunroof if there is snow
or ice on it : you may damage it . In
vehicles with sun roof no roof rack can be
fitted.
fig. 44
F0W0152
56GETTING TO
KNOW YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

WARNING
When leaving the car, always remove the
key from the ignition to avoid the risk
of injur y to those still inside the car due to
accidental operation of the sunroof. Improper
use of the roof may be dangerous. Before and
during operation, always check that no-one
is exposed to the risk of being injured by the
moving sunroof or by objects getting caught or
hitbyit.
ANTI-PINCH SAFETY DEVICE
For versions/markets where provided, the sun roof
has an anti-pinch safety system capable of detecting
the presence of an obstacle whilst the roof is closing;
if this happens, the system intervenes and the
movement of the glass is immediately reversed.
EMERGENCY OPERATION
If the electric device for moving the roof fails, the
sun roof can be moved manually proceeding as
described below:
❒for manual activation remove the protective cap A
fig. 45 from its housing which is located on the
internal covering in front of the sun blind❒take the Allen key provided and located in the tool
box in the luggage compartment or, depending on
the version, inside the glove compartment;
❒insert the key provided into the housing A fig. 45
and turn it clockwise to open the roof or
anticlockwise to close the roof.
INITIALISATION PROCEDURE
Following an automatic motion malfunction while
opening/closing or an emergency manoeuvre (see
description in the previous paragraph), the automatic
operation of the sun roof must be initialised again.
Proceed as follows:
❒press button B fig. 44 in closing position;
❒hold down button B: after approximately 10
seconds the roof moves jerkily to closing position.
Once the operation has ended (roof closed)
release button B;
fig. 45
F0W0105
57GETTING TO
KNOW YOUR CARSAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
