RIMS AND TYRES PROVIDED AS STANDARDVersions Rims Tyres provided Snow tyres
Space-saver wheel
(*)
0.9
TwinAir
65 HP5.5J x 14H2 - ET35
175/65 R14 82T
(°)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(°)
(°°)
175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
185/55 R15 82T
(***)
185/55 R15 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided
(°) The tyre can be fitted with reduced size snow chains: 9 mm.
(°°) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(**) Alloy wheel
(***) Chains cannot be fittedVersions Rims Tyres provided Snow tyres
Space-saver wheel
(*)
0.9
TwinAir
Turbo 85
HP5.5J x 14H2 - ET35
175/65 R14 82T
(°)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35175/65 R14 82T
Goodyear Duragrip
(°)
(°°)
175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
185/55 R15 82T
(***)
185/55 R15 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
175/65 R15 84T (M+S)
(****) (#)
- 125/80 R15 95M
(*) For versions/markets, where provided
(°) The tyre can be fitted with reduced size snow chains: 9 mm.
(°°) For versions/markets, where provided. Tyres offering equivalent performance can be used as an alternative.
(**) Alloy wheel
(***) Chains cannot be fitted
(****) For Trekking versions
(#) The tyre can be fitted with reduced size snow chains: 7 mm
211GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

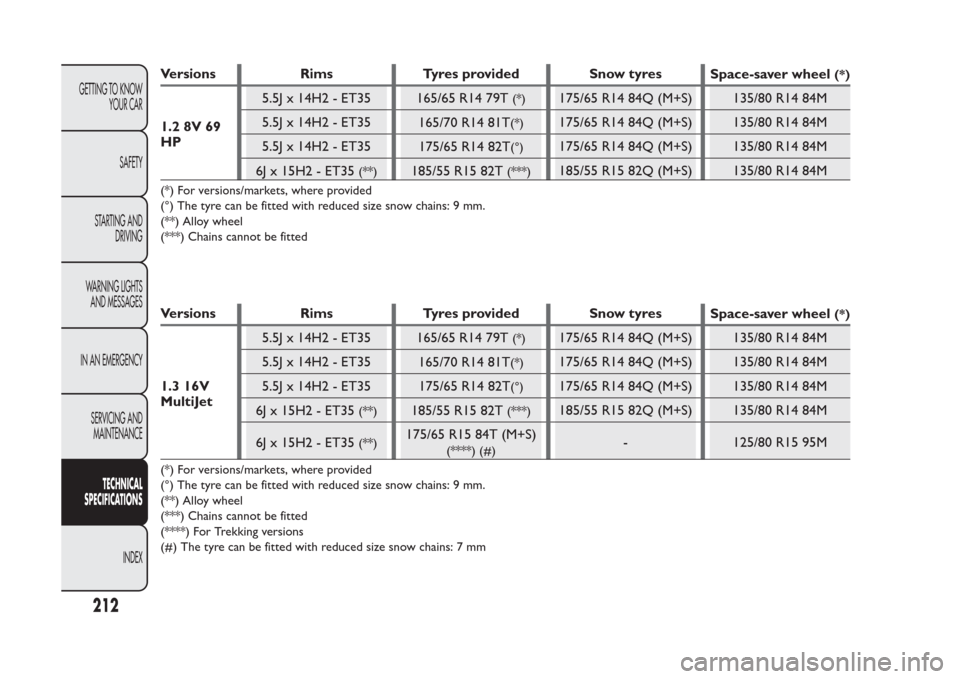

Versions Rims Tyres provided Snow tyres
Space-saver wheel
(*)
1.2 8V 69
HP5.5J x 14H2 - ET35
165/65 R14 79T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(°)
175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
185/55 R15 82T
(***)
185/55 R15 82Q (M+S) 135/80 R14 84M
(*) For versions/markets, where provided
(°) The tyre can be fitted with reduced size snow chains: 9 mm.
(**) Alloy wheel
(***) Chains cannot be fittedVersions Rims Tyres provided Snow tyres
Space-saver wheel
(*)
1.3 16V
MultiJet5.5J x 14H2 - ET35
165/65 R14 79T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
165/70 R14 81T
(*)
175/65 R14 84Q (M+S) 135/80 R14 84M
5.5J x 14H2 - ET35
175/65 R14 82T
(°)
175/65 R14 84Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
185/55 R15 82T
(***)
185/55 R15 82Q (M+S) 135/80 R14 84M
6J x 15H2 - ET35
(**)
175/65 R15 84T (M+S)
(****) (#)
- 125/80 R15 95M
(*) For versions/markets, where provided
(°) The tyre can be fitted with reduced size snow chains: 9 mm.
(**) Alloy wheel
(***) Chains cannot be fitted
(****) For Trekking versions
(#) The tyre can be fitted with reduced size snow chains: 7 mm
212
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed figure.
However, recheck that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.Ty r e sNo load/medium load Full load
Front Rear Front Rear
165/65 R14 79T
(*)
2,5 2,2 2,7 2,4
165/70 R14 81T
(*)
2,3 2,0 2,5 2,2
175/65 R14 82T 2,2 2,0 2,5 2,5
175/65 R15 84T (M+S)
(**)
2,2 2,1 2,5 2,5
185/55 R15 82T 2,2 2,0 2,5 2,5
(*) For versions/markets, where provided
(**) For Trekking versionsSpace-saver wheel
(*)
bar
135/80 R14 84M 2,8
125/80 R15 95M 4,2
(*) For versions/markets, where provided
213GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

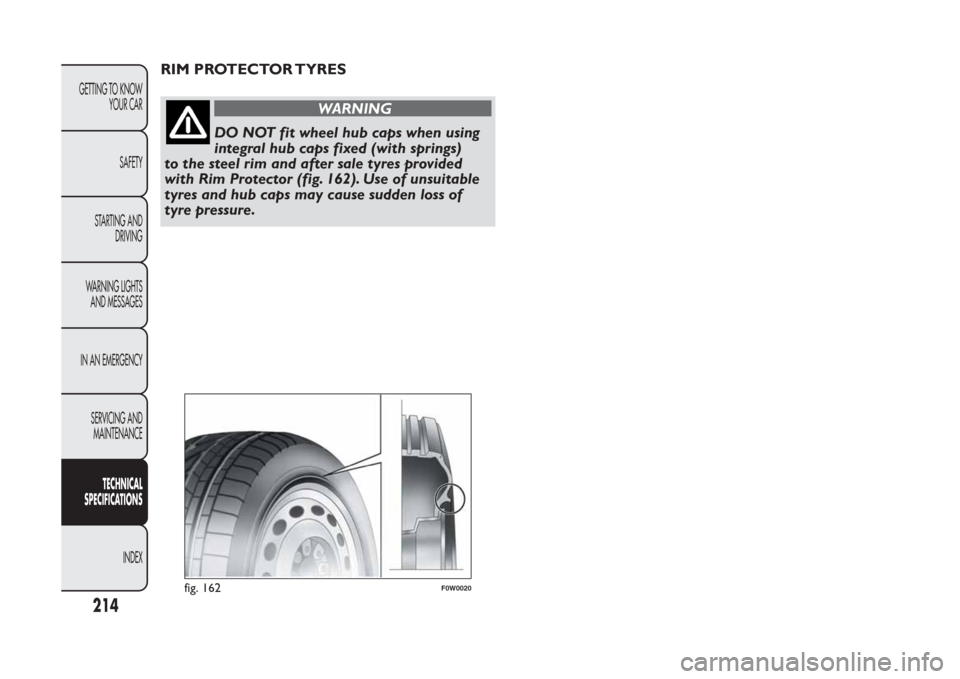

RIM PROTECTOR TYRES
