Replacing the wiper blades
Proceed as follows:
❒raise the wiper arm, press tab A fig. 155 of the
attachment spring and remove the blade from
the arm;
❒fit the new blade, inserting the tab into the special
slot in the arm, making sure that it is locked;
❒lower the windscreen wiper arm on the
windscreen.
Do not operate the windscreen wiper with
the blades lifted from the windscreen.Replacing the rear window wiper blade
Proceed as follows:
❒raise cover A fig. 156, undo nut B and remove arm
C;
❒correctly position the new arm, fully tighten nut B
then lower cover A.
SPRAY NOZZLES
Windscreen washer
The windscreen washer jets A fig. 157 can be
adjusted rotating the side notch with a screwdriver
B. If there is no jet of fluid, firstly check that there is
fluid in the reservoir (see "Checking fluid levels" in
this chapter).
Then check that the nozzle holes are not clogged;
use a needle to unblock them if necessary.
fig. 155
F0W0186
fig. 156
F0W0222
194
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

IMPORTANT In versions with a sun roof, make sure
that the sun roof is closed before operating the
window washer jets.
Rear window washer
The rear window washer jets are fixed. The nozzle
holder is on the rear window fig. 158.
BODYWORKPROTECTION AGAINST ATMOSPHERIC
AGENTS
The car is equipped with the best available
technological solutions to protect the bodywork
against corrosion.
These are the most important:
❒painting products and systems which give the car
particular resistance to corrosion and abrasion;
❒use of galvanised (or pretreated) steel sheets, with
high resistance to corrosion;
❒spraying of plastic parts, with a protective function
in the more exposed points: underdoor, inner
wing, edges, etc;
❒use of “open” boxed sections to prevent
condensation and pockets of moisture from
triggering rust inside.
fig. 157
F0W0221
fig. 158
F0W0223
195GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

BODY AND UNDERBODY WARRANTY
Your car is covered by warranty against perforation
due to corrosion of any original element of the
structure or body.
For the general terms of this warranty, refer to your
Warranty Booklet.
PRESERVING THE BODYWORK
Paintwork
Touch up abrasions and scratches immediately to
prevent the formation of rust.
Maintenance of paintwork consists of washing the
car: the frequency depends on the conditions and
environment where the car is used. For example, in
highly polluted areas, or if the roads are spread
with salt, it is advisable to wash the car more
frequently.To correctly wash the car, proceed as follows:
❒remove the aerial from the roof to prevent damage
to it if the car is washed in an automatic system;
❒if high pressure jets or cleaners are used to wash
the car, keep a distance of at least 40 cm from
the bodywork to avoid damage or alteration.
It should be remembered that the build up
of water can damage the car over a period of time;
❒wash the body using a low pressure jet of water;
❒wipe a sponge with a slightly soapy solution over
the bodywork, frequently rinsing the sponge;
❒rinse well with water and dry with a jet of air or a
chamois leather.
Dry the less visible parts (e.g. door frames, bonnet,
headlight frames etc.) with special care, as water may
stagnate more easily in these areas. The car should
not be taken to a closed area immediately, but
left outside so that residual water can evaporate.
Do not wash the car after it has been left in the sun
or with the bonnet hot: this may alter the shine of
the paintwork.
Exterior plastic parts must be cleaned in the same
way as the rest of the car.
196
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Avoid parking under trees as much as possible; the
resin from trees dulls the paintwork and increases
the possibility of corrosion.
IMPORTANT Bird droppings must be washed off
immediately and thoroughly as the acid they contain
is particularly aggressive.
Detergents pollute the environment . Only
wash your car in areas equipped to collect
and treat wastewater from this type of
activity.In order to preserve the aesthetic
appearance of the paint abrasive products
and/or polishes should not be used for
cleaning the car.
Windows
Use specific detergents and clean cloths to prevent
scratching or altering the transparency.
IMPORTANT Wipe the rear window inside gently
with a cloth in the direction of the filaments to avoid
damaging the heating device.
Front headlights
Use a soft, damp cloth soaked in water and
detergent for washing cars.
IMPORTANT Never use aromatic substances (e.g.
petrol) or ketones (e.g. acetone) for cleaning the
plastic lenses of the front headlights.Engine compartment
At the end of every winter, wash the engine
compartment thoroughly, taking care not to aim the
jet of water directly at the electronic control units or
at the windscreen wiper motors. Have this
operation performed at a specialised workshop.
IMPORTANT The washing should take place with the
engine cold and the ignition key in the STOP
position. After the washing operation, make sure
that the various protections (e.g. rubber caps and
guards) have not been removed or damaged.
197GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

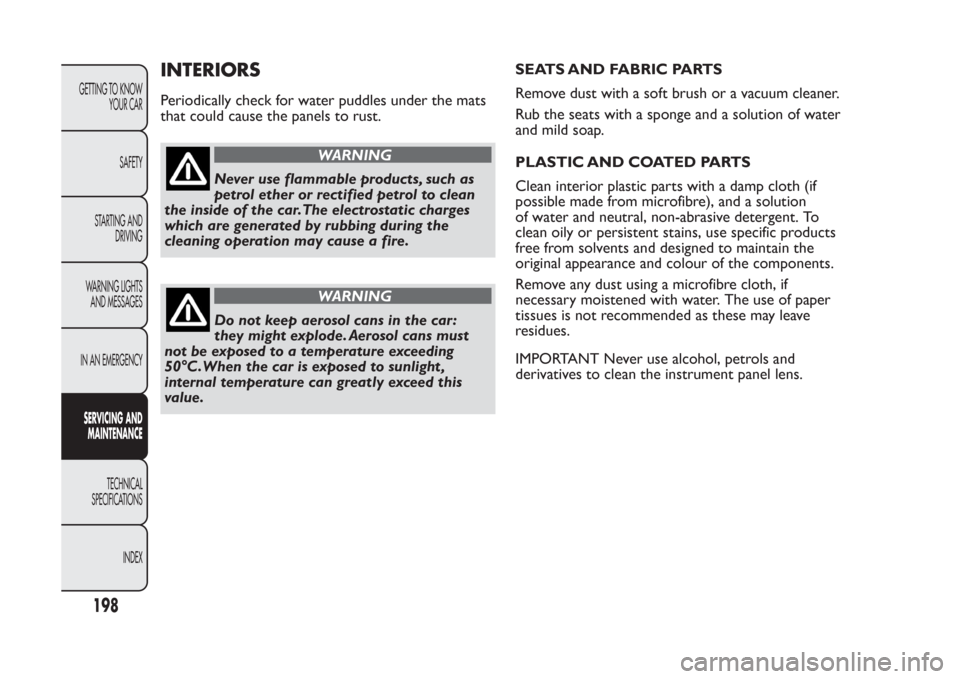

INTERIORSPeriodically check for water puddles under the mats
that could cause the panels to rust.
WARNING
Never use flammable products, such as
petrol ether or rectified petrol to clean
the inside of the car.The electrostatic charges
which are generated by rubbing during the
cleaning operation may cause a fire.
WARNING
Do not keep aerosol cans in the car:
they might explode. Aerosol cans must
not be exposed to a temperature exceeding
50°C .When the car is exposed to sunlight ,
internal temperature can greatly exceed this
value.SEATS AND FABRIC PARTS
Remove dust with a soft brush or a vacuum cleaner.
Rub the seats with a sponge and a solution of water
and mild soap.
PLASTIC AND COATED PARTS
Clean interior plastic parts with a damp cloth (if
possible made from microfibre), and a solution
of water and neutral, non-abrasive detergent. To
clean oily or persistent stains, use specific products
free from solvents and designed to maintain the
original appearance and colour of the components.
Remove any dust using a microfibre cloth, if
necessary moistened with water. The use of paper
tissues is not recommended as these may leave
residues.
IMPORTANT Never use alcohol, petrols and
derivatives to clean the instrument panel lens.
198
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

LEATHER STEERING WHEEL/GEAR
KNOB/HANDBRAKE
These components must be cleaned with mild soap
and water only. Never use alcohol or alcohol-based
products.
Read the product label carefully before using specific
products for cleaning the interiors: make sure the
product does not contain alcohol or alcohol-based
substances.
If, when cleaning the windscreen with special
products, window cleaner accidentally drips onto the
leather of the steering wheel/gear lever knob/hand
brake, wipe away immediately and then wash the
affected area with mild soap and water.IMPORTANT Be careful when using a steering wheel
lock device, where applicable, to avoid damaging
the leather upholstery by rubbing.
199GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCYSERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONS
INDEX

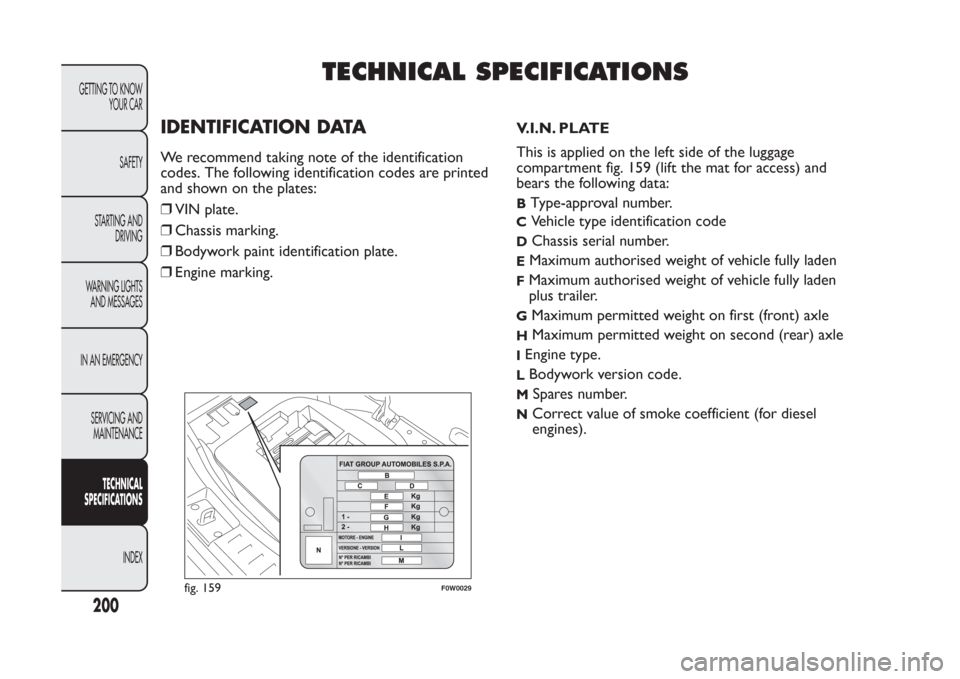

TECHNICAL SPECIFICATIONS
IDENTIFICATION DATAWe recommend taking note of the identification
codes. The following identification codes are printed
and shown on the plates:
❒VIN plate.
❒Chassis marking.
❒Bodywork paint identification plate.
❒Engine marking.V.I.N. PLATE
This is applied on the left side of the luggage
compartment fig. 159 (lift the mat for access) and
bears the following data:
B
Type-approval number.
C
Vehicle type identification code
D
Chassis serial number.
E
Maximum authorised weight of vehicle fully laden
F
Maximum authorised weight of vehicle fully laden
plus trailer.
G
Maximum permitted weight on first (front) axle
H
Maximum permitted weight on second (rear) axle
IEngine type.L
Bodywork version code.
M
Spares number.
N
Correct value of smoke coefficient (for diesel
engines).
fig. 159
F0W0029
200
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

BODYWORK PAINT IDENTIFICATION
PLATE
This is applied inside the bonnet (left side) and bears
the following data fig. 160:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
CHASSIS MARKING
This is located on the right side of the luggage
compartment floor and gives the following
identification data:
❒type of vehicle;
❒chassis serial number.ENGINE MARKING
This is stamped on the cylinder block and gives the
model and the chassis serial number.
fig. 160
F0W0030
