2013 FIAT PANDA technical specifications

WEIGHTS AND LOADSVersions0.9 TwinAir 65
HP0.9 TwinAir
Turbo 85 HP1.2 8V 69 HP1.3 16V
MultiJet
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment) (kg):955 975 940 1035
Payload including the driver (kg):
(*)
480 (4 seats) /
500 (5 seats)480 (4 seats) /
500 (5 seats)480 (4 seats) /
500 (5 seats)480 (4 seats) /
500 (5 seats)
Maximum permitted loads (kg)
(**)
– front axle: 770 855 770 855
– rear axle: 760 760 760 760
– total:1435 (4 seats) /
1455 (5 seats)1455 (4 seats) /
1475 (5 seats)1420 (4 seats) /
1440 (5 seats)1515 (4 seats) /
1535 (5 seats)
Towable loads (kg)
– braked trailer: 800 800 800 900
– non-braked trailer: 400 400 400 400
Maximum load on roof: 55 55 55 55
Maximum load on the ball (braked
trailer) (kg):60 60 60 60(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload with
respect to the maximum permitted load.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
218
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

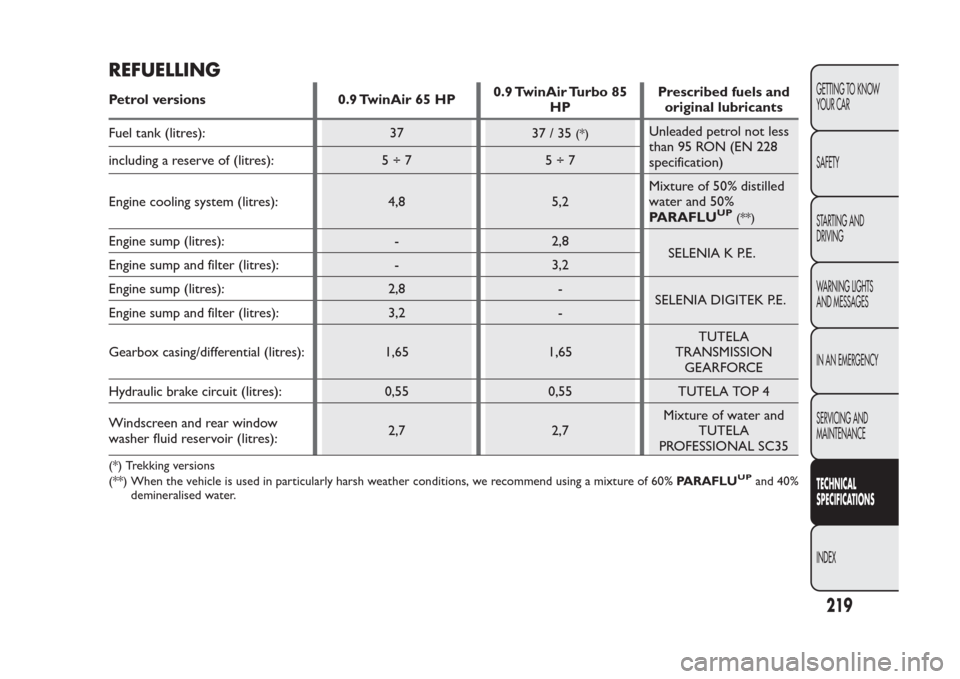

REFUELLINGPetrol versions 0.9 TwinAir 65 HP0.9 TwinAir Turbo 85
HPPrescribed fuels and
original lubricants
Fuel tank (litres): 37
37/35
(*)
Unleaded petrol not less
than 95 RON (EN 228
specification) including a reserve of (litres): 5 ÷ 7 5 ÷ 7
Engine cooling system (litres): 4,8 5,2Mixture of 50% distilled
water and 50%
PARAFLU
UP
(**)
Engine sump (litres): - 2,8
SELENIA K P.E.
Engine sump and filter (litres): - 3,2
Engine sump (litres): 2,8 -
SELENIA DIGITEK P.E.
Engine sump and filter (litres): 3,2 -
Gearbox casing/differential (litres): 1,65 1,65TUTELA
TRANSMISSION
GEARFORCE
Hydraulic brake circuit (litres): 0,55 0,55 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir (litres):2,7 2,7Mixture of water and
TUTELA
PROFESSIONAL SC35(*) Trekking versions
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
219GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Petrol versions 1.2 8V 69 HP
Fuel tank (litres): 37
Unleaded petrol not less than 95 RON (EN
228 specification)
including a reserve of (litres): 5 ÷ 7
Engine cooling system (litres): 4,6Mixture of 50% distilled water and 50%
PARAFLU
UP
(**)
Engine sump (litres): 2,5
SELENIA K P.E.
Engine sump and filter (litres): 2,8
Gearbox casing/differential (litres): 1,65 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (litres): 0,55 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2,7Mixture of water and TUTELA
PROFESSIONAL SC35(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
220
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

Diesel versions 1.3 16V MultiJetRecommended fuels and original lubri-
cants
Fuel tank capacity (litres):
37/35
(*)
Diesel for automotive engines (EN 590
Specification)
including a reserve of (litres): 5 ÷ 7
Engine cooling system (litres): 6,3Mixture of 50% distilled water and 50%
PARAFLU
UP
(**)
Engine sump (litres): 2,8
SELENIA WR P.E.
Engine sump and filter (litres): 3,0
Gearbox casing/differential (kg): 1,8 TUTELA TRANSMISSION GEARFORCE
Hydraulic brake circuit (litres): 0,55 TUTELA TOP 4
Windscreen and rear window washer
fluid reservoir (litres):2,7Mixture of water and TUTELA
PROFESSIONAL SC35(*) Trekking versions
(**) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60%PARAFLU
UP
and 40%
demineralised water.
221GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

FLUIDS AND LUBRICANTSYour car is equipped with an engine oil that has been thoroughly developed and tested in order to meet the
requirements of the Scheduled Servicing Plan. Constant use of the prescribed lubricants guarantees the
fuel consumption and emission specifications. Lubricant quality is crucial for engine operation and duration.UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsReplacement interval
Lubricants for
0.9 TwinAir
Turbo 85 HP
and 1.2 8V 69
HP petrol
enginesSAE 5W-40 ACEA C3 grade totally synthetic
lubricant. FIAT Classification 9.55535-S2.SELENIA K P.E.
Contractual Technical
Reference No.
F603.C07According to Scheduled
Servicing Plan
Lubricants for
0.9 TwinAir 65
HP petrol
enginesSAE 0W-30 ACEA C2 grade totally synthetic
lubricant. FIAT Classification 9.55535-GS1.SELENIA DIGITEK
P.E.
Contractual Technical
Reference no. F020.B12According to Scheduled
Servicing Plan
Diesel engine
lubricantsSAE 5W-30 ACEA C2 grade totally synthetic
lubricant FIAT Classification 9.55535-S1.SELENIA WR P.E.
Contractual Technical
Reference No.
F510.D07According to Scheduled
Servicing PlanIn case of emergency, if lubricants with the prescribed specifications are not available, products with the
minimum indicated ACEA performance can be used for topping up; in this case optimal performance of the
engine is not guaranteed.
For MultiAir/TwinAir system engines only use lubricants with indicated SAE grade and specifications.
The use of products with different specifications than those indicated above could cause
damage to the engine not covered by the warranty.
222
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsApplications
Lubricants for
motion
transmissionSAE 75W grade synthetic lubricant. FIAT
Classification 9.55550-MZ6.TUTELA
TRANSMISSION
GEARFORCE
Contractual Technical
Reference No. F002.F10Mechanical gearbox and
differential
Molybdenum disulphide grease, for use at
high temperatures. NL.G.I. 1-2 consistency
FIAT 9.55580 ClassificationTUTELA ALL STAR
Contractual Technical
Reference No.
F702.G07Wheel side constant
velocity joints
Grease for constant velocity joints with low
friction coefficient. NL.G.I. 0-1 consistency
FIAT 9.55580 ClassificationTUTELA STAR 700
Contractual Technical
Reference No.
F701.C07Differential-side constant
velocity joints
Brake fluidSynthetic fluid for brake and clutch systems.
Exceeds specifications: FMVSS no. 116 DOT
4, ISO 4925 SAE J1704 Certification FIAT
9.55597TUTELA TOP 4
Contractual Technical
Reference No.
F001.A93Hydraulic brakes and
hydraulic clutch controls
223GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

UseFluid and lubricant specifications for
correct car operationGenuine fluids and
lubricantsApplications
Protective
agent for
radiatorsRed protective agent with antifreeze action,
based on inhibited monoethyl glycol with
organic formula. Exceeds CUNA NC 956-16,
ASTM D 3306 specifications. FIAT
Classification 9.55523.PARAFLU
UP
(*)
Contractual Technical
Reference No.
F101.M01Cooling circuit usage
percentage: 50% water
50%PARAFLU
UP
(**)
Diesel fuel
additiveAdditive for diesel with antifreeze and
protective action for diesel engines.TUTELA DIESEL
ART
Contractual Technical
Reference No. F601.L06To be mixed with the fuel
oil (25 cc per 10 litres)
Windscreen/
rear window
washer fluidMixture of alcohols and surfactants. Exceeds
CUNA NC 956-11 specifications. FIAT
Classification 9.55522TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference No.
F201.D02To be used diluted or
undiluted in windscreen/
rear window washer/wiper
systems(*) IMPORTANT Do not use fluids with different specifications for topping up or mixing.
(**) For particularly harsh climate conditions, a mixture of 60%PARAFLU
UP
and 40% demineralised water is recommended.
224
GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

FUEL CONSUMPTIONThe fuel consumption figures given in the table below are determined on the basis of the type-approval tests
laid down by specific European Directives.
The procedures below are followed for measuring consumption:
❒urban cycle: cold starting followed by driving that simulates urban use of the car;
❒extra-urban cycle: frequent accelerating in all gears, simulating extraurban use of the car: speed varies
between 0 and 120 km/h;
❒combined fuel consumption: calculated with a weighting of approximately 37% of the urban cycle and 63%
of the extra-urban cycle.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the
car, trim level/equipment/accessories, use of the climate control system, car load, presence of roof racks
and other situations that adversely affect the aerodynamics or wind resistance lead to different fuel
consumption figures than those measured. The fuel consumption will get more regular only after having
driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
km)Versions Urban Extra-urban Combined
0.9 TwinAir 65 HP
5,0 - 4,8
(***)
3,8 - 3,7
(***)
4,2 - 4,1
(***)
0.9 TwinAir Turbo 85 HP
5,0 - 5,2
(*) - 4,9 (***)
3,8 - 4,2
(*) - 3,8 (***)
4,2 - 4,6
(*) - 4,2 (***)
1.2 8V 69 HP
6,7 - 6,6
(**)
4,3 - 4,2
(**)
5,2 - 5,1
(**)
1.3 16V MultiJet
4,7 - 4,8
(*)
3,5 - 3,8
(*)
3,9 - 4,2
(*)
(***) For versions/markets, where provided.
(*) For Trekking versions.
(**) For L.G.R. (Long Gear Ratio) versions.
