CavityVehicle
Fuse
Number Mini
Fuse Description
5 F36 10 Amp RedDiagnostic Socket,
Car Radio, Climate
Control System,
Tire Pressure Moni-
tor, TCU and CTM
6 F43 20 Amp YellowBi-Directional
Washer
7 F48 20 Amp YellowPassenger Power
Window
8 F13 7.5 Amp
Brown Left Low Beam
9 F50 7.5 Amp
Brown AirbagCavity
Vehicle
Fuse
Number Mini
Fuse Description
10 F51 5 Amp Ta nCar Radio Switch,
Climate Control
System, Stop Light,
Exterior Mirrors,
Sunroof Switch,
GPS (option) and
CTM
11 F37 5 Amp Ta nStop Light Switch,
Instrument Panel
Node
12 F49 5 Amp Ta nExterior Mirror,
GPS, Electric Mir-
ror, Parking Sensor,
Sunroof Switch
7
MAINTAINING YOUR VEHICLE 309
CavityMaxi
Fuse Mini Fuse Description
F16 10 Amp
Red Humidity Sensor
VPAM
AC Compressor
F18 5 Amp
Ta n Electronic Vehicle
Control Unit
(EVCU)
F19 10 Amp
Red HVAC
F20 15 Amp
Blue Heated Seats – If
Equipped
F23 25 Amp
Clear Anti-Lock Brake
Valves
F24 7.5 Amp
Brown EPS
YAW SensorCavity
Maxi
Fuse Mini Fuse Description
F30 15 Amp
Blue Fog Lamps
F81 30 Amp Green Electronic Shifter
(ESM)
F82 30 Amp Green Sunroof
F84 25 Amp
Clear Regen Brake Mod-
ule
F85 30 Amp Green Rear Window
Heater
F87 5 Amp
Ta n Electronic Shifter
(ESM)
312 MAINTAINING YOUR VEHICLE

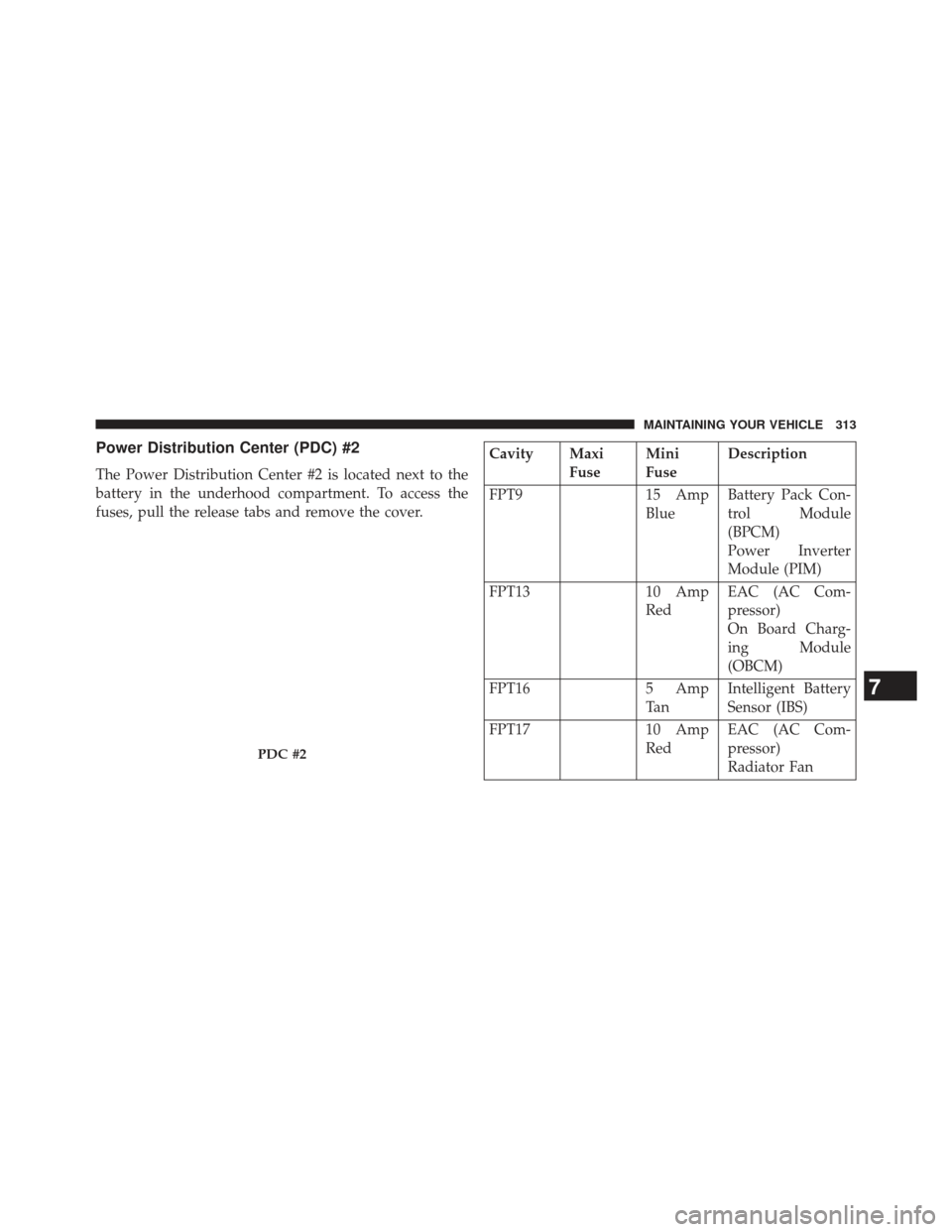

Power Distribution Center (PDC) #2
The Power Distribution Center #2 is located next to the
battery in the underhood compartment. To access the
fuses, pull the release tabs and remove the cover.
Cavity MaxiFuseMini
Fuse Description
FPT9 15 Amp
BlueBattery Pack Con-
trol Module
(BPCM)
Power Inverter
Module (PIM)
FPT13 10 Amp
Red EAC (AC Com-
pressor)
On Board Charg-
ing Module
(OBCM)
FPT16 5 Amp
Ta n Intelligent Battery
Sensor (IBS)
FPT17 10 Amp
Red EAC (AC Com-
pressor)
Radiator Fan
PDC #2
7
MAINTAINING YOUR VEHICLE 313
