2013 DODGE JOURNEY snow chains

▫Tire Identification Number (TIN)...........438
▫Tire Terminology And Definitions..........439
▫Tire Loading And Tire Pressure...........440
TIRES — GENERAL INFORMATION.........445
▫Tire Pressure........................445
▫Tire Inflation Pressures.................446
▫Radial Ply Tires......................448
▫All Season Tires – If Equipped............449
▫Summer Or Three Season Tires – If Equipped. .449
▫Snow Tires..........................449
▫Spare Tire Matching Original Equipped Tire
And Wheel – If Equipped................450
▫Compact Spare Tire – If Equipped.........451▫Full Size Spare – If Equipped.............452
▫Limited-Use Spare – If Equipped..........452
▫Tire Spinning........................453
▫Tread Wear Indicators..................453
▫Life Of Tire.........................454
▫Replacement Tires.....................455
TIRE CHAINS (TRACTION DEVICES).......456
TIRE ROTATION RECOMMENDATIONS.....457
TIRE PRESSURE MONITOR SYSTEM (TPMS) . .459
▫Base System.........................461
▫Premium System – If Equipped............464
▫General Information...................468
5
STARTING AND OPERATING 389

ESC Operating Modes
The ESC system has two available operating modes.
Full On
This is the normal operating mode for ESC. Whenever the
vehicle is started the system will be in this mode. This
mode should be used for most driving situations. ESC
should only be turned to “Partial Off” for specific reasons
as noted. Refer to “Partial Off” for additional information.
Partial Off
The “ESC OFF” button is located in the switch bank
above the climate control. To enter the “Partial Off”
mode, momentarily press the “ESC OFF” button and the
“ESC Activation/Malfunction Indicator Light” will illu-
minate. To turn the ESC on again, momentarily press the
“ESC OFF” button and the “ESC Activation/Malfunction
Indicator Light” will turn off. This will restore the normal
“ESC On” mode of operation.NOTE:
To improve the vehicle’s traction when driving with
snow chains, or when starting off in deep snow, sand, or
gravel, it may be desirable to switch to the “Partial Off”
mode by momentarily pressing the “ESC OFF” button. Once
the situation requiring “Partial Off” mode is overcome, turn
ESC back on by momentarily pressing the “ESC OFF”
button. This may be done while the vehicle is in motion.
ESC OFF Button
5
STARTING AND OPERATING 431

WARNING!(Continued)
•Never use a tire with a smaller load index or
capacity, other than what was originally equipped
on your vehicle. Using a tire with a smaller load
index could result in tire overloading and failure.
You could lose control and have a collision.
•Failure to equip your vehicle with tires having
adequate speed capability can result in sudden tire
failure and loss of vehicle control.
CAUTION!
Replacing original tires with tires of a different size may
result in false speedometer and odometer readings.
TIRE CHAINS (TRACTION DEVICES)
Use of traction devices require sufficient tire-to-body clear-
ance. Follow these recommendations to guard against
damage.
•Traction device must be of proper size for the tire, as
recommended by the traction device manufacturer.
•Install on Front Tires Only.
•Due to limited clearance, P225/65R17 tire with a
Security Chain Company (SCC) Super Z6 low profile
traction device or equivalent is recommended.
WARNING!
Using tires of different size and type (M+S, Snow)
between front and rear axles can cause unpredictable
handling. You could lose control and have a collision.
456 STARTING AND OPERATING

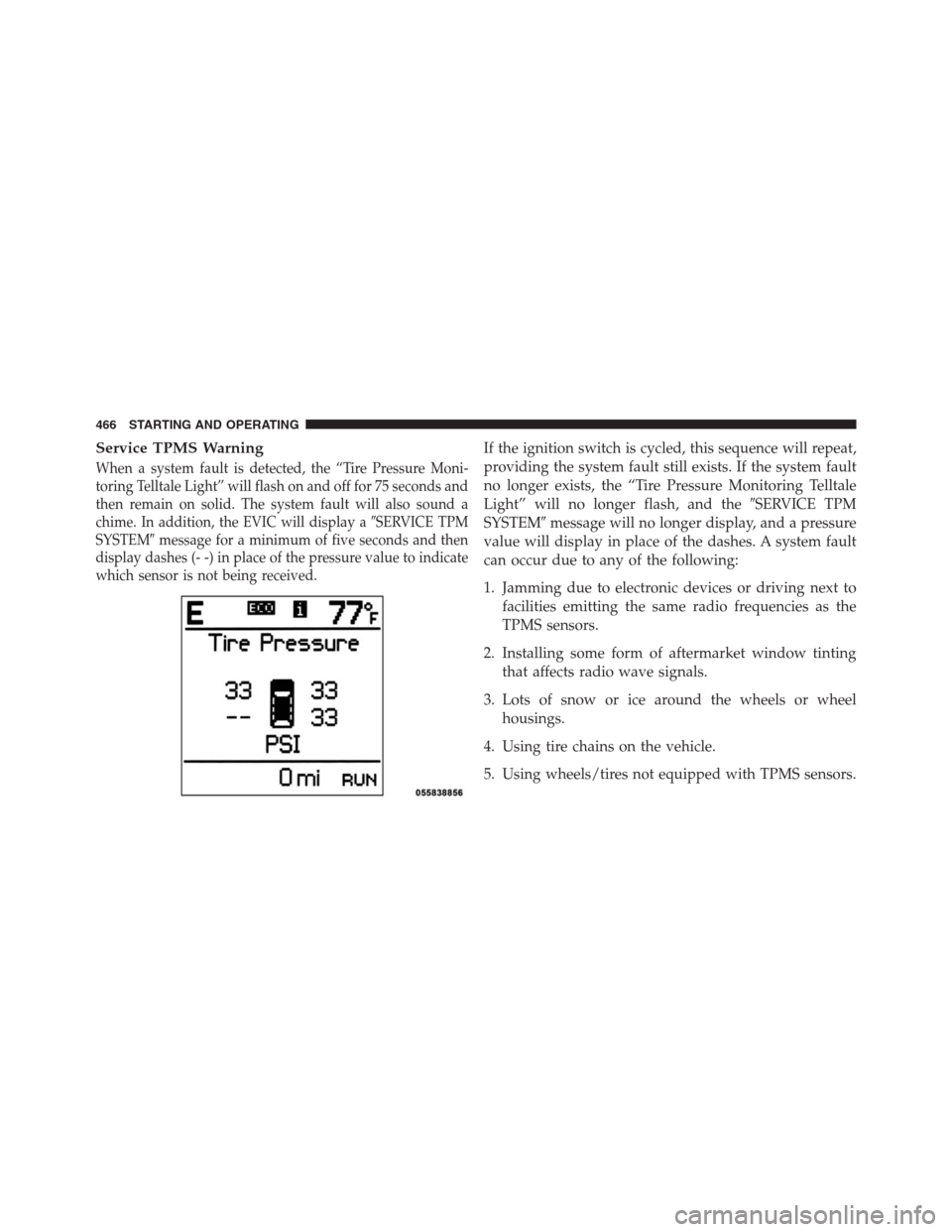

Service TPMS Warning
When a system fault is detected, the “Tire Pressure Moni-
toring Telltale Light” will flash on and off for 75 seconds and
then remain on solid. The system fault will also sound a
chime. In addition, the EVIC will display aSERVICE TPM
SYSTEMmessage for a minimum of five seconds and then
display dashes (- -) in place of the pressure value to indicate
which sensor is not being received.
If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and theSERVICE TPM
SYSTEMmessage will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following:
1. Jamming due to electronic devices or driving next to
facilities emitting the same radio frequencies as the
TPMS sensors.
2. Installing some form of aftermarket window tinting
that affects radio wave signals.
3. Lots of snow or ice around the wheels or wheel
housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPMS sensors.
466 STARTING AND OPERATING

Service Assistance.........................595
Service Contract..........................598
Service Engine Soon Light (Malfunction Indicator) . .294
Service Manuals..........................600
Shift Lever Override.......................518
Shoulder Belts............................49
Shoulder Belt Upper Anchorage................54
Side Airbag..............................72
Side View Mirror Adjustment.................116
Signals, Turn............................108
Snow Chains (Tire Chains)...................456
Snow Tires..............................449
Spare Tire...............................451
Spark Plugs.............................582
Specifications
Fuel (Gasoline).........................582
Oil..................................582
Speed Control (Cruise Control)................234
Speedometer.............................301Starting.................................26
Automatic Transmission..................392
Cold Weather..........................395
Engine Fails to Start.....................395
Remote...............................26
Starting and Operating.....................392
Starting Procedures........................392
Steering
Column Controls.......................224
Column Lock..........................231
Power...............................420
Tilt Column...........................231
Wheel, Heated.........................232
Wheel, Tilt............................231
Steering Wheel Audio Controls...............366
Steering Wheel Mounted Sound System Controls . . .366
Storage, Vehicle...........................384
Stuck, Freeing............................517
Sunglasses Storage........................248
622 INDEX
