▫Brake System........................552
▫Automatic Transmission................554
▫Rear Drive Assembly (RDA) –
AWD Models Only....................558
▫Power Transfer Unit (PTU) –
AWD Models Only....................558
▫Appearance Care And Protection From
Corrosion...........................559
▫Cleaning The Cupholders...............565
FUSES..............................565
▫Interior Fuses........................565
▫Underhood Fuses (Power Distribution
Center)............................568REPLACEMENT BULBS.................572
BULB REPLACEMENT..................574
▫Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp . .574
▫Front Fog Lamp......................575
▫Rear Turn Signal And Backup Lamp........576
▫License Plate Lamp....................579
FLUID CAPACITIES....................580
FLUIDS, LUBRICANTS AND
GENUINE PARTS......................582
▫Engine.............................582
▫Chassis............................583
524 MAINTAINING YOUR VEHICLE

CavityCar-
tridge
FuseMini-
FuseDescription
F139 40 Amp
GreenClimate Control
System Blower
F140 30 Amp
PinkPower Locks
F141 40 Amp
GreenAnti-Lock Brake
System
F142 40 Amp
GreenGlow Plugs –
If Equipped
F143 40 Amp
GreenExterior Lights 1
F144 40 Amp
GreenExterior Lights 2
F145 30 Amp
PinkTo Body Computer –
LampCavityCar-
tridge
FuseMini-
FuseDescription
F146 30 Amp
PinkSpare
F147 30 Amp
PinkSpare
F148 40 Amp
GreenRadiator Fan Motor
F149 30 Amp
PinkStarter Solenoid
F150 25 Amp
NaturalPowertrain Control
Modules
F151 30 Amp
PinkHeadlamp Washer
Motor – If Equipped
F152 25 Amp
NaturalDiesel Fuel Heater –
If Equipped
7
MAINTAINING YOUR VEHICLE 569

Exterior Bulbs
Bulb Number
Low Beam Headlamp 9006
High Beam Headlamp 9005
Front Park/Turn Signal 3757AK
Side Marker Lamp 168
Front Fog Lamp PSX24W
Center High Mounted
Stop Lamp (CHMSL)LED (Serviced at
Authorized Dealer)
License Lamp 168
Exterior Bulbs – Rear (LED Version)
Bulb Number
Rear Tail/Stop Lamp LED (Serviced at
Authorized Dealer)
Rear Tail (Liftgate) Lamp LED (Serviced at
Authorized Dealer)
Rear Turn Signal Lamp WY21W
Backup Lamp W21W
Exterior Bulbs – Rear (Bulb Version)
Bulb Number
Rear Tail/Stop Lamp P27/7W
Rear Tail (Liftgate) Lamp P27/7W
Rear Turn Signal Lamp PY27/7W
Backup Lamp P27/7W
7
MAINTAINING YOUR VEHICLE 573

BULB REPLACEMENT
Front Low/High Beam Headlamp, Turn
Signal/Park Lamp, And Side Marker Lamp
1. Open the hood.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the Totally Integrated Power
Module (TIPM) aside to replace certain lamps in the left
headlamp housing.
2. Rotate the applicable bulb and connector assembly ¼
turn counterclockwise and remove the assembly from
the headlamp housing.
3. Disconnect the bulb from the harness connector and
then connect the replacement bulb.

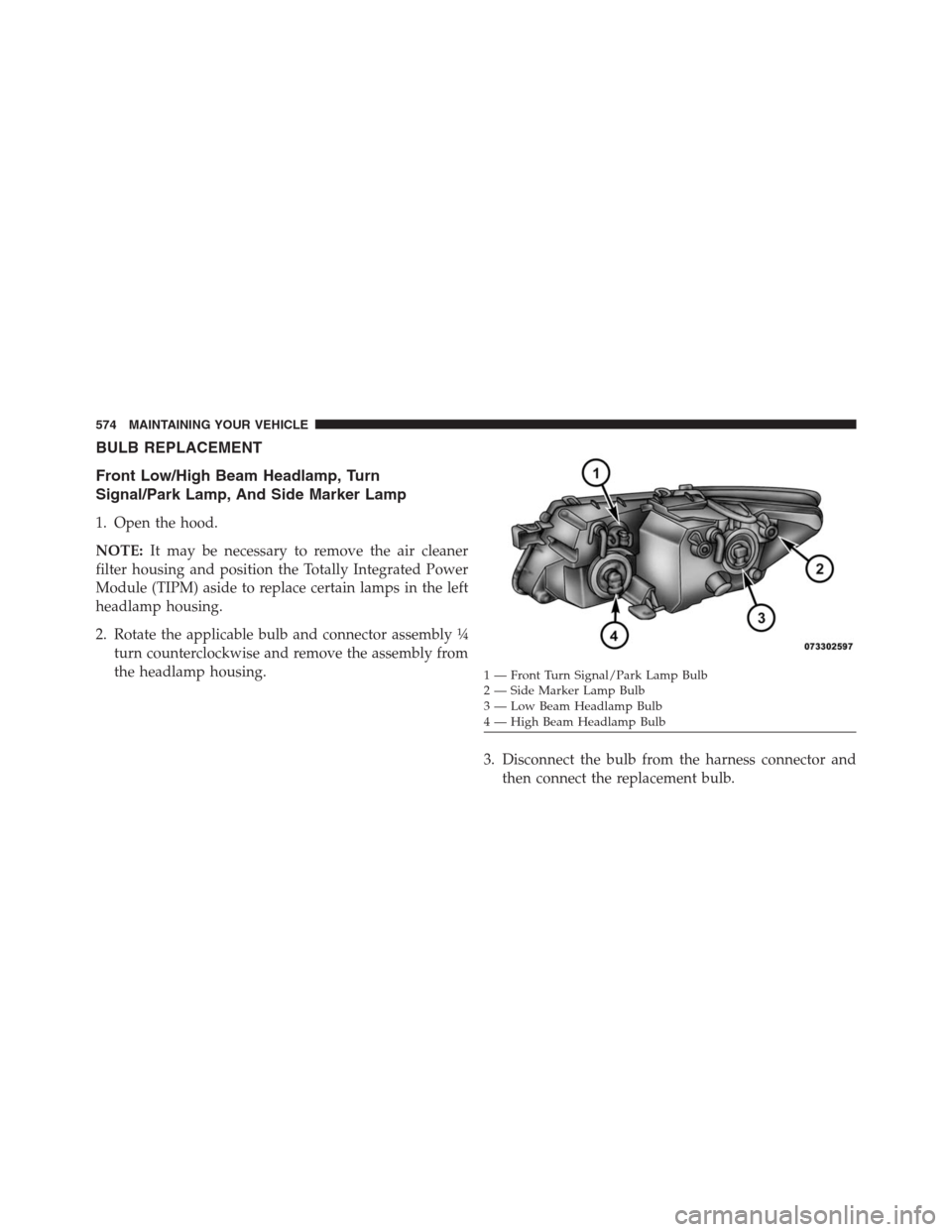

1 — Front Turn Signal/Park Lamp Bulb
2 — Side Marker Lamp Bulb
3 — Low Beam Headlamp Bulb
4 — High Beam Headlamp Bulb 574 MAINTAINING YOUR VEHICLE

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with any oily surface, clean the
bulb with rubbing alcohol.
4. Install the bulb and connector assembly into the
headlamp housing and rotate it ¼ turn clockwise to
lock it in place.
Front Fog Lamp
NOTE:Turn the steering wheel to the right if replacing
the left front fog lamp or to the left if replacing the right
front fog lamp to allow for easier access to the front of the
wheel well.
1. Remove the fasteners retaining the front lower wheel
well access panel and remove the access panel.2. Remove the electrical connector from the fog lamp
housing.
3. Squeeze the two tabs on the side of the bulb socket and
pull straight out from the fog lamp.
7
MAINTAINING YOUR VEHICLE 575
