2013 DODGE DART 1.4L engine

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Power Distribution Center
2 — Engine Oil Level Indicator 6 — Washer Fluid Reservoir
3 — Engine Oil Fill 7 — Battery
4 — Brake Fluid Reservoir 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 517

CAUTION!
Do not overfill the engine. Overfilling the engine
will cause oil aeration, which can lead to loss of oil
pressure and an increase in oil temperature. This
could damage your engine. Also, be sure the oil fill
cap is replaced and tightened after adding oil.
Change Engine Oil
The oil change indicator system will remind you that it is
time to take your vehicle in for scheduled maintenance.
Refer to the “Maintenance Schedule” for the proper
maintenance intervals.
NOTE: Under no circumstances should oil change
intervals exceed 10,000 miles (16,000 km) or twelve
months, whichever occurs first.
Engine Oil Selection – 1.4L Turbo Engine
For best performance and maximum protection for all
engines under all types of operating conditions, the
manufacturer recommends engine oils that are API Cer-
tified and meet the requirements of Chrysler Material
Standard MS-12991.
Engine Oil Selection – 2.0L And 2.4L Engine
For best performance and maximum protection for all
engines under all types of operating conditions, the
manufacturer recommends engine oils that are API Cer-
tified and meet the requirements of Chrysler Material
Standard MS-6395.
7
MAINTAINING YOUR VEHICLE 525

Engine Oil Viscosity (SAE Grade) – 1.4L Turbo
Engine
SAE 5W-40 synthetic engine oil is recommended for all
operating temperatures. This engine oil improves low
temperature starting and vehicle fuel economy. Your
engine oil filler cap also states the recommended engine
oil viscosity grade for your engine.
Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.
Engine Oil Viscosity (SAE Grade) – 2.0L And 2.4L
Engine
SAE 0W-20 API Certified engine oil is recommended for
all operating temperatures. This engine oil improves low
temperature starting and vehicle fuel economy. Your
engine oil filler cap also states the recommended engine
oil viscosity grade for your engine.If 0W-20 engine oil is not available, SAE 5W-20 API
Certified may be used as a temporary suitable alterna-
tive.
Lubricants which do not have both the engine oil certi-
fication mark and the correct SAE viscosity grade num-
ber should not be used.
Materials Added To Engine Oils
The manufacturer strongly recommends against the ad-
dition of any additives (other than leak detection dyes) to
the engine oil. Engine oil is an engineered product and its
performance may be impaired by supplemental
additives.
Disposing Of Used Engine Oil And Oil Filters
Care should be taken in disposing of used engine oil and
oil filters from your vehicle. Used oil and oil filters,
indiscriminately discarded, can present a problem to the
environment. Contact your authorized dealer, service
526 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S.Metric
Fuel (1.4L Aero Model Only) 13.2 Gallons50 Liters
Fuel (All Others) 15.8 Gallons59.8 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 4 Quarts3.8 Liters
2.0L Engine (SAE 0W-20, API Certified) 5 Quarts4.7 Liters
2.4L Engine (SAE 0W-20, API Certified) 5.5 Quarts5.2 Liters
Cooling System*
1.4L Turbo Engine (MOPAR OAT Antifreeze/Engine Coolant
10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
2.0L and 2.4L Engine (MOPAR OAT Antifreeze/Engine
Coolant 10 Year/150,000 Mile Formula or equivalent) 7.2 Quarts
6.8 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
560 MAINTAINING YOUR VEHICLE

FLUIDS, LUBRICANTS, AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine Coolant We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula OAT (Organic Additive Technology) meet-
ing the requirements of Chrysler Material Standard MS-12106.
Engine Oil – 1.4L Turbo Engine We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the requirements of Chrysler Material Standard MS-12991. Re-
fer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.0L and 2.4L Engine We recommend you use SAE 0W-20 API Certified Engine Oil, meeting the requirements of Chrysler Material Standard MS-6395. Refer to your
engine oil filler cap for correct SAE grade. If 0W-20 engine oil is not
available, SAE 5W-20 API Certified may be used as a temporary suit-
able alternative.
Engine Oil Filter We recommend you use a MOPAREngine Oil Filter.
Spark Plugs – 1.4L Turbo Engine We recommend you use MOPAR Spark Plugs (Gap 0.025 in [0.65 mm])
Spark Plugs – 2.0L Engine We recommend you use MOPARSpark Plugs (Gap 0.043 in [1.1 mm])
Spark Plugs – 2.4L Engine We recommend you use MOPARSpark Plugs (Gap 0.047 in [1.2 mm])
Fuel Selection – 1.4L Turbo Engine 87 Octane Acceptable – 91 Octane Recommended
Fuel Selection – 2.0L and 2.4L Engine 87 Octane
7
MAINTAINING YOUR VEHICLE 561

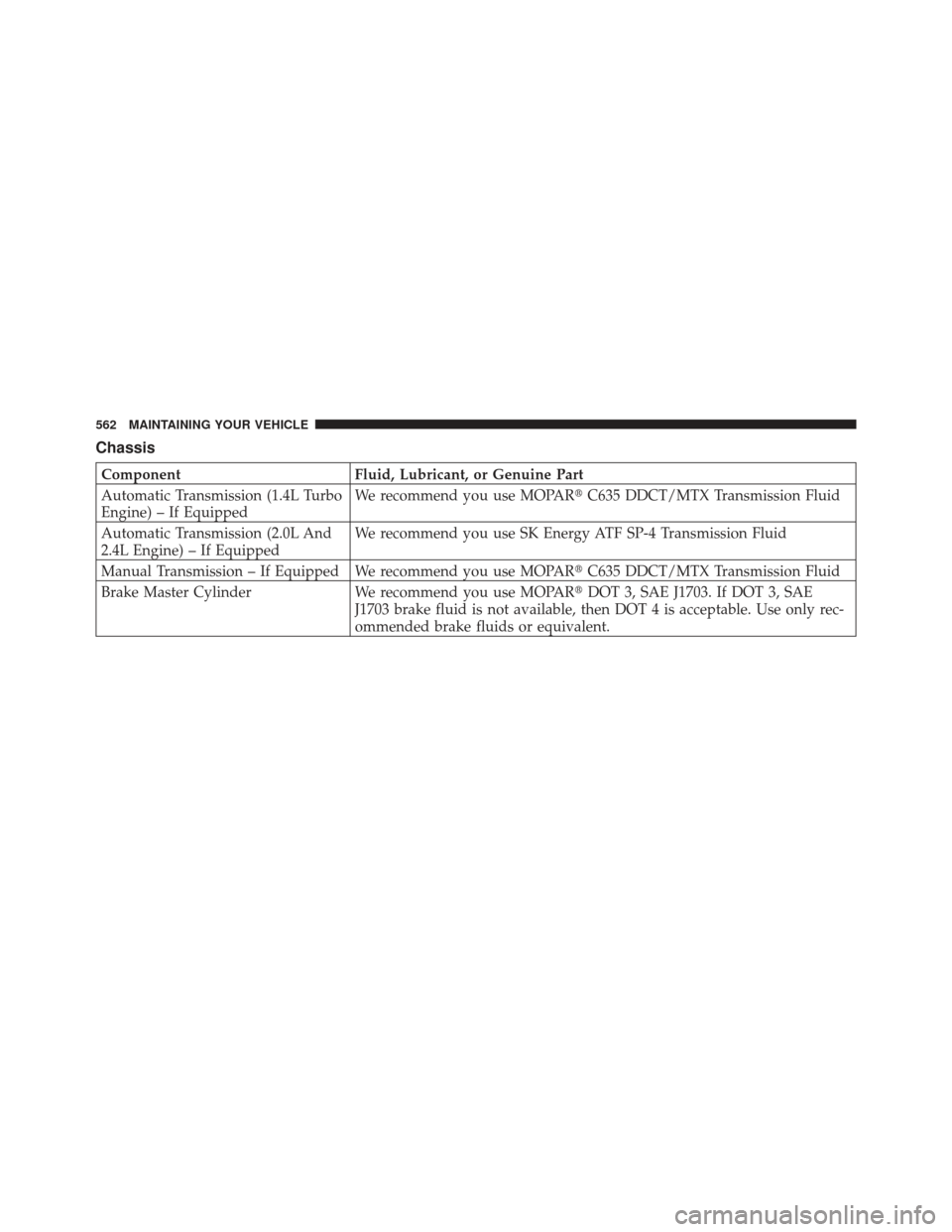

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission (1.4L Turbo
Engine) – If Equipped We recommend you use MOPAR
C635 DDCT/MTX Transmission Fluid
Automatic Transmission (2.0L And
2.4L Engine) – If Equipped We recommend you use SK Energy ATF SP-4 Transmission Fluid
Manual Transmission – If Equipped We recommend you use MOPAR C635 DDCT/MTX Transmission Fluid
Brake Master Cylinder We recommend you use MOPARDOT 3, SAE J1703. If DOT 3, SAE
J1703 brake fluid is not available, then DOT 4 is acceptable. Use only rec-
ommended brake fluids or equivalent.
562 MAINTAINING YOUR VEHICLE

Maintenance Chart
Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Additional Inspections
Inspect CV joint boots. XX X XX
Inspect front suspension, tie
rod ends and replace as nec-
essary. XXXXXXX
Inspect brake linings, parking
brake function. XXXXXXX
Additional Maintenance
Replace the cabin/air condi-
tioning filter. XXXXXXX
Replace the engine air
cleaner filter. XX X X X
Replace the spark plugs (1.4L
Turbo Engine).** XX X X X
Replace the spark plugs (2.0L
and 2.4L Engine).** X
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
S566 MAINTENANCE SCHEDULES

Mileage Or Time Passed
(Whichever Comes First) 20,000 30,000 40,000 50,000 60,000 70,000 80,000 90,000 100,000 110,000 120,000 130,000 140,000 150,000
Or Years: 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Or Kilometers: 32,000 48,000 64,000 80,000 96,000 112,000 128,000 144,000 160,000 176,000 192,000 208,000 224,000 240,000
Flush and replace the engine
coolant at 10 years or
150,000 miles (240,000 km)
whichever comes first. XX
Change the transmission fluid
(manual or automatic 1.4L
turbo engine only) if using
your vehicle for any of the
following: trailer towing, heavy
loading, taxi, police, delivery
service (commercial service),
off-road, desert operation or
more than 50% of your driving
is at sustained speeds during
hot weather, above 90°F
(32°C). XXX
8
M
A I
N T
E
N A
N CE
S
C
H E
D
U L
E
SMAINTENANCE SCHEDULES 567
