MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 6.4L (392 HEMI) . .495
ONBOARD DIAGNOSTIC SYSTEM — OBD II . . .496
EMISSIONS INSPECTION AND
MAINTENANCE PROGRAMS .............496
 REPLACEMENT PARTS ..................498
 DEALER SERVICE ..................... .498
 MAINTENANCE PROCEDURES ...........499
▫ Engine Oil ......................... .499
▫ Engine Oil Filter ..................... .501
▫ Engine Air Cleaner Filter ................502 ▫
Maintenance-Free Battery ...............502
▫ Air Conditioner Maintenance .............504
▫ A/C Air Filter ...................... .505
▫ Body Lubrication .....................507
▫ Windshield Wiper Blades ...............508
▫ Adding Washer Fluid ..................508
▫ Exhaust System ..................... .509
▫ Cooling System ......................511
▫ Brake System ....................... .517
▫ Automatic Transmission ................519
7

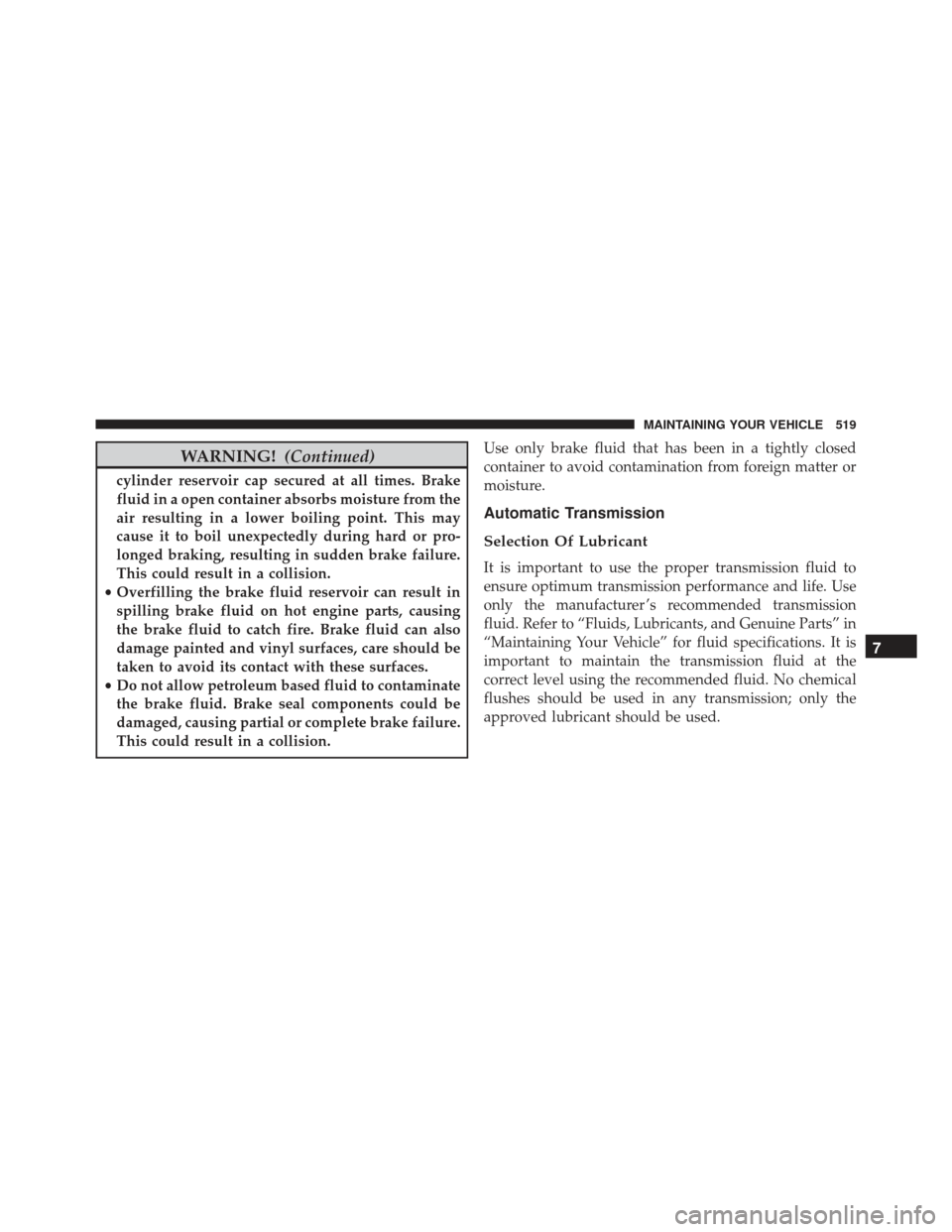

WARNING!(Continued)
cylinder reservoir cap secured at all times. Brake
fluid in a open container absorbs moisture from the
air resulting in a lower boiling point. This may
cause it to boil unexpectedly during hard or pro-
longed braking, resulting in sudden brake failure.
This could result in a collision.
• Overfilling the brake fluid reservoir can result in
spilling brake fluid on hot engine parts, causing
the brake fluid to catch fire. Brake fluid can also
damage painted and vinyl surfaces, care should be
taken to avoid its contact with these surfaces.
• Do not allow petroleum based fluid to contaminate
the brake fluid. Brake seal components could be
damaged, causing partial or complete brake failure.
This could result in a collision. Use only brake fluid that has been in a tightly closed
container to avoid contamination from foreign matter or
moisture.
Automatic Transmission
Selection Of Lubricant
It is important to use the proper transmission fluid to
ensure optimum transmission performance and life. Use
only the manufacturer ’s recommended transmission
fluid. Refer to “Fluids, Lubricants, and Genuine Parts” in
“Maintaining Your Vehicle” for fluid specifications. It is
important to maintain the transmission fluid at the
correct level using the recommended fluid. No chemical
flushes should be used in any transmission; only the
approved lubricant should be used.
7
MAINTAINING YOUR VEHICLE 519

CAUTION!
Using a transmission fluid other than the manufac-
turer ’s recommended fluid may cause deterioration
in transmission shift quality and/or torque converter
shudder. Refer to “Fluids, Lubricants, and Genuine
Parts” in “Maintaining Your Vehicle” for fluid speci-
fications.
Special Additives
The manufacturer strongly recommends against using
any special additives in the transmission.
Automatic Transmission Fluid (ATF) is an engineered
product and its performance may be impaired by supple-
mental additives. Therefore, do not add any fluid addi-
tives to the transmission. The only exception to this
policy is the use of special dyes for diagnosing fluid
leaks. Avoid using transmission sealers as they may
adversely affect seals.
CAUTION!
Do not use chemical flushes in your transmission as
the chemicals can damage your transmission compo-
nents. Such damage is not covered by the New
Vehicle Limited Warranty.
Fluid Level Check
The fluid level is preset at the factory and does not
require adjustment under normal operating conditions.
Routine fluid level checks are not required, therefore the
transmission has no dipstick. Your authorized dealer can
check your transmission fluid level using special service
tools.
If you notice fluid leakage or transmission malfunction,
visit your authorized dealer immediately to have the
transmission fluid level checked. Operating the vehicle
with an improper fluid level can cause severe transmis-
sion damage.
520 MAINTAINING YOUR VEHICLE

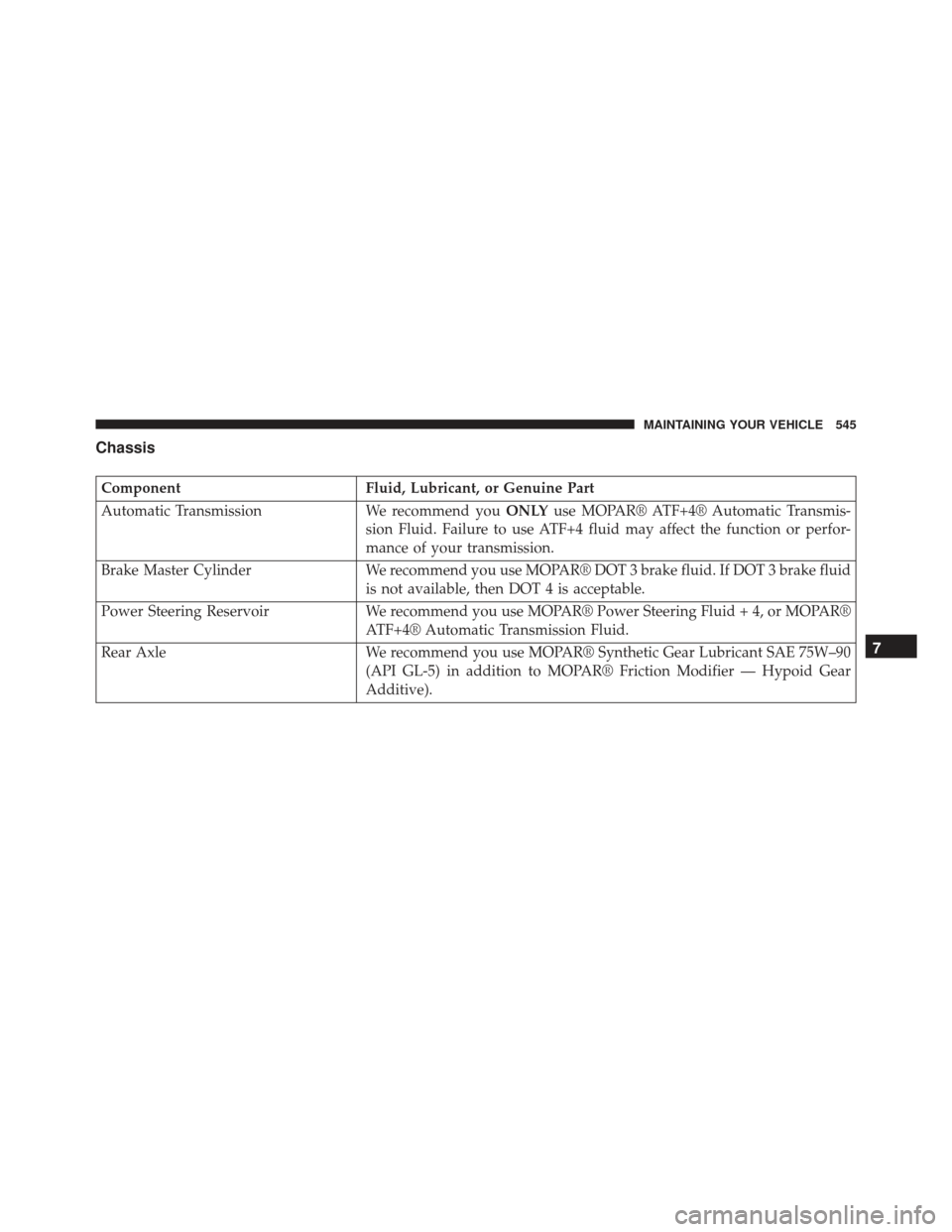

Chassis
ComponentFluid, Lubricant, or Genuine Part
Automatic Transmission We recommend youONLYuse MOPAR® ATF+4® Automatic Transmis-
sion Fluid. Failure to use ATF+4 fluid may affect the function or perfor-
mance of your transmission.
Brake Master Cylinder We recommend you use MOPAR® DOT 3 brake fluid. If DOT 3 brake fluid
is not available, then DOT 4 is acceptable.
Power Steering Reservoir We recommend you use MOPAR® Power Steering Fluid + 4, or MOPAR®
ATF+4® Automatic Transmission Fluid.
Rear Axle We recommend you use MOPAR® Synthetic Gear Lubricant SAE 75W–90
(API GL-5) in addition to MOPAR® Friction Modifier — Hypoid Gear
Additive).
7
MAINTAINING YOUR VEHICLE 545

54,000 Miles (90,000 km) or
54 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
❏ Inspect the rear axle fluid.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
60,000 Miles (100,000 km) or 60 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, and replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the CV joints.
❏ Inspect the exhaust system.
❏ Change the automatic transmission fluid and filter if using your vehicle for any of
the following: police, taxi, fleet, or frequent trailer towing.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all
parts for damage, wear, improper looseness or end play; replace if necessary.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
8
MAINTENANCE SCHEDULES 555

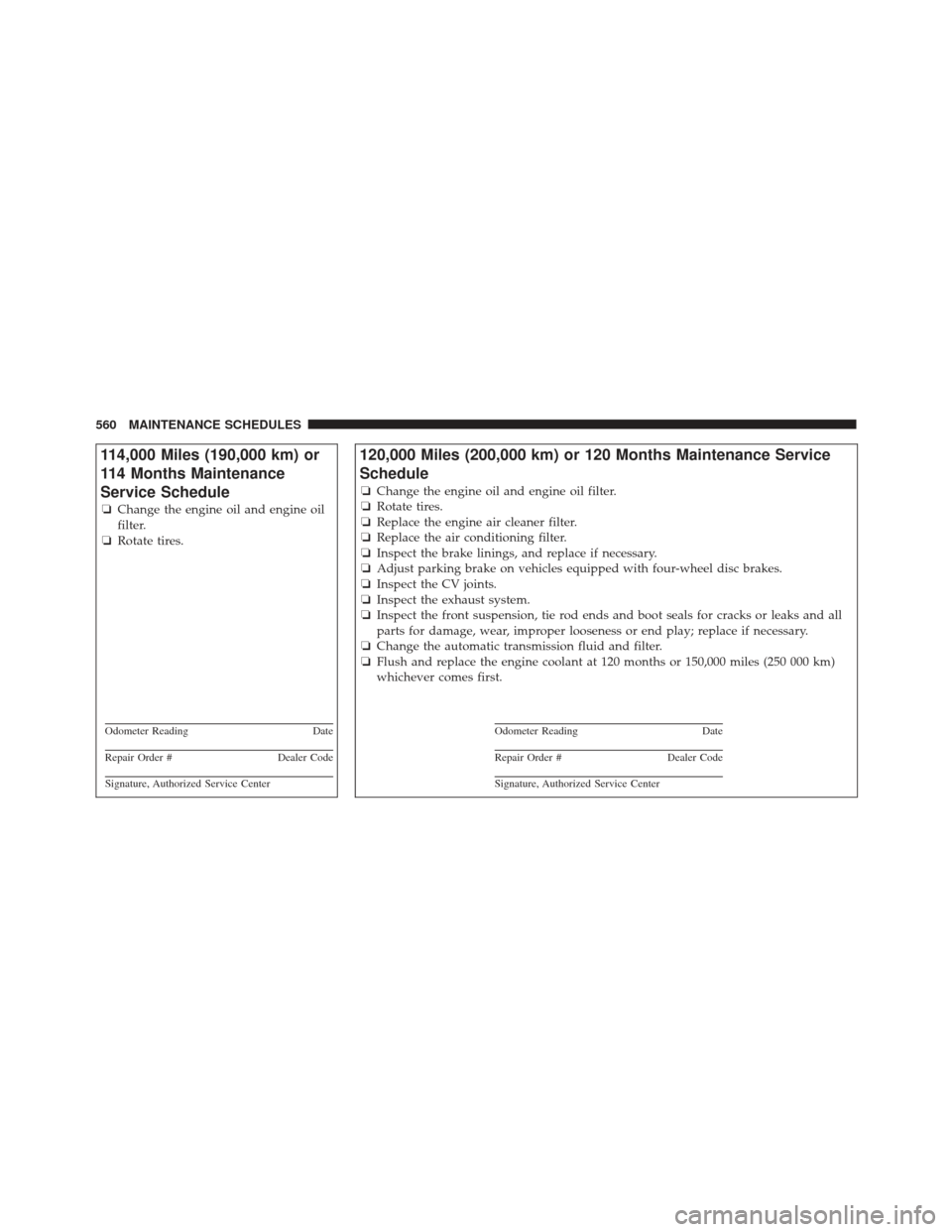

114,000 Miles (190,000 km) or
114 Months Maintenance
Service Schedule
❏Change the engine oil and engine oil
filter.
❏ Rotate tires.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
120,000 Miles (200,000 km) or 120 Months Maintenance Service
Schedule
❏Change the engine oil and engine oil filter.
❏ Rotate tires.
❏ Replace the engine air cleaner filter.
❏ Replace the air conditioning filter.
❏ Inspect the brake linings, and replace if necessary.
❏ Adjust parking brake on vehicles equipped with four-wheel disc brakes.
❏ Inspect the CV joints.
❏ Inspect the exhaust system.
❏ Inspect the front suspension, tie rod ends and boot seals for cracks or leaks and all
parts for damage, wear, improper looseness or end play; replace if necessary.
❏ Change the automatic transmission fluid and filter.
❏ Flush and replace the engine coolant at 120 months or 150,000 miles (250 000 km)
whichever comes first.
Odometer Reading Date
Repair Order #Dealer Code
Signature, Authorized Service Center
560 MAINTENANCE SCHEDULES

Automatic Oil Change Indicator...............329
Automatic Temperature Control (ATC) ..........382
Automatic Transmission .................398, 521
Adding Fluid ...................... .521, 545
Fluid and Filter Changes ..................521
Fluid Change ......................... .521
Fluid Level Check ...................519, 520
Fluid Type ........................ .519, 545
Special Additives ...................... .520
Auto Unlock, Doors ........................33
Auto Up Power Windows ....................42
Axle Fluid ............................. .545
Axle Lubrication (Axle Fluid) .................545
Battery ................................ .502
Keyless Transmitter Replacement (RKE) ........24
Location ............................. .502
Belts, Seat ............................ .49, 97
Body Mechanism Lubrication .................507B-Pillar Location
......................... .434
Brake Assist System ...................... .419
Brake Control System, Electronic ..............418
Brake Fluid ............................ .545
Brake, Parking .......................... .413
Brake System ........................... .517
Anti-Lock (ABS) ....................... .416
Fluid Check ....................... .518, 545
Master Cylinder ....................... .518
Parking ............................. .413
Warning Light ........................ .317
Brake/Transmission Interlock .................398
Break-In Recommendations, New Vehicle .........94
Brightness, Interior Lights ...................225
Bulb Replacement ..................... .537, 539
Bulbs, Light .......................... .99, 537
Camera, Rear ........................... .276
Capacities, Fluid ......................... .543
10
INDEX 579

Event Data Recorder........................73
Exhaust Gas Caution ....................96, 462
Exhaust System ....................... .96, 509
Exterior Folding Mirrors ....................110
Exterior Lighting ......................... .216
Exterior Lights ............................99
Filler Location Fuel ....................... .315
Filters Air Cleaner .......................... .502
Air Conditioning ....................384, 505
Engine Oil ........................ .501, 544
Flashers Hazard Warning ....................... .472
Turn Signal ..................... .99, 222, 311
Flash-To-Pass ........................... .222
Flooded Engine Starting ....................394
Floor Console ........................... .302
Fluid, Brake ............................ .545Fluid Capacities
......................... .543
Fluid Leaks ..............................99
Fluid Level Checks ....................... .521
Automatic Transmission ..................520
Brake ............................... .518
Cooling System ........................ .512
Engine Oil ........................... .499
Fluids, Lubricants and Genuine Parts ...........544
Fog Lights .......................... .220, 311
Folding Rear Seat ........................ .208
Forward Collision Warning ...............265, 326
Freeing A Stuck Vehicle .....................487
Fuel .................................. .458
Additives ............................ .460
Clean Air ............................ .458
Conserving ........................... .331
Ethanol ............................. .459
Filler Door (Gas Cap) ....................315
Gasoline ............................. .458
10
INDEX 583
