2013 DODGE AVENGER Owners Manual

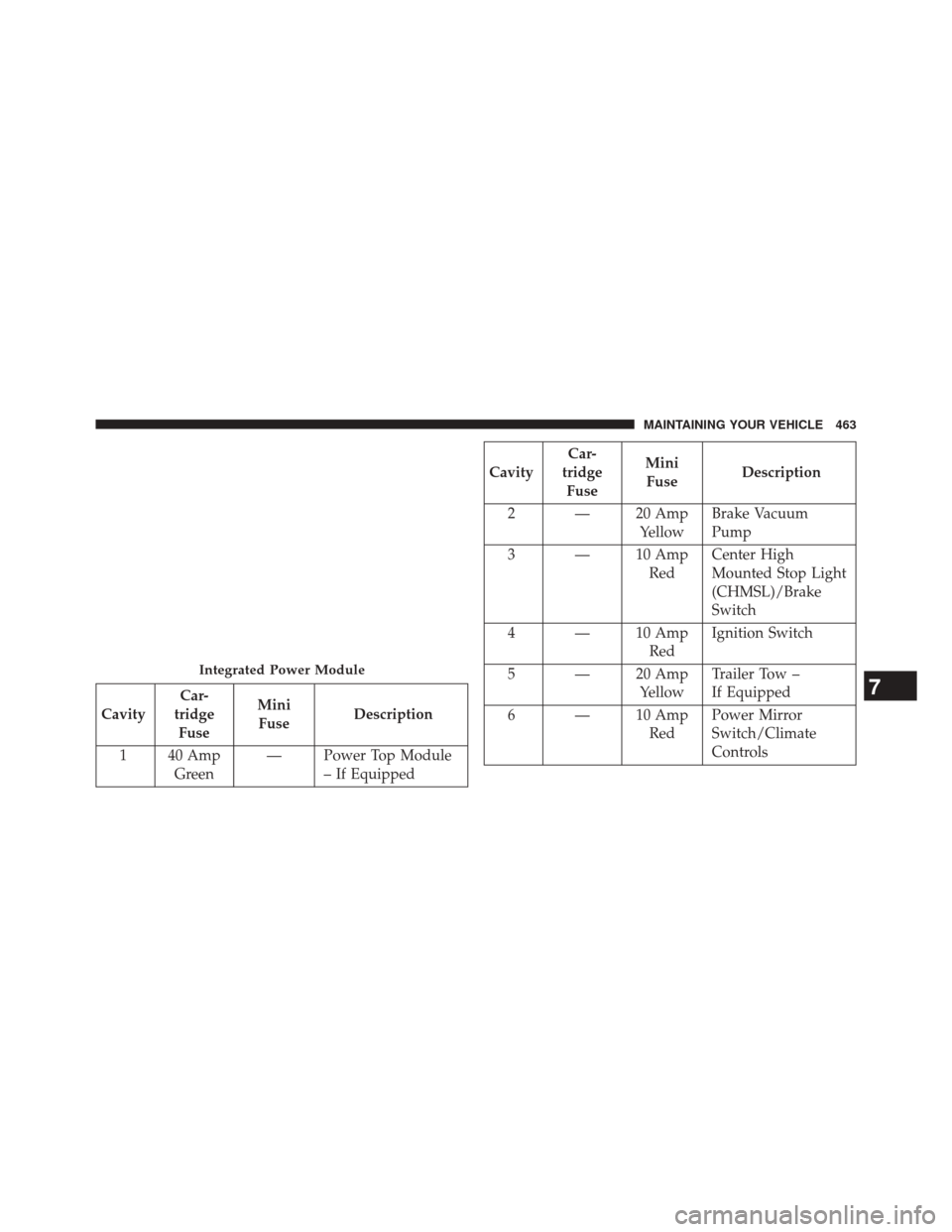

CavityCar-
tridge Fuse Mini
Fuse Description
1 40 Amp Green — Power Top Module
– If Equipped
Cavity Car-
tridge Fuse Mini
Fuse Description
2 — 20 Amp YellowBrake Vacuum
Pump
3 — 10 Amp RedCenter High
Mounted Stop Light
(CHMSL)/Brake
Switch
4 — 10 Amp RedIgnition Switch
5 — 20 Amp YellowTrailer Tow –
If Equipped
6 — 10 Amp RedPower Mirror
Switch/Climate
Controls
Integrated Power Module
7
MAINTAINING YOUR VEHICLE 463

CavityCar-
tridge Fuse Mini
Fuse Description
7 — 30 Amp GreenIgnition Off Draw
(IOD) Sense 1
8 — 30 Amp GreenIgnition Off Draw
(IOD) Sense 2
9 40 Amp Green Battery Feed –
Power Seats –
If Equipped
10 — 20 Amp YellowInstrument Panel/
Power Locks/
Interior Lights
11 — 15 Amp Lt BlueSelectable Power
Outlet (Inside
Center Arm Rest)Cavity Car-
tridge Fuse Mini
Fuse Description
12 — 20 Amp Yellow—
13 — 20 Amp YellowIgnition/Cigar
Lighter
14 — 10 Amp RedInstrument Panel
15 40 Amp Green — Radiator Fan Relay
16 — 15 Amp Lt. BlueSunroof –
If Equipped
17 — 10 Amp Red
Wireless Control
Module (WCM)/
Clock/Steering Con-
trol Module (SCM)
464 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini
Fuse Description
18 40 Amp Green — Auto Shutdown
(ASD) Relay
19 — 20 Amp YellowAudio Amplifier –
If Equipped
20 — 15 Amp Lt. BlueRadio
21 — 10 Amp RedSiren – If Equipped
22 — 10 Amp RedIgnition Run –
Climate Controls/
Hot Cupholder –
If Equipped
23 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 3Cavity Car-
tridge Fuse Mini
Fuse Description
24 — 25 Amp NaturalSunroof –
If Equipped
25 — 10 Amp RedIgnition Run —
Heated Mirrors -
If Equipped
26 — 15 Amp Lt. BlueAuto Shutdown
(ASD) Relay 2
27 — 10 Amp RedIgnition Run –
Occupant
Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
7
MAINTAINING YOUR VEHICLE 465

CavityCar-
tridge Fuse Mini
Fuse Description
28 — 10 Amp RedIgnition Run —
Occupant
Classification
Module (OCM)/
Occupant Restraint
Controller (ORC)
29 — — Hot Car (No Fuse Required)
30 — 20 Amp YellowIgnition Run –
Heated Seats –
If Equipped
31 — — SpareCavity Car-
tridge Fuse Mini
Fuse Description
32 30 Amp Pink — Auto Shutdown
(ASD) Relay 1
33 — 10 Amp RedSwitch Bank/
Diagnostic Link
Connector/
Powertrain Control
Module (PCM)
34 30 Amp Pink — Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module –
If Equipped
466 MAINTAINING YOUR VEHICLE

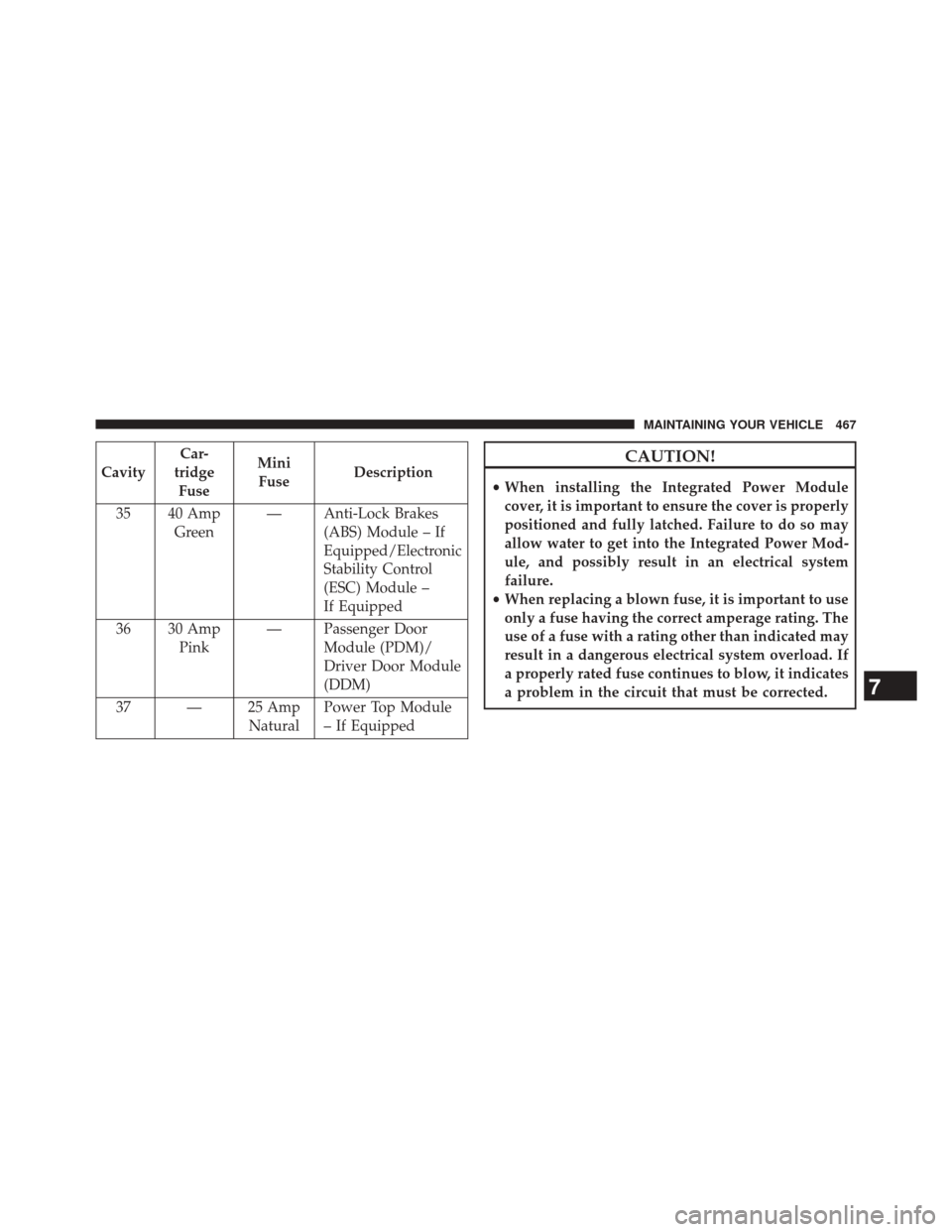

CavityCar-
tridge Fuse Mini
Fuse Description
35 40 Amp Green — Anti-Lock Brakes
(ABS) Module – If
Equipped/Electronic
Stability Control
(ESC) Module –
If Equipped
36 30 Amp Pink — Passenger Door
Module (PDM)/
Driver Door Module
(DDM)
37 — 25 Amp NaturalPower Top Module
– If EquippedCAUTION!
•
When installing the Integrated Power Module
cover, it is important to ensure the cover is properly
positioned and fully latched. Failure to do so may
allow water to get into the Integrated Power Mod-
ule, and possibly result in an electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
7
MAINTAINING YOUR VEHICLE 467

VEHICLE STORAGE
If you will not be using your vehicle for more than 21 days,
you may want to take steps to preserve your battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
• Or disconnect the negative cable from the battery.
•
Anytime you store your vehicle, or keep it out of service
(i.e., vacation) for two weeks or more, run the air
conditioning system at idle for about five minutes in the
fresh air and high blower setting. This will ensure
adequate system lubrication to minimize the possibility
of compressor damage when the system is started again.
REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
Interior Bulbs
Bulb Number
Front Courtesy/Reading
Lamp
Center Courtesy/Reading
Lamp 578/W5W
Visor Vanity Lamp 578/W5W
Glove Box Lamp A6220
468 MAINTAINING YOUR VEHICLE

Bulb Number
Shift Indicator Lamp A6220
Rear Compartment
(Trunk) Lamp IKLE14140
NOTE: For lighted switches, see your authorized
dealer for replacement.
Exterior Bulbs
Bulb Number
Low Beam Headlamp 9006
High Beam Headlamp 9005
Front Park/Turn Signal
Lamp 3457A
Front Fog Lamp H11
Front Side Marker Lamp WY5W
Bulb Number
Center High Mounted
Stop (CHMSL) Lamp LED (Serviced at
Authorized Dealer)
Rear Tail/Stop/Turn
Signal Lamp LED (Serviced at
Authorized Dealer)
Backup Lamp 921
License Lamp W5W
BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
7
MAINTAINING YOUR VEHICLE 469

Headlamp
1. Raise the hood and locate the connector behind theheadlamp.
NOTE: It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
2. Reach into engine compartment and from behind the lamp assembly and grasp the connector.
3. Rotate bulb and connector ¼ turn and pull outwardfrom assembly.
