2013 DACIA SANDERO Windows

children .................................................(up to the end of the DU)doors.....................................................(up to the end of the DU)child safety............................................(up to the end of the DU)
1.4
ENG_UD5542_1Ouverture des portes (B90 - Dacia)ENG_NU_817-2_NU_Dacia_1
Portes
OPENING THE DOORS
Driver’s responsibility
Never leave your vehi- cle with the key inside and never leave a child (or a pet) unsupervised, even for a short while.
They may pose a risk to themselves
or to others by starting the engine, activating equipment such as the electric windows or by locking the doors.
Risk of serious injury.
Opening manually
from the outside
Depending on the vehicle, the key locks and unlocks the driver’s door or all four doors.
Front: use the key to unlock one of
the front door locks 2. Place your hand
behind handle 1 and pull it towards you.
Rear: lift unlocking button 3 from the inside and pull the door handle.
Opening manually
from the inside
Front: pull the handle 4
Rear: from the inside, lift unlocking
button 3 and pull the door handle 4.
Lights-on reminder buzzer
If you have left the lights on after switch- ing off the ignition, a warning buzzer will sound when a front door is opened (to prevent the battery from discharging, etc.).
21
3
4

2.8
ENG_UD5485_1Conseils antipollution, économies de carburant, conduite (U90 - Daci\
a)ENG_NU_817-2_NU_Dacia_2
ADVICE ON ANTIPOLLUTION, FUEL ECONOMY AND DRIVING (continued)
– In vehicles fitted with air condi- tioning, it is normal to observe an increase in fuel consumption (es- pecially in city conditions) when it is used. For vehicles fitted with manual air conditioning, switch off the system when it is not required.
Some advice for reducing fuel consumption and therefore help- ing to protect the environment:
– It is advisable to drive with the air
vents open and the windows closed.
– If the vehicle has been parked in the
sun, open the doors for a few mo- ments to let the hot air escape before starting the engine.
– Never fill the fuel tank to the brim to
avoid overflow.
– Do not leave an empty roof rack
fitted to the vehicle.
– It is better to fit a trailer for bulky ob
- jects.
– When towing a caravan, fit a wind
deflector and adjust it carefully.
Advice on use
– Electricity is fuel; switch off all the electrical components which are not really needed.
However (safety first), keep your lights on when the visibility is bad (“see and be seen”).
– Use the air vents. Driving with the
windows open will increase fuel consumption by 4% at a speed of 60 mph (100 km/h). –
Avoid using the vehicle for door-to
- door journeys (short journeys, with long stops in-between) because in these conditions, the engine never reaches its ideal temperature.
Tyres
Increased fuel consumption could be the result of:
– insufficient pressure,
– using non-recommended tyres.

3.1
ENG_UD8703_2Sommaire 3 (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
Section 3: Your comfort
Air vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Heating - Ventilation - Air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . 3.4
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.10
Ashtrays/Cigar lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . 3.12
Storage compartments - Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . 3.13
Luggage compartment - Transporting objects in the luggage compartment . . . . . . . . . . . . . . . . . . . 3.16
Rear parcel shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17

JauneNoirNoir texte

3.5
ENG_UD5580_1Chauffage - Ventilation - Air conditionné (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3

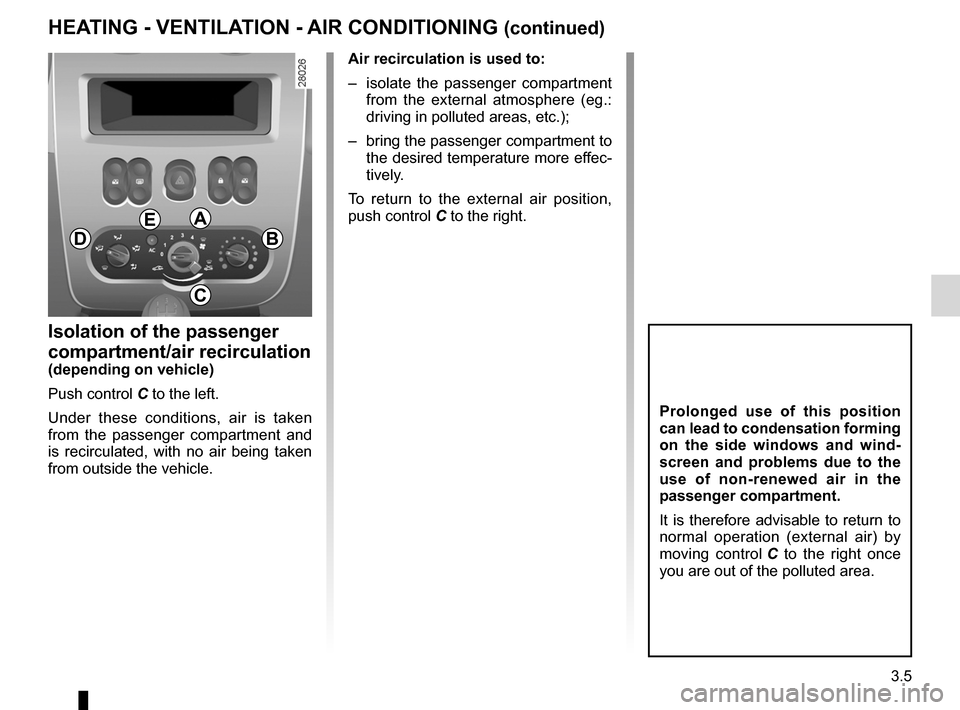

HEATING - VENTILATION - AIR CONDITIONING (continued)
Isolation of the passenger
compartment/air recirculation(depending on vehicle)
Push control
C to the left.
Under these conditions, air is taken from the passenger compartment and is recirculated, with no air being taken from outside the vehicle.
Air recirculation is used to:
– isolate the passenger compartment
from the external atmosphere (eg.: driving in polluted areas, etc.);
– bring the passenger compartment to
the desired temperature more effec- tively.
To return to the external air position,
push control C to the right.
Prolonged use of this position can lead to condensation forming on the side windows and wind- screen and problems due to the use of non-renewed air in the passenger compartment.
It is therefore advisable to return to normal operation (external air) by
moving control C to the right once you are out of the polluted area.
D
EA
B
C

air conditioning .....................................(up to the end of the DU)heating system .....................................(up to the end of the DU)heating and air conditioning system .....(up to the end of the DU)ventilationheating and air conditioning system (up to the end of the DU)air conditioning ......................................................(current page)
3.8
ENG_UD5493_1Air conditionné : informations et conseils utilisation (U90 - Dacia)\
ENG_NU_817-2_NU_Dacia_3

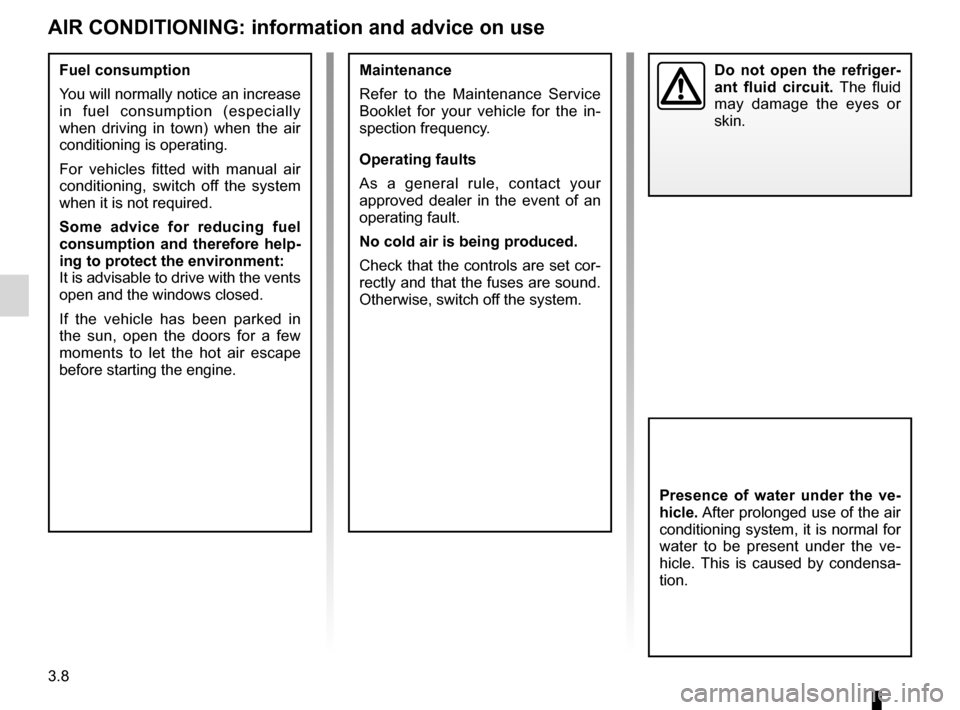

AIR CONDITIONING: information and advice on use
Fuel consumption
You will normally notice an increase in fuel consumption (especially when driving in town) when the air conditioning is operating.
For vehicles fitted with manual air conditioning, switch off the system when it is not required.
Some advice for reducing fuel consumption and therefore help- ing to protect the environment:It is advisable to drive with the vents open and the windows closed.
If the vehicle has been parked in the sun, open the doors for a few moments to let the hot air escape before starting the engine.
Maintenance
Refer to the Maintenance Service Booklet for your vehicle for the in- spection frequency.
Operating faults
As a general rule, contact your approved dealer in the event of an operating fault.
No cold air is being produced.
Check that the controls are set cor- rectly and that the fuses are sound. Otherwise, switch off the system.
Do not open the refriger- ant fluid circuit. The fluid may damage the eyes or skin.
Presence of water under the ve- hicle. After prolonged use of the air conditioning system, it is normal for water to be present under the ve- hicle. This is caused by condensa- tion.

electric windows ...................................(up to the end of the DU)
3.10
ENG_UD5583_1Lève-vitres / pare soleil - poignée de maintien (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
JauneNoirNoir texte
Lève-vitres

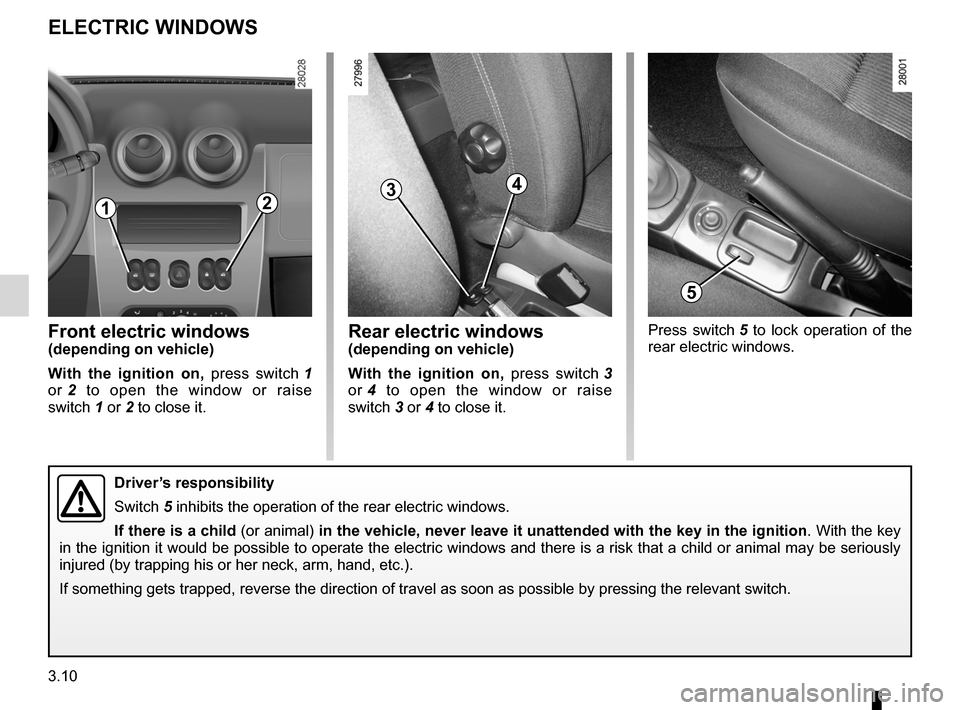

ELECTRIC WINDOWS
Front electric windows(depending on vehicle)
With the ignition on, press switch 1
or 2 to open the window or raise
switch 1 or 2 to close it.
Rear electric windows(depending on vehicle)
With the ignition on, press switch 3
or 4 to open the window or raise
switch 3 or 4 to close it. Press switch
5 to lock operation of the rear electric windows.
1234
5
Driver’s responsibility
Switch
5 inhibits the operation of the rear electric windows.
If there is a child (or animal) in the vehicle, never leave it unattended with the key in the ignition. With the key in the ignition it would be possible to operate the electric windows and there is a risk that a child or animal may be seriously injured (by trapping his or her neck, arm, hand, etc.).
If something gets trapped, reverse the direction of travel as soon as po\
ssible by pressing the relevant switch.

mirrors ...................................................................(current page)sun visor ................................................................(current page)grab handle............................................................(current page)
JauneNoirNoir texte
3.11
ENG_UD5583_1Lève-vitres / pare soleil - poignée de maintien (B90 - Dacia)ENG_NU_817-2_NU_Dacia_3
ELECTRIC WINDOWS (continued)/SUN VISOR/GRAB HANDLE
Manual window winder
controls
Turn handle 6.
Sun visor
Lower sun visor 1.
Vanity mirror
Depending on the vehicle, the sun visor
is fitted with a vanity mirror 2 on the passenger side.
Grab handle 3
This offers support and can be held when the vehicle is being driven.
Do not use it for getting into or out of the vehicle.
6
12
3

JauneNoirNoir texte

5.23
ENG_UD5610_1Fusibles (B90 - Dacia)ENG_NU_817-2_NU_Dacia_5

FUSES (continued)
SymbolAllocation
ÌHorn
ôMain power supply
ñHeated seats
sHeated door mirrors
hElectric front windows
ZInterior lighting
eElectric door mirror
àHeating
àTowing
SymbolAllocation
ÅAir bag
PRight-hand main beam headlight
QLeft-hand main beam headlight
LLeft-hand dipped beam headlight
TRight-hand dipped beam headlight
VRight-hand side light
YLeft-hand side light
FRear fog light
hElectric rear windows
Allocation of fuses(the presence of certain fuses DEPENDS ON THE VEHICLE EQUIPMENT LEVEL)\
SymbolAllocation
nABS
îRadio
ßBrake lights and reversing light
àAir conditioning
GFront fog lights
aInstrument panel Injection
fWindscreen wiper
]Central locking of doors and tailgate
CRear screen de-icing
ÙFitting for alarm
