2013 CITROEN NEMO Handbook (in English)

OWNER'S HANDBOOK

YOUR HANDBOOK
ON THE INTERNET!

CITROËN lets you view your vehicle's
documentation on line, to see earlier versions
and the latest information, simply and free of
charge.
Connect to http://service.citroen.com
:
1 |
Select your language and register,
click on the link in the "Private customer access" zone to consult the
vehicle documentation; a window opens providing access to all of the
handbooks,
select your vehicle, choose the body type then the date of issue of the
handbook,
fi nally, click on the heading of your choice.
2 |
3 |
4 |

Your vehicle is fitted with only some of the
equipment described in this document,
depending on the trim level, version and the
specifications for the country in which it is sold.
The fitting of electrical equipment or accessories
which are not recommended by CITROËN may
result in a failure of your vehicle's electronic
system. Please note this specific warning and
contact a CITROËN dealer to be shown the
recommended equipment and accessories.

CITROËN has a presence on every continent,
a complete product range,
bringing together technology and a permanent spirit of innovation,
for a modern and creative approach to mobility.
We thank you and congratulate you on your choice.


Happy motoring!

We draw your attention to the following...


At the wheel of your new vehicle,
getting to know each system,
each control, each setting,
makes your trips, your journeys
more comfortable and more enjoyable.
Key

directs you to additional information,
indicates important information relating to the
use of a system
alerts you to the safety of individuals and the
use of vehicle systems.

2
Contents
2. TECHNICAL DATA 58-674. EASE OF USE and
COMFORT 95-112

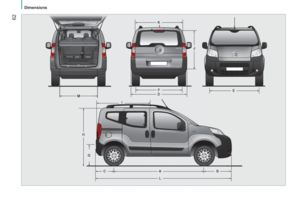

Dimensions 58
Engines 64
Weights 66 Exterior 4
Opening 5
Interior 6
Instruments and
controls 7
Load space 8
Rear fi ttings 9
Sitting comfortably 10
Seeing clearly 12
Ventilation 13
Monitoring 14
Passenger safety 15
Driving safely 16
Starting 18
Eco-driving 19
FAMILIARISATION
4-20
Front seats 95
Retractable
passenger seat 97
Rear bench seat 98
De-icing and
demisting 102
Air conditioning 103
Front fi ttings 106
Load space layout 108
Rear layout 110
Interior lighting 112
3. TECHNOLOGY on
BOARD 68-94
Trip computer/
Confi guration -
Personailsation
of the vehicle 68
Rear parking
sensors 72
Audio equipment 73

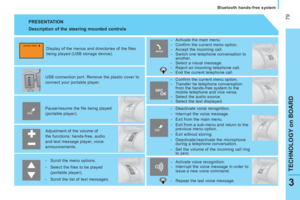

Steering mounted
controls 74
Bluetooth
hands-free
system 77
1. READY TO GO
21-57

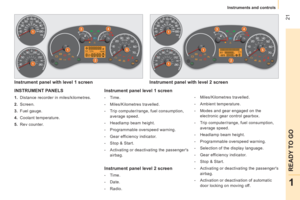

Instrument panels 21
Warning lamps 22
Fuel gauge 29
Coolant
temperature 29
Service indicator and
engine oil warning
lamp 30
Lighting dimmer 30
Remote control 31
Key 33
Confi dential card 34
Alarm 35
Opening 36
Closing 39
Lighting stalk 41
Wipers stalk 43
Cruise control 44
Fixed speed limiter 45
Mirrors 46
Electric windows 47
Steering wheel
adjustment 48
Manual gearbox 48
Gear effi ciency
indicator 49
Electronic
gearbox 50
Hill start assist 54
Stop & Start 55

3
CONTENTS
Contents
5. SAFETY
113-1306. ACCESSORIES
131-134
Parking brake 113
Hazard
warning lights 113
Horn 114
Braking assistance
systems 114
Trajectory control
systems 115
Seat belts 118
Airbags 120
Child seats 124
ISOFIX
mountings 129Towing a trailer,
caravan, etc... 131
Roof rack and
roof bars 133
Other
accessories 133
7. QUICK HELP
135-166
Battery 135
Changing
a wheel 138

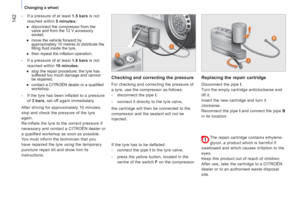

Temporary puncture
repair kit 141

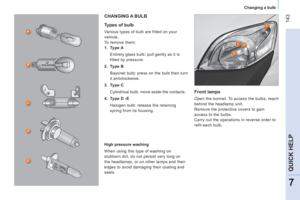

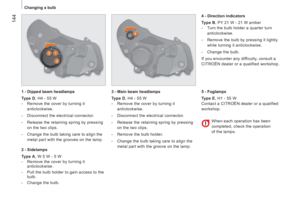

Changing
a bulb 143
Changing a wiper
blade 148
Changing
a fuse 149
Being towed 154
Identifi cation
features 155
Filling with fuel 156
Opening
the bonnet 159
Levels 162
Checks 164
8. VISUAL SEARCH
167-174
Exterior 167
Interior 169
Instruments
and controls 172
Technical data -
maintenance 174

4

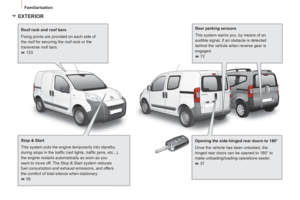

Familiarisation

EXTERIOR


Roof rack and roof bars
Fixing points are provided on each side of
the roof for securing the roof rack or the
transverse roof bars.



133


Opening the side-hinged rear doors to 180°
Once the vehicle has been unlocked, the
hinged rear doors can be opened to 180° to
make unloading/loading operations easier.



37

Rear parking sensors
This system warns you, by means of an
audible signal, if an obstacle is detected
behind the vehicle when reverse gear is
engaged.



72



Stop & Start
This system puts the engine temporarily into standby
during stops in the traffi c (red lights, traffi c jams, etc...).
the engine restarts automatically as soon as you
want to move off. The Stop & Start system reduces
fuel consumption and exhaust emissions, and offers
the comfort of total silence when stationary.



55

5
FAMILIARISATION

Familiarisation

OPENING


Remote control key



A.
Unfolding/Folding the key.

B.
Unlocking the front doors only (Light van)
or all of the doors (Combi)
(two fl ashes of the direction indicators).

C.
Central locking the vehicle
(one press; one fl ash of the direction
indicators).
or
Deadlocking the vehicle
(two consecutive presses; one fl ash of the
direction indicators).

D.
Unlocking of the load space (Light van) or
of the hinged rear doors or tailgate only
(Combi).
If a door is open or has not been closed
properly, the failed locking is indicated by
three fl ashes of the direction indicators.



31



Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller cap.
Capacity of the tank: approximately 45 litres.



156



Opening the rear doors to 180°

Press the catch while opening the side-hinged
door.



37



Opening/Closing the windows with the
remote control
Press button B for more than 3 seconds to
start opening the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
Press button C for more than 3 seconds to
start closing the windows. Hold the button
down until the desired position is reached, then
release the button, the windows stop.
These operations can also be carried out by
inserting and turning the key in the front door
lock barrel.



32

6

Familiarisation

INTERIOR


Trip computer
Using the MENU button, this system allows
control or consultation of the various
vehicle confi gurations/information such
as deactivation of the passenger’s airbag,
automatic locking of the doors, language, etc.



68


Folding multifunction passenger seat
The front passenger seat can be placed in
one of three positions:


- seat for carrying a passenger,

- table to accommodate your various
documents,

- fully folded for transporting long objects.



97

Audio system
These systems benefi t from the latest
technology: MP3 compatible audio system and
Bluetooth® hands-free kit.



73



Cruise control
This system maintains the speed of the
vehicle at a programmed value.



44


Electronic gearbox
This system assures perfect driving by
combining a fully automatic mode and a
manual mode.



50
