2013 CITROEN NEMO DAG sensor

134

Equipment


Range of accessories for private vehicles

Another range is also available from
CITROËN dealers.

"Comfort":
insulated module, coat hanger fixed to a
head restraint, reading lamp, rear parking
sensors...

"Transport solutions":
boot liner, rear door net, set of transverse
and longitudinal roof bars, roof boxes...

"Style":
embellishers, secure wheel embellishers...
"Security and safety":
anti-intrusion alarm, window etching,
breathalyzer, first aid kit, high visibility vest,
warning triangle, child seats and booster
cushions, snow chains...

"Protection":
rubber mats, over-carpets, 3D mats, seat
covers compatible with lateral airbags, sets
of front and rear mudflaps...
"Multimedia":
audio systems, hands-free kit, speakers,
portable satellite navigation systems, speed
camera detectors, Wi-Fi on board...

By going to a CITROËN dealer, you can also
obtain cleaning and maintenance products
(interior and exterior) - including ecological
products from the "TECHNATURE" range -
products for topping up (screenwash...),
touch-up pens and paint aerosols for the
exact colour of your vehicle, recharges
(cartridge for the temporary puncture repair
kit...), ...
To avoid any risk of jamming of the pedals:


- ensure that the mat is positioned and
secured correctly,

- never fit one mat on top of another.

136



Battery



Models with Stop & Start



A.
Protective cover.

B.
Positive metallic point on your vehicle.

C.
Slave battery.

D.
Earth on your vehicle.

E.
Terminal release button.

F.
Check sensor button.

G.
State of charge sensor.

H.
Metal negative point of your vehicle.
Charging the battery using a battery charger
- Follow the instructions for use given by
the battery charger manufacturer.

- Check that the battery posts and
terminals are clean. If they are covered
with sulphate (white or greenish deposit),
disconnect them and clean them.

- Reconnect connector F
of the check
sensor G
.

- Refit the protective cover A
to the
metallic point B
.

Starting using another battery


- Remove the protective cover A
from the
metallic point B
.

- Connect the red cable to metallic point B
,
then the (+) terminal to the slave battery C
.

- Connect one end of the green or black
cable to the (-) terminal of the slave
battery C
.

- Connect the other end of the green or
black cable to the earth point D
of your
vehicle (never to the metallic point H
of
your vehicle).

- Operate the starter, let the engine run.

- Wait for the engine to return to idle, then
disconnect the cables.

- Refit the protective cover A
to the
metallic point B
.



Do not disconnect the battery to charge it.


- Press the release button E
to disconnect
the terminal F
.

- Disconnect the connector F
of the check
sensor G
.

- Remove the protective cover A
from the
metallic point B
.

- Connect the charger cables: (+) on the
metallic point B
; (-) on the metallic point H
. Never remove the check sensor G
from the metallic point H
, except
when replacing the battery.

137

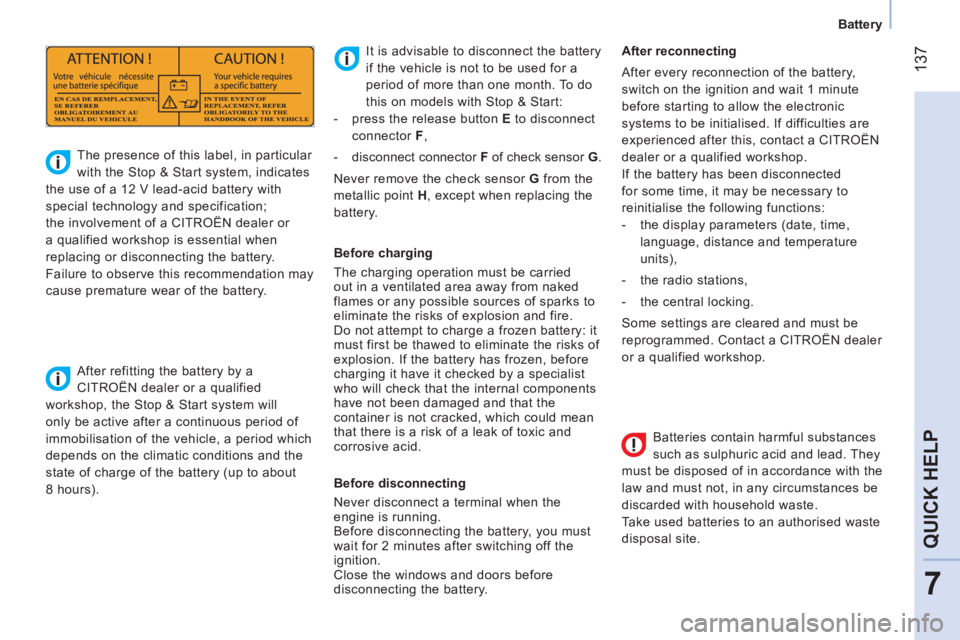

7
QUICK HELP



Battery


Batteries contain harmful substances
such as sulphuric acid and lead. They
must be disposed of in accordance with the
law and must not, in any circumstances be
discarded with household waste.
Take used batteries to an authorised waste
disposal site.

It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month. To do
this on models with Stop & Start:


- press the release button E
to disconnect
connector F
,

- disconnect connector F
of check sensor G
.
Never remove the check sensor G
from the
metallic point H
, except when replacing the
battery.





The presence of this label, in particular
with the Stop & Start system, indicates
the use of a 12 V lead-acid battery with
special technology and specification;
the involvement of a CITROËN dealer or
a qualified workshop is essential when
replacing or disconnecting the battery.
Failure to observe this recommendation may
cause premature wear of the battery.

After refitting the battery by a
CITROËN dealer or a qualified
workshop, the Stop & Start system will
only be active after a continuous period of
immobilisation of the vehicle, a period which
depends on the climatic conditions and the
state of charge of the battery (up to about
8 hours).
Before charging
The charging operation must be carried
out in a ventilated area away from naked
flames or any possible sources of sparks to
eliminate the risks of explosion and fire.
Do not attempt to charge a frozen battery: it
must first be thawed to eliminate the risks of
explosion. If the battery has frozen, before
charging it have it checked by a specialist
who will check that the internal components
have not been damaged and that the
container is not cracked, which could mean
that there is a risk of a leak of toxic and
corrosive acid.

Before disconnecting
Never disconnect a terminal when the
engine is running.
Before disconnecting the battery, you must
wait for 2 minutes after switching off the
ignition.
Close the windows and doors before
disconnecting the battery.
After reconnecting
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If difficulties are
experienced after this, contact a CITROËN
dealer or a qualified workshop.
If the battery has been disconnected
for some time, it may be necessary to
reinitialise the following functions:


- the display parameters (date, time,
language, distance and temperature
units),

- the radio stations,

- the central locking.
Some settings are cleared and must be
reprogrammed. Contact a CITROËN dealer
or a qualified workshop.

150



Changing a fuse



Table of dashboard fuses, driver's side


Mark

ing


Rating


Functions


F12
7.5 A Right-hand dipped beam headlamp supply

F13
7.5 A Left-hand dipped beam headlamp supply - headlamp height
adjuster

F31
5 A Engine control unit supply switch

F32
7.5 A Front lamp - front courtesy lamp - rear courtesy light lamp

F36
10 A Audio system - mobile telephone pre-equipment - air
conditioning control panel - EODB diagnostic socket

F37
5 A Brake lamp - instrument panel

F38
20 A Door locking

F43
15 A Screenwash pump

F47
20 A Driver's electric window motor supply

F48
20 A Passenger's electric window motor supply

F49
5 A Parking sensors control unit - rear lighting switch -
electric door mirrors - volumetric alarm control unit

F50
7.5 A Airbags control unit

F51
7.5 A Switch on brake pedal - switch on clutch pedal -
door mirror controls - central Bluetooth system

F53
5 A
Instrument panel - rear foglamps

153
7
QUICK HELP



Changing a fuse



Marking


Rating


Functions


F16
7.5 A Engine management control unit - electronic gearbox control unit and gear lever - T20 relay coil

F17
15 A Supply for ignition coil - injectors - engine management control unit (1.3 HDi)

F18
7.5 A Engine management control unit (1.3 HDi) - T09 relay coil

F19
7.5 A Air conditioning compressor

F20
30 A Supply for heated rear screen, electric door mirrors heater elements

F21
15 A Fuel pump (1.4 petrol and 1.3 HDi)

F22
20 A Engine management control unit (1.3 HDi)

F23
20 A ABS hydraulic block electrovalves supply

F24
7.5 A ABS

F30
15 A Foglamps

F81
60 A Pre-heat unit (1.3 HDi)

F82
30 A Electronic gearbox pump - electronic gearbox supply

F84
10 A Electronic gearbox control unit and electrovalves

F85
30 A Cigar lighter - 12 V accessory socket

F87
7.5 A Reversing lamps - water in Diesel sensor - airflow sensor - T02, T05, T14, T17 and T19 relay coils
(except 1.3 HDi)

5 A Reversing lamps - water in Diesel sensor - airflow sensor - T02, To5, T14, T17 and T19 relay coils -
battery state of charge sensor (except 1.3 HDi)

164
Checks

CHECKS


Bleeding water from
the Diesel filter

If this warning lamp comes
on, you must bleed the filter;
otherwise bleed the filter
regularly, every time the engine is
changed.
To remove the water, unscrew the bleed
screw or the water in Diesel sensor, located
at the base of the filter. Operate until all of
the water has flowed out. Then tighten the
bleed screw or the water sensor.
HDi engines use advanced technology. All
work requires specialist knowledge, which
all CITROËN dealers have.


Battery

At the start of winter, have your battery
checked by a CITROËN dealer or a qualified
workshop.


Air filter and passenger compartment
filter
A blocked passenger compartment filter
may reduce the performance of the
air conditioning system and generate
undesirable odours. The replacement
intervals for these components are indicated
in the servicing booklet.
Depending on the environment (dusty
atmosphere...) and the use of the vehicle
(urban driving...), change them twice as
often if necessary, refer to the "Under the
bonnet" section of chapter 7.


Brake pads

Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the brake pad wear,
even between services.
Unless there is a leak on the system, a drop
in the brake fluid level indicates that the
brake pads are worn.


Brake disc/drum wear

For all information on checking the brake
disc/drum wear, contact a CITROËN dealer
or a qualified workshop.


Parking brake

Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer or a qualified workshop.


Oil filter

Change the filter regularly, in accordance
with the servicing schedule.





The presence of this label, in particular with
the Stop & Start system, indicates the use
of a specific 12 V lead-acid battery with
special technology and specification, for
which the involvement of a CITROËN dealer
or a qualified workshop is required when
replacing or disconnecting the battery.
Failure to observe this recommendation may
shorten the life of the battery.

167
8
VISUAL SEARCH



Exterior



EXTERIOR (LIGHT VAN)


Rear lamp, direction indicators, 3rd
brake lamp ............... 41-42, 146-147
Right-hand side:
fuel fi ller cap, fuel tank ................... 156
fuel cut-off ...............................156-157

Load space .............................108-109
Rear doors ......................31, 33, 36-40
Opening/Closing to 180° ........... 37, 39

Number plate lamps ...................... 146

Rear parking sensors ...................... 72

Spare wheel, changing a wheel,
tools .....................................138-140

Towing, lifting ................................. 154
Towbar ....................................131-132
Dimensions .................................58-59

Accessories ............................133-134
Roof rack ....................................... 133

Key, remote control, battery ........31-33
Central locking ..................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card.............................. 34
Alarm ............................................... 35

Wiper blades.................................. 148
Door mirrors ..................................... 46
Side repeater ................................. 145

Front lamps, foglamps, direction
indicators .................. 41-42,143-145
Headlamp beam height adjustment .....42
Changing bulbs.......................143-147

Opening/
Closing doors ...............31, 33, 36-40
Opening the bonnet ....................... 159
Menu - autoclose ................. 37, 39, 70

Brakes, pads.......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................. 114-115
Trajectory control .................... 115-117
Tyres, pressures ............................ 155

168



Exterior



EXTERIOR (COMBI)


Brakes, pads.......................... 162, 164
Hill start assist ................................. 54
Braking assistance ................. 114-115
Trajectory control .................... 115-117
Tyres, pressures .................... 142, 155
Dimensions .................................60-63

Accessories ............................133-134
Roof bars ....................................... 133

Key, remote control, battery ........31-33
Central locking ..................... 31, 37, 39
Opening/Closing front windows ....... 32
Confi dential card.............................. 34
Alarm ............................................... 35

Wiper blades.................................. 148
Door mirrors ..................................... 46
Side repeater ................................. 145

Front lamps, foglamps,
direction indicators .... 41-42, 143-145
Headlamp beam height adjustment .... 42
Changing bulbs.......................143-147

Opening/
Closing doors ...............31, 33, 36-40
Child lock ......................................... 40
Rear windows .................................. 47
Opening the bonnet ....................... 159
Menu - autoclose ................. 37, 39, 70
Right-hand side:
fuel fi ller cap, fuel tank ................... 156
fuel cut-off ...............................156-157

Rear fi ttings ............................ 110-111
Rear doors ......................31, 33, 36-40
Opening/Closing to 180° ........... 37, 39

Number plate lamps ...................... 146

Rear parking sensors ...................... 72

Spare wheel,
changing a wheel,
tools, temporary puncture
repair kit ............... 138-140, 141-142

Towing, lifting ................................. 154
Towbar ....................................131-132


Rear lamps, direction indicators,
3 rd brake lamp
......... 41-42, 146-147
